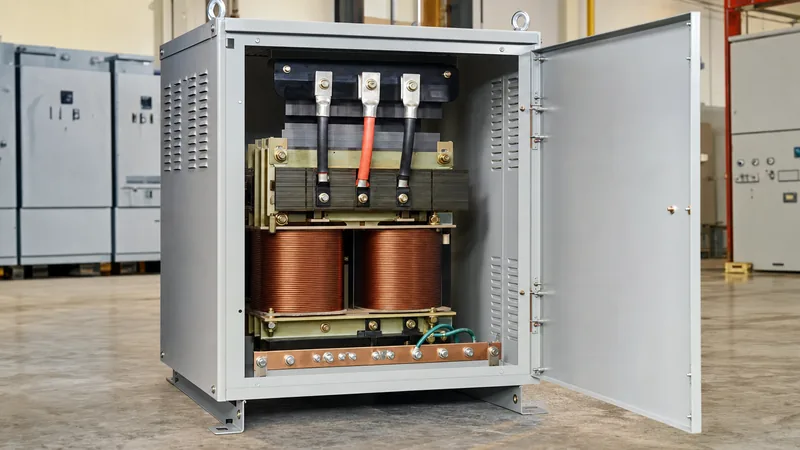

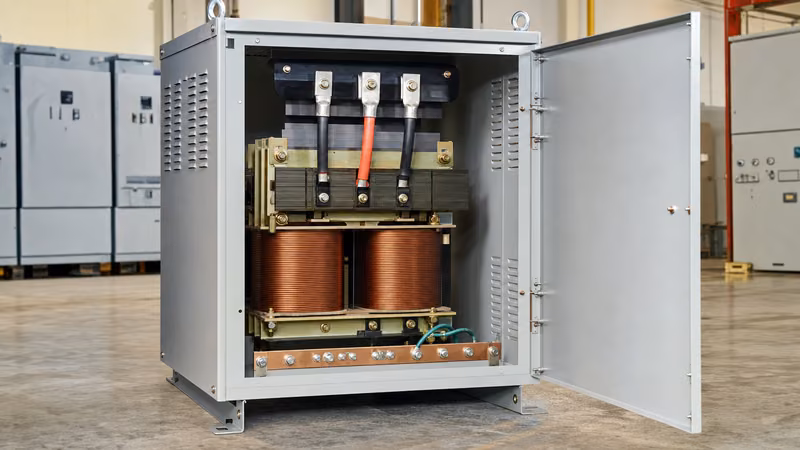

Key takeaways
- A 120 to 240 transformer steps single-phase low voltage up by a 1:2 turns ratio to power European or commercial 220V-240V equipment from standard 110V-120V mains.
- A continuous load calculation requires applying a 125% safety margin under National Electrical Code (NEC) Article 215/430 to prevent thermal overload on the primary winding.
- Autotransformers offer smaller footprints and higher efficiency for basic voltage doubling, but galvanic isolation transformers are mandatory for ground fault separation and code-compliant neutral derivation.
- Frequency remains unchanged across a passive transformer; running 50 Hz rated inductive equipment on a 60 Hz supply increases motor rotational speed by exactly 20%.
- Commercial and industrial units must comply with IEEE C57.12.00 or IEC 60076 standards to guarantee full-load temperature rise limits and short-circuit withstand capabilities.
Quick answer: A 120 to 240 transformer is a single-phase magnetic device engineered with a 1:2 winding turns ratio that steps up an input line voltage of 110V-120V to an output level of 220V-240V at identical operating frequency. It is essential for operating industrial equipment, imported machinery, and HVAC loads from standard single-phase low-voltage utility services.
Across commercial, municipal, and light-industrial facilities, matching nominal electrical equipment ratings to local utility supplies frequently requires stepping up single-phase power. Whether adapting imported process equipment rated for 230V European operation or driving commercial 240V single-phase motors from a dedicated 120V feeder, deploying the correct electromagnetic conversion system ensures operational continuity, prevents premature winding degradation, and complies with standard safety codes.
Operating Principles of a 120v to 240v Step Up Transformer
A 120v to 240v step up transformer functions strictly on Faraday's law of electromagnetic induction, transferring alternating current energy between circuits via magnetic coupling. When an alternating potential difference of 120 volts is applied across the primary winding, it induces a dynamic magnetic flux within a laminated silicon steel or amorphous metal core. To understand the primary electromagnetic pathways and coil configurations, review our detailed breakdown in the Transformers Internal Components Guide.
Because the output voltage is double the input voltage, the turns ratio (Np:Ns) is precisely 1:2. The fundamental relationship is governed by the transformer equation:
Vp / Vs = Np / Ns = Is / Ip
Consequently, to deliver a given power output (kVA) at 240V, the primary 120V winding must draw twice the continuous current of the secondary winding. For example, supplying a 4.8 kVA load at 240V (20 amperes) requires the 120V primary circuit to draw 40 amperes, excluding internal core and copper losses. Selecting the proper conductor cross-section and winding insulation ensures the unit maintains low continuous operating temperatures within standard class 180 (H) or class 220 (R) thermal envelopes.
Voltage Terminology: 110V, 120V, 220V, and 240V Systems Explained
Nominal system voltages such as 110V, 115V, and 120V refer to the same single-phase utility voltage class, while 220V, 230V, and 240V represent the corresponding higher-voltage distribution class. In North American distribution under ANSI C84.1, the standard utility service is delivered at 120V nominal with an allowable utilization range of 114V to 126V (Range A). In historical contexts or overseas distribution grids, nominal supply may be designated as 110V or 220V, which leads buyers to search for a transformer 110v to 220v or a transformer 110 to 220.
Modern power networks operate almost universally at 120V/240V split-phase (North America) or 230V/400V three-phase (IEC territories). A properly wound 120 volt to 240 volt transformer accommodates these small percentage swings safely, provided the total operating flux density in the magnetic core remains below its saturation threshold (typically 1.6 to 1.8 Tesla for cold-rolled grain-oriented silicon steel). For specialized site adjustments that compensate for permanent line drops, exploring our Buck Boost Transformer Guide provides insights into targeted winding modifications.
Isolation Transformer vs Step Up Converter 110v to 220v Autotransformer
An isolation transformer features electrically separated primary and secondary coils, whereas a step up converter 110v to 220v built as an autotransformer shares a single continuous winding tapped at intermediate points. Choosing between galvanic isolation and auto-coupled conversion directly affects personnel safety, short-circuit protection, physical unit weight, and equipment grounding topology.
When deploying a step up and step down voltage converter of the autotransformer type, common-mode electrical noise and utility-side transients transfer directly to the load because there is no physical galvanic barrier. Conversely, a dual-winding 120 to 240 step up transformer isolates the output completely, enabling an engineer to establish a newly derived neutral-ground bond under NEC Article 250.30. Autotransformers are significantly lighter and more economical when only a basic voltage change is needed without isolating ground faults. For broader principles regarding design specifications, review our Step Up Transformer Guide.
| Engineering Parameter | Dual-Winding Isolation Transformer | Step-Up Autotransformer |
|---|---|---|
| Galvanic Isolation | Yes (Electrically isolated circuits) | No (Direct electrical connection) |
| Input / Output Ratio | Fixed 1:2 isolated windings | Single tapped winding (1:2 ratio) |
| Short-Circuit Impedance (%Z) | Standard 3.0% - 5.5% | Very low (typically < 1.5%) |
| Footprint & Weight | 100% baseline weight | Approximately 50% lighter |
| Common-Mode Noise Rejection | High (> 60 dB attenuation) | None (transient pass-through) |
| Safety / Neutral Derivation | Can establish new separately derived system | Must maintain common line ground |
| Typical Applications | Data racks, medical, industrial machinery | Utility tools, heating, simple motor loads |
Sizing a 120 to 240 Transformer: Calculations and Derating
Sizing a 120 to 240 transformer requires calculating the load's full-load apparent power in volt-amperes (VA) or kilovolt-amperes (kVA) and applying continuous run derating factors. Relying solely on real power (watts) leads to severe core and winding overheating when loads have inductive power factors, such as compressors or pumps.
- Determine the load current and voltage: Identify the rated secondary voltage (Vs = 240V) and full-load running amperes (Is) from the load nameplate.
- Calculate baseline apparent power: Multiply secondary voltage by current to obtain apparent power: kVA = (Vs × Is) / 1000. For a 20A, 240V load: (240 × 20) / 1000 = 4.8 kVA.
- Factor in continuous duty limits: If the load runs continuously for three hours or more, apply the 125% factor mandated by NEC Article 215. A 4.8 kVA continuous load requires: 4.8 × 1.25 = 6.0 kVA.
- Account for inductive inrush currents: Electric motors draw starting currents between 500% and 800% of full-load current (Locked Rotor Amperes, or LRA). Ensure the transformer's short-term thermal capacity handles this transient drop without collapsing secondary voltage below 90% of nominal.
For complex installations involving mixed single-phase branches or downstream distribution boards, use our comprehensive Transformer Sizing Calculator Guide to verify thermal rise calculations.
The 50 Hz vs 60 Hz Frequency Trap in 110V to 240V Conversion
A passive 110 to 220 step up converter changes potential difference across its terminals but cannot change the alternating current supply frequency. Equipment imported from regions utilizing 220V-240V at 50 Hz behaves differently when powered from a 60 Hz utility grid, even if the voltage conversion is mathematically exact.
Inductive devices, such as single-phase induction motors, synchronize their shaft rotation to line frequency according to the synchronous speed formula: N = (120 × f) / P, where f is frequency in hertz and P is pole count. Operating a 50 Hz motor on a 60 Hz line causes the rotor to spin 20% faster, which increases centrifugal pump or fan impeller load proportional to the cube of the speed ratio. Conversely, running a 60 Hz transformer on a 50 Hz line increases core magnetic flux density: Bmax ∝ V / f. Operating a 60 Hz designed unit at 50 Hz results in core saturation, excessive eddy current losses, and severe thermal runaway unless the transformer was built with an oversized core rated for dual-frequency (50/60 Hz) operation.
Installation, Grounding, and Overcurrent Protection Wiring Methods
Safe installation of a 120 volt to 240 volt transformer requires strict adherence to overcurrent protection guidelines and grounding rules specified in standards like IEEE C57.12 and NFPA 70. Because input current is twice the output current, primary feeders must be sized appropriately with protective circuit breakers calibrated to avoid nuisance tripping from magnetizing inrush current.
For dry-type transformers installed indoors, follow standard installation practices:
- Primary Feeder Sizing: Conductor sizing must handle 125% of the primary continuous current rating. A 5 kVA unit on 120V draws 41.6A nominal, requiring conductors rated for at least 52A and protected by a 60A breaker.
- Inrush Handling: Primary overcurrent protection devices should feature inverse-time characteristics or motor-start curves capable of withstanding core saturation inrush, which can reach 10 to 12 times rated current for several AC cycles.
- Grounding the Secondary: When wiring an isolation unit to provide a 240V split-phase (120/240V) three-wire secondary, connect the secondary center tap directly to the grounding electrode conductor (GEC) to establish a true system neutral.
- Autotransformer Grounding: Autotransformers must not have an isolated secondary ground bond; the equipment grounding conductor must pass continuously through from the source panelboard to the load chassis.
Next Steps: Specifying and Sourcing
When preparing engineering inquiries or technical requisitions for an industrial single-phase unit, precision prevents costly operational delays. Provide the exact continuous load rating (kVA), primary supply voltage (110V, 115V, or 120V), required output secondary voltage (220V, 230V, or 240V), operating frequency (50 Hz, 60 Hz, or dual 50/60 Hz), and enclosure type (NEMA 1 / IP20 indoor vs. NEMA 3R / IP54 outdoor ventilated).
Explore our industrial range of high-efficiency dry-type transformers and heavy-duty power transformers designed for robust performance. For customized project engineering reviews, tailored wiring schematics, or factory-direct pricing, submit your project schedule through our request a quote page or speak directly with our engineering department via our contact page.
Frequently asked questions
Can a 120 to 240 transformer convert 60Hz to 50Hz?
No, a passive transformer cannot modify the line frequency of an alternating current circuit. It changes terminal voltage solely through electromagnetic induction, so an input frequency of 60 Hz yields an output frequency of exactly 60 Hz regardless of the step-up voltage ratio.
What is the difference between an autotransformer and an isolation transformer?
An isolation transformer features separate primary and secondary windings that physically decouple the circuits to block electrical noise and allow dedicated grounding. An autotransformer utilizes a single tapped winding that shares conductors, making it lighter and cheaper but without galvanic safety isolation.
Can I back-feed a standard 240V to 120V step-down transformer to step up voltage?
Yes, standard transformers are bidirectional, but back-feeding a step-down unit to step up voltage causes higher inrush currents and slight secondary voltage drop. Standard factory compensation turns designed into the secondary winding will cause output voltage to read 3% to 5% below nominal.
Why does a 120V to 240V transformer require heavier input wiring than output wiring?
Because power remains constant across both sides of the transformer, doubling the voltage cuts the secondary current in half. Consequently, the 120V primary circuit draws twice the amperes of the 240V load circuit and requires thicker gauge copper conductors and higher-rated breakers.
How do I calculate the required breaker size for a 120V to 240V transformer?
Calculate full-load primary current by dividing total load volt-amperes by 120V, then multiply that result by 1.25 for continuous loads under standard electrical codes. Always choose a breaker with an inverse-time delay curve to withstand short-duration transformer core inrush current without tripping.
