Key takeaways
- A step up transformer increases alternating voltage from the primary to the secondary winding while decreasing current proportionally in accordance with the conservation of energy.
- The voltage transformation ratio equals the turns ratio ($V_s / V_p = N_s / N_p$), requiring more turns of thinner magnet wire on the secondary winding than on the primary winding.
- In electrical power systems, stepping up generation voltage (e.g. 0.69 kV or 11 kV to 132 kV or 400 kV) cuts transmission line current and reduces $I^2R$ resistive power losses over long distances.
- The primary structural difference between step up and step down units lies in winding placement, thermal dissipation of high-current LV windings, and basic insulation level (BIL) ratings.
- Procuring an industrial or utility step up transformer requires defining the apparent power rating in kVA or MVA, primary/secondary voltage ratings, vector group, impedance percentage (%Z), and cooling class under IEC 60076 or IEEE C57.12.00.
Quick answer: A step up transformer is an electromagnetic device that converts an alternating voltage from a lower value on its primary winding to a higher value on its secondary winding. It operates on mutual electromagnetic induction, raising voltage while decreasing current proportionally to keep total active power constant minus internal core and copper losses.

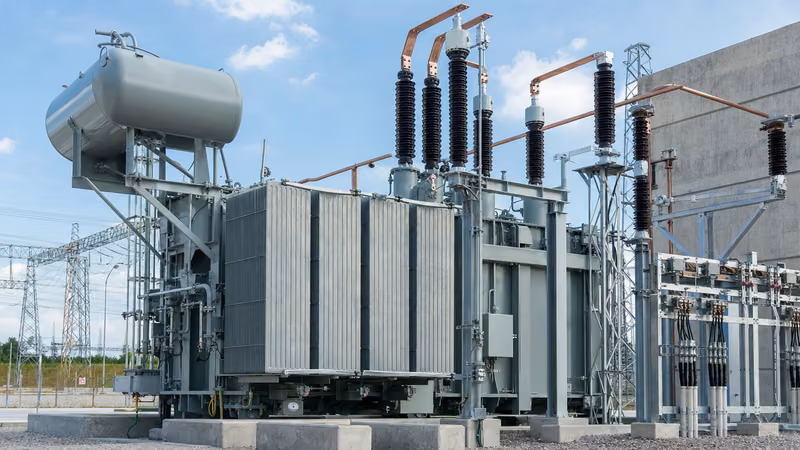

In electrical generation and transmission networks, the step up transformer serves as the critical bridge between energy generation assets and high-voltage transmission corridors. Whether connected to a utility-scale solar inverter skid at 800 V, a wind turbine nacelle generator at 690 V, or a thermal power turbine at 11 kV to 24 kV, stepping up the operating voltage to transmission levels such as 132 kV, 275 kV, or 400 kV minimizes conductor cross-sectional requirements and line transmission losses. Understanding how a step up transformer functions, how it compares to step-down machinery, and how to evaluate its core-and-coil architecture enables plant engineers and procurement teams to specify reliable equipment that complies with international standards such as IEC 60076 and IEEE C57.12.00.
How does a step up transformer work?
A step up transformer operates through Faraday's law of electromagnetic induction, transferring electrical energy between circuits through a shared, time-varying magnetic flux path. When an alternating voltage ($V_p$) is applied to the primary low-voltage (LV) winding, it drives an alternating magnetising current through the winding. This current establishes a continuous, alternating magnetic flux ($\Phi$) within a laminated silicon steel or amorphous metal core. Because the magnetic core links both the primary and secondary coils with high magnetic permeability, this changing flux cuts across the turns of the secondary high-voltage (HV) winding, inducing an electromotive force (EMF) across its terminals.
To define step up transformer performance quantitatively, electrical engineers refer to the ideal transformation ratio:
$$\frac{V_s}{V_p} = \frac{N_s}{N_p} = \frac{I_p}{I_s}$$
Where:
- $V_p$ and $V_s$ represent primary and secondary terminal voltages in volts (V) or kilovolts (kV).
- $N_p$ and $N_s$ represent the number of wire turns on the primary and secondary coils.
- $I_p$ and $I_s$ represent primary and secondary current in amperes (A).
In any functional step up transformer diagram, the secondary coil possesses a higher winding count ($N_s > N_p$) than the primary coil. Consequently, the induced voltage on the secondary side is multiplied by the turns ratio ($n = N_s / N_p > 1$). Because magnetic flux is concentrated inside the core structure, minimal energy is dissipated during magnetic coupling, yielding operational efficiencies between 98.5% and 99.6% in modern grid-scale equipment. Detailed core geometry and magnetic flux characteristics are further explored in our guide to transformer internal components and winding design.
What does a step up transformer step up?
A step up transformer steps up alternating electrical voltage, while simultaneously stepping down the alternating current by an equivalent ratio to obey the law of conservation of energy. It does not step up electrical power or frequency. The total apparent power ($S$) fed into the primary winding, calculated as $S = \sqrt{3} \cdot V \cdot I$ for three-phase systems, must equal the secondary apparent power plus the transformer's internal no-load (core) and load (copper) losses.
The engineering imperative for raising voltage lies in conductor efficiency and thermal mitigation across long transmission distances. Electrical power transmission line losses occur primarily as heat caused by conductor resistance, expressed by the Joule heating equation:
$$P_{\text{loss}} = I^2 \cdot R$$
Because transmission loss increases with the square of the current ($I^2$), doubling the system voltage reduces the current by 50%, which cuts line resistive power losses by 75%. For example, transmitting 50 MVA over a 50-kilometre line at 11 kV requires carrying approximately 2,624 A per phase, requiring massive aluminium conductor steel-reinforced (ACSR) cable cross-sections and suffering severe voltage drops. Stepping up that identical 50 MVA load to 132 kV via a utility electric step up transformer reduces the phase current to roughly 218 A. This 91.7% drop in operating current permits smaller, lighter conductor bundles, lowers civil tower loading, and guarantees stable voltage regulation at the receiving end of the grid, as detailed in our transmission transformer engineering guide.
Difference between step up and step down transformer
The core difference between step up and step down transformer units is their voltage conversion direction and winding configuration relative to the electrical source. While a step up transformer accepts low voltage at high current on its primary winding to deliver high voltage at low current on its secondary, a step down transformer reverses this relationship to supply safe, usable voltages to distribution networks and industrial machinery.
The table below provides a direct technical comparison between both transformer typologies:
| Engineering Parameter | Step Up Transformer | Step Down Transformer |
|---|---|---|
| Turns Ratio ($N_s / N_p$) | Greater than 1.0 ($N_s > N_p$) | Less than 1.0 ($N_s < N_p$) |
| Primary Winding Design | Fewer turns of heavy-gauge copper/aluminium conductor (high current) | More turns of lighter-gauge magnet wire (moderate current) |
| Secondary Winding Design | Higher turn count of smaller-gauge wire with graded insulation barriers | Fewer turns of heavy-gauge strip or foil conductor (high current) |
| Basic Insulation Level (BIL) | Significantly higher on the secondary terminals (e.g. 650 kV BIL for 132 kV) | Significantly higher on the primary terminals (e.g. 95 kV to 170 kV BIL) |
| Typical System Placement | Generating stations, solar farms, wind farms, BESS substations | Substations, commercial distribution, motor control centres, factories |
| Fault Current Dynamics | High mechanical stresses on primary windings under external HV short circuits | Severe radial and axial forces on secondary LV windings under downstream faults |
| Common Vector Group | Ynd11 or Dyn11 (delta on generator/inverter side traps 3rd harmonics) | Dyn11, Dyn5, or Yyn0 (neutral provided on secondary for single-phase loads) |
When comparing step up vs step down transformer construction, the internal coil arrangement usually positions the low-voltage winding closest to the core limb to reduce insulation clearances to the grounded steel, while the high-voltage winding surrounds the LV coil, separated by solid pressboard barriers and oil ducts.
How do step down transformers work and what are they used for?
Step down transformers work on the exact same principles of mutual induction as step up transformers, but they utilize a higher number of turns on the input primary winding than on the output secondary winding ($N_p > N_s$). When the incoming high-voltage waveform excites the primary winding, it induces a proportionally smaller voltage across the secondary winding terminals while expanding available load current capability.
Understanding what are step down transformers used for involves examining the delivery side of the electrical grid topology. Transmission networks transport bulk energy at voltages ranging from 66 kV up to 765 kV. However, end-use industrial motors, process equipment, and commercial facilities cannot safely or economically operate at transmission potentials due to extreme insulation, clearance, and arc-flash requirements. Step down units perform sequential voltage reductions across the grid:
- Transmission to Sub-transmission: Reducing 400 kV or 220 kV down to 66 kV or 33 kV at bulk supply substations.
- Primary Distribution: Stepping down 33 kV or 22 kV to 11 kV or 6.6 kV for municipal and industrial feeders.
- Secondary Distribution: Converting 11 kV or 416 V down to 400 V three-phase / 230 V single-phase utility voltages via liquid-immersed or dry-type transformers, as outlined in our three-phase transformer buyer guide.
- Industrial Machinery: Stepping down 480 V plant power to 120 V or 24 V control circuits for programmable logic controllers (PLCs), contactor coils, and safety interlocks.
Step-by-step procedure: specifying a step up transformer
Specifying a heavy-duty step up transformer requires engineering teams to balance thermal performance, insulation systems, impedance characteristics, and grid-code interconnection rules. Follow these seven consecutive engineering steps when preparing a procurement tender:
- Calculate Continuous and Peak Apparent Power (kVA/MVA): Establish rated capacity ($S$) accounting for ambient temperature de-rating, generation capacity factor, and thermal rise limits (e.g. 55/65 °C for mineral oil or 100/120 °C for Class H dry-type units).
- Define Nominal Primary and Secondary Voltages: State exact line-to-line voltages (e.g. 0.69 kV to 33 kV for renewable generation, or 11.5 kV to 138 kV for conventional turbines) alongside the system frequency (50 Hz or 60 Hz).
- Establish Short-Circuit Impedance (%Z): Select percentage impedance (typically 5.5% to 12.5% depending on MVA rating) in accordance with IEC 60076-5 to limit downstream fault currents without incurring unacceptable voltage regulation drop under full load.
- Select Vector Group and Phase Shift: Specify the appropriate phase displacement (such as Dyn11 or Ynd11) to coordinate with system earth-fault protection relays and attenuate triplen (3rd, 9th, 15th) harmonic currents.
- Specify Tap Changer Requirements: Determine whether an off-circuit tap changer (OCTC, typically ±2 × 2.5%) suffices for steady-state seasonal adjustments, or if an on-load tap changer (OLTC) is mandatory to support dynamic grid voltage control.
- Design the Insulation and BIL Envelope: Define basic impulse insulation levels (BIL) according to IEC 60076-3 or IEEE C57.98 to withstand atmospheric lightning surges and breaker switching transients.
- Select Cooling Classification and Enclosure: Choose between natural or forced circulation cooling classes (ONAN/ONAF for oil-immersed, or AN/AF for cast-resin dry-type) based on environmental hazards, indoor/outdoor installation, and fire safety mandates.
Next steps: specifying and sourcing
Procuring a rugged, reliable step up transformer demands verified engineering data tailored to your plant operating parameters. Before submitting a commercial tender, prepare your single-line diagram (SLD), duty cycle requirements, site elevation, harmonic spectrum, and ambient climatic conditions. Explore our heavy-duty substation power transformers and high-efficiency oil-immersed transformers engineered to IEC and IEEE standards. When you are ready to review project designs, load loss calculations, or budgetary estimates, submit your project specification directly via our transformer quotation portal.
Frequently asked questions
how does a step up transformer work
A step up transformer works by applying an alternating voltage to its primary winding, generating a fluctuating magnetic flux within a laminated steel core. This magnetic flux couples with a secondary winding that has a higher number of turns, inducing a higher output voltage proportional to the turns ratio.
what does a step up transformer step up
A step up transformer steps up alternating voltage while simultaneously reducing output current by the same proportion to conserve total apparent power. It does not step up power, frequency, or energy, as the secondary volt-amperes equal primary volt-amperes minus internal transformer losses.
how do step down transformers work
Step down transformers work on electromagnetic induction by routing alternating current through a primary winding with many turns, creating magnetic flux that induces a lower voltage in a secondary winding with fewer turns. This safely decreases transmission-level voltage to levels suitable for industrial and residential use.
what does a step down transformer do
A step down transformer reduces high transmission or distribution voltages to lower, safer operating voltages for commercial equipment, domestic consumption, and industrial machinery. In doing so, it increases the available current capacity proportionally to support heavy mechanical and consumer loads.
what are step down transformers used for
Step down transformers are used throughout the electrical distribution network to step down transmission voltages (e.g., 132 kV to 11 kV) at municipal substations and lower distribution voltages (e.g., 11 kV to 400 V/230 V) for local power supplies, commercial buildings, factory automation, and control panels.
can a step up transformer be used in reverse as a step down transformer
Yes, standard transformers are bidirectional machines and can function in reverse if connected within rated voltage, frequency, and thermal limitations. However, when back-feeding a transformer, winding tap configurations, compensation for internal voltage drop, and protection relay settings must be evaluated to ensure system stability.
