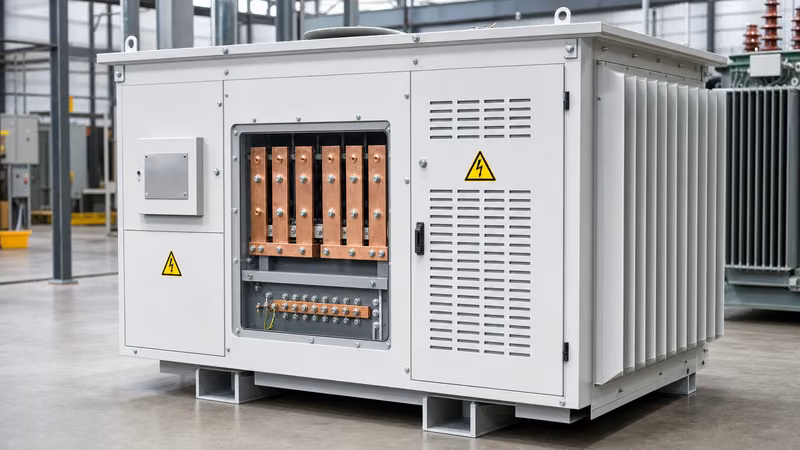

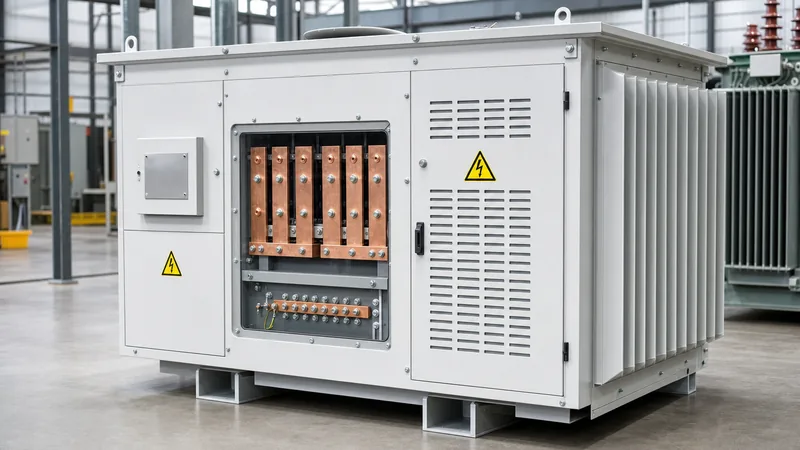

15 kVA Transformer Guide: Sizing, Specs & Calculations

Quick answer: A 15 kVA transformer is an electrical distribution transformer rated for an apparent power output of 15 kilovolt-amperes, stepping down distribution medium voltages or low voltages to consumer levels such as 120/240 V single-phase or 208Y/120 V three-phase. It serves light commercial panels, industrial machinery isolation, and rural utility feeds.

In modern power systems, the 15 kVA transformer occupies a critical position between bulky commercial substations and tiny control units. While larger multi-megavolt-ampere equipment powers entire sites, selecting and integrating a smaller unit requires precise evaluation of circuit phase configurations, short-circuit withstand capabilities, and thermal duty cycles. Understanding the technical boundaries between single-phase and three-phase variants ensures continuous uptime and regulatory compliance under IEEE and IEC frameworks.

For engineers designing localized secondary distribution or auxiliary power networks, reference our single phase transformer guide for baseline winding architectures, core losses, and flux density design criteria.

Core Specifications of a 15 kVA Transformer

A 15 kVA transformer is defined by its thermal dissipation capacity, voltage transformation ratio, basic impulse insulation level (BIL), and internal impedance. Whether built as a dry-type unit or an oil-filled transformer, the fundamental mechanical and electrical parameters conform to IEEE C57.12.00 or IEC 60076-1 standards.

The standard rated capacity of 15 kVA indicates continuous thermal capacity at a nominal frequency of 50 Hz or 60 Hz without exceeding established winding temperature rise limits, typically 80 °C, 115 °C, or 150 °C for dry-type insulation systems, and 65 °C for mineral oil systems. Standard percentage impedance (%Z) typically falls within the range of 1.8% to 3.5% for units of this size, directly governing both the voltage regulation performance under full inductive load and the prospective downstream short-circuit current.

Key design specifications include:

• Apparent Power: 15 kVA continuous at rated ambient temperature (-20 °C to +40 °C).
• Winding Material: Electrolytic copper or high-conductivity aluminium windings with high-temperature aramid, varnish, or paper insulation.
• Dielectric Withstand / BIL: Low-voltage windings typically carry a 10 kV BIL rating, whereas high-voltage distribution primary windings (such as 7.2 kV or 14.4 kV) carry ratings between 60 kV and 95 kV BIL in accordance with IEEE C57.12.20 Table 4.
• Core Architecture: Cold-rolled grain-oriented (CRGO) silicon steel stacked cores or wound cores engineered to reduce no-load hysteresis and eddy current losses.

15kVA Single Phase Transformer vs 15kVA Transformer 3 Phase

The core distinction between a 15kva single phase transformer and a 15kva transformer 3 phase lies in winding topology, phase displacement, and load distribution capabilities. Single-phase models are predominantly engineered for pole-mounting in utility networks or small commercial panel step-down, whereas three-phase units balance power across industrial motor control centres and light three-phase machinery.

A single-phase unit generally features three low-voltage bushings to provide a three-wire split-phase secondary system (120/240 V). This allows 120 V line-to-neutral loads for lighting and office receptacles, alongside 240 V line-to-line single-phase loads. In contrast, a 15 kVA three-phase transformer typically utilises a Delta primary and Wye secondary (Dyn11 in IEC designation or Delta-Wye 30° lag per IEEE standards) to supply 208Y/120 V or 480Y/277 V.

The choice between single-phase and three-phase architecture dictates conductor cross-sections and switchgear sizing, as illustrated below:

Electrical Sizing and Full-Load Current Calculation

Calculating the full-load current of a 15 kVA transformer is essential for proper conductor selection, circuit breaker sizing, and coordination of upstream overcurrent protection. The calculation differs between single-phase and three-phase topologies due to the square root of three factor.

For a single-phase system, rated secondary full-load current ($I_{1\phi}$) is determined using the equation:

$$I_{1\phi} = \frac{S}{V} = \frac{15,000\text{ VA}}{240\text{ V}} = 62.5\text{ A}$$

If supplying a balanced three-phase system at 208 V line-to-line, the line current ($I_{3\phi}$) is calculated as:

$$I_{3\phi} = \frac{S}{\sqrt{3} \times V_{L-L}} = \frac{15,000\text{ VA}}{1.732 \times 208\text{ V}} = 41.63\text{ A}$$

For primary protection, consult NEC Article 450.3(B) or IEC 60947-2. Assuming a 480 V three-phase primary winding feeding a 208Y/120 V secondary:

1. Primary Full-Load Current: $$I_{pri} = \frac{15,000}{1.732 \times 480} = 18.04\text{ A}$$.
2. Primary Overcurrent Device Sizing: NEC 450.3(B) permits an overcurrent protection device (OCPD) rating up to 250% of rated primary current when secondary protection is provided, or up to 125% without secondary protection. Sizing at 125% yields $$18.04 \times 1.25 = 22.55\text{ A}$$. The next standard commercial breaker size up per NEC 240.6 is 25 A.
3. Maximum Available Secondary Fault Current: With an internal impedance ($%Z$) of 2.5%, the prospective symmetrical short-circuit current ($I_{sc}$) at 208 V secondary terminals is: $$I_{sc} = \frac{I_{flc}}{\%Z / 100} = \frac{41.63}{0.025} = 1,665.2\text{ A}$$.

This fault current calculation dictates the minimum interrupting rating (AIR) required for the secondary distribution panelboard breakers.

Dry-Type vs Oil-Immersed 15 kVA Transformer Selection

Selecting between dry-type and oil-immersed construction depends on installation environment, ambient conditions, indoor building safety regulations, and mounting configurations. Both engineering approaches feature distinct thermal, acoustic, and maintenance characteristics.

Indoor commercial settings, multi-story buildings, and sensitive cleanrooms universally mandate dry-type transformers. These units rely on natural air convection (cooling class AN per IEC 60076-11) or forced air (AF). Because they contain no flammable dielectric liquid, they eliminate the need for spill containment berms, fire-rated vault rooms, or dedicated fire suppression systems under NFPA 70 Article 450.21. Modern dry-type designs are housed in NEMA 1 (indoor ventilated), NEMA 3R (outdoor rainproof), or ventilated and weather-resistant enclosures with Class H (180 °C) or Class R (220 °C) insulation systems.

Conversely, utility overhead networks and outdoor utility drop poles use liquid-filled transformers, specifically oil-filled pole-mounted transformers or small padmount enclosures. Fluid-immersed units employ mineral oil (IEC 60296) or high-fire-point synthetic/natural esters (IEC 62770). Fluid immersion provides superior dielectric strength, higher overload thermal margins, and hermetic protection against atmospheric corrosion, salt spray, and moisture. Review our transformer maintenance guide for dielectric fluid testing intervals, dissolved gas analysis (DGA), and routine oil sampling standards.

Installation, Commissioning, and Testing Procedures

Commissioning a 15 kVA transformer requires systematic verification of mechanical integrity, winding insulation resistance, winding ratios, and system earthing before energisation. Adhering to rigorous acceptance procedures prevents catastrophic premature failure caused by transit damage or improper external wiring.

The standard on-site commissioning sequence includes the following steps:

1. Visual and Mechanical Inspection: Inspect enclosure panels, core clamps, terminal blocks, and bushing insulators. Confirm torque specifications on all busbar and cable bolted joints according to manufacturer ratings. Ensure that all shipping brackets and internal packing materials have been removed.
2. Insulation Resistance (Megohmmeter) Testing: Perform DC insulation resistance tests using an insulation tester at 1,000 V DC for low-voltage windings (rated up to 600 V) and 2,500 V DC for high-voltage windings. Apply the voltage between high-to-low windings, high-to-ground, and low-to-ground for a full 60 seconds. Minimum acceptable insulation resistance values should exceed 100 MΩ at 20 °C ambient.
3. Voltage Ratio and Polarity Verification: Measure the turns ratio on all tap positions using a transformer turns ratio (TTR) meter. In accordance with IEEE C57.12.90 clause 6, the measured ratio must not deviate by more than ±0.5% from the nameplate voltage ratings.
4. Winding Resistance Measurement: Measure the DC resistance of each winding phase using a micro-ohmmeter to ensure balance across phases and confirm that no internal termination fractures or turn-to-turn shorts exist.
5. Earthing Verification: Confirm that the transformer tank, core ground strap, and secondary neutral conductor (in grounded wye or split-phase configurations) are securely bonded to the substation or building grounding electrode system in compliance with local electrical safety codes.

For comprehensive step-by-step field verification protocols and testing forms, refer to our detailed technical resource on how to test a transformer.

Next steps: specifying and sourcing

When preparing an RFQ for a 15 kVA transformer, compile clear technical parameters to avoid project delays. Specify rated primary and secondary voltages, phase count, frequency (50 Hz or 60 Hz), winding material (copper or aluminium), enclosure NEMA/IP rating, and specific impedance limitations. Explore our full engineering portfolio of oil-immersed transformers, pole-mounted units, and dry-type isolation systems. For technical data sheets, custom winding designs, or direct factory pricing, submit your project schedule to our engineering department through our request a quote page or contact our application specialists directly.
