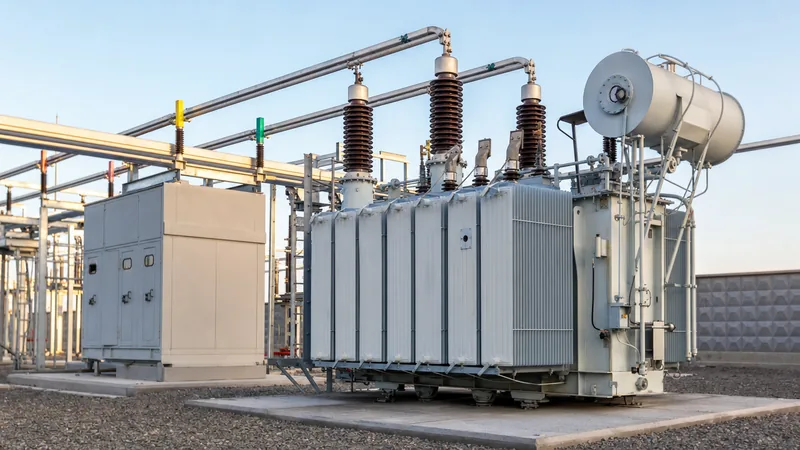

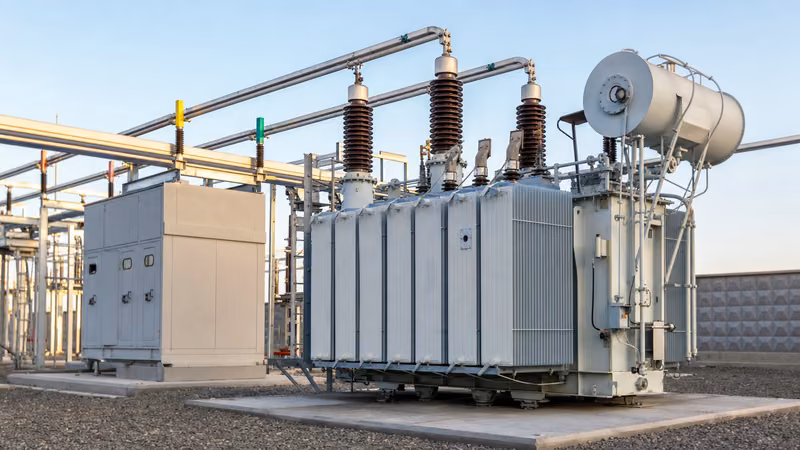

kVA Calculator: Substation & Transformer Sizing Guide

Quick answer: A kVA calculator determines the apparent power rating required for electrical equipment by dividing the product of voltage and operational current by 1,000 for single-phase loads, or multiplying by the square root of three (1.732) for three-phase systems. Sizing an electrical supply requires accounting for power factor, motor inrush currents, harmonic heating, and future plant expansion.

In commercial, industrial, and utility infrastructure projects, selecting an undersized unit leads to catastrophic dielectric thermal breakdown, nuisance protection tripping, and shortened insulation life under thermal stress. Conversely, an oversized unit introduces higher capital expenditure, excessive core excitation no-load losses, and inflated switchgear fault-rating requirements. Consulting an accurate engineering methodology ensures that distribution transformers, packaged substations, and switchgear lineups operate within their designed thermal class and efficiency bands under all operating conditions.

What Does kVA Mean on a Transformer?

The kVA rating denotes kilovolt-amperes, representing the total apparent power capacity an electrical unit can deliver continuously without exceeding its thermal insulation temperature rise limits. While real power measured in kilowatts (kW) performs mechanical work or produces heat, apparent power encompasses both real power and reactive power (kVAR), which energises the inductive magnetic fields found in motors, reactors, and magnetic coils.

The mathematical relationship between real power and apparent power is governed by the operating power factor (PF):

$$\text{kVA} = \frac{\text{kW}}{\text{Power Factor (PF)}}$$

Manufacturers rate windings in apparent power rather than real power because copper heating ($I^2R$) depends strictly on total current flow, whereas core dielectric loss depends directly on applied system voltage. The manufacturer cannot predict the variable power factor of downstream facility loads. Consequently, according to IEC 60076-1 clause 4, nameplate capacity must state apparent power under continuous nominal voltage and sinusoidal frequency conditions. When planning industrial installations, engineers review the 3 Phase Transformer Guide to understand how different winding configurations handle inductive power factors.

Single Phase vs Three Phase kVA Calculator Formulas

Calculating apparent power requires selecting the correct mathematical formula based on whether the electrical distribution network is configured as single-phase or three-phase. Using the wrong formula introduces an immediate 42.3 percent sizing error caused by the missing square root of three constant.

For single-phase installations, apparent power is calculated using the line-to-neutral or line-to-line terminal voltage and total continuous line current:

$$\text{kVA}_{\text{1-phase}} = \frac{V \times I}{1000}$$

For balanced three-phase systems, total capacity incorporates the three sinusoidal phase displacements operating at 120 electrical degrees, requiring the line-to-line voltage ($V_{L-L}$) and phase line current ($I_L$):

$$\text{kVA}_{\text{3-phase}} = \frac{\sqrt{3} \times V_{L-L} \times I_L}{1000} = \frac{1.73205 \times V_{L-L} \times I_L}{1000}$$

When operating a three phase transformer calculator in reverse to determine the full-load current rating on secondary switchgear busbars, the formula rearranges as follows:

$$I_L = \frac{\text{kVA} \times 1000}{\sqrt{3} \times V_{L-L}}$$

Engineers integrating medium-voltage substations can cross-reference calculations against the principles detailed in our Substation Transformer Guide to ensure primary and secondary feeder sizing matches protection clearing limits.

Transformer Calculation Table: Full-Load Current Ratings

A transformer calculation table provides immediate line current values across standard industrial operating voltages to streamline equipment selection and cable feeder sizing. The table below lists standard full-load amperes across typical three-phase operating voltages calculated at continuous rated apparent power capacity in accordance with IEEE C57.12.00 Table 5.

For non-standard line voltages, project teams utilise an automated transformer sizing calculator workflow to evaluate impedance limits and withstand ratings before issuing factory fabrication tenders.

Worked Engineering Example: Sizing a Factory Substation

A practical engineering sizing exercise demonstrates how diversity, continuous loads, and motor starting characteristics affect the final nameplate requirement. Consider an industrial manufacturing facility connected to a 400 V three-phase, 50 Hz secondary distribution system with the following active connected load profile:

• Linear resistive heating and processing load: 180 kW at 1.0 PF (continuous).
• Fluorescent and LED facility lighting: 45 kW at 0.90 PF lagging (continuous).
• Variable air conditioning and HVAC chillers: 120 kW at 0.82 PF lagging (non-continuous, diversity factor 0.80).
• Primary direct-on-line (DOL) induction motor: 110 kW mechanical shaft output, 93 percent operating efficiency, 0.86 running PF, drawing 6.0 times full-load current during start-up.

The calculation sequence proceeds through five rigorous stages:

1. Convert real power loads to apparent power:
   Resistive load: $S_1 = 180 / 1.0 = 180.0\text{ kVA}$.
   Lighting load: $S_2 = 45 / 0.90 = 50.0\text{ kVA}$.
   HVAC load (with diversity applied): $S_3 = (120 \times 0.80) / 0.82 = 117.1\text{ kVA}$.
   Induction motor running input: $P_{\text{elec}} = 110 / 0.93 = 118.3\text{ kW}$; $S_4 = 118.3 / 0.86 = 137.5\text{ kVA}$.
2. Apply statutory continuous load safety margins:
   In accordance with NFPA 70 (NEC) Article 215, apply a 125 percent continuous rating factor to the base lighting and process loads: $(180.0 + 50.0) \times 1.25 = 287.5\text{ kVA}$.
3. Calculate steady-state total apparent power:
   Summing operational loads yields $S_{\text{running}} = 287.5 + 117.1 + 137.5 = 542.1\text{ kVA}$.
4. Check motor starting voltage drop constraints:
   The 110 kW motor exhibits a running line current of $I_n = 137,500 / (1.732 \times 400) = 198.5\text{ A}$. Starting across the line draws $198.5 \times 6.0 = 1,191\text{ A}$, representing an instantaneous apparent demand of $825.2\text{ kVA}$ at a low starting power factor of 0.30. To maintain bus voltage within IEEE 141 limits (maximum 10 to 15 percent bus sag during starting), total base capacity should comfortably buffer transient inrush.
5. Factor growth expansion headroom:
   Applying a standard 20 percent spare capacity margin for future production lines: $542.1 \times 1.20 = 650.5\text{ kVA}$.

Selecting the next standard rating from the preferred IEC series yields a 800 kVA distribution unit. Choosing an 800 kVA rating ensures that nominal steady-state load sits at 67.8 percent of rated capacity, which aligns directly with the peak efficiency operating zone for contemporary wound cores. For more theoretical context on how loading patterns affect losses, review our Transformer Sizing Calculator Guide.

How to Size a Transformer Chart: Load Profiles and Growth Factors

A how to size a transformer chart provides a visual reference linking operating continuous loads to design allowances for growth, harmonics, and ambient derating. Sizing requires adjusting raw nameplate consumption through deterministic derating criteria defined by environmental and load characteristics.

When selecting distribution equipment based on these criteria, engineers verify that upstream feeder protection complies with the fault clearing guidelines outlined in our Transformer Protection Engineering Guide.

Converting Amperage to kVA in Industrial Networks

Converting amperage to kVA is an everyday task during site audits, generator installations, and load additions to existing switchboards. Because field technicians typically measure current with clamp-on ammeters, calculating the true apparent load requires accurate line voltage measurements.

For a balanced three-phase 480 V industrial branch circuit drawing 360 amperes per phase, the conversion proceeds as follows:

$$\text{kVA} = \frac{\sqrt{3} \times 480\text{ V} \times 360\text{ A}}{1000} = \frac{1.73205 \times 480 \times 360}{1000} = 299.3\text{ kVA}$$

When load imbalances exist across phases, calculating apparent power cannot be performed using a simple phase average. Under asymmetric loading, individual phase volt-amperes must be evaluated independently and summed:

$$\text{kVA}_{\text{total}} = \frac{(V_{A-N} \times I_A) + (V_{B-N} \times I_B) + (V_{C-N} \times I_C)}{1000}$$

Severe phase imbalance creates circulating zero-sequence currents inside delta tertiary windings or unbalances neutral points in star connections, generating localized hotspot temperatures that degrade insulation paper in accordance with IEC 60076-7 thermal models.

Practical Derating: Ambient Temperature, Altitude, and Harmonics

Standard transformer ratings apply strictly to standard operating conditions, defined under IEC 60076-1 as an ambient temperature not exceeding 40 °C (with a 30 °C monthly average) and an installation altitude below 1,000 metres above sea level. When operating outside these limits, a design derating factor must be applied.

• Ambient Temperature Derating: For ambient air temperatures exceeding 40 °C, reduce usable rating by 1.0 percent for oil-immersed units and 1.5 percent for dry-type units for each degree Celsius above standard limits.
• Altitude Derating: At altitudes above 1,000 metres, thinner air reduces convective thermal cooling and dielectric clearance breakdown voltage. In accordance with IEEE C57.96, dry-type equipment capacity must be derated by 0.3 percent for every 100 metres above the initial 1,000-metre threshold unless designed with custom cooling radiators.
• Harmonic K-Factor Correction: Non-linear loads such as variable frequency drives (VFDs) generate harmonic currents that dramatically elevate eddy-current losses in windings and stray losses in structural clamping steel. Operating standard equipment under non-linear loads requires applying a K-factor rated unit or applying ANSI/IEEE C57.110 derating curves:

$$I_{\text{max}} (\text{pu}) = \sqrt{\frac{P_{\text{LL-rated}}}{1 + K \times P_{\text{EC-R}}}}$$

Neglecting these environmental and electrical derating criteria when using a baseline kva amperes calculator leads to premature winding failure and oil dielectric breakdown.

Standard Three Phase Transformer Sizes and Selection Checklist

Procuring distribution plant requires selecting preferred ratings established by regional supply authorities and global manufacturing standards. Selecting standard non-custom capacities shortens factory production cycles, lowers spare part inventory costs, and simplifies interchangeability.

Common preferred three-phase capacities encompass: 15, 30, 45, 75, 112.5, 150, 225, 300, 500, 750, 1000, 1250, 1500, 2000, 2500, 3150, 4000, and 5000 kVA.

When finalising technical procurement schedules, project managers should verify their sizing against this engineering checklist:

1. Primary and secondary voltage specification: Confirm nominal line voltages, insulation basic impulse level (BIL), and vector configuration (e.g., Dyn11, Ynd11).
2. Calculated steady-state maximum apparent demand: Ensure total continuous load includes the mandatory 125 percent safety factor on continuous branch circuits.
3. Peak motor starting parameters: Confirm maximum allowable voltage drop on the secondary bus during across-the-line starting of the largest motor.
4. Winding material selection: Specify high-conductivity electrolytic copper (Cu) or electrical-grade aluminium (Al) based on site fault level dynamics and capital budget.
5. Impedance voltage (%Z): Balance fault current limitation against acceptable secondary load voltage regulation, typically 4.0 to 6.0 percent for units under 2,500 kVA per IEC 60076-5.
6. Harmonic environment: Specify standard K-1, or enhanced K-4, K-13, or K-20 construction where non-linear harmonic distortion exceeds five percent THD.

Next Steps: Specifying and Sourcing

Accurate apparent power calculations are the foundation of reliable substation layout, switchgear protection coordination, and long-term facility resilience. When preparing an inquiry for new capital equipment, provide your single-line diagram, nominal operating voltages, duty cycle profile, and ambient site parameters to our engineering team.

Explore our manufactured solutions, including integrated transformer substations, high-efficiency oil-immersed distribution transformers, and cast-resin dry-type transformers tailored to IEC, IEEE, and ANSI specifications. For detailed technical reviews or formal equipment tenders, submit your schedule of requirements directly through our transformer quotation portal or get in touch via our engineering contact page.
