208 to 480 Transformer Guide: Sizing, Wiring & Specs

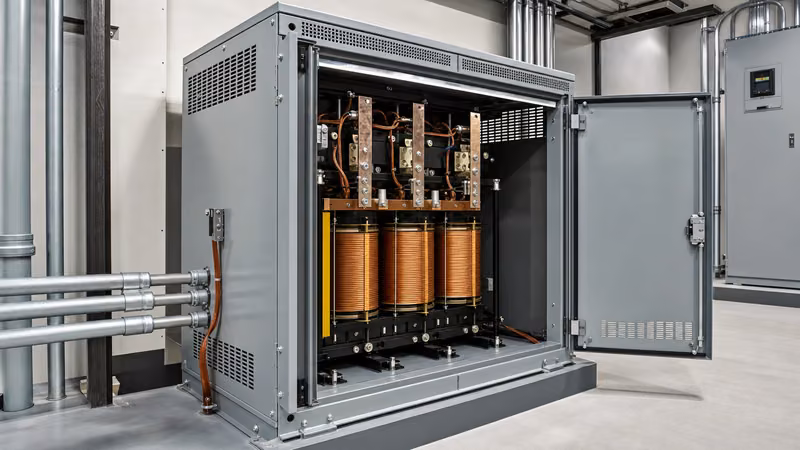

Quick answer: A 208 to 480 transformer is a three-phase step-up electrical transformer engineered to convert standard 208Y/120 V commercial mains power into 480 V or 480Y/277 V industrial-grade distribution voltage. It enables commercial building tenants and light industrial facilities to operate heavy process machinery, large motors, and imported equipment without requiring an expensive utility service upgrade.

In North American commercial facilities, utility supply is routinely delivered as a 208Y/120 V, four-wire, three-phase network. While this provides 120 V line-to-neutral power for lighting and standard receptacles alongside 208 V line-to-line power for light equipment, major industrial loads—such as water chillers, air compressors, industrial ovens, and CNC machinery—predominantly require three-phase 480 V. Sizing and installing a dedicated 3-phase step-up transformer bridges this voltage gap efficiently on-site.

Why Install a Step Up Transformer 208 to 480 3 Phase?

A step up transformer 208 to 480 3 phase is installed when the existing electrical service cannot deliver the 480 V potential required by modern three-phase industrial loads. Upgrading utility transformers and service entrance switchgear through the local power supplier frequently entails substantial capital expense, civil trenching, and utility permitting delays spanning several months.

By deploying an on-site step-up transformer, facility engineers can retain their existing 208 V service infrastructure while establishing a localised 480 V sub-distribution network. The 480 V operating level reduces running current by roughly 57% compared to 208 V for an identical power demand ($P = \sqrt{3} \times V \times I \times \cos\theta$). This reduced operating amperage allows smaller conductor cross-sections, minimises branch circuit voltage drop over extended cable runs, and reduces thermal losses across switchgear components.

For facilities deploying process equipment alongside renewable infrastructure or battery energy storage, stepping up lower voltages to a 480 V bus simplifies integration with standard industrial inverters and auxiliary power networks. Understanding the structural differences outlined in our dry-type transformer guide helps operators determine whether ventilated dry-type enclosures or sealed liquid designs suit their physical plant.

Reverse-Feeding vs Purpose-Built 208V to 480V Step Up Transformers

Installing a purpose-built 208v to 480v step up transformer is the recommended engineering practice because reverse-feeding standard 480 V Delta to 208Y/120 V step-down transformers creates severe operational and safety hazards. Although standard magnetic induction operates bidirectionally, transformers are wound specifically to mitigate leakage reactance, core saturation, and regulation drops when energised from their design primary winding.

When a standard step-down transformer is back-fed from the low-voltage (208 V) side, three principal challenges arise:

• High inrush currents: The inner low-voltage winding is positioned closest to the core steel. Energising this winding produces an excitation inrush current between 10 and 15 times the full-load amperage (FLA), routinely causing upstream circuit breakers to nuisance-trip unless fitted with high-threshold magnetic trips.
• Tap unsuitability: Off-circuit primary taps (+2.5%, -2.5%, etc.) are engineered into the high-voltage winding. In a reverse-fed arrangement, adjusting these taps adjusts the output voltage rather than compensating for input supply variations, complicating line-voltage regulation.
• Floating neutral and grounding violations: Standard step-down units feature a Delta primary and Wye secondary. Back-feeding 208 V into a Wye winding leaves a floating neutral if not properly isolated, or creates common-mode harmonics and circulating currents if connected incorrectly, violating National Electrical Code (NEC) Article 250.30 standards for separately derived systems.

Purpose-built step-up units avoid these failures by employing a 208 V Delta primary and a 480Y/277 V secondary with full-capacity compensation taps located directly on the energised primary winding.

208 to 480 3 Phase Transformer Wiring Diagram and Vector Configurations

A 208 to 480 3 phase transformer wiring diagram demonstrates the winding topology, conductor terminations, and equipment grounding bonds required for safe operation. The standard industrial configuration utilises a Delta primary winding (H1, H2, H3 or X1, X2, X3 depending on manufacturer primary designations) supplied by 208 V line-to-line conductors, coupled with a Wye secondary winding delivering 480 V line-to-line and 277 V line-to-neutral.

Reviewing our delta-y transformer guide highlights how this configuration naturally isolates utility harmonics and prevents zero-sequence currents from passing upstream. In this configuration, the secondary winding features four terminal points: phases A, B, and C, plus a common neutral point designated as X0.

To comply with NEC Article 250.30, the X0 terminal must be bonded to the transformer enclosure grounding lug and connected directly to the facility grounding electrode conductor (GEC). This establishes a stable zero-volt reference, preventing dangerous floating phase-to-ground potentials and ensuring that secondary ground faults promptly trip downstream protective devices. Proper schematic interpretation can be reviewed in detail in our transformer wiring diagram guide.

Standard Sizing, Full-Load Current, and Specifications Table

Calculating full-load amperage ensures proper selection of cable gauges, lug capacities, and overcurrent protective devices (OCPD) for both primary and secondary circuits. The standard three-phase current formula is:

$$I = \frac{\text{kVA} \times 1000}{\sqrt{3} \times V}$$

Because the primary voltage (208 V) is significantly lower than the secondary voltage (480 V), primary running current is approximately 2.31 times higher than secondary current. The table below lists standard kVA ratings for 208 V to 480 V step-up units, alongside calculated full-load currents and typical protective sizing parameters in accordance with IEEE C57.12 and NEC requirements.

Step-by-Step Installation and Commissioning Procedure

Installing a step up transformer 208 to 480 requires systematic mechanical placement, rigorous torque verification, and pre-energisation insulation testing. Follow this sequential engineering procedure:

1. Siting and clearance inspection: Position the unit on a flat, non-combustible concrete housekeeping pad or structural platform. Ensure a minimum of 150 mm (6 inches) perimeter clearance from walls and adjacent machinery to maintain unhindered convection cooling through enclosure ventilation louvres.
2. Enclosure and core grounding: Connect the main grounding electrode conductor directly to the internal ground bar. For 480Y/277 V secondary connections, install the bonding jumper from the neutral terminal (X0) to the enclosure ground terminal before terminating phase conductors.
3. Primary 208 V conductor termination: Route the three 208 V phase conductors (L1, L2, L3) through the lower side panels to avoid blocking top ventilation. Terminate into the primary Delta lugs using a calibrated torque wrench matching the manufacturer's specified Newton-metre (Nm) ratings.
4. Secondary 480 V conductor termination: Land the secondary phase conductors on the output terminals. Verify phase rotation using a phase sequencing meter to prevent reverse rotation on downstream three-phase motors.
5. Pre-energisation testing: Perform insulation resistance (Megohmmeter) testing at 1000 V DC between primary-to-secondary, primary-to-ground, and secondary-to-ground. Readings must exceed 100 megohms under ambient baseline conditions per NETA/IEEE C57 guidelines.
6. Voltage verification under no-load: Energise the primary circuit and measure output voltages across all secondary phase pairs (A-B, B-C, C-A should read ~480 V) and phase-to-neutral pairs (A-N, B-N, C-N should read ~277 V). Adjust primary taps if incoming line voltages deviate significantly from nominal.

Next steps: specifying and sourcing

When specifying a three-phase step-up transformer for industrial machinery, accurate technical documentation guarantees reliable operation. Prepare your project parameters including total connected continuous load (kVA or kW), motor starting inrush requirements, enclosure ratings (NEMA 1 indoor, NEMA 3R rainproof, or NEMA 4X corrosive), and desired coil metallurgy (electrolytic copper or electrical-grade aluminium).

Explore our engineering capabilities across industrial dry-type transformers and substation-grade oil-immersed transformers. For bespoke vector groups, specialised impedance ratings, or harsh-environment applications, submit your single-line diagram and load schedule to our application engineers via our transformer quotation page or direct enquiry at our technical contact portal.
