220 to 3 Phase Conversion: Engineering & Sizing Guide

Quick answer: Converting 220 to 3 phase power requires an active phase synthesis device—such as a rotary phase converter, a variable frequency drive (VFD), or a digital phase converter—because standard passive transformers cannot split a single AC sine wave into three separate phases displaced by 120 electrical degrees. When industrial equipment demands 380V, 400V, or 480V, engineers combine a 220 to 3 phase converter with a dry-type step-up transformer to deliver stable three-phase distribution from a standard single-phase mains supply.

Light-industrial workshops, rural manufacturing sites, and commercial facilities frequently have access to a single-phase 220V or 240V utility feed but require three-phase power to operate CNC machining centres, hydraulic pumps, compressors, and packaging lines. While a utility service upgrade to native three-phase supply can involve significant civil work, substation installation fees, and extended utility lead times, establishing on-site phase synthesis offers a cost-effective alternative. Understanding how to engineer, size, and protect this conversion train prevents equipment overheating and nuisance protective tripping.

Can a Transformer Alone Convert 220 to 3 Phase?

A passive transformer cannot convert single-phase 220V to three-phase power without an external phase-generating mechanism. According to Faraday's law of electromagnetic induction, a single-phase primary winding generates an alternating magnetic flux along a single spatial axis inside the magnetic core. This alternating flux can induce secondary voltages at different magnitudes—such as stepping 220V up to 480V or down to 110V—but all induced secondary windings remain strictly in phase or 180 degrees out of phase with the primary supply.

Three-phase systems require three distinct sinusoidal alternating voltages of equal magnitude, each displaced by exactly 120 electrical degrees (2π/3 radians). Generating this balanced temporal and spatial shift requires either rotating mechanical inertia (as seen in rotary converters) or semiconductor switching using insulated-gate bipolar transistors (IGBTs) within an inverter circuit. While engineers can review how to change single phase to three phase across utility networks, field conversions on 220V circuits rely on an active converter upstream or downstream of a standard transformer. National Electrical Code (NEC / NFPA 70) Article 455 specifically governs these phase converter installations, mandating dedicated disconnect means and overcurrent protection sized for converter input currents.

Core Methods: Selecting a 220 to 3 Phase Converter System

Engineers evaluate three primary technologies when selecting a 220 to 3 phase converter: rotary phase converters, variable frequency drives, and digital solid-state converters. The optimal selection depends on whether the load consists of a single induction motor, multiple cycling motors, or sensitive electronic equipment containing microprocessors and switch-mode power supplies.

The following comparison outlines the operating characteristics of each conversion topology when fed from a nominal 220V single-phase circuit:

Static converters use start capacitors and a potential relay to jump-start a three-phase motor on single-phase power, disconnecting once up to speed; this leaves the motor running on single-phase current at roughly 66% of its rated mechanical capacity. For comprehensive plant distribution, rotary converters and digital converters are preferred. Rotary systems utilise a modified induction generator idler to synthesise the third leg of power, providing superior physical resilience against high starting currents. In contrast, digital solid-state converters utilise high-speed digital signal processors (DSPs) to generate a pure sine wave on the third line, maintaining voltage balance within 1% regardless of load fluctuations.

Combining Phase Converters with Step-Up Dry-Type Transformers

Industrial equipment built for European, Asian, or North American commercial standards frequently requires nominal operating voltages higher than the 220V three-phase output produced by basic converters. Standard phase conversion of a 220V single-phase feed yields a 220V three-phase delta or 220V three-phase wye output, whereas industrial machinery typically demands 380V, 400V, or 480V line-to-line, as detailed in our guide to common 3 phase voltages.

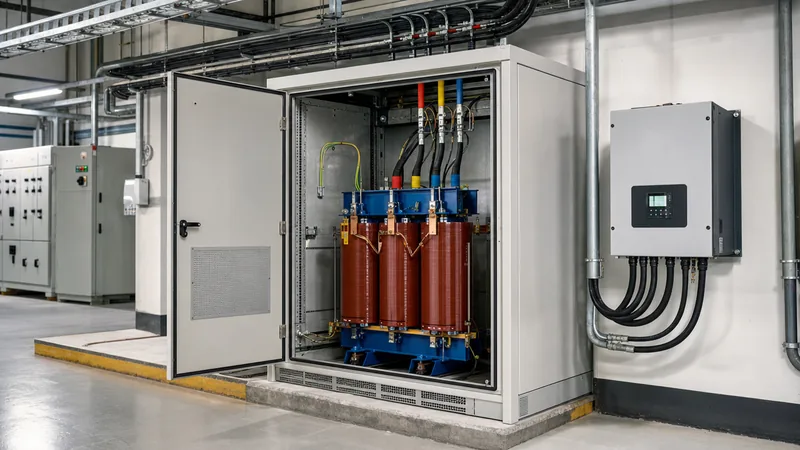

To power these higher-voltage loads, engineers place a three-phase step-up dry-type transformer directly on the output of the converter. The system architecture functions through two alternative arrangements:

• Low-Voltage Conversion with Step-Up Distribution: The 220V single-phase supply feeds the phase converter directly. The resulting 220V three-phase output enters the primary delta winding of a step-up transformer, which delivers 400V or 480V three-phase wye (with an accessible neutral) to the distribution panel. This is the industry-standard approach for multicarrier facilities operating under 480V 3 phase power configurations.
• Step-Up Single-Phase with High-Voltage Conversion: A single-phase transformer steps 220V up to 400V or 480V single-phase first, which then enters a high-voltage phase converter. This topology is rarely chosen because high-voltage single-phase converters command substantial price premiums and experience higher component dielectric stress.

When selecting the distribution transformer, engineers specify an isolation transformer with electrostatic shielding between primary and secondary windings. This screen attenuates common-mode electrical noise and high-frequency switching transients originating from solid-state converter drives or rotary idler arcing, protecting sensitive PLCs and servo drives on the load side.

Worked Engineering Calculation: Sizing the Supply, Converter, and Transformer

Calculating equipment ratings for a 220 to 3 phase conversion system requires accounting for phase conversion current multipliers, power factor, transformer core losses, and motor starting inrush currents. The electrical demand on the single-phase utility mains is substantially higher than the downstream three-phase nameplate ratings.

Consider a practical engineering design scenario for an industrial machine shop operating a 15 kW (20 HP) aggregate CNC milling machine load requiring a 400V, 50 Hz three-phase supply, powered from a single-phase 220V, 50 Hz mains connection.

Step 1: Calculate Three-Phase Full Load Amperage (FLA)

Assuming a motor operating power factor (cos φ) of 0.85 and an electrical efficiency (η) of 90% (0.90):

P_in = P_out / η = 15 kW / 0.90 = 16.67 kW

S_3ph = P_in / cos φ = 16.67 kW / 0.85 = 19.61 kVA

I_3ph = S_3ph / (√3 × V_LL) = 19,610 VA / (1.732 × 400 V) = 28.31 A

Step 2: Size the Three-Phase Step-Up Transformer

Per IEC 60076-1 clause 5.4, continuous transformer sizing must incorporate a safety margin for thermal ambient conditions and potential harmonic content. Applying a standard 1.25 continuous engineering factor:

S_transformer = 19.61 kVA × 1.25 = 24.51 kVA

A standard 25 kVA or 30 kVA three-phase dry-type transformer (220V Delta Primary / 400V Wye Secondary) is selected. Engineers can verify these calculations against our 3 phase calculator guide.

Step 3: Size the 220 to 3 Phase Converter

The converter must handle the full apparent power (kVA) of the transformer plus its internal energisation magnetising inrush. For a digital converter, rating matches continuous load kVA plus 20% headroom (minimum 25 kVA / 30 HP rating). For a rotary converter running high-inertia spindles, the idler motor rating must be oversized by 1.5x to 2.0x of the largest individual motor starting across-the-line to prevent inductive voltage collapse.

Step 4: Calculate Single-Phase 220V Supply Current

By the principle of conservation of energy, total power drawn from the 220V single-phase utility equals the output power divided by the total system efficiency (converter efficiency η_conv ≈ 0.94, transformer efficiency η_trans ≈ 0.97, overall system power factor PF_1ph ≈ 0.92):

P_utility = P_in / (η_conv × η_trans) = 16.67 kW / (0.94 × 0.97) = 18.28 kW

S_utility = P_utility / PF_1ph = 18.28 kW / 0.92 = 19.87 kVA

I_1ph = S_utility / V_1ph = 19,870 VA / 220 V = 90.32 A

Per NEC Article 455.6(A), the single-phase input supply conductors and circuit breaker must be sized to not less than 125% of the converter's rated single-phase input current:

I_breaker = 90.32 A × 1.25 = 112.9 A

Consequently, an upstream 125 A circuit breaker and 35 mm² (or 1 AWG copper) single-phase cabling must be allocated at the 220V distribution board.

Step-by-Step Installation and Commissioning Procedure

Commissioning a complete phase converter and step-up transformer system requires systematic electrical verification to ensure operator safety and avoid equipment damage. Follow this rigorous installation sequence:

1. Upstream Capacity and Protection Verification: Confirm that the 220V single-phase service entrance, main feeder breaker, and cable cross-section can sustain the calculated continuous current (125% of full-load conversion draw) without exceeding thermal limits per IEC 60364-5-52.
2. Mechanical Positioning and Environmental Check: Mount the converter and dry-type transformer in a clean, dry, well-ventilated enclosure or electrical room. Maintain minimum manufacturer clearances (typically 150 mm to 300 mm) around transformer cooling louvres to prevent thermal derating.
3. Primary Single-Phase Termination: Connect the 220V line and neutral (or Line 1 and Line 2 on split-phase systems) to the converter input terminals via a lockable local isolator. Bond the protective earth (PE) conductor directly to the main grounding terminal busbar in accordance with IEC 60364-4-41.
4. Interconnecting Step-Up Transformer: Wire the converter's synthesised 220V three-phase output (T1, T2, T3) to the primary delta terminals (H1, H2, H3) of the step-up transformer using appropriately rated flexible motor-rated or copper cables.
5. Secondary Distribution and Neutral Grounding: Connect the transformer secondary wye terminals (X1, X2, X3) to the three-phase distribution board. Establish a solid neutral-earth bond at the secondary neutral (X0) terminal if creating a separately derived TN-S four-wire system, conforming to local electrical codes.
6. Unloaded Energisation and Voltage Balance Testing: Close the input breaker without downstream load connected. Measure line-to-line voltages across each phase pair and line-to-neutral voltages using a calibrated true-RMS multimeter. Verify that phase voltage imbalance is strictly under 1.5%.
7. Phase Rotation Verification: Utilise a handheld phase rotation meter at the downstream panel to confirm clockwise phase sequence before energising motors, avoiding reverse mechanical rotation.
8. Full-Load Thermal and Acoustic Inspection: Apply machinery loads incrementally while monitoring phase current balance, converter temperature, and transformer core vibration. Retorque all terminations after 24 hours of thermal cycling.

Mitigating Voltage Imbalance and Harmonics Under Load

Voltage unbalance is the most frequent operational failure mode observed in rotary and static 220 to 3 phase converter systems. In an ideal three-phase supply, the voltage vectors remain identical in amplitude and symmetrical in spacing. However, because a phase converter synthesises the third line (often designated the 'manufactured' or 'wild' phase) through electromagnetic induction or capacitor switching, load changes directly alter that line's voltage drop.

The National Electrical Manufacturers Association (NEMA MG 1-2021 Table 31-1) mandates that electric motors should not operate continuously with a voltage unbalance exceeding 1% without formal engineering derating. Voltage unbalance percentage is calculated using the standard formula:

Voltage Unbalance (%) = (Maximum Deviation from Mean Voltage / Mean Line-to-Line Voltage) × 100

When voltage unbalance reaches 3%, negative-sequence currents circulate inside an induction motor's rotor, producing reverse torque, excessive core heating, and accelerated winding insulation breakdown. Under a 3% unbalance, the motor must be derated to 90% of its rated mechanical capacity; at 5% unbalance, motor operating temperatures increase by more than 50%, invalidating motor warranties.

To mitigate these effects, engineers implement active voltage balancing networks using motor-run capacitor banks tuned across manufactured phases. When integrating digital converters or VFD-based systems, harmonic currents inject total harmonic distortion (THD) back into the single-phase supply. Installing line reactors (3% or 5% impedance) or passive harmonic filters on the 220V supply side suppresses harmonic emissions, ensuring compliance with IEEE 519 and IEC 61000-3-2 limits.

Next Steps: Specifying and Sourcing

Implementing an industrial-grade 220 to 3 phase conversion setup requires a well-matched equipment train engineered for your facility's exact electrical load profile. Before issuing a Request for Quotation (RFQ), compile your single-phase source parameters (voltage stability, available short-circuit current), target three-phase machinery nameplates (kW/HP, operating voltage, starting method), and duty cycles. Explore our precision-engineered dry-type transformers or heavy-duty oil-immersed transformers built to IEC 60076 and IEEE C57.12.00 specifications. For customised transformer sizing advice or full technical proposals, contact our technical team or submit your load specifications directly via our transformer quotation page.
