Convert 1 Phase to 3 Phase: Engineering Methods & Sizing

Quick answer: To convert 1 phase to 3 phase power, you must use an active conversion device—such as a rotary phase converter, a variable frequency drive (VFD), or a digital phase converter—often paired with an industrial transformer to achieve the target line voltage. A passive transformer alone cannot generate three balanced phases from a single phase source.

Industrial plants, rural workshops, and commercial facilities frequently face a situation where local distribution utility infrastructure only supplies single-phase alternating current (AC), yet heavy machinery requires balanced three-phase power. Operating three-phase electric motors, computerized numerical control (CNC) equipment, or industrial chillers from a single-phase feeder demands a clear understanding of phase angle synthesis, current magnification, and voltage step-up requirements. This engineering guide covers the electromagnetic limitations of static iron-core units, compares active conversion technologies, outlines technical sizing calculations, and details how to integrate distribution transformers for a stable supply.

Can a Transformer Alone Convert 1 Phase to 3 Phase Power?

A standard static transformer cannot convert 1 phase to 3 phase power because electromagnetic induction in a fixed core cannot create the two additional 120-degree phase-shifted voltage vectors required for a balanced polyphase system.

A transformer functions through mutual induction: an alternating current flowing through a primary winding produces a alternating magnetic flux in an iron or silicon-steel core, inducing a proportional voltage in secondary windings. In a single-phase supply, the input voltage alternates along a single vector at 0 degrees and 180 degrees. While a custom winding arrangement can shift voltage amplitude or split a phase by 180 degrees (as seen in split-phase center-tapped systems), it cannot produce an autonomous electrical vector at 120 degrees and 240 degrees without external capacitance, inductance, or mechanical rotation.

Engineers seeking to achieve this conversion often reference our comprehensive 3 phase transformer buyer's guide or read our technical assessment on the single phase to three phase transformer reality. In practice, static transformers are placed either immediately upstream or downstream of an active phase converter. Upstream, a transformer steps a low-voltage single-phase feed (e.g., 240 V) up to match high-voltage industrial machinery (e.g., 415 V or 480 V). Downstream, a standard delta-wye isolation transformer smooths phase converter harmonic distortion and establishes a solid neutral ground reference for the load.

Four Methods to Convert Single Phase to Three Phase Power

There are four proven technical methods used to convert single phase to three phase supply: static phase converters, rotary phase converters (RPCs), variable frequency drives (VFDs), and solid-state digital phase converters.

Each phase-generation technology possesses specific electromagnetic properties, harmonic signatures, and load-handling profiles:

• Static Phase Converters: These rely on a bank of start capacitors paired with a potential relay to introduce a temporary phase shift, kicking a three-phase induction motor into rotation. Once the motor reaches approximately 80% of rated speed, the relay disconnects the start capacitors. The motor runs on single-phase current using only two of its three windings, derating total mechanical output capacity to roughly 60% to 70% of nameplate rating. Static units cannot power non-motor resistive, inductive, or CNC loads.
• Rotary Phase Converters (RPC): An RPC utilizes a built-in induction generator (idler motor) combined with run capacitors. Single-phase utility power excites the idler, which spins and mechanically synthesizes the third voltage vector across its auxiliary windings via rotational induction. RPCs offer robust surge tolerance, absorbing locked-rotor current (LRA) spikes up to 5 to 6 times full-load amperes (FLA). However, voltage balance across the three lines typically fluctuates within 5% to 10% under varying operational loads.
• Variable Frequency Drives (VFD): A VFD converts incoming single-phase AC to direct current (DC) via an internal full-wave diode or silicon-controlled rectifier (SCR) bridge, smooths the DC link with high-capacity capacitors, and synthesizes balanced three-phase AC using insulated-gate bipolar transistors (IGBTs) with pulse-width modulation (PWM). VFDs provide precise motor speed regulation and soft-starting capabilities. Because input single-phase current must supply all total three-phase power, standard VFD rectifiers must be oversized by roughly 50% to 100% when supplied by single-phase sources.
• Digital Solid-State Phase Converters: These combine high-speed digital signal processors (DSPs) with IGBT switching matrices to produce a pure sine wave without motor-driven mechanical parts. Digital converters monitor the manufactured phase continuously, dynamically balancing voltage within 1% to 2% across all three phases from zero to 100% load. They are the preferred option for voltage-sensitive computerized equipment, programmable logic controllers (PLCs), and automated manufacturing cells.

Technical Comparison of One Phase to Three Phase Systems

Selecting the correct technology to convert one phase to three phase equipment depends on power factor, duty cycle, sensitivity to voltage unbalance, and starting current characteristics.

Voltage unbalance is particularly destructive to three-phase induction motors. Per standard NEMA MG 1 guidelines, a voltage unbalance of merely 3% leads to a motor temperature rise of approximately 18%, requiring substantial motor derating to prevent winding insulation breakdown. The table below compares the four primary conversion topologies against key electrical engineering criteria:

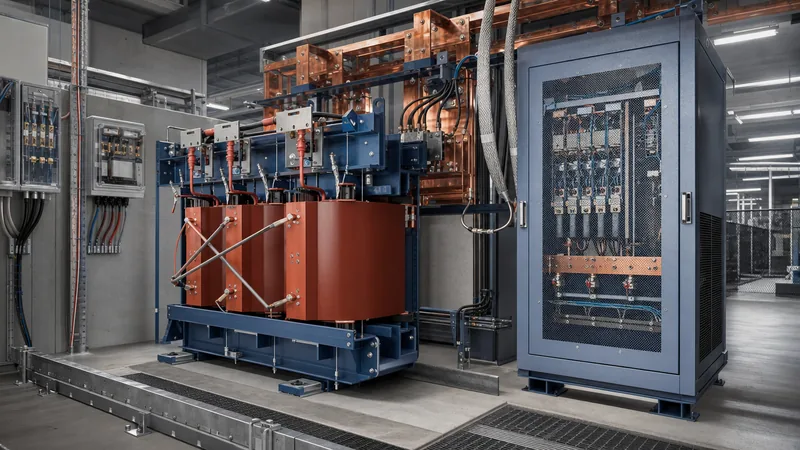

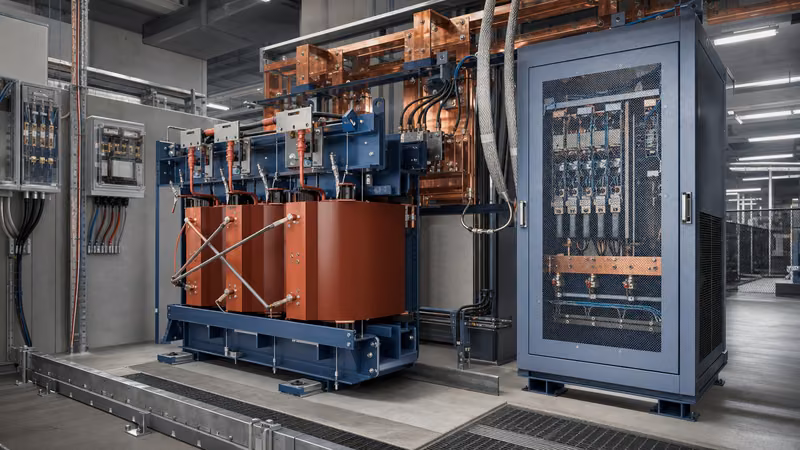

Integrating Industrial Transformers with Phase Converters

Integrating an industrial transformer with a phase converter is necessary when the machinery operating voltage differs from the local utility supply voltage, or when isolation is mandated to prevent harmonic feedback.

Rural utility distribution often supplies 230 V or 240 V single-phase alternating current. However, heavy industrial manufacturing equipment built to international standards typically requires 400 V (IEC 60038) or 480 V (ANSI/IEEE C84.1) three-phase line-to-line voltage. Depending on equipment specifications, the transformer can be integrated into the system layout in two configurations:

Option A: Single-Phase Step-Up Transformer (Upstream). A single-phase transformer steps incoming 240 V single-phase utility voltage up to 480 V single-phase. The 480 V single-phase line is subsequently fed into a high-voltage rotary or digital converter, which outputs balanced 480 V three-phase power. This arrangement requires heavy single-phase copper windings because of the elevated primary amperage.

Option B: Three-Phase Step-Up Isolation Transformer (Downstream). A low-voltage converter converts 240 V single-phase into 240 V three-phase. A three-phase step-up unit—such as a Dyn11 delta-wye transformer—then steps 240 V delta up to 415 V or 480Y/277 V. This approach offers significant operational benefits: the delta primary isolates the utility grid from common-mode electrical noise generated by converter switching, while the grounded wye secondary establishes a reliable neutral conductor for auxiliary 120 V or 230 V single-phase control circuits. You can evaluate our 3 phase voltage explained engineering resource for further voltage relationship formulas.

Sizing Calculations: Step-by-Step Electrical Engineering Procedure

Sizing an installation to convert 1 phase to 3 phase power requires calculating total load volt-amperes, adjusting for single-phase input current magnification, and applying regulatory thermal safety margins.

Follow this five-step engineering procedure when specifying supply breakers, conductors, converters, and upstream or downstream transformers:

1. Calculate Total Three-Phase Load kVA: Determine total operating current and apparent power ($S$) from machinery nameplates using the formula: $$S_{3\phi} (\text{kVA}) = \frac{V_{LL} \times I_{FLA} \times \sqrt{3}}{1000}$$ where $V_{LL}$ represents nominal line-to-line voltage and $I_{FLA}$ is full-load amperes.
2. Determine Single-Phase Primary Feeder Current: Because energy must be conserved across the system ($P_{in} \approx P_{out} / \eta$), single-phase input current is substantially higher than the three-phase output current. Calculate primary single-phase current ($I_{1\phi}$) at identical nominal voltages using: $$I_{1\phi} \approx I_{3\phi} \times \sqrt{3} \approx 1.732 \times I_{3\phi}$$ If stepping voltage at the same time (e.g., 240 V single-phase to 480 V three-phase), the current ratio expands: $$I_{1\phi} = \frac{V_{3\phi} \times I_{3\phi} \times \sqrt{3}}{V_{1\phi} \times \eta \times PF}$$ where $\eta$ is converter system efficiency (typically 0.90 to 0.95) and $PF$ is operating power factor (typically 0.85).
3. Account for Motor Locked-Rotor Starting Inrush: When sizing an RPC or digital converter for induction motors, check the NEMA Motor Code Letter. Direct-on-line (DOL) motor starting pulls 500% to 600% of nominal FLA for 2 to 8 seconds. Size rotary idler capacity at 1.5 to 2 times the rating of the largest individual motor starting across the line.
4. Apply National Electrical Code (NEC) Article 455 Sizing Factors: Under NEC Article 455.6, conductors supplying a phase converter must have an ampacity not less than 125% of the phase converter's rated single-phase input full-load current. Ensure upstream circuit breakers comply with maximum overcurrent protection ratings specified in NEC 455.7.
5. Apply Transformer De-Rating Factors: If feeding variable frequency drives or non-linear rectifiers, specify a transformer with an appropriate K-factor rating (e.g., K-4 or K-13) to account for eddy current winding losses generated by triplen and high-frequency harmonics per IEEE C57.110 standards.

Standards Compliance and Wiring Safety for Phase Conversion

Installing phase-generation systems requires strict compliance with international installation codes to prevent harmonic pollution, conductor overheating, and neutral conductor overloading.

Under both IEC 60364 and NFPA 70 (NEC), the third artificial phase generated by rotary phase converters—often designated as the manufactured phase or "wild leg"—must be handled cautiously. In a four-wire delta secondary derived from a rotary conversion setup, the voltage between this manufactured phase and the system neutral is approximately 1.732 times higher than normal line-to-neutral voltage ($V_{manufactured-N} = V_{LN} \times \sqrt{3}$). Connecting sensitive single-phase 120 V lighting or 230 V control circuits to this wild leg results in instant insulation burnout and component destruction. Standards require the wild leg to be clearly marked with orange phase tape or durable tagging at every junction, disconnect, and panelboard enclosure.

Furthermore, digital and rotary phase converters inject harmonic distortions back into upstream supply networks. To comply with IEEE 519 standard limitations on Total Harmonic Distortion (THD < 5% at the Point of Common Coupling), facilities must ensure adequate grounding impedance. A dedicated ground electrode conductor sized to IEC 60076-1 and local distribution requirements must bond converter chassis, motor frames, and transformer enclosures back to the main service ground bus.

Next steps: specifying and sourcing

When specifying equipment to convert 1 phase to 3 phase power for heavy commercial or industrial projects, compile your engineering parameters before procurement. Ensure you know your exact single-phase utility voltage and service capacity, the total continuous and peak kVA requirement of all loads, duty cycles, and whether isolation is needed for voltage matching. Pair your active converter system with robust, heavy-duty industrial transformers by reviewing our factory-built dry-type transformer options or high-capacity oil-immersed transformer ranges. For tailored technical engineering calculations, system single-line diagrams, or commercial delivery schedules, submit your load schedule directly to our engineering team through our transformer quotation portal.
