Battery Farm Engineering: Sizing, Architecture & Design

Quick answer: A battery farm is a centralised, utility-scale battery energy storage facility designed to store electrical energy from the grid or renewable sources and discharge it during peak demand. Capable of capacities spanning 10 MWh to over 1 GWh, these installations provide critical grid stabilising services, including frequency response and curtailment mitigation.

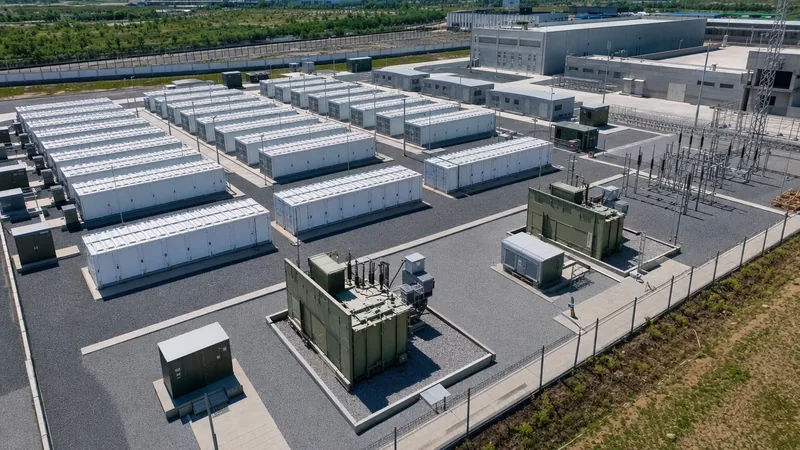

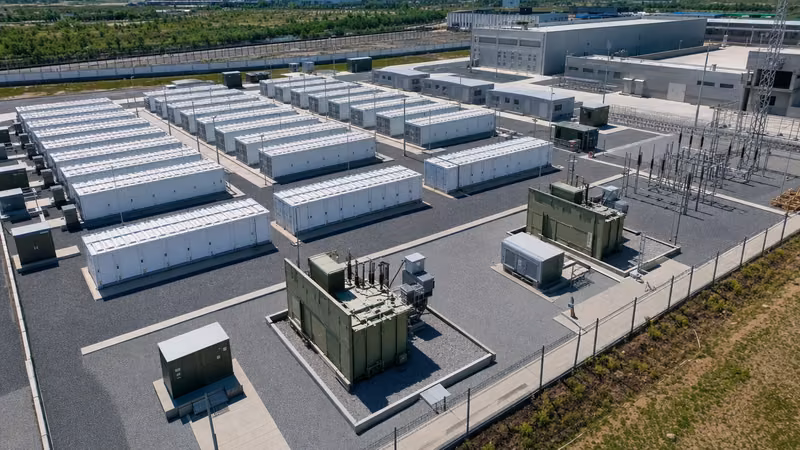

Large-scale energy storage facilities represent the operational backbone of modern transmission and distribution networks. By storing energy in batteries during periods of low tariff or surplus generation, system operators balance instantaneous electrical demand without running fossil-fuel peaker plants. These multi-megawatt facilities comprise rack-mounted battery modules, bidirectional power conversion systems, liquid thermal circuits, fire suppression infrastructure, and step-up power substations connected to distribution or transmission grids.

What Is a Battery Farm and How Does It Work?

A battery farm operates by converting alternating current from the electrical grid into direct current for chemical storage, reversing the process when power injection is required. Electrochemical racks aggregate direct-current (DC) power at voltages up to 1,500 V DC, feeding central or string power conversion systems (PCS) that synthesise low-voltage alternating current (AC), typically at 600 V to 690 V AC.

This low-voltage output connects directly to an intermediate step-up transformer, which elevates the potential to medium-voltage collector levels, commonly 11 kV, 22 kV, or 33 kV. For transmission-level interconnection, a centralised substation transformer steps the voltage up further to 110 kV or above. The plant-level Energy Management System (EMS) communicates continuously with the transmission system operator using protocols such as IEC 60870-5-104 or DNP3 over optical fibre, responding within 20 milliseconds to frequency deviations, scheduled dispatch instructions, or automated voltage-regulation commands.

System Architecture: Inside a Utility Battery Farm

The core building block of an industrial battery farm is the standardised, weatherproof ISO shipping container or dedicated modular walk-in enclosure. Siting, clearance boundaries, and foundation designs follow strict physical layout standards, detailed in our BESS location engineering guide.

Internally, utility enclosures integrate multiple critical sub-systems configured for continuous operational reliability:

• Battery Strings and Racks: Prismatic Lithium Iron Phosphate (LFP) cells are wired in series to create modules, which combine into strings reaching 1,000 V to 1,500 V DC. Cells are engineered according to LFP vs NMC battery safety parameters to minimise combustion risks.
• Thermal Management System: Active liquid cooling chillers circulate treated water-glycol through cold plates beneath cell terminals, keeping cell differentials within 3 degrees Celsius under continuous 1C cycling. Advanced hydronic configurations are examined in the battery cooling engineering guide.
• Power Conversion Systems: Bidirectional four-quadrant inverters modulate active power (P) and reactive power (Q), delivering four-quadrant fault-ride-through capability.
• Step-Up Substation: Pad-mounted or containerised transformers equipped with electrostatic shielding step voltages from inverter outputs to intermediate ring main collector loops.
• Fire and Deflagration Protection: Gas detection loops monitor early-stage off-gassing (hydrogen and carbon monoxide), triggering clean-agent total flooding suppression and mechanical blast venting per NFPA 68 and NFPA 69.

Sizing Calculations: Worked 20 MW / 80 MWh Battery Farm Example

Sizing an 80 MWh battery farm requires engineers to account for round-trip efficiency losses, continuous auxiliary electrical loads, inverter clipping, and end-of-life battery degradation. Sizing procedures reflect methodology established in our comprehensive industrial battery bank guide.

To guarantee a commercial delivery capacity of 20 MW active power continuously for 4.0 hours (80 MWh delivered AC energy) at Year 10, the engineer must determine gross installed DC capacity using the following parameters:

1. Define Operational Inputs: Required net AC output energy ($E_{net}$) = 80,000 kWh. Depth of discharge limit ($DoD$) = 90% (0.90). Power conversion and step-up transformer combined efficiency ($\eta_{elec}$) = 96.5% (0.965). Auxiliary internal parasitics over 4 hours ($E_{aux}$) = 1,400 kWh. End-of-life capacity retention factor ($SOH$) = 75% (0.75).
2. Calculate Year 10 Inverter Output Requirement: Inverter gross output must cover auxiliary power loads and net transmission injection: $E_{inv} = \frac{E_{net} + E_{aux}}{\eta_{elec}} = \frac{80000 + 1400}{0.965} = 84,352\text{ kWh}$.
3. Calculate Gross DC Nameplate Capacity: Account for depth of discharge and cell degradation across the 10-year operating horizon: $E_{gross\_DC} = \frac{E_{inv}}{DoD \times SOH} = \frac{84352}{0.90 \times 0.75} = 124,966\text{ kWh} \approx 125.0\text{ MWh}$.
4. Sub-System Allocation: Deploying standard 3.72 MWh liquid-cooled enclosures requires $\frac{125.0}{3.72} = 33.6$, rounded up to 34 prefabricated container units. At an inverter power rating of 2.5 MW per unit, eight dual-inverter skid transformers rated at 5,000 kVA (33 kV / 0.69 kV, $Z = 7.5\%$) are configured to service the entire installation.

Role of Battery Farms in Renewable Energy Integration

Deploying battery farms alongside renewable energy infrastructure prevents generation curtailment and dampens intermittent output spikes from solar photovoltaics and wind turbines. Large solar and wind arrays experience steep output ramp rates; a sudden cloud cover event or wind drop can alter feeder power by tens of megawatts within seconds, causing severe frequency transients across the regional grid.

By coupling utility energy storage via co-located DC-coupled or AC-coupled topologies, surplus energy generated during peak irradiation or wind conditions is captured rather than curtailed by grid operators. For wider technical details on synchronisation schemes, refer to our analysis on the grid integration of renewable energy sources. Storing energy in batteries allows these facilities to perform dynamic synthetic inertia, automated active power damping, and black-start bridging during network blackouts.

Technical Comparison: Battery Farm Architectures

Selecting the optimal equipment topology for a battery farm depends on plant footprint, discharge duration requirements, and fault level limits at the point of common coupling. The table below benchmarks key engineering parameters across typical utility architectures.

Grid Codes, Safety Standards and Compliance

Compliance with international safety and electrical interconnect standards is mandatory prior to energising any utility-scale battery farm. Thermal runaway risks demand stringent adherence to UL 9540 (Energy Storage Systems and Equipment) and system-level thermal runaway fire testing conducted under UL 9540A protocols at cell, module, unit, and installation levels.

Physical plant layouts must satisfy NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems), mandating minimum separation distances of 3.05 metres (10 feet) between individual enclosures and perimeter fencing, alongside adequate water supply availability for fire department containment. For high-voltage grid support, installations must meet IEEE 2800-2022 standards for inverter-based resources, covering continuous voltage ride-through down to 0.0 per-unit, primary frequency response times under 1.0 second, and fast fault current injection during unbalanced network faults in accordance with IEC 62933-5-2 safety guidelines.
