Battery SOC: Engineering Guide to Battery State of Charge

Quick answer: Battery SOC (state of charge) is the operational measure of available energy in an electrochemical cell or battery bank, expressed as a percentage of its current rated capacity. Ranging from 0% (fully depleted) to 100% (fully charged), accurate calculation of battery SOC is vital for preventing overcharging, cell degradation, and thermal instability in stationary battery energy storage systems (BESS).

In industrial energy storage, utility-scale substations, and microgrids, monitoring the battery SOC is not simply an instrumentation convenience; it is a critical safety constraint and operational metric. A miscalculated state of charge can lead a battery management system (BMS) to push cells into deep discharge or over-voltage regimes. Operating outside the safe working window directly triggers irreversible lithium plating, electrolyte breakdown, and capacity loss. Consulting a comprehensive battery monitoring system guide illustrates how data acquisition hardware coordinates cell-level voltage, current, and temperature telemetry to maintain safe operating parameters.

SOC Battery Meaning and Fundamentals

The core soc battery meaning translates to the ratio of remaining usable electrical charge to the maximum usable charge when the cell is at its current health state. Expressed mathematically, state of charge is governed by the formula: SOC(t) = Q(t) / Q_max × 100%, where Q(t) is remaining charge in ampere-hours (Ah) and Q_max is total usable charge capacity. In grid-tied and commercial energy infrastructure, precise estimation of the battery state of charge ensures predictable dispatch scheduling during peak shaving and frequency response events.

Electrochemical cells do not feature a direct internal gauge to quantify residual Coulombs. Consequently, determining the lithium battery soc relies on observable physical indicators: terminal voltage under load, open-circuit voltage (OCV) during electrochemical equilibrium, internal impedance, operating temperature, and continuous current integration. In industrial installations running parallel battery racks, rack-level imbalance occurs if the bat soc diverges across parallel strings. Divergent charge states induce parasitic cross-currents between racks upon breaker closure, causing nuisance tripping of protective switchgear or premature thermal throttling.

SOC and SOH in Battery Systems: Key Differences

Understanding the operational boundary between soc and soh in battery installations is essential for baseline capacity accounting. While battery SOC fluctuates dynamically within a single operational cycle (representing short-term stored fuel), battery soh (state of health) reflects permanent irreversible degradation over months and years. Clarifying the soh battery meaning: SOH is the ratio of current maximum usable capacity to original nameplate capacity when fresh from the factory, expressed as SOH(t) = Q_max(t) / Q_nominal × 100%.

When an engineer inspects a car battery soc or a utility energy storage pack, confusing these two parameters leads to catastrophic dispatch errors. For example, a degraded pack with an SOH of 75% displaying an indicated battery SOC of 100% only retains 75% of its original design watt-hours. In automotive applications, the soc meaning ev car dashboards display incorporates safety buffers at the top and bottom of the pack, shielding users from absolute chemical extremes. The table below delineates the structural differences across monitoring parameters in energy storage.

Estimation Methods for Lithium Battery SOC

Determining the lithium ion battery state of charge requires dedicated mathematical estimation techniques because terminal voltage alone provides inadequate fidelity. While traditional lead-acid chemistries demonstrate a linear correlation between terminal voltage and charge status, a li ion state of charge curve behaves non-linearly. In particular, lithium iron phosphate chemistries maintain a virtually horizontal voltage plateau between 20% and 80% charge level, where a 10 mV variation can correspond to a 25% swing in real stored capacity. For comparative chemistry characteristics, engineers should review our LFP vs NMC battery analysis.

Industrial BMS platforms rely on three primary methodologies to track the battery soc:

• Coulomb Counting (Current Integration): Measures instantaneous current via precision Hall-effect transducers or shunt resistors, integrating current over operational time according to ΔQ = ∫ I(t) dt. While highly responsive, sensor offset errors and ADC quantization noise cause cumulative integration drift over time.
• Open-Circuit Voltage (OCV) Mapping: Maps resting equilibrium voltage to pre-calibrated laboratory look-up tables. Although absolute in accuracy, OCV measurements require the battery string to remain completely disconnected under zero-current conditions for 30 to 120 minutes to allow chemical relaxation, making this method impossible during active grid operation.
• Adaptive Algorithms (Extended Kalman Filtering): Combines mathematical equivalent circuit models (ECM)—accounting for bulk capacitance, charge-transfer resistance, and Warburg diffusion elements—with real-time feedback loops. The Kalman filter continuously estimates internal states and self-corrects for current-measurement noise, temperature fluctuations, and aging factors. Detailed architecture of the supervisory controller is covered in our battery control module engineering guide.

Calculating Battery SOC: Worked Engineering Example

To prevent operational errors in commercial dispatch, an engineer must quantify drift accumulation during pure Coulomb counting and determine required correction cycles. Consider an industrial 48 V, 200 Ah lithium iron phosphate (LFP) rack operating continuous peak-shaving cycles. Current is monitored via an industrial current transducer with an input range of ±250 A and an aggregate measurement bias error of 0.5% of full scale.

The current measurement offset error is: I_bias = 250 A × 0.005 = 1.25 A. If the battery bank runs continuously for 16 hours without an OCV relaxation event, the cumulative charge error ΔQ_drift introduced into the battery soc calculation is calculated as follows:

ΔQ_drift = I_bias × time = 1.25 A × 16 hours = 20.0 Ah.

Expressed as an error proportion of the rack's total 200 Ah capacity:

SOC_error = (20.0 Ah / 200 Ah) × 100% = 10.0%.

In this operational scenario, a 10.0% absolute drift implies that when the BMS indicates a lithium battery soc of 15% (approaching low-voltage cut-off), the physical cells may already reside at 5% SOC, threatening deep discharge below the manufacturer's 2.50 V lower limit per cell. Conversely, during charging, the system risks driving cells into an over-voltage state before reaching the indicated target. This worked scenario confirms why stationary installations cannot rely solely on open-loop Coulomb counting without scheduled recalibrations or model-based observers, as outlined in our lithium-ion battery engineering guide.

What Does SOC Stand for in Solar and BESS Applications?

What does soc stand for in solar arrays coupled with storage? In photovoltaic and microgrid installations, SOC stands for state of charge, acting as the fundamental control variable dictating whether surplus generation charges storage assets, diverts to export, or triggers load shedding. Hybrid solar inverters track solar array yield and continuously adjust charging current based on the battery SOC reported by the battery communication interface via Modbus TCP or CAN bus.

In commercial solar setups, maintaining tight bounds on operational battery SOC optimizes cycle longevity. Standard operating procedures typically maintain the working window between 10% and 90% SOC rather than utilizing the full 0% to 100% boundary. Running lithium cells continuously at 100% SOC accelerates solid electrolyte interphase (SEI) layer growth under elevated ambient temperatures, whereas allowing storage to idle below 10% SOC invites copper dissolution across the negative electrode current collectors. Specifying system controls according to IEEE 2030.2.1 ensures that automated dispatch setpoints align solar generation curtailment directly with the upper state of charge thresholds of the energy storage facility.

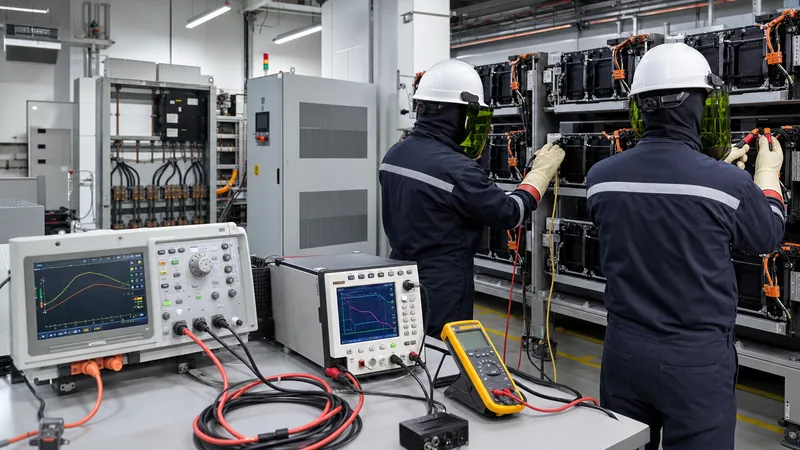

Battery SOC Calibration and BMS Commissioning Checklist

Field commissioning requires structured verification of the battery soc estimation algorithms before putting high-voltage DC systems into service. Technicians must conduct baseline capacity checks in accordance with IEC 62620 clause 6.3.1 to calibrate the master battery management system against factory tolerances. Follow this sequential procedure during site acceptance testing (SAT):

1. Visual and Isolation Inspection: Verify insulation resistance across the DC bus is greater than 100 MΩ at 1,000 V DC before energisation.
2. Voltage and Thermistor Verification: Measure all individual cell tap voltages using a calibrated 6.5-digit digital multimeter; confirm maximum variance between telemetry data and instrument readings is under ±2 mV.
3. Full Charge Normalisation: Charge the rack under constant current, constant voltage (CCCV) mode until the upper cut-off voltage is met and current tapers below C/20; hold under absorption mode to balance cells.
4. Equilibrium Relaxation: Disconnect the main DC contactor and isolate the string under zero current for a minimum of 120 minutes to allow the pack to reach open-circuit chemical equilibrium.
5. OCV Look-up Table Zero-Reference: Trigger the BMS manual calibration routine to overwrite current integration drift and align the 100% battery soc benchmark to the measured open-circuit voltage.
6. Controlled Capacity Discharge Test: Discharge the pack into a calibrated load bank at a steady C/3 rate until reaching the lower terminal voltage threshold per cell; capture total integrated ampere-hours to calibrate true Q_max for SOH tracking.
7. Drift Limit Validation: Run three consecutive charge-discharge operational cycles under telemetry recording; confirm calculated end-of-cycle SOC drift remains under 1.5%.
