Battery Unit Engineering: Sizing, Integration & Grid Specs

Quick answer: A battery unit in commercial and utility-scale energy storage is an engineered direct-current (DC) power assembly combining multiple battery modules, a high-voltage protection switchbox, and a dedicated battery management system (BMS). Operating between 600 V DC and 1,500 V DC, it supplies high-density energy to a power conversion system (PCS) for critical grid support functions.

In utility substation and industrial microgrid installations, a battery unit functions as the foundational building block for multi-megawatt-hour systems. When specifying energy storage assets for fast frequency response (FFR), capacity firming, or transmission deferral, electrical engineers must evaluate how individual modules aggregate into reliable rack-level assemblies. System reliability depends directly on cell chemistry balance, DC bus short-circuit withstand ratings, thermal consistency across electric battery packs, and strict adherence to international electrical safety codes.

Industrial Battery Unit Architecture and Subsystems

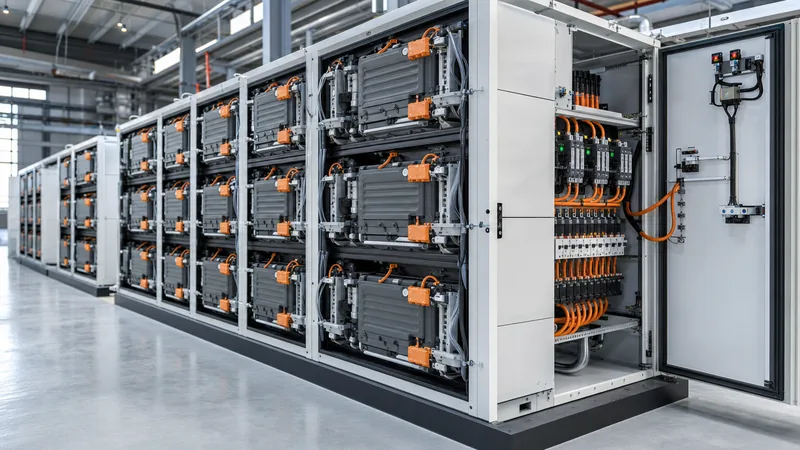

An industrial battery unit consolidates electrochemical storage, sensing instrumentation, and protective switchgear into an integrated enclosure or rack frame. At the core of the assembly are prismatic lithium iron phosphate (LFP) cells grouped into modules, which are wired in series to build system voltage up to standard 1,000 V DC or 1,500 V DC operating thresholds.

Each unit incorporates three interconnected engineering layers: the electrochemical stack, the thermal control interface, and the high-voltage control box (HVCB). The HVCB contains the rack-level BMS controller, direct-current contactors, pre-charge resistors, isolation monitoring devices, and high-speed semiconductor DC fuses. The BMS continuously samples individual cell voltages (monitoring down to ±2 mV precision) and surface temperatures via negative temperature coefficient (NTC) thermistors, executing real-time state of charge (SoC) and state of health (SoH) algorithms.

To understand the wider layout of multi-rack battery rooms and containerised deployments, review our guide to industrial battery bank design. Physical containment must also satisfy structural loading, seismic restraint per IEEE 693, and fire partitioning requirements in accordance with NFPA 855.

Worked Engineering Sizing Calculation for a 1 MWh Battery Unit

Sizing a battery unit requires calculating string voltages, gross versus usable capacity, and thermal dissipation under full-power discharge. Consider an industrial facility specifying a 500 kW / 1,000 kWh nominal (0.5C) storage block operating on a 1,500 V DC bus architecture using standard 3.2 V, 280 Ah LFP prismatic cells.

Step 1: Determine the series cell count per string.
To maintain an average nominal operating voltage around 1,331 V DC, calculate the series configuration:
Number of cells in series = 1,331.2 V / 3.2 V = 416 cells
Using standard 1P16S modules (51.2 V nominal, 16 cells), the string requires:
416 cells / 16 cells per module = 26 modules in series

Step 2: Calculate individual string nominal energy.
String Energy = 416 cells × 3.2 V × 280 Ah = 372.74 kWh

Step 3: Determine the required parallel strings for 1,000 kWh nominal.
Required Strings = 1,000 kWh / 372.74 kWh = 2.68 strings
Rounding up to three parallel strings yields a gross installed capacity of:
Installed Capacity = 3 × 372.74 kWh = 1,118.2 kWh (1.12 MWh nominal)

Step 4: Check usable energy and operating voltage window.
Restricting depth of discharge (DoD) to 90% (operating between 5% and 95% SoC) provides:
Usable Energy = 1,118.2 kWh × 0.90 = 1,006.4 kWh
The DC voltage operating window ranges from discharge cut-off (2.8 V/cell) to maximum charge (3.65 V/cell):
V_min = 416 × 2.8 V = 1,164.8 V DC
V_max = 416 × 3.65 V = 1,518.4 V DC
This range fits cleanly within standard 1,500 V bidirectional power conversion systems.

Step 5: Calculate maximum continuous DC current and heat rejection.
At maximum continuous 500 kW discharge down to the lowest voltage cut-off (1,164.8 V DC):
I_max = 500,000 W / 1,164.8 V = 429.3 A total (143.1 A per string)
Assuming an internal AC internal resistance (IR) plus interconnect resistance of approximately 0.45 mΩ per cell (0.187 Ω total per string):
P_loss = 3 × (143.1 A)² × 0.187 Ω = 11,489 W (11.5 kW thermal heat rejection)
The integrated thermal management loop must reject a minimum of 11.5 kW sensible heat continuously to maintain cell temperatures below 35°C.

Comparing Electric Battery Packs to Enclosed Unit Systems

Engineers evaluate whether to procure open-frame electric battery packs for custom rack integration or pre-engineered, factory-enclosed battery unit cabinets based on site footprint, thermal performance, and civil installation costs.

Liquid-cooled enclosures consistently deliver superior thermal uniformity. Detailed design principles for hydronic chiller integration and cold-plate fluid dynamics can be explored in our battery cooling systems guide.

DC Fault Current and Grid Inverter Integration

Integrating a high-capacity battery unit with a power conversion system requires precise short-circuit withstand coordination under IEC 62933-5-2 clause 6.2. Unlike alternating current systems where source impedance is dominated by upstream transformer reactance, DC battery strings present exceptionally low internal resistance.

In the event of a bolted fault across the DC main terminals, an individual 280 Ah LFP cell can discharge prospective short-circuit currents exceeding 10 to 12 times its nominal Ah rating within 2 to 5 milliseconds. For our three-string 1,500 V DC battery unit, prospective peak fault current can surpass 25 kA. The rack switchbox must incorporate ultra-fast semiconductor fuses (rated up to 50 kA interrupt capacity at 1,500 V DC) that clear the fault before electromechanical DC contactors weld or suffer arc-flash rupture.

Equally critical is the DC voltage input range of the PCS. If string resistance causes excessive voltage drop during peak pulse discharge (e.g., during primary frequency response events where power spikes to 1C or 2C within 200 milliseconds), the DC bus must not collapse below the inverter under-voltage trip threshold. Consult our comprehensive guide on power conversion system design to evaluate four-quadrant active and reactive power capabilities.

Commissioning and Factory Acceptance Testing Procedures

Commissioning an industrial battery unit demands methodical testing to verify isolation resistance, BMS telemetry, and protective trips before energisation.

1. Visual Inspection and Torque Verification: Check all busbar connections with a calibrated torque wrench, verifying compliance with manufacturer bolt tension specifications (typically 8 to 12 Nm for standard copper-nickel terminals). Inspect high-voltage cable bend radii and verify non-pinched signal harnesses.
2. Dielectric and Insulation Resistance Testing: Using a 2,500 V DC insulation tester, verify insulation resistance between the positive DC pole to protective earth (PE), and negative DC pole to PE. Measured resistance must exceed 100 MΩ per IEC 62619 clause 7.3.
3. Auxiliary Supply and BMS Communications Check: Energise the 24 V DC auxiliary control power. Verify Modbus TCP/IP or CAN 2.0B handshakes with the plant master controller, validating that cell voltage telemetry, rack current sensors, and high-temp interlocks register without packet drop.
4. Pre-Charge and Main Contactor Sequencing: Command the high-voltage switchbox to close. Confirm the pre-charge contactor engages first, limiting inrush current into the PCS DC link capacitors until the bus voltage differential is within 5%, before firing the main contactors.
5. Capacity and Thermal Acceptance Run: Execute one complete charge-discharge cycle at rated continuous power (0.5C). Perform thermal imaging across all module terminals and terminal breakers to verify no localized hot spot exceeds a 10°C rise above ambient.

Next steps: specifying and sourcing

When preparing a technical procurement package or request for quotation (RFQ) for an industrial battery unit, ensure your specifications clearly define required C-rate performance, ambient temperature extremes, DC short-circuit breaking capacity, and communication protocols. Include your projected daily cycling regime and target end-of-life residual capacity criteria.

Review factory-engineered solutions within our energy storage systems portfolio, or examine high-density liquid-cooled ESS containers for megawatt-scale applications. When site electrical layout requires integrated MV step-up transformation, evaluate prefabricated transformer substations to streamline grid compliance. To submit your single-line diagram and thermal requirements directly to our engineering team, request a direct consultation via our procurement quote page.
