BMS Battery Systems: Li-Ion Architecture & Engineering Guide

Quick answer: A BMS battery management system is an intelligent hardware and software controller that monitors cell voltage, temperature, and current to ensure electrochemical cells operate within safe operating limits. It calculates operational states, executes cell balancing, and triggers galvanic isolation during abnormal events to prevent catastrophic failure in energy storage installations.

In utility-scale and commercial energy storage applications, the bms battery assembly serves as the primary line of operational defense and system telemetry. Without granular cell-level supervisory control, slight electrochemical imbalances between series-connected cells amplify across charge and discharge cycles, degrading available energy capacity and escalating into severe thermal runaway risks. Implementing an industrial-grade management system demands a clear grasp of multi-tiered topologies, safety interlocks defined by international standards, and deterministic communication with auxiliary balance-of-plant switchgear.

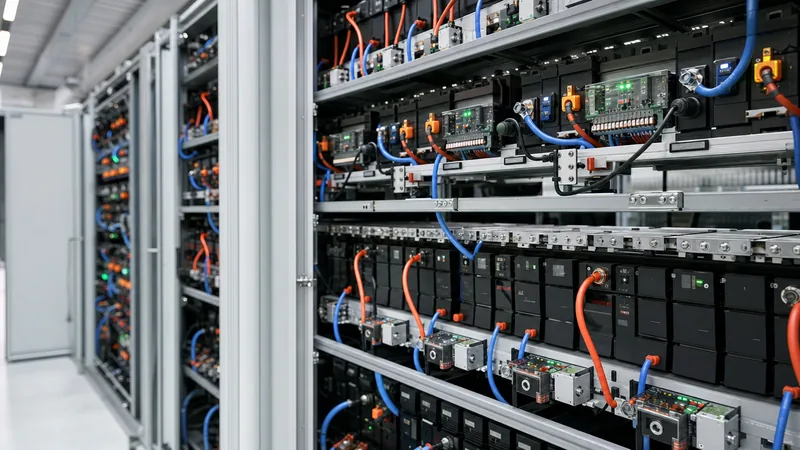

Hierarchical Architecture of Industrial BMS Battery Systems

Industrial battery energy storage systems utilise a three-tier architecture to supervise high-voltage DC battery strings operating between 800 V and 1500 V DC. This modular distribution decouples millivolt-level cell sensing from megawatt-level dispatch instructions managed by the site supervisory control and data acquisition (SCADA) network.

The lowest tier comprises the Battery Module Unit (BMU), often termed a slave controller. Mounted directly on or inside each cell module, the BMU features dedicated application-specific integrated circuits (ASICs) that sample cell voltages to within ±1.5 mV accuracy and read negative temperature coefficient (NTC) thermistors. These units relay digitised telemetry upstream over galvanically isolated controller area network (CAN 2.0B) or isolated serial peripheral interface (isoSPI) buses.

The intermediate tier is the Battery Control Unit (BCU), or rack-level master. Positioned within the high-voltage control box of each battery rack, the BCU measures total string current via Hall-effect transducers or precision shunts, manages the pre-charge circuit, commands main positive and negative DC contactors, and evaluates cumulative rack status. For engineers designing complete storage systems, understanding the relationship between rack topologies and overall plant control is covered in our guide to BESS meaning and architecture.

The highest tier is the master BMS controller, which aggregates data from 10 to 40 rack BCUs inside a containerised storage enclosure. It provides unified digital communication via Modbus TCP/IP or IEC 61850 to the external power conversion system and Energy Management System (EMS), calculating real-time dynamic charge and discharge current limits (DCL/CCL) based on the weakest cell in the entire DC array.

Balancing Topologies in a BMS for Lithium Battery Modules

A BMS for lithium battery packs maintains capacity retention and operational safety by eliminating state-of-charge disparities across series-connected cells. Variations in internal impedance, self-discharge rates, and thermal gradients across the rack inevitably cause cell divergence during continuous cycling.

Engineers select between two distinct balancing strategies: passive dissipation and active redistribution. Passive balancing discharges cells with higher terminal voltages through parallel switched resistors, converting excess energy into heat. Active balancing shuttles electrical charge from high-voltage cells to lower-voltage neighbours or the module bus using inductive switch-mode circuits or switched-capacitor converters.

To evaluate passive balancing performance, consider a 280 Ah lithium iron phosphate (LFP) cell rack exhibiting a 2% state-of-charge delta following prolonged float operation. The required charge removal is calculated as:

Delta Charge = 280 Ah × 0.02 = 5.6 Ah

Using a passive bleed resistor designed for 200 mA (0.2 A) balancing current at a nominal cell voltage of 3.2 V (resistor value R = 3.2 V / 0.2 A = 16 Ω; power rating P = 0.64 W), the operational balancing duration is:

Balancing Time = 5.6 Ah / 0.2 A = 28 hours

Because stationary storage systems typically provide extended idle periods between operational cycles, passive balancing remains the preferred, highly reliable industrial standard when thermal management channels adequate airflow across the balancing resistors. The electrochemical characteristics driving these balancing demands are detailed further in our comparative analysis of LFP vs NMC battery chemistry.

Functional Safety and Protection Limits in a Lithium Ion BMS

A lithium ion bms executes deterministic protection sequences based on continuous comparison of measured physical parameters against predefined thresholds established by cell manufacturer specifications and safety standards like IEC 62619 clause 8.2 and UL 1973.

The protection architecture operates in a layered hierarchy, establishing clear boundaries between operational regulation, system derating, software alarms, and physical isolation:

1. Operational Derating (Level 1 Alarm): When cell voltages or temperatures cross warning thresholds (e.g., cell temperature exceeding 45 °C or cell voltage reaching 3.60 V in LFP chemistry), the controller commands the power conversion system to derate charge/discharge current via high-speed communication buses, arresting drift without taking the rack offline.
2. BMS Software Trip (Level 2 Alarm): If parameters exceed operational limits (e.g., cell voltage > 3.65 V, cell voltage < 2.50 V, or temperature > 55 °C), the rack controller de-energises output contactor coils within 20 ms to 50 ms, isolating the affected string.
3. Hardware Secondary Protection (Level 3 Emergency): Completely independent of firmware execution, secondary analogue voltage comparators and hardwired pyrofuses or shunt trips trigger directly under severe overvoltage or hard short-circuit events, complying with IEC 60730-1 Class B functional safety mandates.
4. Thermal Runaway Mitigation: Multi-sensor arrays monitor carbon monoxide (CO), hydrogen (H2), and off-gas aerosol concentrations alongside cell temperature rates-of-rise (dT/dt > 1 °C/s). Detecting off-gassing prompts immediate pre-emptive isolation and signals enclosure fire suppression manifolds before thermal runaway propagates.

Designers configuring enclosure isolation can review hardware specifications in our detailed battery monitoring system guide to integrate auxiliary gas and thermal detectors into the primary shutdown loop.

State Estimation: SOC, SOH, and Dynamic Power Limits

Accurate algorithmic state estimation executed by the bms battery processing core dictates system availability, operational revenue, and equipment longevity. Industrial controllers derive three primary states: State of Charge (SOC), State of Health (SOH), and State of Power (SOP).

Coulomb counting calculates transferred amp-hours by integrating current over time, expressed as:

SOC(t) = SOC(t0) - (1 / C_nominal) × ∫ [I(t) - I_loss] dt

While straightforward, pure Coulomb counting suffers from sensor offset drift and operational noise, accumulating errors up to 5% within continuous operational weeks if left uncorrected. In LFP chemistry, error accumulation is exacerbated by the flat open-circuit voltage (OCV) profile between 20% and 80% SOC, where a 10 mV variation corresponds to a substantial shift in actual stored capacity.

To overcome this limitation, industrial lithium ion bms platforms employ dual extended Kalman filters (EKF) or recursive least squares (RLS) estimation. The primary filter estimates bulk SOC using dynamic electrochemical equivalent-circuit models (consisting of open-circuit voltage, series resistance, and parallel RC polarisation networks), while the secondary filter dynamically calculates internal resistance increases to update cell SOH. SOH degradation directly penalises the operational capacity matrix, automatically recalculating SOP charge and discharge envelopes to avoid plating metallic lithium at low ambient temperatures or high states of charge.

Field Integration: BMS Communication and DC Switchgear Coordination

A bms battery installation requires deterministic communication protocols and coordinated isolation timing between low-voltage electronics and high-voltage DC switchgear. In a containerised substation environment, failure to coordinate trip curves results in sustained DC arcing that destroys DC contactors and flashovers inside the power conversion enclosures.

Within the battery rack, the high-voltage switchgear assembly contains three primary elements: the positive contactor, the negative contactor, and the pre-charge branch. Energisation follows a strict sequence: the negative contactor closes first, followed by the pre-charge contactor, which directs DC current through an array of ceramic resistors (typically 20 Ω to 50 Ω, 100 W to 500 W). This limits inrush currents charging the DC-link capacitors of the external inverter to safe levels (below 10 A). Once the DC-link voltage reaches 95% of battery terminal potential, the master positive contactor closes, and the pre-charge branch opens.

Communication integration uses isolated serial Modbus RTU or CAN 2.0B interfaces between the rack BCU and string devices, while dual-redundant industrial Ethernet running Modbus TCP or IEC 61850 connects the master controller to the plant SCADA. Transmission intervals for critical parameters (maximum permissible charge current, maximum permissible discharge current, emergency trip status) must not exceed 100 ms. If a heartbeat packet is dropped for more than 500 ms, the system initiates a controlled ramp-down followed by galvanic breaker isolation.

Factory Acceptance Testing (FAT) Checklist for BMS Racks

Commissioning engineers and procurement teams must verify BMS functionality through structured factory acceptance testing before equipment ships to site. The following inspection procedure identifies firmware configuration errors, sensor wiring anomalies, and communication flaws:

1. Voltage and Temperature Measurement Calibration: Connect precision multi-channel calibrators to slave BMU voltage taps. Inject known potentials (2.500 V, 3.200 V, 3.650 V) across all channels simultaneously. Confirm measurement accuracy on the engineering workstation remains within ±2.0 mV per channel across the entire -20 °C to 60 °C operating band.
2. Balancing Activation Verification: Induce a synthetic 150 mV offset on alternate channels. Verify via thermal imaging or onboard LED indicators that passive balancing FET switches energise, and record actual shunt resistor thermal dissipation to confirm board layout temperature stability.
3. Overcurrent and Short-Circuit Injection: Utilise calibrated high-current injection sets to simulate charging overcurrent, discharging overcurrent, and short-circuit conditions. Measure the total trip clearance time from signal generation to auxiliary contact break, ensuring opening times fall within 15 ms to 30 ms.
4. Loss of Communication Fail-Safe: Physically sever the CAN or isoSPI harness between the rack master and individual slave modules under simulated full load. Confirm that the rack controller logs the node loss fault within 200 ms and opens main contactors safely without latching unrecoverable fault registers.
5. Insulation Resistance and Dielectric Withstand: Perform DC insulation resistance tests between high-voltage busbars and low-voltage BMS auxiliary communication harnesses at 2,500 V DC for 60 seconds. Insulation resistance must exceed 100 MΩ, with zero dielectric breakdown, confirming isolation boundary integrity.

Next steps: specifying and sourcing

Specifying the optimal bms battery controller requires providing clear operational metrics to the manufacturing team: nominal and maximum string voltage (typically up to 1500 V DC), cell chemistry and model capacity (Ah), communication protocols (Modbus TCP, CAN 2.0B, IEC 61850), and functional safety certification requirements (IEC 62619, UL 1973, NFPA 855). Our engineering department designs and supplies complete containerised energy storage systems incorporating factory-integrated multi-tier management systems and liquid-cooled battery architectures. Explore our factory-built energy storage system solutions or our utility-grade liquid-cooled ESS container systems, and submit your technical single-line diagram and tender parameters directly via our commercial quotation portal to receive a detailed system proposal.
