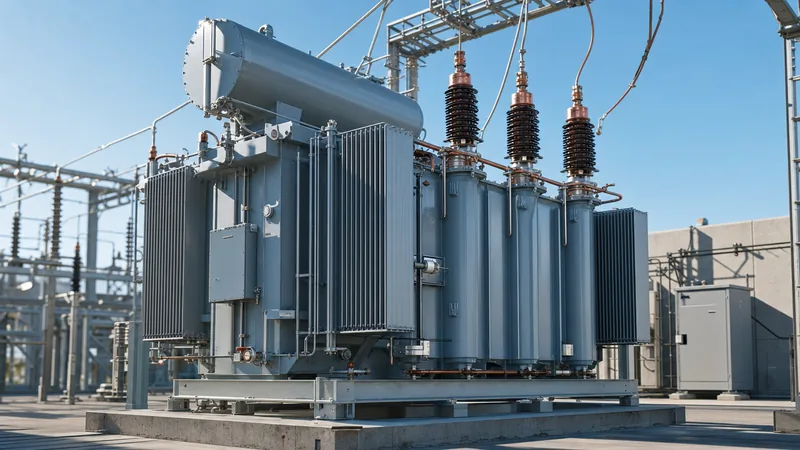

3 Phase Transformer Guide: Types, Specs, Sizing & Costs

Quick answer: A 3 phase transformer is an electrical machine designed to step three-phase alternating-current voltages up or down simultaneously across three distinct conductors displaced by 120 electrical degrees. It operates either on a single common magnetic core or through three banked single-phase units to distribute bulk medium- and high-voltage electricity across industrial and utility networks.

Three-phase alternating current (AC) represents the global standard for generating, transmitting, and distributing bulk electrical energy. The electrical architecture relies fundamentally on balanced three-phase electromagnetic induction to maintain high transmission efficiency, minimise conductor material volumes, and support balanced industrial rotational motor loads. Whether stepping down utility distribution voltages of 11 kV, 22 kV, or 33 kV to industrial utilisation levels of 400 V or 480 V, selecting the right equipment dictates network reliability, fault handling, and total operating cost.

This comprehensive engineering guide explores electromagnetic design fundamentals, core and winding topologies, differential characteristics between distribution and transmission classes, detailed sizing methodologies, and lifecycle cost optimisation for project engineers, procurement consultants, and electrical contractors.

What Is a 3 Phase Transformer and How Does It Work?

A 3 phase transformer transfers electrical energy between circuits through electromagnetic induction across three phases operating at a 120-degree phase displacement. Rather than treating each alternating phase independently, the system exploits the mathematical reality that in a balanced three-phase network, the instantaneous sum of all three sinusoidal phase voltages and magnetic fluxes equals zero ($$\Phi_A + \Phi_B + \Phi_C = 0$$).

Because the vector sum of the three return fluxes cancels within the magnetic circuit under balanced conditions, the core does not require a dedicated magnetic return limb for each phase. In a conventional three-limb core configuration, the magnetic flux produced by any individual winding limb readily finds its return path through the parallel combination of the other two limbs. This fundamental property permits significant reductions in electrical steel volume, structural mass, overall footprint, and magnetic core excitation losses compared to banking three standalone single-phase units.

The physical transformation ratio between primary and secondary winding voltages is determined strictly by the turns ratio ($$N_1 / N_2$$) per limb, adjusted for the specific geometric connection scheme (star or delta). Each phase possesses its own primary and secondary coils wound concentrically over a laminated magnetic core limb. Insulation systems, dielectric fluids, and structural clamping frames hold the active components under high mechanical clamping pressures—often between 3 MPa and 5 MPa—to withstand electromagnetic repulsion forces during downstream through-fault events.

Core Construction: 3-Limb vs 5-Limb Three Phase Transformer Topology

The magnetic core of a modern three phase transformer is constructed from high-grade, cold-rolled grain-oriented (CRGO) silicon steel laminations or amorphous metal alloys engineered to minimise hysteresis and eddy-current losses. Engineers specify between two primary magnetic circuit topologies based on voltage class, physical transport limitations, and earthing strategies:

In a standard three-limb core, three vertical wound legs are tied together by upper and lower horizontal yokes. Under normal, balanced operational conditions, magnetic flux circulates freely between the three active legs. However, under severely unbalanced loads or single-line-to-ground faults, zero-sequence flux cannot circulate within the iron limbs. Instead, it must return through high-reluctance paths—including non-magnetic structural clamps, the transformer tank walls, and cooling fluid—which can induce localised eddy-current overheating in the steel casing if sustained.

A five-limb core incorporates two additional unwound outer limbs flanking the three active wound legs. These unwound limbs provide a low-reluctance magnetic return path for unbalance and zero-sequence flux. Specifying a five-limb core delivers distinct engineering advantages:

• Reduced Core Height: Distributing return flux into the lateral outer limbs allows yoke cross-sectional areas to be reduced to approximately 58% of the main wound leg area, cutting total unit height to meet railway and tunnel transport limits.
• Zero-Sequence Flux Handling: Star-star (Yy) winding connections without a tertiary delta require five-limb magnetic cores to prevent severe tank-wall overheating during earth faults.
• Large Power Transformers: Units exceeding 10 MVA or systems rated above 66 kV standardise heavily on five-limb construction to ensure dielectric and mechanical stability.

Winding Topologies: 3 Phase Delta Transformer vs Wye Configurations

The internal winding configuration of a 3 phase delta transformer or wye-connected unit defines system grounding, third-harmonic suppression, neutral availability, and phase-angle displacement. The International Electrotechnical Commission standard IEC 60076-1 codifies these topologies using standardized alphanumeric vector notation, detailed thoroughly in our technical guide on transformer vector groups explained.

The primary and secondary phases are wired in either of two fundamental geometries:

• Delta ($\\Delta$ or D/d): Windings are connected end-to-end in a closed loop. Delta connections provide inherent circulating paths for zero-sequence currents and third-order (180 Hz in 60 Hz systems; 150 Hz in 50 Hz systems) harmonics. This prevents triplen harmonic distortions from polluting upstream utility grids. However, delta windings offer no inherent neutral point for single-phase loads.
• Wye / Star (Y/y): Windings terminate at a common central neutral point ($$N$$). Star connections provide a readily accessible neutral terminal, allowing dual-voltage systems (e.g., 400 V line-to-line with 230 V line-to-neutral). Grounding the neutral terminal allows ground-fault detection relays to operate reliably.

The most ubiquitous industrial configuration is the Dyn11 vector group: a delta-connected high-voltage primary with a star-connected low-voltage secondary with an accessible neutral, where the low voltage lags the high voltage by 30 electrical degrees (11 o'clock position). The delta primary traps harmonic distortions generated by non-linear industrial loads (such as variable frequency drives), while the secondary wye connection supplies four-wire three-phase power to facilities.

3 Phase Distribution Transformer vs 3 Phase Power Transformer

Although sharing underlying induction principles, a 3 phase distribution transformer and a three phase power transformer serve entirely different operational roles in power delivery networks. Sizing, impedance design, thermal margins, and loading cycles diverge sharply between the two classes.

A distribution unit steps medium voltage down to final consumption voltages (e.g., 11 kV down to 400 V or 13.8 kV down to 480 V). These units operate continuously at fluctuating load levels—averaging 40% to 60% loading throughout the day—and are located close to end users in urban, commercial, or rural settings. Consequently, electrical regulations require manufacturers to minimise no-load (core) losses, ensuring minimal parasitic power consumption during off-peak night periods.

Conversely, a 3 phase power transformer operates on transmission, sub-transmission, or generation sub-stations at continuous, heavy loading near its full nominal rating (often 80% to 100% capacity). These units feature on-load tap changers (OLTC) to actively stabilize transmission grid voltages against inter-area power swings, requiring high mechanical short-circuit strength and comprehensive online condition monitoring systems.

Dry-Type vs Oil-Immersed 3 Phase Electrical Transformers

When choosing between dielectric insulation mediums, engineers must weigh installation environment, fire safety codes, environmental sensitivity, and maintenance access. As detailed in our comprehensive comparison of oil-immersed vs dry-type transformers, each technology serves distinct commercial and industrial duty profiles.

Oil-immersed transformers submerge the core-and-coil assembly in mineral oil, synthetic ester, or natural ester dielectric fluid inside a hermetically sealed or conservator tank. The dielectric liquid acts as both an electrical insulator and a heat-transfer medium. Liquid-filled units offer superior heat dissipation, compact physical footprints, higher maximum ratings, and proven durability in harsh outdoor environments. However, mineral oil is combustible, requiring dedicated blast walls, exterior bunded retention basins to capture potential fluid spills, and deluge fire protection systems under NFPA 850 or local safety mandates.

Dry-type cast resin transformers encapsulate the high-voltage windings inside solid epoxy resin under vacuum (often Class F at 155 °C or Class H at 180 °C thermal insulation ratings). These units eliminate flammable liquids entirely, earning IEC 60076-11 F1 (fire behavior), C2 (climatic), and E2 (environmental) ratings. They are the standard for indoor installations, underground rail hubs, commercial high-rises, marine vessels, and sensitive industrial cleanrooms where environmental spills or catastrophic fires cannot be tolerated.

For outdoor distribution systems, contractors frequently deploy liquid-filled units such as oil-immersed distribution transformers, whereas internal plant substations rely upon vacuum-cast dry-type transformers or integrated high-voltage power transformers.

Engineering Calculations and Sizing for Three Phase Transformer Installations

Sizing a three phase transformer requires calculating the aggregate apparent power load in kilovolt-amperes (kVA), establishing nominal operating currents, and evaluating prospective fault levels. Under-sizing causes thermal degradation of insulation materials (halving operating life for every 6 °C to 8 °C rise beyond thermal classification limits), while over-sizing incurs excessive initial capital expense and persistent core excitation losses.

To calculate the required apparent power ($$S$$ in kVA) from line-to-line voltage ($$V_{LL}$$ in volts) and line current ($$I_L$$ in amperes), engineers use the fundamental three-phase relationship:

$$S = \frac{\sqrt{3} \times V_{LL} \times I_L}{1000}$$

Conversely, nominal line current drawn by a three-phase system at full rating is computed as:

$$I_L = \frac{S \times 1000}{\sqrt{3} \times V_{LL}}$$

For instance, an industrial manufacturing plant requiring a total diversified load of 850 kW operating at an average lagging power factor ($$\cos \phi$$) of 0.85 requires a minimum transformer rating of:

$$S = \frac{850\text{ kW}}{0.85} = 1000\text{ kVA}$$

Consult our step-by-step sizing guide on how to size a distribution transformer to account for motor starting kVA inrush, harmonic K-factor derating, and ambient temperature adjustments. Furthermore, calculating prospective symmetrical root-mean-square short-circuit current ($$I_{SC}$$) at the secondary terminals is critical for sizing downstream switchgear breaking capacity:

$$I_{SC} = \frac{I_{rated}}{\%Z / 100}$$

Where a 1,000 kVA, 400 V transformer possesses a rated secondary current of $$I_L = 1000 / (\sqrt{3} \times 0.400) = 1443.4\text{ A}$$ and an impedance (\(\%Z\)) of 5.0%, the prospective fault current is:

$$I_{SC} = \frac{1443.4\text{ A}}{0.05} = 28.87\text{ kA}$$

Downstream low-voltage switchboards and circuit breakers must consequently be rated for a minimum short-circuit breaking capacity ($$I_{cu}$$) of 35 kA or 50 kA.

Factors Driving 3 Phase Transformer Price and Lifecycle Cost

A procurement comparison must evaluate the initial 3 phase transformer price alongside Total Cost of Ownership (TCO), because operating electrical losses over 25 to 30 years routinely surpass the purchase price of the equipment by three to five times. As detailed in our breakdown of transformer losses and total cost of ownership, capitalisation formulas dictate commercial procurement decisions.

Key capital cost drivers include:

1. Active Material Choices: Electrolytic copper conductors (99.99% purity) offer superior electrical conductivity, lower volume, and enhanced short-circuit withstand performance compared to aluminium windings, but raise initial unit cost by 20% to 35%.
2. Core Steel Grade: Standard CRGO grades (M4, M3) carry lower manufacturing costs than high-permeability laser-scribed steel or amorphous alloys, but exhibit significantly higher no-load watt losses.
3. Vector Complexity and Accessories: Standard Dyn11 off-circuit tap configurations represent the cost baseline. Incorporating on-load tap changers (OLTC), vacuum tap selectors, multi-ratio dual secondary windings, or specialized monitoring instrumentation adds substantially to production costs.

Industrial buyers calculate commercial procurement using capitalized loss equations defined in EN 50588-1 or IEEE C57.120:

$$\text{TCO} = C_{purchase} + (A \times P_0) + (B \times P_k)$$

Where $$P_0$$ is the guaranteed no-load core loss in watts, $$P_k$$ is the guaranteed load loss in watts at rated temperature, and $$A$$ and $$B$$ represent present-value capitalisation factors ($$/W) calculated from local electricity tariffs, plant operational hours per year, discount rates, and operational life expectancy.

Factory Testing and Standards: IEC 60076 and IEEE C57 Compliance

International compliance demands that every three phase transformer undergoes rigorous validation testing prior to dispatch to prove operational safety, dielectric withstand capability, and efficiency guarantees. Standard design frameworks follow either the IEC 60076 series (prominent in Europe, Asia, Africa, and Australia) or IEEE C57 / ANSI standards (prevalent across North America).

Testing programs are divided into three formal categories:

• Routine Tests (100% of manufactured units): Winding resistance measurements across all taps; voltage ratio and vector group verification; short-circuit impedance and load loss tests; no-load loss and excitation current tests; applied high-voltage AC separate-source withstand tests; and induced overvoltage dielectric testing.
• Type Tests (representative design validation): Temperature rise tests to confirm that winding hot-spot rises do not exceed standard limits (e.g., 65 K for standard liquid-filled units under IEC 60076-2), and full lightning impulse dielectric withstand tests (BIL) to simulate direct atmospheric transient strikes.
• Special Tests (client specification): Zero-sequence impedance measurements, sound power level tests under acoustic chamber conditions, short-circuit withstand dynamic tests, and partial discharge measurements (critical for cast resin dry-type transformers, where partial discharge must stay strictly below 10 pC under IEC 60076-11).

Next steps: specifying and sourcing

When requesting an engineering quotation or tender submission for a three phase transformer, ensure your request for proposal includes the primary and secondary rated voltages, tapping range requirements, vector group (e.g., Dyn11), percentage impedance ($$\%Z$$), environmental conditions (ambient temperature extremes, altitude, seismic zone), and cooling medium designation.

Review our factory technical specifications for oil-immersed distribution transformers, high-reliability dry-type cast resin transformers, and high-capacity three phase power transformers up to 110 kV. To submit your electrical single-line diagrams, engineering schedules, or custom loss capitalisation formulas, submit your project details via our transformer quotation portal or connect directly with our international technical team through our engineering contact office.
