Demand Charge Electricity: Industrial Tariffs & Peak Shaving

Quick answer: A demand charge electricity fee is an additional tariff applied by utilities to commercial and industrial consumers, billed on the maximum rate of power consumption (measured in kW or kVA) over a discrete interval—typically 15 or 30 minutes—rather than total energy consumed (kWh). These charges can represent 30% to 70% of an industrial power bill, making load management and battery peak shaving critical operational priorities.

While standard energy consumption charges reflect total electrical work done over time, energy demand charges reflect the grid infrastructure required to supply peak capacity at any split second. A facility operating continuously at 200 kW incurs vastly lower demand penalties than a plant operating at 100 kW with an unmitigated 30-minute compressor surge of 1,000 kW. For plant managers, understanding utility billing algorithms and the deployment of battery energy storage provides direct control over non-productive electricity expenditure.

Demand charge definition and billing mechanics

A precise demand charge definition is a recurring utility tariff component calculated by multiplying a facility's peak power demand recorded during a designated billing period by a set tariff rate (£/kW, $/kW, or $/kVA). Unlike volume consumption metrics, this calculation ignores duration beyond the integration window, meaning a single 15-minute event dictates charges across the entire 30-day billing cycle.

Utilities deploy rolling or block interval demand meters conforming to IEC 62053-22 Class 0.2S standards. In a standard 15-minute window, the meter integrates total active energy across 900 seconds:

P_demand (kW) = E_interval (kWh) × (60 / t_minutes)

If a manufacturing facility pulls 250 kWh over a single 15-minute interval (t = 15), the calculated average load for that window is 1,000 kW. Even if power consumption drops to zero for the rest of the month, that 1,000 kW baseline establishes the monthly demand billing figure.

Understanding kW vs kVA energy demand charges

Utility tariffs assess energy demand charges using either real power (kW) or apparent power (kVA), a distinction that directly influences power factor penalties. When a utility bills in kVA, low displacement power factor increases the billed value even when real work remains unchanged, governed by the standard relationship:

S (kVA) = P (kW) / cos(φ)

For instance, an inductive motor load drawing 800 kW at a 0.80 lagging power factor creates an apparent power demand of 1,000 kVA. If the local tariff levies an assessment of $18.00 per kVA rather than $18.00 per kW, the site incurs an extra $3,600 monthly penalty purely due to reactive current draw. Modern industrial sites manage this variance by integrating four-quadrant inverters within an energy storage system, capable of supplying real power for peak lopping while injecting leading reactive power (kVAR) to maintain unity power factor at the point of common coupling (PCC).

The financial risk of utility ratchet clauses

A demand ratchet clause is a contractual tariff provision that bases monthly billing demand on either the current month's peak or a pre-set percentage of the peak recorded over the preceding 11 to 12 months, whichever is greater. Typical ratchet clauses set this baseline between 70% and 90% of historic peak demand.

Consider an industrial plant that operates on an 80% ratchet tariff. During July, an operational restart triggers a transient 2,000 kVA peak demand under extreme ambient temperatures. For the following eleven months, the facility's low-season operations average only 900 kVA. However, under the 80% ratchet mechanism:

Billed Demand Baseline = 2,000 kVA × 0.80 = 1,600 kVA

The plant pays for 1,600 kVA every month regardless of its actual 900 kVA profile, yielding 700 kVA of phantom demand charges each billing cycle. Over eleven months at a $20.00/kVA rate, this single operational incident results in $154,000 in unrecoverable utility expenses.

Worked calculation: battery peak shaving sizing and savings

Calculating the correct capacity for peak reduction requires high-resolution interval data (typically 15-minute interval AMI data) to determine both peak power deficit and duration. The engineering guide on peak shaving battery energy storage outlines how automated threshold capping maintains load profiles under critical utility ceilings.

Assume a plastics extrusion plant exhibits the following operational profile over a summer billing cycle:

• Unmitigated peak demand: 1,800 kW
• Target dispatch limit: 1,300 kW
• Required peak reduction: 500 kW
• Peak profile duration above 1,300 kW: 2.5 hours continuously
• Demand charge tariff: $24.00/kW/month
• System round-trip efficiency (η_RTE): 88%
• Maximum battery depth of discharge (DoD): 90%

The necessary power conversion rating requires a minimum 500 kW inverter capacity. The minimum usable energy storage requirement calculates as:

E_usable = P_shave × t_hours = 500 kW × 2.5 h = 1,250 kWh

Factoring in system depth of discharge and conversion losses:

E_nameplate = 1,250 kWh / (0.90 × 0.88) ≈ 1,578 kWh

The gross financial return from pure demand mitigation equals:

Annual Savings = 500 kW × $24.00/kW/month × 12 months = $144,000 / year

When combined with energy arbitrage and utility distribution support outlined in our review of commercial battery storage costs, the capital expenditure delivers amortised payback within three to five years.

Mitigation methods: energy storage vs operational load shedding

Industrial facilities choose between operational load curtailment, diesel genset dispatch, and battery energy storage systems (BESS) to lower their demand charge liabilities. The decision matrix below details the operational trade-offs across each method.

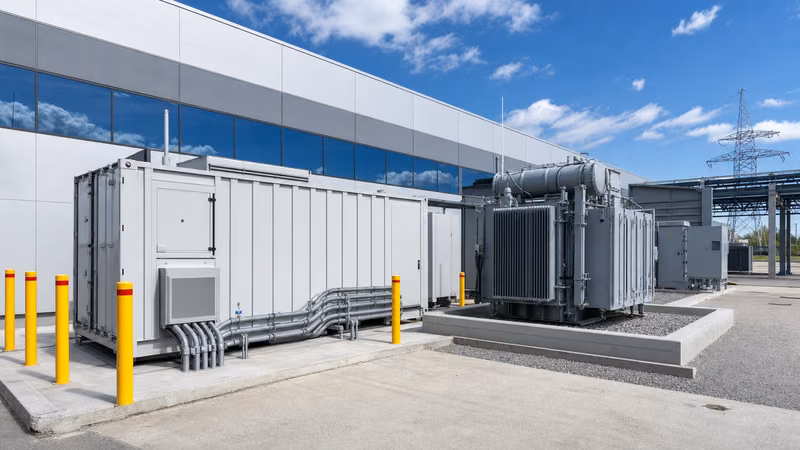

Operational load curtailment frequently costs more in lost product revenue than the saved demand tariff. Diesel gensets face increasing permitting constraints under air quality regulations. A dedicated liquid-cooled ESS container operating under IEC 62933 safety parameters provides instant real power dispatch without disturbing active production machinery.

Technical integration of BESS for peak lopping

Integrating peak-shaving systems requires coordinated control between the facility switchboard, power conversion systems, and metering instruments. Under IEEE 1547 and IEEE 2030.2.1 guidelines, utility-interconnected storage systems must modulate output based on fast local monitoring rather than delayed building management loops.

1. Point of Common Coupling Sensing: Class 0.2 metering current transformers (CTs) installed at the main low-voltage or medium-voltage breaker monitor real-time aggregate kW and kVAR flow.
2. BMS and EMS Threshold Logic: An industrial energy management system (EMS) reads high-speed sensor feeds via Modbus TCP or IEC 61850 protocol. When aggregate draw approaches 90% of the programmed peak threshold, the EMS issues rapid start commands.
3. Inverter Dispatch: The bi-directional inverter, detailed in our guide to power conversion system design, ramps from standby to target discharge within tens of milliseconds, supplying balance power from an industrial battery bank so utility-drawn power never breaches the threshold.
4. Switchgear Coordination: The complete assembly interfaces directly with industrial HV/LV switchgear, isolated by dedicated circuit breakers with adjustable short-time pickup and ground-fault protection.

Engineering checklist for specifying a demand-reduction system

Specifying an industrial energy storage asset to control peak tariffs requires precise operational and grid parameters. Engineers preparing an RFQ should compile the following technical criteria:

• Peak Shaving Delta (ΔkW / ΔkVA): Define the precise variance between peak measured historical load and desired post-mitigation target.
• Continuous Discharge Duration: Establish total run hours required per peak event based on worst-case 15-minute load duration curves.
• Tariff Framework: Specify time-of-use windows, coincident peak multipliers, and active ratchet clauses.
• Interconnection Voltage: State service voltage (e.g., 400 V, 480 V, 11 kV, or 33 kV) and available fault current (kA) at the main switchboard.
• Response Speed Requirements: Inverter response time to step loads (typically ≤ 20 ms for transition, ≤ 100 ms to full output).
• Thermal and Environmental Enclosure: Verify IP55 or NEMA 3R outdoor ingress ratings with internal liquid thermal management complying with NFPA 855 fire protection spacing.

Next steps: specifying and sourcing

To eliminate excessive utility tariffs and protect your bottom line from penal ratchet clauses, request a full engineering review of your 15-minute interval billing data. Our application engineering team assists project managers and EPC contractors in dimensioning complete utility-compliant solutions, including containerised lithium iron phosphate (LFP) energy storage, integrated power conversion skids, and matching prefabricated transformer substations. Contact our engineering desk at /contact/ or submit your operational single-line diagrams and interval spreadsheets directly through our quotation portal for custom sizing and system design.
