Key takeaways
- A distribution transformer provides the final voltage transformation in the electric power system, stepping down medium voltages such as 11 kV, 22 kV, or 33 kV to utilisation levels like 400 V three-phase or 230 V single-phase.
- Liquid-immersed distribution units achieve higher dielectric withstand and thermal dissipation, whereas dry-type cast resin units offer superior fire safety (F1 rating) for indoor installations.
- Efficiency standards such as Ecodesign Directive (EU) 2019/1783 and IEEE C57.12.00 strictly govern maximum allowable load and no-load losses (Pk and Po) across distribution networks.
- Impedance voltage (%Z) directly dictates fault current contribution and secondary voltage regulation, typically ranging from 4.0% to 6.25% for distribution ratings up to 2,500 kVA.
- Accurate kVA rating calculation requires evaluating peak operational demand, continuous thermal loads, harmonic derating (K-factor), and prospective ambient temperatures.
Quick answer: A distribution transformer provides final voltage transformation in an electrical grid, stepping down medium-voltage distribution power (typically 11 kV to 33 kV) to commercial and residential utilisation voltages (400 V/230 V or 480 V/277 V). Sizing requires matching rated kilovolt-amperes (kVA) to continuous demand, power factor, ambient thermal conditions, and fault level requirements.
Within modern power infrastructure, the power distribution transformer functions as the critical link between high-voltage transmission networks and end-user load centres. Whether deployed within utility networks, industrial processing facilities, or commercial building basements, selecting the appropriate unit dictates operational reliability, energy losses, and system safety. Understanding core architectures, cooling topologies, and international engineering standards ensures long asset life and compliance with rigorous energy mandates.

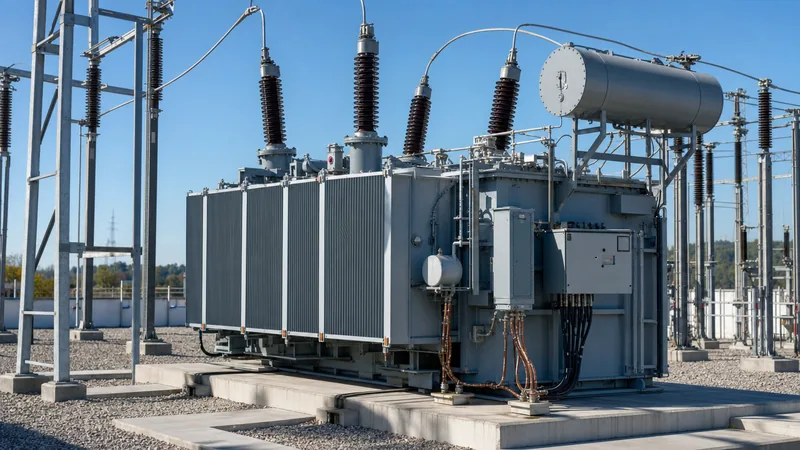

What is a distribution transformer and how does it operate?
A distribution transformer is an electrical machine designed to step down medium voltages from primary distribution lines to low voltages suitable for equipment consumption, governed by Faraday's law of electromagnetic induction. Unlike large units described in our transmission transformer engineering guide, which operate near continuous full load between generation and bulk substations, distribution units operate under highly cyclic, fluctuating load curves throughout a 24-hour cycle.
The magnetic core, assembled from high-permeability grain-oriented electrical steel (CRGO) or amorphous metal alloys, establishes the alternating magnetic flux. The primary winding, carrying high-voltage current, induces a secondary voltage proportional to the primary-to-secondary turns ratio of the windings. Because these units are subjected to continuous excitation even during light-load periods, manufacturers engineer their cores to minimise no-load iron losses (core hysteresis and eddy currents) to optimise total life-cycle costs.
Types of power distribution transformer designs: liquid vs dry-type
Distribution transformers are primarily categorised by their insulating and cooling mediums into liquid-immersed and dry-type designs. Liquid-immersed units employ high-grade mineral oil, synthetic esters, or natural ester fluids acting as both dielectric insulation and convective heat transfer agents. In contrast, dry-type units rely on air circulation and solid insulation, such as epoxy resin vacuum casting, eliminating combustible liquids.
Engineers selecting equipment for enclosed, high-density, or fire-sensitive facilities frequently turn to the specifications detailed in our dry-type transformer guide. Conversely, external utility applications, pad-mount systems, and rural poles favour liquid-filled designs due to their superior thermal capacity, weather resistance, and compact footprint.
| Engineering Parameter | Liquid-Immersed (Mineral/Ester) | Dry-Type Cast Resin (CRT) |
|---|---|---|
| Standard Cooling Class | ONAN / ONAF | AN / AF |
| Dielectric Fluid Flash Point | >140°C (Mineral) / >300°C (Ester) | Non-applicable (Solid Resin) |
| Fire Risk & Siting | Outdoor / Bunded blast-proof vault | Indoor / Sub-basement / Plant room |
| Standard kVA Range | 15 kVA to 5,000 kVA | 50 kVA to 3,150 kVA |
| Winding Temperature Rise | 60°C / 65°C rise | 90°C to 100°C rise (Class F/H) |
| Environmental Classification | IEC 60076-14 Liquid | E2, C2, F1 (IEC 60076-11) |
| Overload Capability (Short Duration) | High (large fluid thermal mass) | Moderate (relies on forced fan air) |
Core technical specifications and international standards
Standardised performance metrics defined by IEC 60076 and IEEE C57.12 series ensure network interoperability, safety, and operational efficiency. The percentage impedance voltage (%Z), typically ranging between 4.0% and 6.25% for units rated 100 kVA to 2,500 kVA, defines the internal voltage drop during full-load conditions and limits the prospective symmetrical short-circuit current on the low-voltage switchgear.
Key rating parameters essential for electrical engineering schedules include:
- Basic Insulation Level (BIL): Impulse withstand ratings conforming to system voltages, such as 75 kV to 170 kV BIL for 11 kV to 33 kV primary systems according to IEC 60076-3.
- Vector Group Configuration: Standard configurations include Dyn11 or Dyn5, providing a secondary neutral connection for single-phase distribution and trapping third-harmonic currents within the primary delta winding, as outlined in our delta wye transformer diagram guide.
- Tapping Range: Off-circuit tap changers (OCTC) operating typically at ±2 × 2.5% or ±5% allow adjustments to compensate for chronic line voltage drop.
- Loss Compliance: Compliance with Tier 2 Ecodesign regulations (EU 2019/1783) or US DOE 2016 mandates strict ceilings on load losses (Pk) and no-load losses (Po).
How to size a distribution transformer: engineering calculation procedure
Sizing a distribution transformer involves computing the coincident maximum peak apparent power while providing adequate thermal margin for future expansion and ambient derating. Undersizing causes accelerated insulation degradation under thermal stress, governed by the Montsinger rule, whereas oversizing increases idle core losses and capital expenditure. For complex industrial scenarios, engineers can reference our detailed transformer sizing calculator guide.
Follow this systematic procedure to size a transformer accurately:
- Determine Connected Active Load: Aggregate all connected equipment power ratings in kilowatts (kW), grouping by operational duty.
- Apply Demand and Diversity Factors: Multiply grouped loads by their respective demand factor (DF) and diversity factor (Ks) to calculate maximum anticipated concurrent real power (Pmax).
- Account for System Power Factor: Divide the maximum active load by the operational power factor (typically 0.85 to 0.92 lagging) to determine required base apparent power:
S (kVA) = P (kW) / cos(φ). - Incorporate Harmonics and Ambient Derating: Apply derating factors for harmonic non-linear loads using standard K-factor ratings (e.g., K-4 or K-13) and ambient temperatures exceeding 40°C average reference baselines per IEC 60076-1.
- Select Standard Standardised kVA Rating: Select the nearest standard rating (such as 315, 500, 630, 800, 1000, 1250, 1600, 2000, or 2500 kVA) allowing a minimum 15% to 20% margin for prospective network expansion.
Installation, cooling, and structural mounting configurations
Structural and mounting configurations for a power distribution transformer depend directly on utility distribution schemes, physical footprint limitations, and security requirements. Ground-mounted units generally serve heavy industrial demands and commercial developments, whereas overhead networks deploy pole-mounted structures for rural and low-density electrification.
The three dominant distribution formats include:
- Pole-Mounted Transformers: Single-phase or three-phase units housed in lightweight, sealed tanks (typically 16 kVA to 315 kVA) mounted directly onto single or H-frame concrete, steel, or timber poles.
- Pad-Mounted Transformers: Tamper-resistant, compartmentalised enclosures engineered for underground utility distribution circuits, integrating medium-voltage cable terminations, bayonet fusing, and low-voltage busbars into a single grounded, outdoor housing.
- Substation Transformers: High-capacity distribution units positioned within indoor masonry substations, prefabricated secondary substations, or enclosed industrial switchrooms directly coupled to switchgear.
Protection schemes, maintenance, and testing regimes
Distribution transformers require coordinated protective measures against overcurrents, short circuits, lightning surges, and internal winding failures. Medium-voltage protection relies on current-limiting fuses or circuit breakers paired with numerical relays providing instantaneous (ANSI 50) and time-delayed (ANSI 51) overcurrent and earth fault (ANSI 51N) protection.
Liquid-filled assets utilise mechanical monitoring devices, including double-float Buchholz relays to detect internal gas accumulation and oil surges, oil level gauges, and pressure relief valves equipped with trip contacts. Routine condition monitoring requires annual insulating oil screening (measuring dielectric breakdown voltage per IEC 60156, moisture content, and acidity) alongside periodic winding insulation resistance testing to intercept winding degradation before catastrophic failure.
Next steps: specifying and sourcing
When preparing procurement specifications for an industrial or utility project, engineers must compile essential operational criteria: rated kVA, primary and secondary voltages, frequency (50 Hz or 60 Hz), vector group, required short-circuit impedance (%Z), cooling classification, and specific efficiency standards (IEC or IEEE/DOE). You can evaluate engineered options across our oil-immersed transformer range or source fire-safe indoor solutions via our dry-type transformer catalogue. For fully packaged site installations, consider complete transformer substation enclosures. Submit your single-line diagram and tender schedules through our quote page to receive a full compliance matrix and project quotation from our engineering team.
Frequently asked questions
What is the typical lifespan of a distribution transformer?
A standard distribution transformer has an operational lifespan of 25 to 35 years under normal operating conditions. Regular maintenance, such as oil purification and keeping thermal loads within rated limits, can extend reliable performance beyond 40 years.
What is the difference between a power transformer and a distribution transformer?
Power transformers operate at high transmission voltages (above 66 kV) and maintain near-constant full load, prioritising maximum efficiency at 100% capacity. Distribution transformers operate at lower medium voltages (under 36 kV) with fluctuating loads, engineered for minimum core losses during light-load cycles.
Why is Dyn11 the most common vector group for distribution transformers?
The Dyn11 vector configuration provides a stable secondary neutral point for supplying single-phase low-voltage loads alongside three-phase industrial loads. Furthermore, its primary delta winding traps third-harmonic currents, preventing distortion from propagating back into the upstream medium-voltage electrical network.
How does ambient temperature affect distribution transformer rating?
Distribution transformers are rated against standard baseline ambient temperatures, typically 40°C maximum and 30°C daily average under IEC standards. Operating in environments above these baselines accelerates winding insulation deterioration, requiring a standard derating of roughly 1% to 1.5% capacity per degree Celsius exceedance.
What causes distribution transformers to fail prematurely?
The primary causes of premature failure include sustained thermal overloads, severe downstream through-fault short circuits, dielectric breakdown of insulating oil or paper, and lightning-induced transient overvoltages. Moisture ingress and inadequate protection device coordination also accelerate insulation degradation significantly.
