Key takeaways
- An energy shifting battery decouples generation timing from demand by storing low-marginal-cost megawatt-hours and dispatching them during peak tariff or high-congestion intervals.
- Utility scale battery storage configured for energy shifting typically runs at C-rates between 0.25C and 0.5C (4-hour to 2-hour durations) to maximise cell cycle life and round-trip efficiency.
- System sizing requires accounting for cumulative thermal, auxiliary, power conversion, and transformer losses, yielding an AC-to-AC round-trip efficiency of 85% to 88% in liquid-cooled architectures.
- Standalone battery storage facilities deploying Lithium Iron Phosphate (LFP) chemistry require overbuilding or structured augmentation strategies to counter 1.5% to 2.5% annual capacity degradation.
- Grid compliance requires adherence to IEEE 2800-2022 and IEC 62933-5-2 for active power ramp-rate control, frequency droop, and thermal runaway containment.
Quick answer: An energy shifting battery is a stationary battery storage system engineered to absorb electrical energy during periods of excess generation or low wholesale power prices, storing it for several hours, and discharging it when market demand, grid congestion, or electricity tariffs are highest.
As power grids transition away from baseload synchronous generators, structural mismatches between peak generation from renewable resources and peak consumer load create severe curtailment and transmission bottlenecks. Deploying an energy shifting battery addresses this challenge directly. Operating predominantly at discharge durations of two to eight hours, these systems allow utilities, independent power producers (IPPs), and commercial network operators to transform intermittent bulk energy into dispatchable capacity.
Unlike short-duration frequency regulation assets that discharge in seconds or minutes, an energy shifting battery operates on sustained, high-energy cycles. Sizing and deploying such assets demands rigorous attention to electrochemical degradation, auxiliary cooling consumption, transformation losses, and power electronics design. Whether deployed alongside a solar farm or as a grid-connected asset, proper system architecture determines operational profitability and asset longevity across a 15- to 20-year operational lifecycle.
How an Energy Shifting Battery Operates on the Grid
An energy shifting battery functions by charging when wholesale nodal prices are low or zero and discharging during peak demand windows to capture revenue or displace costly peaking plant operation. In wholesale merchant markets, this operation is commonly referred to as energy arbitrage. In renewable integration schemes, it performs wholesale generation shaping, absorbing generation that would otherwise exceed transmission interconnect limits or fall victim to economic curtailment.
The duty cycle of an energy shifting asset differs fundamentally from fast-response grid-support systems. Where ancillary service batteries respond to sub-second frequency anomalies at high C-rates (1C to 4C), an energy shifting unit cycles once or twice per day at lower continuous rates, typically 0.25C (a 4-hour discharge) or 0.5C (a 2-hour discharge). This continuous charge-discharge profile generates sustained thermal loading within the battery cells, making liquid thermal management mandatory to limit inter-cell temperature deltas to less than 3 degrees Celsius.
Furthermore, when integrated with bulk generation as detailed in our guide to grid integration of renewable energy sources, the control system operates in coordination with utility dispatch signals. In wholesale applications, the plant energy management system (EMS) receives automated dispatch commands via IEC 60870-5-104 or DNP3 protocols, driving the power conversion equipment to ramp smoothly across scheduled multi-hour dispatch windows without violating interconnect power factor or ramp-rate limits.

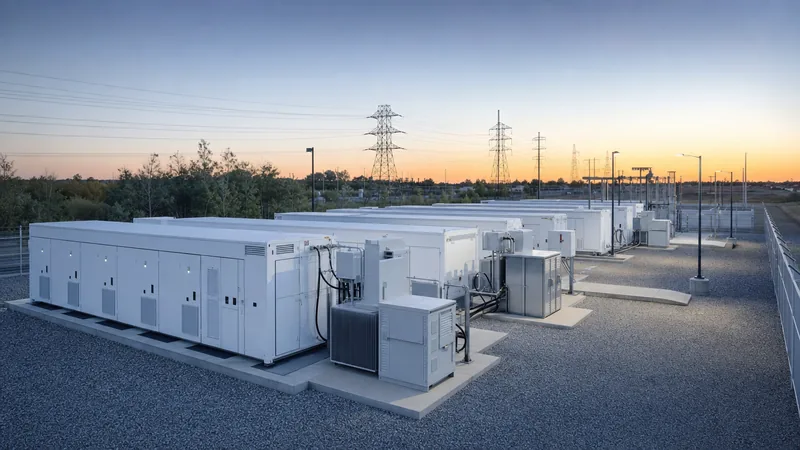

Architecture of Utility Scale Battery Storage for Time Shifting
Designing utility scale battery storage for energy shifting requires selecting between DC-coupled and AC-coupled configurations, alongside selecting the right medium-voltage step-up equipment. In standalone battery storage installations, AC-coupled architectures dominate because they allow independent dispatch, simplified interconnection, and clean separation between the battery system and external generation assets.
In an AC-coupled utility scale bess, discrete battery racks or liquid-cooled enclosures are grouped into DC arrays connected to dedicated bi-directional central or string inverters. These inverters convert direct current from the battery racks into three-phase low voltage (typically 600 V to 690 V). From the inverter terminals, the circuit routes to a dedicated step-up transformer—often a skid-mounted unit substation—stepping up to a medium-voltage collection bus at 13.8 kV, 24.9 kV, or 34.5 kV.
The power conversion equipment must support sustained high-current thermal duty. As detailed in our power conversion system guide, selecting four-quadrant, bidirectional inverters with grid-forming capability allows the facility to provide synthetic inertia and black-start capability while carrying out its primary energy shifting function. The integration of medium-voltage switchgear compliant with IEC 62271-200 ensures dependable protection against short-circuit events on the medium-voltage collector network.
Worked Sizing Calculation: 10 MW / 40 MWh Standalone Battery Storage Project
Sizing a standalone battery storage facility for an energy shifting application requires calculating the gross DC capacity needed to guarantee the contractual net AC capacity over the system's operational lifetime. The following calculation demonstrates sizing an asset delivering 10 MW continuous output for 4 hours (40 MWh net AC energy) at the Point of Interconnection (POI) after 10 years of operation.
The engineering analysis must account for five distinct efficiency and degradation parameters:
- Inverter efficiency (ηinv): 98.5% (0.985)
- MV step-up transformer efficiency (ηtx): 99.0% (0.990)
- Medium-voltage line and auxiliary parasitic consumption factor (faux): 2.0% of exported energy (0.980 effective)
- Usable Depth of Discharge (DoD): 90.0% (operating between 5% and 95% State of Charge)
- End of Life (EoL) cell capacity retention after 10 years: 75.0% (0.750)
Step 1: Calculate the required AC energy at the inverter output
To deliver 40.00 MWh at the POI after transformer and medium-voltage collector losses:
EAC, inv = EPOI / (ηtx × faux) = 40.00 / (0.990 × 0.980) = 41.228 MWh
Step 2: Calculate the required discharge energy on the DC bus
Accounting for the bi-directional inverter conversion efficiency:
EDC, discharge = EAC, inv / ηinv = 41.228 / 0.985 = 41.856 MWh
Step 3: Account for usable Depth of Discharge
To avoid mechanical stress at extreme states of charge, the usable energy window is restricted to 90%:
EDC, usable = EDC, discharge / DoD = 41.856 / 0.90 = 46.507 MWh
Step 4: Factor in 10-year electrochemical degradation
To guarantee 40 MWh net export at Year 10 without mid-life cell augmentation, the initial installed nameplate DC capacity must be:
EDC, initial = EDC, usable / EoL = 46.507 / 0.75 = 62.01 MWh
Consequently, an EPC contractor must procure a minimum of 62.01 MWh of nominal DC capacity to satisfy a 10 MW / 40 MWh, 10-year performance guarantee, representing an initial overbuild factor of 1.55 relative to net delivered AC energy. For alternative approaches involving scheduled modular augmentation, explore our guide on long duration energy storage systems.
Technical Comparison: Energy Shifting vs Fast Ancillary Systems
Selecting battery chemistry, thermal management systems, and enclosure layouts requires matching physical hardware to operational duty cycles. Utility scale battery energy storage systems designed for sustained shifting require distinct parameters compared to systems engineered for ancillary response.
| Engineering Parameter | Energy Shifting Battery (Time Shift) | Ancillary Services BESS (Fast Frequency) |
|---|---|---|
| Typical C-Rate | 0.125C to 0.5C (2-hour to 8-hour discharge) | 1.0C to 4.0C (15-minute to 1-hour discharge) |
| Dominant Cell Chemistry | Lithium Iron Phosphate (LFP, 280Ah - 314Ah prismatic) | High-rate LFP or Lithium Nickel Manganese Cobalt (NMC) |
| Daily Cycling Profile | 1.0 to 2.0 full equivalent cycles per day | 20 to 50 micro-cycles daily around 50% SoC |
| Thermal Management | Liquid cooling (chilled glycol-water distribution) | Forced air or high-flow liquid cooling |
| Target AC-AC Round Trip Efficiency | 85% to 88% (at 0.25C continuous) | 82% to 85% (impacted by high resistive I2R losses) |
| Auxiliary Load Ratio | 1.5% to 3.0% of system rating | 3.5% to 6.0% of system rating |
| Degradation Driver | Cycle ageing via sustained high depth of discharge | Calendar ageing and electrolyte oxidation at high C-rates |
| Inverter Sizing Ratio | Low inverter-to-MWh ratio (e.g. 1 MW per 4 MWh) | High inverter-to-MWh ratio (e.g. 2 MW to 4 MW per 1 MWh) |
As demonstrated in the comparison table, systems designed for stand alone battery storage in energy shifting services prioritise high volumetric energy density, low degradation rates under sustained current, and ultra-efficient thermal architectures. Standardised containerised systems, such as our liquid-cooled energy storage containers, deliver the thermal uniformity required to maintain cell balance across multi-hour discharge periods.
Engineering Specifications and Procurement Checklist for Utility Scale BESS
Procuring utility scale battery energy storage systems demands comprehensive technical specifications to ensure grid compliance, thermal safety, and functional longevity. Engineering procurement teams should evaluate suppliers against these core standards:
- Electrochemical Safety: Verification of UL 9540A large-scale thermal runaway test reports at cell, module, and unit level, confirming zero flame propagation across enclosure boundaries.
- Grid Interconnection: Full compliance with IEEE 2800-2022 (standards for inverter-based resources interconnecting with associated transmission systems) and IEC 62933-5-2 (safety requirements for grid-integrated BESS).
- Thermal Distribution: Maximum cell-to-cell temperature delta (ΔT) of ≤ 3.0 °C within any individual liquid-cooled rack under continuous 0.5C discharge, as verified under IEC 62619 factory acceptance testing.
- Fire Suppression and Gas Detection: Dual-action deflagration mitigation compliant with NFPA 855 and NFPA 69, incorporating off-gas detection (H2 and CO), aerosol or clean-agent fire suppression, and mechanical purge ventilation.
- Protection Coordination: Medium-voltage dry-type or oil-immersed step-up transformers rated according to IEC 60076, fitted with integrated winding temperature protection, sudden pressure relays, and low-voltage winding shielding.
For large-scale installations, review our operational guide on utility scale energy storage engineering to ensure complete alignment between medium-voltage protection schemes and the plant-level SCADA system.
Next steps: specifying and sourcing
Deploying a dependable energy shifting battery requires precision matching between electrochemical cell life, power conversion systems, and medium-voltage grid interconnects. To receive an exact system sizing proposal and engineering bill of materials, provide our engineering team with your project's target POI capacity (MW/MWh), required discharge duration, utility interconnection voltage, and local ambient temperature extremes.
Explore our pre-engineered utility scale battery storage solutions and integrated liquid-cooled energy storage systems. To submit your electrical single-line diagrams (SLD) or request an equipment tender, visit our quotation page or reach out directly via our contact page.
Frequently asked questions
What is an energy shifting battery?
An energy shifting battery is an energy storage system designed to absorb bulk electricity during periods of low market prices or high renewable generation and discharge that power hours later during peak demand intervals.
How long do utility scale battery storage systems discharge?
Utility scale battery storage systems designed for energy shifting typically discharge over durations of 2, 4, 6, or 8 hours, operating at continuous discharge rates between 0.5C and 0.125C.
What is the round-trip efficiency of an energy shifting battery?
The net AC-to-AC round-trip efficiency of a modern liquid-cooled LFP energy shifting battery typically ranges between 85% and 88%, accounting for cell DC efficiency, inverter conversion, step-up transformation, and auxiliary cooling loads.
Why is LFP preferred over NMC for standalone battery storage?
Lithium Iron Phosphate (LFP) is preferred for standalone battery storage because of its superior thermal stability, significantly lower risk of thermal runaway, lower cost per kilowatt-hour, and longer cycle life of 6,000 to 8,000 cycles at 80% Depth of Discharge.
How does capacity degradation affect energy shifting battery sizing?
Electrochemical cells degrade through cycling and calendar ageing, typically losing 1.5% to 2.5% capacity per year. Designers must either overbuild the initial DC capacity by 20% to 35% or execute scheduled battery augmentation over the system lifecycle.
What standards govern utility scale BESS safety and grid interconnection?
Key standards include UL 9540 and UL 9540A for system safety and thermal runaway prevention, NFPA 855 for installation fire protection, IEEE 2800 for grid interconnection, and IEC 62933 for system testing and safety.
