Long Duration Energy Storage: Engineering Guide to LDES Systems

Quick answer: Long duration energy storage (LDES) describes energy storage systems capable of discharging at full rated power continuously for eight hours or longer. These systems stabilise electrical grids with high penetrations of variable renewable energy by shifting bulk energy across days, weeks, or seasons when conventional two- to four-hour battery systems deplete.

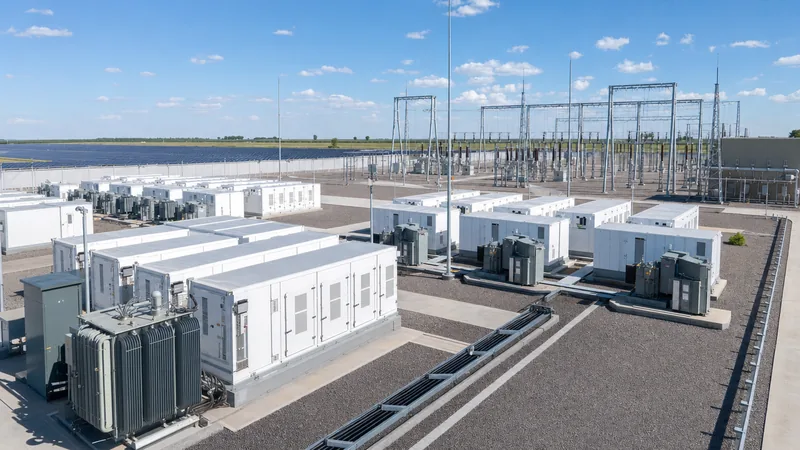

As power transmission networks incorporate vast amounts of intermittent wind and solar assets, conventional short-duration battery energy storage systems (BESS) face physical and commercial boundaries. Utility operators require assets that absorb sustained midday generation peaks and deliver continuous dispatch during multi-day renewable lulls, historically addressed only by conventional thermal power plants. Evaluating long duration energy storage requires an understanding of diverse technology classes, electrochemical degradation under deep-cycle operation, balance of plant (BOP) transformer loading, and total system economics.

This technical guide examines how utility networks deploy long duration assets, compares the core thermodynamic and electrochemical technologies, reviews medium-voltage balance-of-plant integration, and provides a full worked sizing calculation for a 10 MW / 100 MWh utility facility.

What Is Long Duration Energy Storage and How Is It Defined?

Long duration energy storage encompasses stationary storage systems capable of maintaining their rated active power output for durations starting at eight hours up to several days or weeks. International standardisation frameworks, including IEC 62933-2-1 (Electrical energy storage systems: Unit parameters and testing methods), categorise stationary assets by their operational duty cycles and discharge energy-to-power ratios (MWh/MW). Under these frameworks, short-duration systems generally provide up to four hours of nominal discharge, mid-duration covers four to eight hours, and long duration assets span eight to twenty-four hours or longer.

The grid services performed by these assets diverge fundamentally from frequency response or fast ramping. Short-duration BESS assets target ancillary services, synthetic inertia, and localized peak shaving. In contrast, long term energy storage delivers bulk capacity firming, transmission line congestion mitigation, black start capability, and multi-day dispatch during Dunkelflaute events (extended periods of zero solar and wind generation). Power networks reliant on 60% or greater renewable generation cannot maintain statutory reliability criteria without substantial LDES capacity.

What Is Helpful for Long Term Energy Storage: Core Enablers and Technologies

To determine what is helpful for long term energy storage, system engineers must evaluate the complete balance between energy capital expenditure ($/kWh), round-trip efficiency (RTE), cycle life, footprint, and operational flexibility. Multiple technological archetypes currently address durations beyond eight hours:

• Pumped Hydroelectric Storage (PHES): The historical benchmark for grid-scale energy shifting, delivering 8 to 24 hours of discharge with RTE between 70% and 82%. It requires specific geological topography, deep environmental permitting, and multi-year construction timelines.
• Compressed Air Energy Storage (CAES): Uses surplus power to compress ambient air into underground salt caverns or high-pressure vessels, later heated and expanded through a turbine. Advanced adiabatic CAES (AA-CAES) retains thermal heat from compression, achieving RTE values of 60% to 70% without fossil gas combustion.
• Flow Batteries: Redox flow systems store electrical potential in liquid electrolyte tanks separated from the electrochemical cell stacks, decoupling power rating (stack area) from energy duration (tank volume).
• High-Density Electrochemical Systems: Multi-hour configurations using optimized Lithium Iron Phosphate (LFP) cells operating at reduced C-rates (C/8 to C/12) housed in containerized configurations, as detailed in our guide to utility-scale energy storage engineering.
• Thermal Energy Storage (TES): Converts electrical energy into sensible or latent heat in molten salt, crushed rock, or liquid metals, recovering electricity via standard Rankine or Brayton cycles.

For applications where geological formations or water resources are unavailable, electrochemical solutions represent the most scalable modular architecture.

Electrochemical Technologies Used as Long Term Energy Storage

When electrochemical assets are used as long term energy storage, the chemistry must tolerate deep continuous cycling without thermal runaway hazards or excessive capacity fade. The two predominant electrochemical systems applied to multi-hour profiles are flow batteries and adapted lithium chemistries.

Vanadium Redox Flow Batteries (VRFB) utilize vanadium ions in four different oxidation states dissolved in an aqueous sulphuric acid or mixed-acid electrolyte. Because the active materials remain in liquid solution during both charge and discharge, the electrodes undergo minimal mechanical phase changes. As a result, VRFBs demonstrate operational lives exceeding 20,000 cycles with virtually zero calendar aging. Their fundamental engineering trade-off is lower volumetric energy density (20 to 40 Wh/L) and lower RTE (65% to 75%) due to auxiliary electrolyte pumping parasitics.

In contrast, long term battery storage engineered with Lithium Iron Phosphate (LFP) chemistry delivers a significantly higher energy density (over 300 Wh/L at pack level) and exceptional round-trip efficiency (85% to 92% at system level). While historically reserved for two- to four-hour duties, falling cell costs allow engineers to configure multi-container LFP arrays for 8- to 12-hour continuous discharge. Operating LFP batteries at low C-rates (e.g., 0.1C to 0.125C) generates substantially less internal Joule heating, preserving cycle life past 8,000 cycles when paired with precision thermal management. Engineers can review cabinet-level configurations in our comparison of liquid-cooled versus air-cooled energy storage.

How Battery Systems Function as Long Term Energy Storage

To successfully function as long term energy storage, battery configurations must adapt their physical operating parameters to sustain multi-hour discharge without accumulating parasitic losses or premature cell degradation. In short-duration peaking applications, a BESS charges and discharges at 0.5C to 1.0C, where thermal dissipation is intense but brief. In an 8- to 12-hour duty cycle, the discharge rate drops to 0.08C–0.125C, changing the operational dynamics:

1. Auxiliary Power Ratio Management: In long-duration discharge, heating, ventilation, and air conditioning (HVAC) and liquid chilling pumps run continuously over many hours. If auxiliary power consumption is 2% of rated output per hour, a 10-hour cycle consumes 20% of the total stored energy in auxiliary loads alone unless thermal loops are designed for passive moderation or variable-speed operation.
2. State of Charge (SoC) Drift and Calibration: Electrochemical cells held at continuous low-current discharge exhibit flat open-circuit voltage curves, particularly LFP. Battery Management Systems (BMS) must utilize high-precision coulomb counting and ampere-hour integration certified to IEC 62619 standards to prevent state-of-charge drift over extended periods.
3. Degradation Mechanics: Low C-rate discharge reduces mechanical stress on the crystal lattice of active cathode materials, lowering capacity fade per cycle. However, calendar aging becomes the primary degradation vector over 15- to 20-year project horizons, requiring conservative cell temperature baselines maintained between 20°C and 25°C.
4. C-Rate Derating: Inverters and power conversion systems (PCS) operate continuously at partial loads or low dynamic swings, which shifts inverter thermal stress toward DC-bus capacitors and transformer magnetising losses rather than switching device junction temperatures.

Comparative Engineering Metrics for Long Duration Technologies

Selecting an appropriate LDES technology requires comparing operational parameters, thermodynamic limits, and lifecycle performance. The following decision table outlines key metrics for leading grid-scale storage technologies operating in an 8- to 12-hour duty cycle window.

As the table demonstrates, high round-trip efficiency makes modular electrochemical systems competitive for daily 8- to 12-hour cycling, whereas mechanical systems offer superior economy for multi-day or seasonal energy storage where capital cost per installed kilowatt-hour dominates efficiency considerations.

Worked Engineering Sizing Calculation: 10 MW / 100 MWh 10-Hour LDES System

A worked sizing example demonstrates how system engineers calculate nameplate battery capacity, accounting for usable depth of discharge, auxiliary loads, round-trip efficiency, and end-of-life degradation for an electrochemical system acting as long duration energy storage.

Design Requirements:

• Net delivered active power ($P_{net}$): 10.0 MW at the 33 kV point of interconnection (POI).
• Continuous discharge duration ($t$): 10.0 hours.
• Net delivered energy ($E_{net}$): 10 MW × 10 h = 100.0 MWh at POI.
• Operational lifespan: 15 years with 1 cycle per day (5,475 cycles total).
• Battery chemistry: Lithium Iron Phosphate (LFP) configured in modular liquid-cooled enclosures.

Step 1: Calculate Balance of Plant and Power Conversion Losses
The system experiences three electrical loss stages between the DC battery terminals and the 33 kV POI: inverter conversion efficiency ($\eta_{pcs}$ = 98.4%), medium-voltage transformer efficiency ($\eta_{tx}$ = 98.8%), and MV switchgear / cable run efficiency ($\eta_{dist}$ = 99.5%).

Combined AC transmission efficiency:

$$\eta_{AC} = 0.984 \times 0.988 \times 0.995 = 0.9673 \text{ (96.73%)}$$

Energy required at the DC inverter inputs ($E_{DC}$):

$$E_{DC} = \frac{E_{net}}{\eta_{AC}} = \frac{100.0\text{ MWh}}{0.9673} = 103.38\text{ MWh}$$

Step 2: Account for Auxiliary Parasitic Power
Liquid chilling, BMS logic, and ventilation consume a continuous average of 1.2 kW per MWh of nominal DC capacity. For a 10-hour discharge profile, auxiliary energy consumption ($E_{aux}$) equals 1.2% per cycle:

$$E_{DC,gross} = \frac{E_{DC}}{1 - 0.012} = \frac{103.38}{0.988} = 104.64\text{ MWh}$$

Step 3: Factor in Depth of Discharge (DoD) and End-of-Life (EOL) Capacity Fade
To maintain cell stability over 15 years, usable Depth of Discharge is capped at 90% (5% to 95% SoC window). The battery cells are specified for an end-of-life capacity retention of 80% (20% fade after 5,475 cycles at 0.1C):

$$E_{nameplate} = \frac{E_{DC,gross}}{\text{DoD} \times \text{EOL retention}} = \frac{104.64\text{ MWh}}{0.90 \times 0.80} = 145.33\text{ MWh}$$

Step 4: Substation and Inverter Sizing
To deliver 10 MW net active power plus provide reactive power support at a power factor of 0.90 leading/lagging per IEEE 2800-2022 clause 5, the total inverter apparent power ($S_{pcs}$) must be:

$$S_{pcs} = \frac{10.0\text{ MW}}{0.90 \times \eta_{AC}} = \frac{10.0}{0.8706} = 11.49\text{ MVA}$$

Using standard 3.45 MVA PCS stations, the design specifies four skid units (total 13.8 MVA), stepping up from 690 V to 33 kV through liquid-filled step-up transformers. Further details on specifying utility enclosures can be found in our technical guide on specifying containerised BESS.

Electrical Balance of Plant and Substation Integration

Long duration energy storage systems place severe thermal and magnetic stresses on the electrical balance of plant because they operate at near-continuous rated load for many consecutive hours. Unlike short-duration peaking assets that cycle for 60 to 120 minutes before an extended thermal relaxation period, a 10-hour LDES asset sustains high continuous currents through switchgear, busbars, and transformers.

Step-up transformers connected to multi-inverter systems must be designed in accordance with IEC 60076-1 and IEC 60076-16 (Power transformers for wind turbine and photovoltaic applications). Transformer windings experience non-sinusoidal currents rich in low-order harmonics (5th, 7th, 11th, and 13th) generated by switching semiconductors. For LDES projects, transformers must be specified with a harmonic K-factor rating of at least K-4 to K-9 and sized with thermal insulation capable of handling continuous maximum ambient conditions without accelerated dielectric paper degradation.

Medium-voltage switchgear must comply with IEC 62271-200, utilizing circuit breakers rated for continuous full-load operating current with sufficient de-rating for high enclosure ambient temperatures. In addition, protection relays must accommodate bidirectional power flow and provide directional overcurrent (67/67N), loss of mains, and sensitive ground fault detection tailored to grid-forming inverter operating modes. For additional engineering insights on commercial and industrial balance of plant layouts, refer to our commercial energy storage engineering guide.

Factory Specification and RFQ Inspection Checklist

Procurement and design engineers preparing a request for quotation (RFQ) for long duration assets should mandate specific factory acceptance testing (FAT) and compliance documentation. Use this checklist during specification preparation:

1. Thermal Management Verification: Require type-test reports documenting parasitic power draw of the HVAC/chiller loops under minimum, nominal, and maximum ambient temperatures (e.g., -20°C, 25°C, and 45°C) per IEC 62933-5-2.
2. Step-Up Transformer Heat Run Testing: Factory routine and type tests must include a temperature rise test (IEC 60076-2) conducted with the rated harmonic spectrum applied to confirm top-oil and hot-spot temperature limits are not exceeded during extended continuous runs.
3. C-Rate Calibration and Balancing: Verify that cell-balancing circuitry can balance modules at low charge currents (0.05C to 0.1C) without bleeding excessive passive heat into the battery enclosure.
4. Short-Circuit Withstand Ratings: Confirm switchgear busbar bracing and transformer impedance matching per IEEE C57.12.00 to limit prospective short-circuit currents on inverter LV terminal buses.
5. Containerized Fire Mitigation: Fire detection and suppression must meet NFPA 855 and UL 9540A unit-level and installation-level thermal runaway testing criteria with integrated gas detection (off-gas venting before thermal runaway propagation).

Next steps: specifying and sourcing

To evaluate and specify equipment for long duration energy storage facilities, engineers must provide target interconnection capacity (MW), discharge duration (hours), annual cycling profiles, point-of-interconnection voltage (e.g., 11 kV, 22 kV, or 33 kV), and regional climatic extremes. Our factory manufactures pre-engineered utility and industrial assets built to international standards, including complete energy storage systems, specialized liquid-cooled ESS containers, and customized step-up transformers. Submit your technical single-line diagram (SLD) and tender parameters through our quotation portal or speak directly with our substation engineering team via the contact page to receive detailed performance datasheets and layout drawings.
