Key takeaways
- Energy storage devices convert electrical energy into electrochemical, mechanical, or thermal potential to decouple power generation from instantaneous consumption.
- Lithium iron phosphate (LFP) cells provide 3,000 to 6,000 full equivalent cycles at 80% depth-of-discharge, dominating short-to-medium duration commercial installations.
- Long-duration energy storage beyond eight hours relies on redox flow batteries, pumped hydro, and compressed air systems to minimise marginal capacity costs.
- Correct system sizing requires derating for cycle degradation, round-trip efficiency (RTE), depth of discharge (DoD), and balance-of-plant auxiliary loads.
- Compliance with IEC 62619, IEC 62933-5-2, and NFPA 855 establishes mandatory physical separation, thermal-runaway mitigation, and fire suppression protocols.
Quick answer: Energy storage devices are physical assemblies that absorb electrical power, convert it into storable potential (chemical, mechanical, or thermal), and dispatch it back to the grid or load upon demand. For commercial and industrial facilities, stationary electrochemical systems provide peak shaving, power-quality regulation, and resilience against utility interruptions.

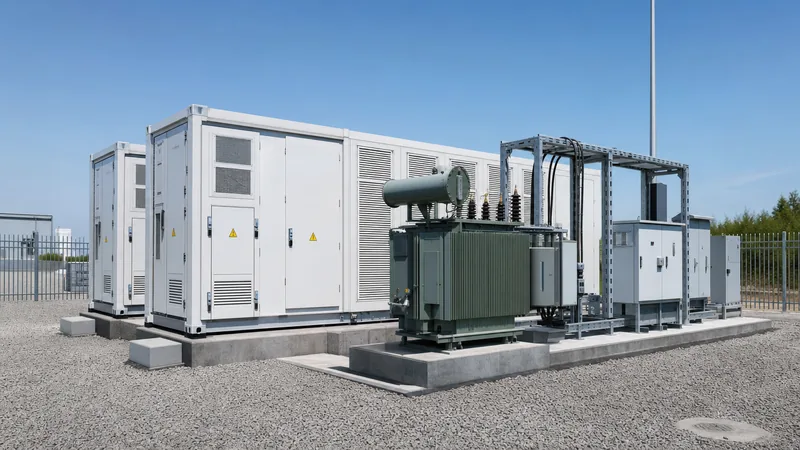

Industrial facilities and utility networks face variable generation profiles and rising demand charges, turning stationary power storage technology into an operational necessity. As modern distribution networks accommodate intermittent solar photovoltaic arrays and wind generation, deploying energy storage devices provides the frequency stabilisation, voltage support, and capacity firming required for steady-state grid compliance under IEEE 1547-2018.
Selecting suitable apparatus requires electrical engineers to balance round-trip efficiency (RTE), cycle life, C-rate capabilities, and thermal limits. For a broader overview of system architecture, review our commercial energy storage guide to align energy capacity with facility distribution requirements.
Categorisation of Modern Energy Storage Devices
Modern energy storage devices fall into four primary physical classifications: electrochemical, mechanical, electrical, and thermal systems. Each category exhibits distinct discharge duration boundaries, dynamic response times, and volumetric energy densities.
Electrochemical systems, including lithium-ion and sodium-sulphur cells, utilise reversible reduction-oxidation reactions to store charge. These units deliver response times under 20 milliseconds, making them optimal for frequency containment reserves (FCR) and transient load buffering. Mechanical assets, such as pumped storage hydro (PSH) and compressed air energy storage (CAES), provide gigawatt-hour bulk capacity but require specific geographical topographies and sustained capital outlays.
Pure electrical devices, notably electrostatic double-layer capacitors (supercapacitors) and superconducting magnetic energy storage (SMES), offer exceptionally high power density with round-trip efficiencies exceeding 95%. However, their discharge duration is measured in seconds rather than hours, serving primarily in ride-through systems for sensitive semiconductor manufacturing. Thermal storage captures sensible or latent heat in molten salts, chilled water, or phase-change materials to decouple heating and cooling loads from electric chiller operation.
Electrochemical Power Storage Devices: Chemistry Comparison
Electrochemical power storage devices represent the dominant technology for commercial, industrial, and microgrid installations due to modular scalability and high energy density. Cell chemistry dictates operating voltage, safety profiles, degradation mechanisms, and thermal management architectures.
Lithium Iron Phosphate (LFP) has established itself as the commercial benchmark. Operating at a nominal cell voltage of 3.2 V, LFP exhibits superior thermal stability over nickel-manganese-cobalt (NMC) chemistries, with an onset temperature for thermal runaway typically exceeding 270°C. Under standard testing per IEC 62619 clause 7.2, LFP cells deliver 4,000 to 8,000 cycles at 0.5C charge/discharge rates before reaching 70% capacity retention.
Sodium-ion (Na-ion) cells are emerging as an alternative for stationary units where volumetric footprint is secondary to raw material supply security. Na-ion operates at approximately 3.0 V nominal and exhibits negligible risk of thermal runaway during deep discharge to 0 V, easing maritime transport compliance. Vanadium redox flow batteries (VRFB) utilise liquid electrolytes stored in separate bulk tanks, inherently decoupling system power (determined by cell stack surface area) from energy storage capacity (determined by electrolyte volume).
What is Used for Long Term Energy Storage across Power Grids
Pumped storage hydropower, vanadium redox flow batteries, compressed air energy storage, and green hydrogen systems are what is used for long term energy storage across modern power grids. These technologies deliver continuous rated discharge durations ranging from 8 hours to several weeks, overcoming the economic scaling limits of conventional lithium-based chemistries.
As explained in our guide to long duration energy storage, lithium-ion platforms scale linearly in cost with energy duration because increasing runtime requires purchasing more cell modules. In contrast, long-duration power storage technology features low marginal costs per additional kilowatt-hour. For instance, expanding a VRFB system from 8 hours to 16 hours of duration requires expanding atmospheric polyethylene or vinyl-ester electrolyte storage tanks and adding aqueous vanadium pentoxide solution, without altering the expensive membrane cell stacks or bidirectional inverters.
On regional transmission grids, compressed air energy storage utilises underground salt caverns charged by multi-stage centrifugal compressors during off-peak periods. Upon dispatch, the pressurised air is heated and routed through expansion turbines driving synchronous generators. Where geology prevents cavern development, thermal energy storage systems store surplus grid power in ceramic bricks or liquid metals up to 1,400°C, regenerating electricity through closed-loop supercritical CO2 Rankine cycles.
What is Helpful for Long Term Energy Storage Integration
High round-trip efficiency, non-degrading storage media, low self-discharge rates, and containerised thermal management are what is helpful for long term energy storage integration in commercial and industrial settings. Evaluating these parameters prevents premature capacity fade and excessive parasitic balance-of-plant consumption.
To assess long-duration assets effectively, engineering teams must evaluate specific operational metrics:
- Calendar Life and Shelf Degradation: Unlike solid-state chemistries subjected to mechanical stress during interstitial ion intercalation, liquid electrolytes in flow systems do not suffer crystalline fracturing, maintaining active materials over 20 to 30 years.
- Parasitic Pumping and Auxiliary Losses: Liquid-phase long-duration systems require motor-driven circulation pumps that consume between 2% and 5% of gross discharge power, which must be factored into net plant RTE calculations.
- Thermal Stability in Extreme Ambients: Outdoor installations require liquid-cooled containment to maintain active media within optimal fluid ranges (typically 15°C to 35°C for aqueous electrolytes). Review our battery cooling engineering guide for detailed HVAC versus liquid loop analysis.
- Power Conversion Compatibility: Ensuring bidirectional converters accommodate wide direct-current (DC) bus voltage swings during extended discharge curves prevents inverter clipping. Detailed converter sizing parameters are examined in our power conversion system guide.
Evaluating Power Storage Technology: Performance Comparison
Selecting the optimal power storage devices requires comparative analysis across round-trip efficiency, cycle endurance, footprint, and capital expense metrics. The data below outlines key engineering boundaries defined under IEC 62933-2-1 testing criteria.
| Storage Technology | Round-Trip Efficiency (%) | Energy Density (Wh/L) | Cycle Life (Cycles @ 80% DoD) | Typical Discharge Duration | Self-Discharge Rate (% per month) |
|---|---|---|---|---|---|
| Lithium Iron Phosphate (LFP) | 88 - 94 | 220 - 350 | 4,000 - 8,000 | 1 to 4 hours | 1.0 - 2.0 |
| Vanadium Redox Flow (VRFB) | 68 - 75 | 25 - 40 | 15,000 - 20,000 | 6 to 16 hours | < 0.1 (tanks isolated) |
| Sodium-Sulphur (NaS) | 75 - 82 | 150 - 200 | 4,500 - 5,500 | 6 to 8 hours | High (heaters required) |
| Supercapacitors (EDLC) | 92 - 97 | 10 - 20 | 1,000,000 | Seconds to minutes | 20 - 40 |
| Compressed Air (CAES) | 50 - 65 | 2 - 6 | 30+ years (unlimited) | 8 to 24+ hours | Negligible |
For industrial facilities requiring high-frequency response alongside 2-hour to 4-hour peak shaving, factory-assembled LFP container units deliver the lowest total footprint and highest round-trip efficiency. For durations exceeding 10 hours, VRFB and thermal storage become economically viable despite lower volumetric energy density.
Engineering Calculation: Sizing an Industrial Energy Storage System
Accurately sizing industrial energy storage devices requires calculating usable versus nameplate battery capacity while factoring in depth of discharge, cumulative power conversion losses, and end-of-life (EOL) capacity degradation limits.
Consider an industrial manufacturing facility with a required peak-shaving dispatch profile of 500 kW continuous power for 4.0 hours, operating at a facility bus voltage of 400 V AC, 50 Hz. The engineering objective is to determine the gross direct-current (DC) battery capacity required so the system still delivers full rating in Year 10 at 80% capacity retention.
- Net Required Energy Output (E_net):
E_net = Power (kW) × Discharge Time (h) = 500 kW × 4.0 h = 2,000 kWh AC - Inverter and Step-Up Transformer Efficiency (eta_pcs):
Assuming a high-efficiency bidirectional PCS and coupling transformer with combined efficiency eta_pcs = 96.5% (0.965).
E_dc_delivered = E_net / eta_pcs = 2,000 kWh / 0.965 = 2,072.5 kWh DC - Depth of Discharge Limit (DoD):
To preserve warranty cycle thresholds, maximum usable DoD is restricted to 90% (0.90).
E_usable_nominal = E_dc_delivered / DoD = 2,072.5 kWh / 0.90 = 2,302.8 kWh - End-of-Life Degradation Factor (SOH_eol):
Target warranty life requires full capacity delivery at 80% State of Health (SOH_eol = 0.80).
E_gross_nameplate = E_usable_nominal / SOH_eol = 2,302.8 kWh / 0.80 = 2,878.5 kWh - Auxiliary HVAC and Parasitic Derating (F_aux):
Internal thermal management, control electronics, and BMS consume roughly 4% of stored capacity per cycle (F_aux = 0.96).
E_installed_minimum = E_gross_nameplate / 0.96 = 2,998.4 kWh
Based on this worked design, the facility requires a standard containerised solution rated at no less than 3.0 MWh gross capacity coupled with a 500 kW / 630 kVA bidirectional inverter to guarantee the required 2,000 kWh AC dispatch across its 10-year design life.
Standards, Safety, and Compliance Protocols
Compliance with international electrotechnical standards governs the safe mechanical packaging, electrical protection, and fire containment of commercial energy storage devices. Because high-density battery arrays present chemical and electrical risks, testing protocols must verify resilience against short-circuits, mechanical crushing, and thermal propagation.
IEC 62619 clause 8.2 specifies requirements for secondary lithium cells used in industrial systems, mandating propagation resistance tests where a single cell driven into thermal runaway cannot trigger catastrophic propagation to adjacent cells. On a system level, UL 9540A large-scale fire testing evaluates heat release rates, flammable off-gas composition, and deflagration hazards to guide emergency ventilation sizing.
At the installation site, compliance with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) enforces spatial separation rules, requiring a minimum clearance of 0.9 metres (3 feet) between individual 50 kWh enclosures and between units and perimeter building walls. Grid integration requires meeting IEEE 1547-2018 clause 5 for active voltage and frequency regulation, ensuring anti-islanding relays disconnect the asset within 2.0 seconds of distribution grid loss.
Next steps: specifying and sourcing
When specifying commercial energy storage devices, provide prospective manufacturers with a comprehensive load duration profile, 15-minute interval demand data, available MV/LV substation interconnection voltages, and ambient temperature extremes. Request certified UL 9540A test reports, single-line diagrams showing battery management system (BMS) isolation points, and factory-acceptance test (FAT) documentation compliant with IEC 62933.
Explore our factory-engineered energy storage system solutions and high-density liquid-cooled ESS containers for commercial utility integration. To submit your site load profile or single-line diagram for custom PCS and storage block sizing, request an engineering consultation through our quotation inquiry page.
Frequently asked questions
what is used for long term energy storage
Long term energy storage primarily uses pumped storage hydro, vanadium redox flow batteries, compressed air systems, and green hydrogen storage. These technologies scale their energy capacity independently from power ratings, allowing continuous multi-hour to multi-day discharge without exponential capital expenditure.
what is helpful for long term energy storage
High round-trip efficiency, zero calendar degradation, negligible self-discharge, and modular balance-of-plant systems are helpful for long term energy storage deployments. Maintaining liquid-cooled thermal stability and selecting non-flammable electrolytes also reduce insurance costs and operational risks over a 20-year asset lifecycle.
How does depth of discharge affect battery energy storage devices?
Depth of discharge (DoD) directly affects the cycle life of electrochemical devices, with higher DoD accelerating internal resistance growth and mechanical stress. Operating an LFP battery at 80% DoD typically yields double the lifetime cycle throughput compared to running the same cell at 100% DoD.
What is the round-trip efficiency of modern commercial BESS?
The AC-to-AC round-trip efficiency of modern commercial lithium-ion systems ranges between 86% and 92%, factoring in losses from cell electrochemistry, PCS inversion, isolation transformers, and auxiliary thermal management. Flow batteries achieve lower RTE, typically between 65% and 75%.
What safety standards apply to commercial energy storage devices?
Commercial units must comply with IEC 62619 for cell safety, UL 9540 for complete energy storage systems, UL 9540A for thermal runaway fire propagation testing, and NFPA 855 for facility siting, physical clearances, and suppression systems.
