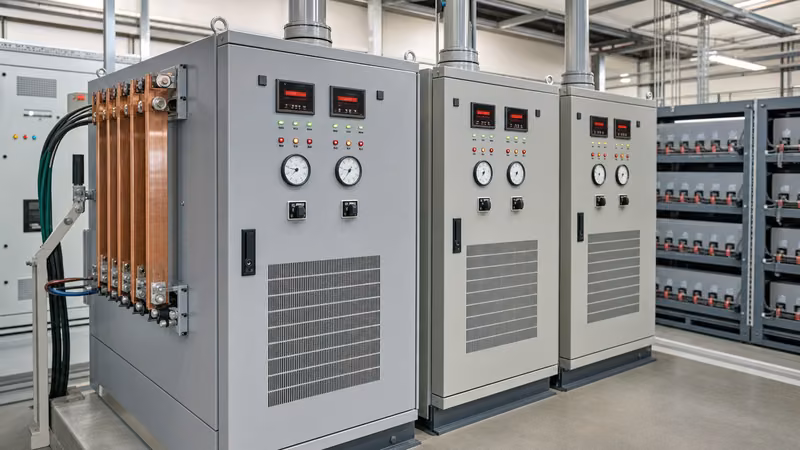

Industrial Battery Chargers: Engineering Sizing & Selection

Quick answer: Industrial battery chargers are heavy-duty, regulated AC-to-DC converters engineered to continuously supply critical DC loads while maintaining and recharging stationary battery banks under strict industrial environmental conditions. Unlike commercial chargers, they provide galvanically isolated, low-ripple DC power compliant with standards such as IEEE 946, NEMA PE 5, and IEC 60146.

In transmission substations, power generation stations, process manufacturing facilities, and heavy industrial plants, uninterrupted direct-current (DC) power is vital for operating protective relays, circuit-breaker tripping coils, emergency lighting, and supervisory systems. A failure of the DC charging infrastructure renders switchgear unable to clear faults, creating catastrophic operational risks. Sizing and selecting stationary battery systems requires treating the charger not simply as an accessory, but as the active power core of the entire DC plant.

Deploying industrial battery chargers involves balancing rectifier topology, battery chemistry dynamics, fault clearing profiles, and thermal margins. Modern facilities integrating dedicated battery bank industrial systems demand chargers capable of delivering steady-state precision alongside high peak-current performance under severe AC mains fluctuations.

Rectifier Topologies in Industrial Charging Systems

Industrial battery chargers primarily employ two conversion topologies: line-commutated silicon-controlled rectifiers (SCR) and high-frequency switch-mode power supplies (HF-SMPS).

SCR-based rectifiers, often configured in 6-pulse or 12-pulse bridges with an input isolation transformer, have served as the benchmark for utility substations for decades. They use phase-angle control to adjust DC output voltage. Because of heavy low-frequency magnetic components, SCR systems demonstrate exceptional resilience against high-energy AC surges, voltage sags, and severe thermal swings. Their operational life frequently exceeds 25 to 30 years. However, 6-pulse topologies generate substantial total harmonic distortion (THDi up to 30% without active filtering) and operate at a lagging power factor when phase-angled down during float operation.

High-frequency switch-mode rectifiers utilise insulated-gate bipolar transistors (IGBTs) or silicon carbide (SiC) MOSFETs switching at frequencies between 20 kHz and 100 kHz. These units rectify AC to DC, convert it to high-frequency AC across a compact ferrite transformer, and rectify it back to filtered DC. This architecture achieves power factors above 0.98, THDi under 5%, and an efficiency exceeding 94%. Furthermore, switch-mode systems allow modular, hot-swappable N+1 or N+2 redundancy. A failed rectifier module can be replaced within minutes without dropping the critical DC bus. For modern switchgear integration, pairing these converters alongside a centralised power conversion system ensures continuous availability across both plant control loops and auxiliary storage banks.

IEEE 946 Sizing Calculation for Industrial Battery Chargers

Sizing an industrial battery charger requires calculating the ampere rating necessary to supply the facility continuous load while simultaneously restoring a fully discharged battery bank to 95-100% capacity within a designated recharge time.

Standard practice follows IEEE 946 clause 7.2. The fundamental design equation is:

I_charger = (k × AH_discharged / T_recharge) + L_continuous

Where:

• I_charger: Minimum required continuous charger output current (A)
• AH_discharged: Ampere-hours removed from the battery during the worst-case duty cycle (Ah)
• T_recharge: Specified recharge duration, typically 8 to 24 hours depending on the operational profile (h)
• k: Battery recharge efficiency factor (typically 1.10 to 1.15 for vented lead-acid, 1.15 to 1.25 for VRLA, 1.40 for Ni-Cd, and 1.05 for lithium iron phosphate)
• L_continuous: Steady-state standing DC load connected to the DC bus during normal operations (A)

Consider a practical engineering example for a 125 V DC switchgear substation:

1. The battery bank has a rated capacity of 400 Ah (10-hour rate) and sustains a 100% depth-of-discharge emergency duty cycle during a primary utility outage.
2. Standing continuous DC supervisory and pilot lamp loads (L_continuous) equal 35 A.
3. The system specification demands a full recharge within 12 hours (T_recharge) using flooded lead-acid cells (k = 1.15).
4. Recharge current component: (1.15 × 400 Ah) / 12 h = 460 / 12 = 38.33 A.
5. Total required current: 38.33 A + 35 A = 73.33 A.
6. Applying a standard 10% engineering margin yields: 73.33 A × 1.10 = 80.66 A.

Based on standard manufacturing steps, the engineer specifies a nominal 125 V DC, 100 A charger cabinet to avoid prolonged operation at maximum thermal capacity.

Technical Comparison: SCR vs High-Frequency Industrial Charging

Selecting between thyristor-based and switch-mode industrial charging systems depends on reliability requirements, available footprint, and ambient operating parameters.

For installations tied to mission-critical infrastructure such as commercial backup power systems, switch-mode systems allow graceful degradation: should one 25 A module fail, the remaining parallel modules sustain the continuous DC load without dropping the plant bus.

Battery Chemistry Charging Profiles and Thermal Controls

Industrial battery chargers must provide dedicated voltage regulation profiles matched directly to the electrochemical characteristics of the connected battery bank.

Stationary battery technologies demand three distinct operational modes:

• Float Charge Mode: Supplies self-discharge losses while maintaining the battery at 100% state of charge without causing grid corrosion or positive plate degradation. Flooded lead-selenium cells typically require 2.23 to 2.25 V per cell (Vpc), whereas Valve Regulated Lead-Acid (VRLA) cells require 2.27 Vpc at 20°C.
• Equalise / Boost Mode: Elevates the voltage (e.g., 2.35 to 2.40 Vpc for lead-acid; 1.55 to 1.60 Vpc for Nickel-Cadmium) to dissolve lead sulfate crystals, balance cell-to-cell specific gravity variations, and accelerate recharge following deep discharges. Equalisation timers must be interlocked with gas extraction controls to mitigate hydrogen accumulation.
• Commissioning Mode: Delivers an extended, elevated voltage charge per manufacturer guidelines to activate dry-charged plates or newly watered Ni-Cd strings.

Automatic temperature compensation is essential for system longevity. As cell temperature rises, electrochemical resistance drops, causing the battery to accept higher currents at a given voltage. Without compensation, this triggers thermal runaway. Industrial battery chargers must incorporate external PT100 or NTC sensors on the pilot cell, adjusting float voltage by -3.0 to -5.0 mV/°C per cell for lead-acid chemistries. When charging lithium iron phosphate (LFP) banks, the charger interface must shift from temperature-based analogue compensation to direct digital communication with the Battery Management System (BMS) over Modbus TCP or CANbus, strictly enforcing constant-current constant-voltage (CCCV) ceilings.

DC Bus Filtering, Ripple Suppression, and Protection Architecture

Uncontrolled alternating current ripple superimposed on a DC bus degrades battery life, generates inductive noise in supervisory lines, and can cause protective relay malfunctions.

NEMA PE 5 defines the industry standards for DC output ripple. High AC ripple currents generate internal ohmic heating ($I^2R_{int}$) inside the battery. For VRLA batteries, ripple current must not exceed 5 A RMS per 100 Ah of rated capacity (C10 rating), or internal cell temperatures can elevate beyond 5°C above ambient, cutting expected service life by 50% according to the Arrhenius relationship.

Standard industrial battery chargers incorporate heavy LC low-pass smoothing filters comprising high-grade iron-core inductors and electrolytic or metalized polypropylene capacitor banks. Where chargers power sensitive SCADA or microprocessor-based relays directly—or when the battery is disconnected for maintenance—engineers specify a battery eliminator filter. A battery eliminator maintains DC ripple voltage below 30 mV RMS (or 100 mV peak-to-peak), ensuring compliance with IEEE C37.90 disturbance immunity thresholds on DC auxiliary supply terminals.

Protection architecture requires full galvanic isolation via a two-winding input transformer tested to 4 kV dielectric strength per IEC 62477-1. Chargers must include reverse battery polarity protection via electronic interlocks, fast-acting semiconductor fuses (aR type) on the bridge legs, output DC circuit breakers with auxiliary trip alarms, and ground fault detection capable of indicating positive or negative rail leakage resistances down to 1 kΩ.

Factory Acceptance Testing (FAT) and Specification Checklist

Verifying performance standards before shipment prevents costly field rectifications during site commissioning.

When generating an RFQ for industrial battery chargers, engineering teams should incorporate the following testing checklist aligned with IEC 60146-1-1 and NEMA PE 5:

1. Voltage Regulation and Stability: Verify static voltage regulation across 0% to 100% load variations with input mains voltage swinging ±10% and frequency varying ±5%. The output voltage must remain within ±0.5% of the calibrated setpoint.
2. Dynamic Load Response: Measure transient voltage excursion and recovery time using a high-speed digital storage oscilloscope. When stepping the load from 20% to 100% or 100% to 20%, the DC voltage must recover to within ±1% of the nominal band within 100 to 200 ms.
3. DC Ripple Measurement: Confirm RMS and peak-to-peak ripple across the complete operating load spectrum (0%, 25%, 50%, 75%, 100%) both with a simulated resistive load and with an actual battery bank connected.
4. Current Limiting Test: Gradually increase DC load past 100% to confirm the electronic current limit engages reliably between 100% and 110% of rated capacity, driving the voltage down to protect the semiconductors without tripping upstream breakers.
5. Dielectric and Insulation Verification: Conduct high-potential (Hi-Pot) insulation tests at 2.0 kV AC for 60 seconds between input/output and chassis earth per IEC 60146-1-1 clause 7.2.2. Measure insulation resistance using a 1,000 V DC megohmmeter; values must exceed 10 MΩ.

Next steps: specifying and sourcing

Specifying the right industrial charging infrastructure requires a complete definition of your site conditions: AC supply parameters, DC bus voltage (24 V, 48 V, 110 V, 125 V, or 220 V DC), continuous standing loads, battery chemistry, and required recharge durations. Explore our integrated energy storage systems and auxiliary power equipment designed for utility-grade switchgear environments. When engineering complete distribution topologies, pair your DC systems with our medium and low-voltage HV/LV switchgear. Contact our technical engineering department via our quotation request page or direct engineering support line to submit your project single-line diagrams for technical review.
