Industrial Solar: Engineering Design and Storage Integration

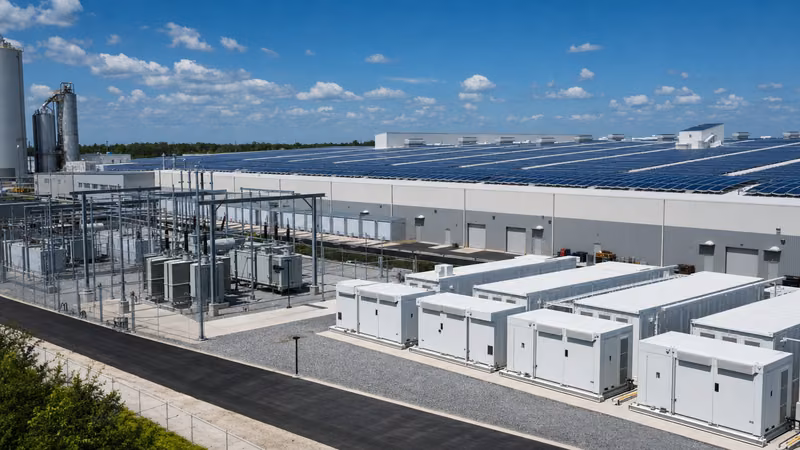

Quick answer: An industrial solar system is an on-site, megawatt-scale photovoltaic generation plant engineered to power industrial manufacturing facilities, chemical plants, and logistics hubs. Operating either behind-the-meter or directly tied to medium-voltage distribution networks, these systems stabilise factory power supply, mitigate high industrial demand charges, and integrate with battery energy storage systems for continuous reliability.

Industrial facilities face structural energy challenges: extreme inductive motor starting currents, peak demand charges that represent up to 50% of the total electricity bill, and stringent power quality constraints. Standard commercial rooftop designs cannot handle these demands. Designing effective industrial solar solutions requires rigorous electrical engineering spanning string inverter selection, harmonic mitigation, dynamic power factor correction, and medium-voltage substation design as detailed in our guide on renewable energy power plant design.

Core Architecture of Industrial Solar Energy Systems

Modern industrial solar energy systems consist of high-efficiency photovoltaic strings, central or decentralised string inverters, balance-of-system switchgear, and a medium-voltage step-up transformer. Photovoltaic (PV) arrays convert solar irradiance into direct current (DC), which flows through combiner boxes equipped with Class II surge protection devices (SPDs) and DC disconnects compliant with IEC 60364-7-712.

Industrial plants select between two primary inverter architectures:

• Decentralised String Inverters: Multiple 100 kW to 350 kW inverters mounted close to the solar arrays. They feature multiple Maximum Power Point Trackers (MPPTs) that mitigate losses caused by roof obstructions, varying tilts, or localised factory emissions. System availability remains high because a single inverter failure removes only a small fraction of generation capacity.
• Central Inverters: Large-scale skids rated from 1 MW to 4 MW, situated adjacent to the primary electrical room or outdoor transformer substation. Central inverters offer simplified utility-scale monitoring, unified maintenance points, and direct integration into medium-voltage step-up stations, making them suitable for large ground-mounted industrial arrays.

The alternating current (AC) output at 400 V, 690 V, or 800 V feeds into dedicated low-voltage switchboards built to IEC 61439 standards before stepping up to site distribution voltages (such as 11 kV, 22 kV, or 33 kV). Facilities incorporating large inductive loads require coordinated reactive power controls compliant with IEEE 1547-2018 to maintain grid interconnection power factors between 0.95 leading and 0.95 lagging.

Coupling Methods: AC vs DC Coupled Industrial Solar Solutions

Integrating battery storage into industrial solar solutions transforms intermittent generation into dispatchable power. Electrical engineers must select between AC-coupled and DC-coupled architectures based on facility load profiles, existing infrastructure, and operational objectives such as peak shaving and backup capability.

In an AC-coupled configuration, the solar array and the battery system connect to separate inverters on the facility's main AC bus. This layout allows independent sizing and simplifies brownfield retrofits. In a DC-coupled configuration, the solar array and battery bank share a common DC bus linked through bi-directional DC-DC converters to a shared power conversion system. This eliminates double DC-AC-DC conversion losses, boosting overall round-trip efficiency.

For industrial facilities with critical loads that cannot tolerate power interruption, an AC-coupled architecture paired with an uninterruptible power distribution scheme is frequently paired with systems described in our industrial battery bank guide.

Sizing Calculation: Industrial Solar with Battery Storage

Properly sizing an industrial solar installation paired with battery storage requires analysing 15-minute interval demand data rather than monthly energy totals. The primary financial objective is typically peak shaving to lower utility maximum demand penalties while eliminating mid-day solar curtailment.

Consider a manufacturing facility with the following operational metrics:

• Peak electrical demand: 3,200 kW (occurring between 14:00 and 18:00)
• Target grid demand cap: 2,200 kW (a 1,000 kW demand reduction target)
• Peak duration: 4 hours
• Solar array capacity: 2,000 kWp installed rooftop capacity
• Average solar generation during peak window: 400 kW

The battery must supply the remaining deficit to hold the facility below its 2,200 kW grid cap:

1. Calculate Required Continuous Discharge Power:
   P_discharge = Deficit - Solar Contribution = 1,000 kW - 400 kW = 600 kW.
   To account for cloud cover variability, engineer the system for the full peak shaving requirement: P_discharge = 1,000 kW.
2. Calculate Delivered Energy:
   E_delivered = P_discharge × Time = 1,000 kW × 4 h = 4,000 kWh.
3. Determine Gross Battery Capacity (considering derating and efficiency):
   Apply a maximum depth of discharge (DoD) of 90% to prolong lithium iron phosphate (LFP) cell life, and an AC-to-AC round-trip efficiency (RTE) of 88%:
   E_gross = E_delivered / (DoD × RTE) = 4,000 kWh / (0.90 × 0.88) = 5,050.5 kWh.

The facility requires a nominal 1,000 kW / 5,100 kWh battery storage container. This results in a continuous discharge rate of approximately 0.2C, which matches standard utility-grade LFP cell performance envelopes and preserves warranty lifetimes over 6,000+ full equivalent cycles as outlined in our review of renewable energy storage engineering.

Grid Interconnection and Substation Engineering

Industrial solar installations operating above 1 MW capacity require a dedicated medium-voltage step-up transformer and switchgear line-up to interface with the local utility network or the facility's internal distribution ring. System voltages range from 400 V or 800 V inverter outputs up to 11 kV, 22 kV, or 33 kV distribution levels.

Transformers deployed in solar-plus-storage applications experience unique operational stresses. Inverter-induced harmonics cause eddy current and stray load losses within the windings. Specifying engineers must calculate the appropriate K-factor in accordance with IEEE C57.110. A standard distribution unit will overheat if exposed to total harmonic distortion (THD) exceeding 5%; therefore, transformers serving industrial solar solutions should specify an electrostatic shield between primary and secondary windings and a minimum rating of K-4 to K-9 depending on the inverter pulse profile.

The medium-voltage switchgear must integrate multifunction numerical protection relays providing:

• Overcurrent and earth fault protection (ANSI 50/51, 50N/51N)
• Directional power protection (ANSI 32) to prevent unsanctioned export into the utility grid
• Over- and under-voltage protection (ANSI 27/59) and frequency protection (ANSI 81O/81U)
• Loss-of-mains (anti-islanding) detection utilising rate of change of frequency (ROCOF / ANSI 81R) and vector shift algorithms per IEEE 1547 requirements

Thermal Management, Protection, and Safety Standards

Industrial environments expose solar and energy storage assets to ambient dust, chemical vapours, high operating temperatures, and mechanical vibration. Outdoor balance-of-system equipment must carry a minimum ingress protection rating of IP55, with corrosive environments requiring C4 or marine-grade protective coatings per ISO 12944.

For collocated battery energy storage, thermal runaway prevention is the primary engineering requirement. Liquid-cooled battery systems maintain cell temperatures within a narrow 25°C ± 2°C operating band, reducing cell-to-cell thermal divergence far more effectively than forced-air systems. This extends battery service life and reduces parasitic HVAC consumption by up to 30%.

Safety compliance must follow established international fire and life safety frameworks:

1. NFPA 855: Dictates minimum separation distances of 1.5 metres (5 feet) between containerised BESS units and adjacent structures, maximum unit capacities, and fire-rated external barriers.
2. UL 9540A: Mandates cell-, module-, and unit-level thermal runaway fire testing data to verify that runaway propagation is contained within the initial enclosure.
3. Fire Suppression and Gas Detection: Integrated systems must use multi-stage early detection, combining off-gas sniffing (detecting hydrogen and carbon monoxide prior to smoke production) with aerosol or clean-agent fire suppression, coupled with water deluge connections for structural cooling.

Next steps: specifying and sourcing

Successful deployment of industrial solar systems demands precise coordination between photovoltaic generation, energy storage chemistry, and electrical distribution gear. When preparing a request for quotation (RFQ), ensure your tender package includes 15-minute load profile data, single-line diagrams (SLDs), available short-circuit currents at the point of common coupling, and environmental ratings.
