K Factor Transformer Guide: Ratings, Sizing & Design

Quick answer: A k factor transformer is a dry-type or liquid-filled distribution transformer specifically designed to handle the excessive thermal stress and parasitic eddy current losses caused by non-linear electrical loads. By incorporating oversized neutral conductors, electrostatic shielding, and transposed winding geometry, it safely tolerates harmonic load currents without exceeding its designed insulation temperature rise.

Modern power distribution networks are dominated by switch-mode power supplies, variable speed drives (VFDs), uninterruptible power supplies (UPS), and LED lighting. These non-linear loads draw current in abrupt pulses rather than smooth sinusoidal curves. When non-sinusoidal currents traverse a conventional distribution unit, stray load losses and neutral currents surge, triggering premature insulation breakdown, nuisance breaker tripping, and catastrophic winding failure. Selecting the correct low-voltage distribution transformer requires understanding how non-linear currents translate into thermal losses.

K Rated Meaning: How Harmonics Cause Thermal Runaway

The k rated meaning refers to an internationally recognised numerical index defined in IEEE C57.110 and UL 1561 that quantifies a transformer's ability to supply non-linear loads without exceeding its thermal insulation limits. In a purely linear circuit supplying resistive heaters or across-the-line induction motors, current alternates at a fundamental frequency of 50 Hz or 60 Hz. Consequently, the assigned K-factor is exactly 1.0. Conversely, solid-state electronic switching generates higher-order harmonic frequencies (such as the 3rd, 5th, 7th, 9th, and 11th orders) that alter the internal electromagnetic losses of the core and windings.

Total transformer load losses comprise primary and secondary winding I²R ohmic resistance losses, winding eddy current losses ($P_{EC}$), and other stray losses ($P_{OS}$) within structural steel clamps and core laminations. While fundamental I²R losses depend strictly on the root-mean-square (RMS) current magnitude, winding eddy current losses scale proportionally with the square of the harmonic order ($h^2$) multiplied by the square of the harmonic current magnitude ($I_h^2$). At the 11th harmonic (550 Hz or 660 Hz), high-frequency eddy losses are 121 times greater per ampere than fundamental 50/60 Hz eddy losses.

When a conventional unit operates under severe harmonic distortion, this concentrated heating attacks conductor paper and resin systems, inducing rapid transformer winding temperature escalation. For every 8°C to 10°C increment above a transformer's thermal insulation class limit, the operational operating life of the dielectric insulation system is halved.

Standard K-Ratings and Application Matrix

Standard ratings for a k rated transformer are categorised under standard industry increments of K-1, K-4, K-9, K-13, K-20, K-30, K-40, and K-50. System designers must match the connected harmonic spectrum to the appropriate index to prevent both under-design overheating and costly equipment over-specification.

In high-density server computing facilities, selecting robust units designed as transformers for data centres is vital, as harmonic currents sum constructively on the neutral conductor, demanding at least a 200% neutral sizing cross-section.

Worked Calculation: Determining K-Factor to IEEE C57.110

Calculating the precise index for a k factor transformer requires obtaining a harmonic load profile via a power quality analyser and applying the standard IEEE C57.110 calculation formula. The mathematical definition of the K-factor is established by:

K = Σ [ (I_h / I_rms)² × h² ]

Where h represents the harmonic order number, I_h represents the RMS current at harmonic order h, and I_rms represents the total true RMS load current ($I_{rms} = \sqrt{\Sigma I_h^2}$). Consider an industrial distribution board supplying 400 A total true RMS load with the following measured current spectrum:

• Fundamental (h = 1, 50 Hz): 340 A
• 3rd Harmonic (h = 3, 150 Hz): 120 A (triplen currents from single-phase IT power supplies)
• 5th Harmonic (h = 5, 250 Hz): 140 A (6-pulse variable speed drives)
• 7th Harmonic (h = 7, 350 Hz): 90 A (rectifier bridges)
• 9th Harmonic (h = 9, 450 Hz): 30 A
• 11th Harmonic (h = 11, 550 Hz): 25 A

First, verify total RMS current: $\sqrt{340^2 + 120^2 + 140^2 + 90^2 + 30^2 + 25^2} = \sqrt{115600 + 14400 + 19600 + 8100 + 900 + 625} = \sqrt{159225} \approx 399.03\text{ A}$.

Next, calculate each harmonic component's normalized weight: $[(I_h / I_{rms})^2 \times h^2]$:

1. Order 1: $(340 / 399.03)^2 \times 1^2 = (0.8521)^2 \times 1 = 0.726$
2. Order 3: $(120 / 399.03)^2 \times 3^2 = (0.3007)^2 \times 9 = 0.0904 \times 9 = 0.814$
3. Order 5: $(140 / 399.03)^2 \times 5^2 = (0.3508)^2 \times 25 = 0.1231 \times 25 = 3.078$
4. Order 7: $(90 / 399.03)^2 \times 7^2 = (0.2255)^2 \times 49 = 0.0509 \times 49 = 2.494$
5. Order 9: $(30 / 399.03)^2 \times 9^2 = (0.0752)^2 \times 81 = 0.00566 \times 81 = 0.458$
6. Order 11: $(25 / 399.03)^2 \times 11^2 = (0.0627)^2 \times 121 = 0.00393 \times 121 = 0.476$

Summing the individual weights yields: $K = 0.726 + 0.814 + 3.078 + 2.494 + 0.458 + 0.476 = 8.046$. In this installation, specifying a K-4 rated unit would lead to chronic thermal overload. The engineer must select a standard K-9 or K-13 transformer to guarantee thermal integrity and longevity.

Internal Engineering of K Factor Rated Transformers

A factory-built k factor rated transformers assembly incorporates distinct physical modifications compared to conventional distribution units to safely withstand harmonic currents and magnetic flux distortion. Standard units subjected to harmonics experience localised hot spots in the top conductor windings that ignite varnish and compromise winding clearances.

Key structural enhancements inside dry-type transformers engineered for high K-factors include:

• Transposed Parallel Conductors: High-frequency harmonic currents concentrate at conductor surfaces due to the skin effect and proximity effect. Manufacturers replace large, solid conductors with multiple smaller, individually insulated, parallel-wound strip conductors or foil windings, drastically minimising high-frequency eddy current losses.

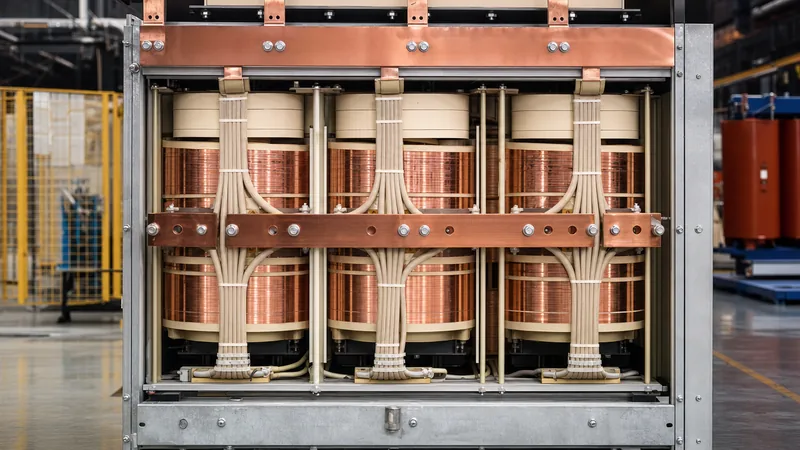

• Oversized 200% Neutral Busbars: Triplen harmonics (3rd, 9th, 15th) do not cancel in the neutral point of a 3-phase, 4-wire star system; they sum additively. Neutral currents frequently reach 140% to 175% of phase line currents. Heavy-duty copper neutral terminals and busbars sized at a minimum of 200% rated current capacity are mandatory.
• Electrostatic Shielding: A grounded continuous copper foil shield placed between the primary and secondary windings attenuates high-frequency common-mode noise, prevents capacitive coupling of line spikes, and shields primary switchgear from secondary transients.
• Reduced Core Operating Flux Density: Core laminations use higher-grade, grain-oriented silicon steel (typically 0.23 mm or 0.27 mm thickness) operated well below the core steel saturation knee point (e.g., 1.3 to 1.5 Tesla rather than 1.7 Tesla) to accommodate DC offsets and suppress acoustic noise and core losses.
• Lower Winding Temperature Rise Ratings: Units typically use Class 220°C insulation (high-temperature aramid or equivalent) but are engineered to operate at a conservative 115°C or 80°C nominal temperature rise, providing extensive thermal headroom against transient overloads.

K Transformers vs Harmonic Mitigating Transformers (HMT)

Engineers evaluating harmonic mitigation frequently confuse conventional k transformers with harmonic mitigating transformers (HMTs), although they operate on completely contradictory design philosophies. A k-rated transformer is purely an accommodating device; it does not alter, cancel, or reduce harmonic currents in the circuit. It simply provides heavier copper, distributed paths, and increased thermal capacity so that upstream and downstream harmonics do not burn out the coils.

In contrast, a Harmonic Mitigating Transformer (HMT) is an active-cancellation passive device built with specific secondary zigzag or phase-shifting winding configurations (such as +15° and -15° or 0° and 30° vector shifts). An HMT treats the system by causing triplen harmonics to cancel within its secondary windings and circulating 5th and 7th harmonic currents to cancel upstream at common distribution switchboards. While an HMT reduces total voltage distortion ($THD_V$) on primary buses, a K-rated unit requires lower upfront capital expenditure, involves standard delta-wye connections, and operates with superior reliability when downstream circuits contain unpredictable single-phase electronic loads.

Factory Testing and Specification Checklist for RFQs

Specifying a transformer for non-linear duty requires exacting engineering schedules during tender release to ensure compliance during power transformer testing and factory acceptance inspections. Use the following technical checklist when preparing distribution equipment procurement specifications:

1. Applicable Standard Reference: Explicitly mandate compliance with IEEE C57.110 (Determination of Transformer Ability to Supply Harmonic Loads) and UL 1561 / equivalent distribution transformer standards.
2. K-Factor Designation: State the required K-factor explicitly (e.g., K-13, K-20) based on verified system THD; avoid open-ended requests for "harmonic resistant" units.
3. Winding Material and Rise: Specify electrolytic copper conductors (grade Cu-ETP, minimum 99.9% conductivity) with an operating temperature rise not exceeding 115°C over a 40°C ambient, utilizing Class 220°C insulation systems.
4. Neutral Bus Rating: Require a factory-verified neutral terminal and busbar cross-section rated for a minimum of 200% continuous phase current.
5. Electrostatic Shielding: Require an electrostatically shielded Faraday ground plane between primary and secondary windings, complete with copper grounding tabs rated for short-circuit discharge.
6. Factory Temperature Rise Testing: Require manufacturer factory test reports verifying that temperature rise tests were conducted under rated non-linear current spectra, rather than standard sinusoidal simulation alone.
