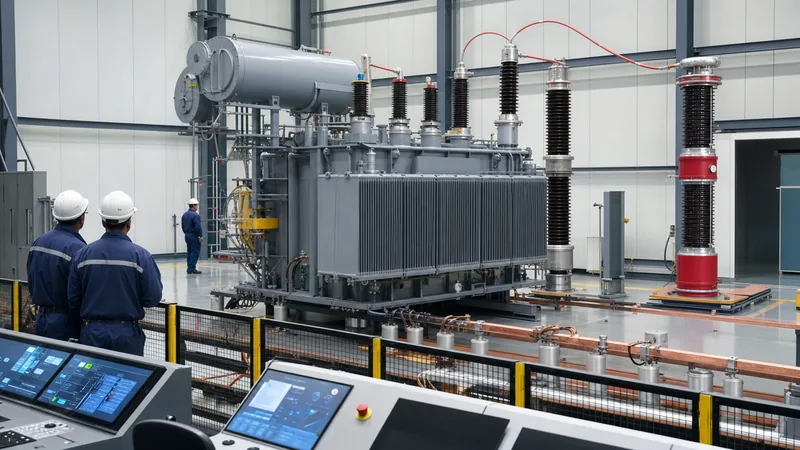

Power Transformer Testing: Factory & Acceptance Guide

Quick answer: Power transformer testing is a standardised sequence of electrical, dielectric, thermal, and mechanical evaluations conducted to confirm that a transformer meets its design specifications, performance guarantees, and safety criteria prior to energisation. Governed primarily by IEC 60076 and IEEE C57 standards, these tests verify operational parameters, uncover manufacturing flaws, and establish benchmark data for lifecycle condition monitoring.

For electrical engineers, EPC contractors, and asset owners, power transformer testing forms the final quality gate between factory assembly and permanent substation installation. Transformers represent critical, capital-intensive nodes within transmission grids, industrial facilities, and large-scale renewable generation schemes. An undetected flaw in winding insulation, core laminations, or internal lead clamping can result in catastrophic in-service failure, costly unplanned outages, and significant commercial penalties. Implementing rigorous testing protocols ensures that only assets meeting strict performance margins are shipped, installed, and commissioned.

Classification of Tests: Routine, Type, and Special Categories

Electrical transformer testing is divided into three distinct contractual categories under international standards such as IEC 60076-1 clause 3.11 and IEEE C57.12.00 clause 8. Categorising tests prevents unnecessary costs on serial production while guaranteeing that base designs and specific operational environments are thoroughly validated.

The three categories encompass:

• Routine tests: Mandatory tests carried out on every individual unit manufactured, regardless of rating or repetition. These verify basic insulation levels, voltage ratios, winding resistances, impedance, and core/load losses.
• Type tests: Verification procedures carried out on a representative transformer of a specific design series to prove that the design satisfies requirements not covered by routine tests. Examples include temperature rise tests (IEC 60076-2) and standard lightning impulse tests (IEC 60076-3).
• Special tests: Optional procedures agreed upon between the manufacturer and the purchaser during contract negotiations. These evaluate extreme or unusual operating parameters, including short-circuit dynamic withstand tests (IEC 60076-5), sound level measurements (IEC 60076-10), zero-sequence impedance tests, and frequency response analysis.

Understanding these classifications helps procurement teams specify Factory Acceptance Testing (FAT) scopes without duplicating engineering expenses. Field testing principles applied during post-installation commissioning are discussed further in our guide on how to test a transformer.

How to Test Transformer Windings: DC Resistance, Ratio, and Vector Group

To test transformer windings properly, technicians evaluate winding continuity, turn-to-turn ratios, phase displacement, and DC resistance across all tap positions using low-voltage diagnostic methods. These measurements establish the electromagnetic symmetry of the core-and-coil assembly before applying high voltages.

Winding resistance measurements detect loose bolted connections, broken copper strands, or defective tap changer contacts. Performed using a digital micro-ohmmeter with a Kelvin four-wire configuration, test currents must exceed core saturation levels (typically 1.2 times magnetising current) to minimise inductive stabilisation time, but should not exceed 10% to 15% of rated winding current to prevent resistive conductor heating. The measured DC resistance must be corrected to a reference temperature—usually 75°C for standard distribution units or 85°C for high-temperature designs—using the standard temperature correction formula:

R_ref = R_meas × (T_k + T_ref) / (T_k + T_meas)

Where T_k is the inferred zero-resistance temperature constant (234.5°C for electrolytic copper, 225°C for electrical-grade aluminium), T_meas is the winding temperature during measurement, and T_ref is the specified reference temperature. Phase-to-phase resistance variations should remain within ±1.0% on identical windings, and deviation across parallel paths must not exceed ±2.0%.

Voltage ratio and vector group verification follow resistance checks. A three-phase ratio tester applies a reduced test voltage (typically 100 V to 400 V AC) to the high-voltage winding while measuring induced voltages on the low-voltage side. Under IEC 60076-1 clause 9.3, the voltage ratio on the principal tap must not deviate by more than ±0.5% from the specified value. For off-circuit or on-load tap changers, every tap step must be tested in sequence to verify operational continuity and mechanical step indexing, which is described in detail in our load tap changer engineering guide.

High Voltage Testing of Transformer Insulation: Dielectric and Impulse Methods

High voltage testing of transformer insulation validates the dielectric withstand capability of liquid and solid insulation systems against operational overvoltages, switching surges, and atmospheric lightning strikes. Standardised dielectric procedures under IEC 60076-3 ensure that clearances, pressboard barriers, and transformer oil retain sufficient dielectric margin under extreme electric field gradients.

Dielectric testing encompasses three critical procedures:

1. Separate-source AC withstand test (applied voltage): A single-phase high-voltage test set applies power-frequency AC voltage (50 Hz or 60 Hz) for 60 seconds between the winding under test and all other windings, core, and grounded tank connected together. For example, a 33 kV system winding rated at 70 kV power-frequency withstand must maintain 70 kV RMS to ground without flashover or leakage breakdown.
2. Induced AC overvoltage test (short-duration or long-duration): Because applied voltage tests only stress the major insulation to ground, induced overvoltage tests verify turn-to-turn, layer-to-layer, and phase-to-phase insulation. The transformer is back-fed from the low-voltage winding at two to three times the rated frequency (typically 100 Hz to 200 Hz) to prevent core saturation. The test voltage is ramped up to twice the rated voltage for a duration calculated by t = 120 × (rated frequency / test frequency) seconds, with a minimum duration of 15 seconds. During long-duration tests (ACLD), partial discharge (PD) is monitored continuously, with acceptance criteria requiring PD levels to remain under 100 pC at 1.58 Um / √3.
3. Full-wave lightning impulse test: Simulating atmospheric surges, a multi-stage Marx impulse generator discharges a standard 1.2/50 μs voltage wave into the line terminals. The standard sequence consists of one reduced impulse (50% to 70% of Basic Impulse Level [BIL]), followed by three consecutive 100% full-wave impulses. The resulting voltage and neutral current waveforms are recorded on digital oscilloscopes. Any deviation between the reduced and full-wave current traces indicates an internal dielectric puncture or inter-turn breakdown.

Special care must be taken to monitor external hardware during impulse runs, particularly high-voltage terminal bushings, which undergo specific testing as detailed in our transformer bushing engineering guide.

No-Load and Load Loss Measurement Procedure

Loss measurements determine the operational efficiency of the transformer and verify that design guarantees for no-load (core) losses and load (copper) losses fall within contractual and statutory tolerances. Excessive losses lead to operational overheating, accelerated insulation ageing, and substantial capital penalties assessed during utility evaluations.

The table below summarises the parameters, test conditions, and instruments required for precision loss and impedance testing per IEC 60076-1 clause 10:

No-load loss testing measures hysteresis and eddy current dissipation within the magnetic core steel laminations. The voltage waveform applied must exhibit low harmonic distortion; test sets apply the mean-voltmeter method to calculate core losses corrected to a true sinusoidal waveform. Load loss testing captures I²R conduction losses within the winding conductors plus eddy current and stray losses induced in the tank walls, clamping structures, and core frames. Stray losses rise significantly in large power ratings, demanding accurate thermal management as outlined in our guide to winding temperature limits and thermal modelling.

Step-by-Step Transformer Testing Procedure: Factory Acceptance Sequence

A logical transformer testing procedure arranges electrical, dielectric, and mechanical evaluations in an orderly sequence to avoid false passes, prevent damage to previously validated components, and confirm that insulating media remains uncontaminated throughout the process.

The sequence must proceed through the following operational steps:

1. Insulating liquid analysis: Before applying any electrical stress, draw an oil sample from the bottom sampling valve. Verify dielectric breakdown voltage (minimum 50 kV under IEC 60156), moisture content (below 15 ppm for units over 72.5 kV), and dissipation factor (tan delta below 0.005 at 90°C per IEC 60296).
2. Cold winding resistance & voltage ratio: Measure DC resistance of all windings across all tap positions. Measure turn ratio, phase displacement, and vector relationship across all phases.
3. Insulation resistance and dissipation factor: Measure insulation resistance (Megger at 2.5 kV or 5 kV DC) at 15 seconds, 60 seconds, and 600 seconds to establish the Polarisation Index (PI = R_600s / R_60s; target > 1.5). Measure capacitance and dielectric dissipation factor (tan delta) of windings and bushings using a 10 kV capacitance bridge; values must remain below 0.5% at 20°C for modern oil-immersed paper systems.
4. No-load loss and excitation current: Excite the core at 90%, 100%, and 110% of rated voltage to evaluate saturation curves and identify potential core lamination short circuits.
5. Load loss and short-circuit impedance: Short the secondary terminals using low-inductance busbars and supply rated current to the primary side. Correct measured losses to the contractual reference temperature.
6. Dielectric withstand tests: Perform lightning impulse tests first, followed by applied power-frequency voltage, and conclude with induced overvoltage testing with partial discharge monitoring. Dielectric tests are placed after loss tests to ensure that mechanical stresses from impulse tests do not influence baseline electromagnetic measurements.
7. Post-test diagnostic oil sampling: Take a final oil sample immediately after the dielectric tests to perform Dissolved Gas Analysis (DGA). Acetylene (C2H2) must remain below detection limits (< 1 ppm), confirming that no internal arcing or flashover occurred during high-voltage energisation.

Factory Acceptance Testing (FAT) vs Site Acceptance Testing (SAT) Checklist

The distinction between Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) lies in test equipment capacity, environmental control, and the scope of inspection. FAT verifies intrinsic electromagnetic and dielectric design in a controlled test bay, whereas SAT confirms that transportation, rigging, oil filling, and site installation have introduced no physical or dielectric defects.

The comparative checklist below details the essential tests required across each acceptance stage:

Performing Sweep Frequency Response Analysis (SFRA) during both FAT and SAT is vital. Discrepancies between the factory baseline curve and the post-transport curve provide clear evidence of core shift, winding deformation, or clamping failure caused by excessive transport acceleration forces.

Interpreting Diagnostic Test Results: DGA, Dissipation Factor, and Sweep Frequency

Interpreting diagnostic results requires cross-referencing electrical, physical, and chemical test data rather than reviewing single test values in isolation. Advanced diagnostics provide early warning of thermal hotspots, mechanical displacement, and dielectric degradation before major failure occurs.

Dissolved Gas Analysis (DGA) per IEC 60599 provides the most sensitive non-destructive window into an oil-filled transformer's operational condition. Key gas ratios indicate specific internal failure mechanisms:

• Thermal faults (hotspots): Elevated levels of methane (CH4) and ethane (C2H6) indicate low-to-medium thermal overheating (< 300°C to 700°C), typically caused by poor contact pressure or circulating stray currents. Ethylene (C2H4) dominant faults indicate severe overheating (> 700°C) from localized core or clamping short circuits.
• Dielectric discharges: Hydrogen (H2) combined with trace methane signifies partial discharge (corona). The appearance of acetylene (C2H2) indicates high-energy electric arcing between windings, tap changer flashover, or turn-to-turn insulation breakdown. In a newly manufactured transformer undergoing FAT, acetylene must be non-detectable (< 0.5 ppm).
• Cellulose degradation: Carbon monoxide (CO) and carbon dioxide (CO2) ratios reflect paper insulation ageing. A a standard unit ratio below 3 indicates rapid thermal decomposition of solid paper wrapping.

Capacitance and dissipation factor (tan delta) measurements quantify dielectric losses in the insulation system. A rising tan delta value reflects ionic conduction caused by moisture ingress, carbonisation, or chemical oxidation of the insulating oil. For high-voltage windings and OIP/RIP bushings, tan delta at 20°C should never exceed 0.5%. When oil quality deteriorates, engineering teams implement reclamation cycles as discussed in our guide to transformer oil purification and filtration.

Worked Example: Evaluating Impedance and Loss Tolerances Under IEC 60076-1

Contractual acceptance criteria allow specific engineering tolerances on measured losses and impedance to account for manufacturing variations and measurement uncertainties, defined in IEC 60076-1 Table 1. If test bay measurements exceed these statutory tolerances, the purchaser has the right to assess capitalised loss penalties or reject the transformer entirely.

Consider a 25 MVA, 110 kV / 11 kV, 50 Hz power transformer with the following guaranteed design parameters:

• Guaranteed No-Load Loss (P_0): 18.0 kW
• Guaranteed Load Loss (P_k): 115.0 kW (at 75°C reference temperature)
• Guaranteed Short-Circuit Impedance (%Z): 10.0%
• Guaranteed Total Losses (P_total): 18.0 kW + 115.0 kW = 133.0 kW

During the transformer testing process in the factory test bay, calibrated measurement instrumentation records the following actual test values:

• Measured No-Load Loss: 19.8 kW
• Measured Load Loss (corrected to 75°C): 124.2 kW
• Measured Impedance (%Z): 10.7%
• Measured Total Losses: 19.8 kW + 124.2 kW = 144.0 kW

To verify contractual compliance, compare the percentage deviations against the allowable tolerances defined in IEC 60076-1 Table 1:

1. No-load loss deviation: ((19.8 - 18.0) / 18.0) × 100 = +10.0%. The allowable limit is +15%. The measured value is compliant.
2. Load loss deviation: ((124.2 - 115.0) / 115.0) × 100 = +8.0%. The allowable limit is +15%. The measured value is compliant.
3. Total loss deviation: ((144.0 - 133.0) / 133.0) × 100 = +8.27%. The allowable limit for total losses is +10.0%. The measured value is compliant.
4. Impedance deviation: ((10.7 - 10.0) / 10.0) × 100 = +7.0%. For a two-winding transformer with impedance ≥ 10%, IEC 60076-1 allows a deviation of ±7.5% (or ±10% on principal tap depending on contractual specification). The measured +7.0% value passes the threshold.

Although all parameters fall within the maximum rejection tolerances, the measured total losses exceed the guaranteed baseline by 11.0 kW. Under standard utility procurement contracts, this triggers capitalised loss penalty fees calculated using contractual loss valuation rates (typically $3,000 to $8,000 per kW of excess loss over the projected 30-year operational life of the unit).
