LiFePO4 Battery Management System: Engineering Specs & Sizing

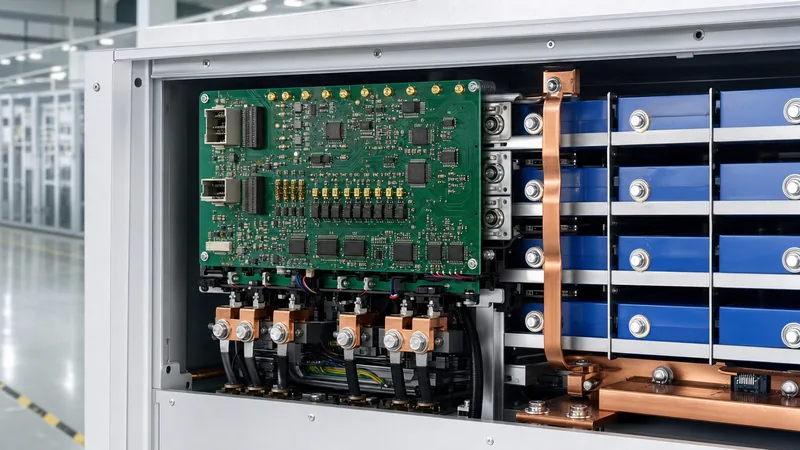

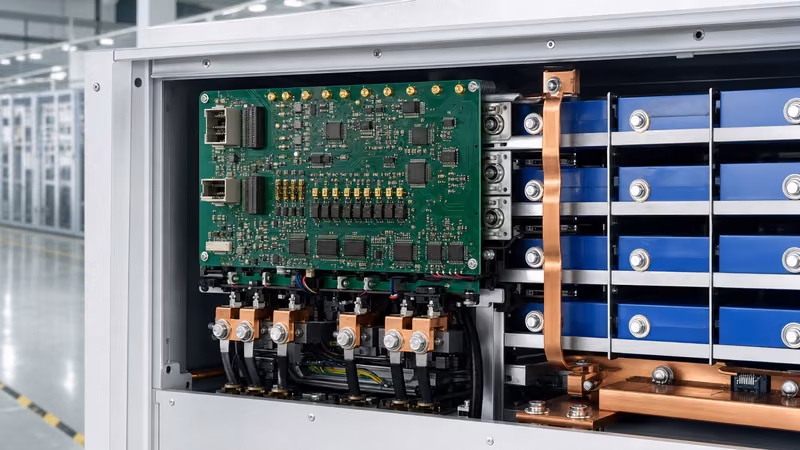

Quick answer: A lifepo4 battery management system (BMS) is an electronic supervisory architecture that regulates charging, discharging, thermal states, and cell balancing across lithium iron phosphate cells. It prevents over-voltage, deep discharge, and thermal runaway while maintaining pack equilibrium across flat open-circuit voltage curves.

Industrial energy storage applications increasingly rely on lithium iron phosphate (LFP) chemistry due to its intrinsic thermal stability and superior cycle life exceeding 4,000 to 8,000 cycles at 80% depth of discharge. However, operating LFP cells safely demands specialised supervisory controls distinct from nickel-manganese-cobalt (NMC) configurations. Detailed comparisons can be explored in our guide to LFP vs NMC battery chemistry. Implementing a dedicated lifepo4 battery bms is critical because LFP chemistry exhibits an exceptionally flat voltage profile, making conventional voltage-based capacity tracking inaccurate without advanced algorithmic state estimation.

Core Functions of a LiFePO4 Battery Management System

A lifepo4 battery management system monitors cell voltages, string currents, ambient temperatures, and insulation resistance to keep the battery bank within its safe operating area (SOA). Unlike chemistries with steep voltage transitions, lithium iron phosphate operates at a nominal 3.20 V per cell with an operating discharge plateau hovering between 3.20 V and 3.25 V across 60% of its discharge cycle.

The supervisory system executes four essential engineering functions:

• Precision Cell Monitoring: Measures individual cell voltages to within +/-2 mV resolution using multi-channel analogue front-end (AFE) integrated circuits compliant with IEC 62619 clause 8.2.
• Dynamic Thermal Regulation: Deploys negative temperature coefficient (NTC) thermistors across high-current busbars and inner cell clusters, enforcing hard charging cut-offs below 0 deg C to eliminate lithium dendrite plating.
• State Estimation (SOC & SOH): Integrates real-time current accumulation (Coulomb counting) with periodic open-circuit voltage (OCV) recalibration. For deeper analysis on telemetry methods, consult our battery SOC engineering guide.
• Fault Isolation: Controls primary and secondary disconnect contactors or solid-state field-effect transistors (MOSFETs) to clear overcurrent, short circuits, and under-voltage events before cell vent caps open.

Architecture: BMS for Lithium LiFePO4 Topologies

Selecting the right topology for a bms for lithium lifepo4 depends entirely on total string voltage, physical footprint, and modular serviceability requirements. Industrial architectures fall into three primary hardware topologies:

1. Centralised Topology: A single control board connects directly to every cell in the pack via comprehensive wiring looms. This approach offers the lowest initial capital cost for compact 12 V to 48 V enclosures, though it increases wiring complexity and electromagnetic interference (EMI) susceptibility over extended wire runs.
2. Distributed (Modular) Topology: Each cell or multi-cell block incorporates an autonomous cell monitoring unit (CMU) mounted directly to the terminal busbars, communicating via an isolated controller area network (CAN bus) or daisy-chain serial link to a central pack controller. This layout reduces harness bulk in high-voltage industrial setups.
3. Master-Subordinate (Hierarchical) Topology: Multiple string controllers report to a central system master unit (SMU). This architecture is standard in multi-rack megawatt installations where independent high-voltage battery racks operate in parallel onto a common DC bus.

For complex installations, integrating a dedicated battery control module at each rack level ensures individual rack protection without dropping the entire commercial energy storage plant offline. Detailed hardware integration layouts are examined in our technical overview of what is a battery control module.

Balancing and Voltage Thresholds in a BMS Battery Management System LiFePO4

A bms battery management system lifepo4 must govern cell balance strictly at the top and bottom of the charging curve where voltage inflection points become detectable. Balancing between 20% and 80% SOC based on voltage is ineffective because a 5 mV variation in an LFP cell might represent a 30% difference in state of charge.

The engineering parameters for a standard commercial LFP cell must follow strict operational bands:

Engineers must decide between passive and active balancing. Passive balancing dissipates excess charge through power resistors (typically 50 mA to 200 mA shunt current) when cells cross 3.45 V during saturation charging. Active balancing transfers energy via capacitive or inductive switching circuits at currents between 1 A and 5 A, which is essential for massive 280 Ah to 314 Ah prismatic cells where passive dissipation generates excessive thermal loads inside sealed enclosures.

Sizing LiFePO4 Battery Packs BMS 48V Systems: Worked Engineering Calculation

Designing protection for lifepo4 battery packs bms 48v requires precise evaluation of cell series arrangements, continuous currents, and peak short-circuit interrupting capacity. A standard nominal 48 V LFP system requires 16 cells in series (16S), yielding a nominal rating of 51.2 V (16 x 3.20 V) rather than a 15S arrangement which yields only 48.0 V nominal and sags under load.

Consider an industrial 48 V / 200 Ah energy storage battery rack supplying an off-grid inverter system:

• Pack configuration: 16S1P using 3.2 V 200 Ah prismatic cells.
• Pack energy: 51.2 V x 200 Ah = 10.24 kWh.
• Continuous design load: 5.0 kW continuous at minimum battery discharge voltage (40.0 V, or 2.50 V per cell).
• Continuous current calculation: I_continuous = P_load / V_min = 5,000 W / 40.0 V = 125 A.
• Inverter inrush / motor starting surge factor: 2.0x for 10 seconds = 250 A peak.

To prevent premature thermal degradation of the power stage, the BMS switching circuit must be sized with an engineering safety factor of 1.30 over continuous load: 125 A x 1.30 = 162.5 A. Therefore, a solid-state BMS rated for 200 A continuous and 350 A peak (for 10 seconds) is required.

Next, we calculate the required passive balancing capacity. Assuming a daily manufacturing capacity divergence of 0.5% per cycle between the weakest and strongest cell in a 200 Ah string:

• Daily capacity divergence: 200 Ah x 0.005 = 1.0 Ah (1,000 mAh).
• Available daily absorption/float balancing window: 2 hours (120 minutes).
• Required minimum balancing current: I_balance = 1.0 Ah / 2.0 h = 0.5 A (500 mA).

Standard onboard passive resistors delivering only 50 mA would require 20 hours of float charging to eliminate this variance, causing progressive cell drift. In this scenario, an external active balancing module or an auxiliary passive balancing circuit capable of 500 mA is mandatory.

Communication Protocols and Integration with Power Conversion Systems

An industrial lifepo4 battery bms must integrate seamlessly with external power conversion systems (PCS), solar hybrid inverters, and site controllers via standardised communication interfaces. Isolated CAN bus (CAN 2.0B operating at 500 kbps) and RS485 (Modbus RTU) represent the baseline industrial standards for low-latency command loops.

The supervisory controller cyclically broadcasts vital operational packets every 100 ms to 1000 ms, including:

• Charge Current Limit (CCL) and Discharge Current Limit (DCL) dynamically calculated based on cell temperatures and highest/lowest cell voltages.
• Actual pack voltage, cumulative string current, and State of Charge (SOC) percentage.
• Bit-mapped warning and fault registers indicating cell unbalance, thermal thresholds, and isolation leakage resistance (measured in kilo-ohms per volt, compliant with IEC 60664-1 insulation coordination).

When the system connects to a multi-megawatt energy storage plant, data telemetry routes to site SCADA engines via Modbus TCP/IP over Ethernet or IEC 61850. For detailed integration requirements between battery racks and central inverters, consult our technical guide on power conversion system design.

Factory Testing, Commissioning, and Specification Checklist

Procuring and commissioning a reliable lifepo4 battery management system requires rigorous factory acceptance testing (FAT) to verify fail-safe protection mechanisms. Engineers should enforce this technical verification checklist prior to site installation:

To inspect broader system architectures, reference our comprehensive battery monitoring system guide for field diagnostic routines.

Next steps: specifying and sourcing

When specifying a complete energy storage solution or sourcing custom-engineered battery strings, submitting clear technical data sheets ensures optimal procurement outcomes. Provide your exact cell format (prismatic or cylindrical), capacity (Ah), series/parallel configuration, required continuous and surge current ratings, preferred communication protocol (CAN 2.0B, Modbus RTU/TCP), and safety certifications (IEC 62619, UL 1973, CE). Explore our integrated utility and industrial energy storage systems or examine our utility-scale liquid-cooled ESS containers. For detailed budgetary proposals, equipment schedules, and custom engineering support, request a technical quotation at our quote page or submit your project drawings through our engineering team at the contact page.
