Battery Backup Systems: Engineering Sizing & UPS Guide

Quick answer: A battery backup is an electrical apparatus that supplies instantaneous emergency power to critical loads when the primary utility supply fails. By pairing an electrochemical energy storage bank with an internal or external inverter, it protects sensitive electronics from blackouts, brownouts, and frequency deviations without interrupting system operations.

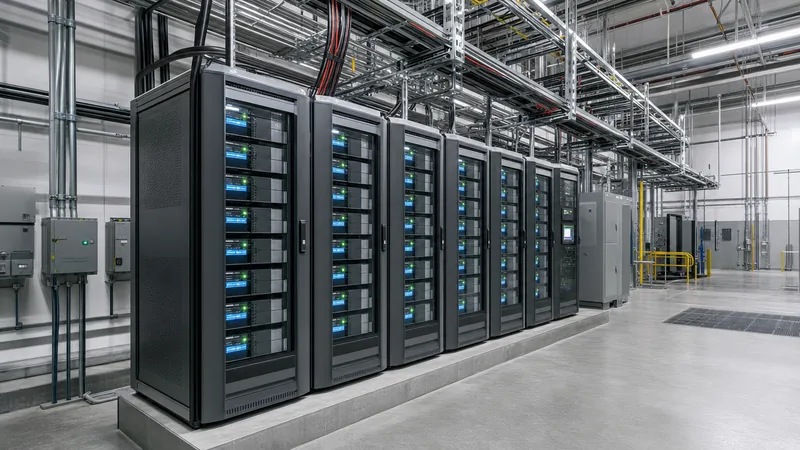

In industrial plants, commercial buildings, and enterprise data centres, continuous power continuity is non-negotiable. Mains disturbances last from a few milliseconds to several hours. A properly engineered backup power supply prevents mission-critical hardware damage, process line tripping, and catastrophic data loss. Depending on the scale of the facility, equipment ranges from a single desktop battery backup unit to multi-megawatt containerised systems tied directly into the facility distribution switchgear.

Understanding how to select, size, and maintain these systems requires examining electrical conversion topologies, battery chemistry characteristics, and dynamic load profiles. For large-scale facility considerations, integrating dedicated emergency energy storage alongside upstream infrastructure ensures resilience against both momentary micro-cuts and prolonged grid interruptions.

Battery Backup Topologies: Offline, Line-Interactive, and Online Double Conversion

Topological classification defines how an uninterruptible power supply routes electricity between the incoming mains, internal storage, and the connected load.

International standard IEC 62040-3 clause 5.2.2 classifies uninterruptible power architectures into three distinct categories based on operational behaviour and waveform output:

• Voltage and Frequency Dependent (VFD / Offline / Standby): In normal operation, power passes straight through from the utility mains to the output, conditioned only by a basic surge arrestor. The inverter remains idle until mains voltage deviates outside preset thresholds (typically below 90 V or above 140 V on a 120 V line, or below 190 V on a 230 V line). Transfer time ranges from 4 to 12 milliseconds, which is adequate for non-critical office hardware but unsuitable for sensitive server switches.
• Voltage Independent (VI / Line-Interactive): This architecture incorporates an autotransformer with automatic voltage regulation (AVR) taps. The unit compensates for under-voltage and over-voltage conditions without discharging the internal cells. When mains failure occurs, transfer time is reduced to 2 to 6 milliseconds. This topology is widely deployed as a backup battery supply for computer workstations, networking switches, and peripheral hardware.
• Voltage and Frequency Independent (VFI / Online Double Conversion): Utility alternating current (AC) is continuously rectified to direct current (DC) to charge the DC bus, and an insulated-gate bipolar transistor (IGBT) inverter regenerates pristine sine-wave AC power for the load. The transfer time during mains failure is exactly zero milliseconds (0 ms). Online units deliver the highest level of ups power protection against total harmonic distortion, electrical noise, frequency drift, and line notches.

Sizing a Battery Backup Power Supply: Load Calculations and Autonomy

Sizing an uninterruptible power supply requires calculating the true active power in kilowatts (kW), the apparent power in kilovolt-amperes (kVA), and the required battery discharge autonomy under full load.

Specifying engineers must not confuse active power with apparent power. Switched-mode power supplies found in computing equipment present a reactive load characterised by a power factor (PF), typically between 0.90 and 0.98. Sizing must satisfy both ratings simultaneously.

Consider an enterprise server cluster consisting of eight rack-mounted dual-corded servers consuming 750 W each, alongside two core network switches consuming 600 W each:

• Total active power: P = (8 × 750 W) + (2 × 600 W) = 7,200 W = 7.2 kW.
• Assuming an average IT load power factor of 0.92: Apparent power S = 7.2 kW / 0.92 = 7.83 kVA.
• Design safety margin: Applying a standard 25% design margin for future hardware expansion: Required rating = 7.83 kVA × 1.25 = 9.79 kVA. A standard 10 kVA / 10 kW unity power factor unit meets this requirement.

Next, calculate the DC battery energy demand for a 2 hour ups runtime requirement, often required where backup diesel generators are omitted or strictly regulated. Using a DC bus voltage of 192 V (16 units of 12 V batteries in series) and an inverter full-load efficiency (η) of 93% (0.93):

The required DC discharge power equals:

P_DC = P / η = 7,200 W / 0.93 = 7,741.9 W.

Over a 2-hour duration, the net energy drawn is:

E_net = 7,741.9 W × 2.0 h = 15,483.8 Wh ≈ 15.48 kWh.

In accordance with IEEE 485 clause 6.2, engineers must account for battery ageing (a design factor of 1.25 to guarantee runtime at 80% end-of-life capacity) and a maximum depth of discharge (DoD) limit of 80% (1.25 factor). The required gross nominal bank capacity becomes:

E_gross = 15.48 kWh × 1.25 × 1.25 = 24.19 kWh.

At a nominal DC bus voltage of 192 V, the required ampere-hour (Ah) rating is: 24,190 Wh / 192 V ≈ 126 Ah. Therefore, the engineer must specify a string configuration yielding at least 130 Ah to 150 Ah at the 2-hour discharge rate.

Battery Chemistries: Comparing VRLA Lead-Acid and Lithium Iron Phosphate

Electrochemical battery chemistries dictate system footprint, replacement frequency, thermal ventilation requirements, and total cost of ownership across the equipment lifespan.

Traditionally, a uninterruptible power supply battery utilized Valve-Regulated Lead-Acid (VRLA) cells, either Absorbent Glass Mat (AGM) or Gel types. However, Lithium Iron Phosphate (LiFePO4 / LFP) has emerged as the dominant chemistry for modern commercial and industrial facilities. For deeper analysis on integrating industrial cells into large-scale plants, review our guide to battery bank industrial systems.

While VRLA carries a lower initial procurement cost, LFP delivers a significantly lower levelised cost of storage due to its decade-long service life, eliminating two to three costly battery replacement cycles. Furthermore, LFP battery racks deliver a 60% reduction in weight and a 70% reduction in physical footprint, freeing up revenue-generating space in technical rooms.

From Desktop to Data Centre: Battery Backup for Computer and Server Infrastructure

Selecting a battery backup for computer system hardware requires matching device power supplies with corresponding wave shape tolerances and runtime requirements.

Workstation deployments often utilise a compact backup pc battery or dedicated battery backup desktop unit. Modern personal computer switch-mode power supplies incorporate active Power Factor Correction (PFC). Supplying a simulated, stepped square-wave from a low-cost modified-sine inverter to an active PFC supply can cause automatic shutdown, thermal distress, or capacitor failure. Engineers specifying a backup battery supply for CAD workstations, diagnostic consoles, or control room terminals must demand a true pure sine wave with total harmonic voltage distortion (THD_v) under 3%.

For peripheral communications, a dedicated battery back up for internet modems, optical network terminals (ONT), and PoE switches ensures telephone, telemetry, and security surveillance remain operational during local utility failure. These units often run on 12 V DC native rails, bypassing DC-to-AC-to-DC conversion losses entirely.

Scaling up to enterprise server halls demands a transition from individual plug-in devices to three-phase centralised architecture. Standard practice utilizes parallel-redundant uninterruptible power supply units operating in an N+1 or 2N configuration. Here, swappable ups power module sub-assemblies allow continuous operation during maintenance. Where utility feeds are prone to prolonged outages, engineers integrate an uninterruptible power supply with external battery cabinets containing hundreds of kilowatt-hours of stored energy, directly tied to the primary facility transformers. For high-density computing spaces, facility managers should coordinate these systems with proper transformers for data centers to manage neutral currents and non-linear harmonic heating.

How Much Is an Uninterruptible Power Supply? Cost Breakdown and Sizing Tiers

The cost of an uninterruptible power supply varies from under £100 for a domestic workstation plug-in unit to hundreds of thousands of pounds for containerised, multi-megawatt industrial installations.

Capital expenditure depends heavily on runtime requirements, component redundancy, inverter topology, and battery chemistry. The table below outlines prevailing international industrial cost benchmarks for complete systems, including matching batteries:

Beyond upfront capital purchase, lifecycle operational expenditure must factor in ambient thermal cooling loads. Because lead-acid batteries lose 50% of their operational life for every 10°C sustained rise above 25°C (Arrhenius equation), cooling costs can match the initial purchase price of the battery string over a seven-year operating window. For larger systems incorporating commercial peak-shaving functionality alongside emergency backup, pricing structures shift substantially toward industrial BESS metrics; detailed pricing analyses are detailed in our guide to commercial battery storage costs.

Step-by-Step Installation and Commissioning Checklist for Backup Battery Systems

Commissioning a commercial or industrial backup power supply requires systematic verification of physical connections, electrical protection schemes, and thermal management controls prior to energisation.

1. Environmental and Clearance Inspection: Confirm the battery room complies with IEC 62485-2. Verify hydrogen extraction ventilation rates (minimum airflow Q = 0.05 × n × I_gas × C_rt × 10^-3 m³/h) for lead-acid arrays. Maintain a minimum 1.0 m frontal clearance for switchgear door swing and thermal dissipation.
2. Rack Mechanical Stability and Intercell Torquing: Inspect structural seismic anchoring. Use a calibrated, insulated torque wrench to tighten intercell terminal bolted connections to manufacturer torque specifications (typically 11 Nm to 15 Nm for M8 terminals). Apply electrical contact grease to inhibit terminal oxidation.
3. DC String Impedance and Isolation Testing: Conduct individual open-circuit cell voltage measurements; cell readings across a string must match within ±1% of nominal. Perform an insulation resistance test from the positive and negative poles to earth ground using a 500 V or 1,000 V DC megohmmeter (minimum acceptable insulation > 1 MΩ).
4. Bypass and Polarity Verification: Verify the phase rotation of the maintenance bypass switch against the inverter output using a double-pole phase rotation meter. Check DC input polarity directly at the UPS rectifier terminals before closing the DC circuit breaker or fuse disconnect.
5. Calibrated Load-Bank Acceptance Discharge: Execute a continuous full-load burn-in test using a calibrated load bank per IEEE 1188 clause 7. Log individual cell voltages at 25%, 50%, 80%, and 100% of specified discharge autonomy. Employ an infrared thermographic camera to detect abnormal hotspot resistance across terminals and breaker contacts.

Next steps: specifying and sourcing

When specifying a complete battery backup solution or containerised power module for your facility, compiling an exact engineering brief expedites pricing and manufacturing lead times. Provide our engineering team with your total connected active load (kW), load power factor, incoming mains voltage configuration (3-phase 400V/480V or single-phase 230V), required autonomy duration, preferred cell chemistry (VRLA or LFP), and any site seismic or environmental constraints.
