Low Voltage Transformer for LED Lights: Engineering Guide

Quick answer: A low voltage transformer for led lights is an electrical power converter that steps down nominal distribution voltages (typically 230 V or 120 V AC) to 12 V or 24 V safe extra-low voltage (SELV). It supplies stable voltage or rectified current to light-emitting diode (LED) arrays, preventing overvoltage failure while complying with IEC 61558-2-6 and NEC Article 411 isolation standards.

Solid-state lighting has replaced incandescent and halogen luminaires across commercial, industrial, and exterior infrastructure. However, retrofitting or engineering new illumination topologies requires a thorough understanding of the power supply. A standard mains-fed circuit cannot directly energise an LED luminaire without intermediate power conversion. Engineers must choose between magnetic wound-core transformers and high-frequency electronic topologies while managing secondary conductor sizing, total harmonic distortion (THD), and dimming signal compatibility.

Selecting the correct transformer for led lights is not simply a matter of summing lamp wattages. Inductive loads, high inrush currents from switch-mode LED drivers, thermal dissipation, and long cable runs present distinct electrical challenges. This guide delivers the engineering calculations, hardware topologies, and testing parameters necessary to specify low-voltage power units for reliable architectural, commercial, and landscape lighting systems.

Magnetic vs Electronic Low Voltage Transformer Topologies

The choice between a magnetic low-voltage (MLV) transformer and an electronic low voltage transformer dictates system service life, acoustic noise, thermal design, and electrical efficiency.

Magnetic transformers utilise traditional laminated steel or toroidal iron cores wound with primary and secondary copper conductors. Operating at the mains utility frequency (50 Hz or 60 Hz), an MLV unit provides inherent galvanic isolation and exceptional tolerance against transient voltage spikes and switching surges. Because they have no active semiconductor switches in their power stage, magnetic units frequently exceed 50,000 to 100,000 hours of continuous operational life. For extensive municipal, industrial, and perimeter circuits, engineers often pair these power supplies with robust dry-type transformer units upstream to step down site voltages from medium-voltage feeds.

Conversely, an electronic low-voltage converter rectifies incoming mains AC directly to DC, then uses high-frequency pulse-width modulation (PWM) switches (operating between 20 kHz and 100 kHz) to drive a compact ferrite transformer. These units are lightweight and compact, making them well-suited for recessed luminaires and track systems. However, high operating frequencies limit maximum secondary run distances to roughly 2 to 3 metres due to high cable inductance and radio-frequency interference (RFI), regulated by EN 55015 / CISPR 15 limits.

Sizing a 12 Volt LED Transformer: Apparent Power and De-Rating

Sizing a 12 volt led transformer requires calculating the total apparent power in volt-amperes (VA) rather than simply summing the active power in watts (W) marked on luminaire casings.

Solid-state luminaires contain integrated rectifiers and driver circuits that exhibit a power factor (PF) below unity, typically ranging between 0.60 and 0.95. If an installation features twenty 10 W LED fixtures with a power factor of 0.65, the active load is 200 W, but the apparent load presented to the transformer secondary winding is:

$$S = \frac{P}{\text{PF}} = \frac{200\text{ W}}{0.65} = 307.7\text{ VA}$$

Furthermore, international safety regulations, including NEC Article 411 and IEC 61439, mandate that continuous lighting loads (loads operating for three hours or longer) must not load the power supply past 80% of its rated nameplate capacity. To explore switchboard and branch protection compliance under these conditions, review our engineering guide on IEC 61439 low-voltage switchgear design. Applying this 20% de-rating headroom to our example requires:

$$S_{\text{rated}} \ge \frac{307.7\text{ VA}}{0.80} = 384.6\text{ VA}$$

In this installation, specifying a standard 300 VA unit would result in thermal overload and nuisance tripping of the primary thermal cutout. A 400 VA or 500 VA step-down unit is the correct technical selection. For specialised installations fed by single-phase feeds, sizing principles align with those explored in our single-phase transformer design guide.

Secondary Voltage Drop and Cable Sizing Calculation

Secondary voltage drop on 12 V and 24 V LED circuits directly causes visible lumen attenuation, chromaticity coordinate shift, and luminaire flicker when line terminal voltages drop below the driver minimum threshold.

Because circuit operating current at 12 V AC is twenty times greater than at 240 V for an identical wattage, resistive I²R line losses escalate significantly. Conductor resistance can be calculated using the classic double-distance formula for two-core copper cable:

$$\Delta V = \frac{2 \times L \times I \times R}{1000}$$

Where: L is one-way run length in metres, I is circuit current in amperes, and R is copper conductor resistance in ohms per kilometre (Ω/km) at operating temperature.

Consider a commercial perimeter pathway circuit powered by a central low voltage transformer for led lights:

1. Secondary Output: 12.0 V AC nominal.
2. Connected Load: Six 15 W LED luminaires (90 W total, PF = 0.90), giving a secondary current of $I = 90 / (12 \times 0.90) = 8.33\text{ A}$.
3. Run Distance (L): 25 metres from the transformer enclosure to the load centre.
4. Selected Cable: 4 mm² (roughly 11 AWG) stranded copper conductor with $R = 4.95\text{ }\Omega/\text{km}$ at 20°C.

Executing the calculation gives:

$$\Delta V = \frac{2 \times 25\text{ m} \times 8.33\text{ A} \times 4.95\text{ }\Omega/\text{km}}{1000} = 2.06\text{ V}$$

A 2.06 V reduction represents a 17.2% voltage drop, reducing terminal voltage at the luminaire to 9.94 V. This falls well below the standard 5% maximum permissible drop stipulated by IEC 60364-5-52. Internal step-down circuits in the lamps will either shut down or attempt to draw higher current to compensate, triggering premature thermal driver failure. To resolve this, the engineer must increase the conductor area to 10 mm² ($R = 1.83\text{ }\Omega/\text{km}$), reducing $\Delta V$ to 0.76 V (6.3%), or implement a multi-tap transformer providing secondary terminal boosts of 13 V, 14 V, or 15 V.

Dimming Interface Compatibility: MLV vs ELV vs 0-10V

Dimming instability, audible transformer hum, and visible stroboscopic flicker occur when the dimmer mechanism is mismatched with the internal transformer core and coil construction.

A dimmable landscape lighting transformer or indoor step-down power supply relies on one of three dimming interfaces:

• Magnetic Low Voltage (Forward Phase / Leading Edge): MLV dimmers utilise silicon-controlled rectifiers (SCRs) or triacs to chop the start of each AC half-cycle. Because iron-wound transformers represent inductive loads, the dimmer must incorporate symmetric firing and current-slope snubbers. Unbalanced phase-cut signals introduce a DC offset into the primary winding, leading to core saturation, severe acoustic buzzing, and destructive overheating.
• Electronic Low Voltage (Reverse Phase / Trailing Edge): ELV dimmers employ metal-oxide-semiconductor field-effect transistors (MOSFETs) or insulated-gate bipolar transistors (IGBTs) to cut the trailing edge of the voltage waveform. This prevents the high-frequency current spikes characteristic of leading-edge control when driving capacitive loads, significantly reducing circuit electromagnetic noise.
• Secondary 0-10V or DALI Control: In large-scale installations, mains dimming is bypassed entirely. The transformer secondary supplies an unmodulated 12 V or 24 V rail to dedicated control nodes, which modulate the LED array via high-frequency pulse-width modulation down to 0.1% lumen output without impacting transformer core flux.

For extensive site distribution networks feeding integrated landscape luminaires, consult our companion manual on low voltage landscape lighting transformer sizing for additional tap configuration and zoning methodologies.

Environmental Enclosures and Indoor Low Voltage Lighting Transformer Safety

Thermal dissipation and moisture ingress ratings dictate whether an indoor low voltage lighting transformer can be installed safely within plenum ceilings, cabinetry, or harsh external environments.

Dry-type indoor transformers rely predominantly on Natural Air Convection (AN). In enclosed ceilings or joinery voids, an ambient temperature elevation above 40°C degrades winding insulation systems over time. Transformers compliant with UL 2108 and IEC 61558-2-6 incorporate thermal cutoffs (thermal links rated at 115°C or 130°C) embedded directly into the primary copper layer. When specifying indoor step-down systems, ensure the enclosure provides adequate louvred ventilation slots and clearances of at least 150 mm from surrounding non-combustible building insulation.

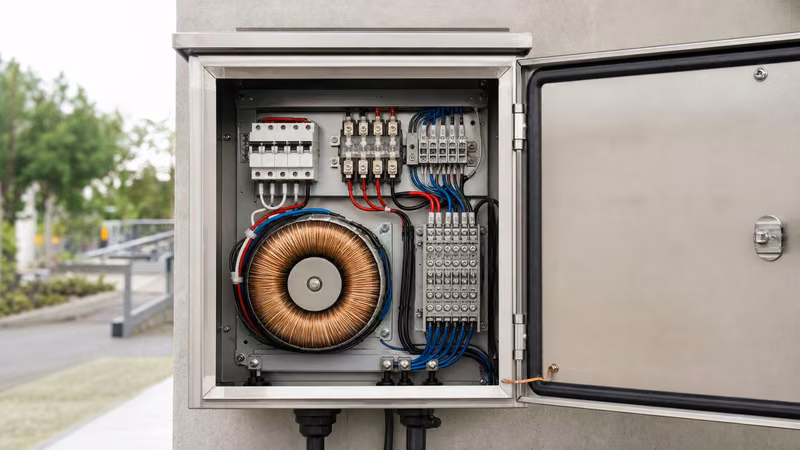

Exterior and commercial applications require transformers housed inside IP65, IP66, or NEMA 3R/4X enclosures. These housings prevent the ingress of wind-blown rain and dust while providing dedicated compartment separation between high-voltage line terminations (Class 1 wiring) and low-voltage secondary outputs (Class 2 / SELV wiring per NEC 725). Transformers mounted outdoors in proximity to parking structures or substations can be integrated directly alongside facility switchgear systems such as HV/LV switchgear assemblies to centralise facility maintenance and circuit protection.

Factory Testing and Acceptance Checklist for EPC Contractors

Prior to site commissioning, every low voltage transformer for led lights must undergo quality verification to confirm winding continuity, dielectric withstand, and acoustic levels.

Field and factory acceptance criteria follow the routine testing requirements established in IEC 60076-11 for dry-type apparatus. Engineers can cross-reference full diagnostic protocols in our engineering guide on how to test a transformer. Ensure your procurement specification includes the following quantitative acceptance parameters:

1. Winding Resistance Measurement: Measure primary and secondary DC resistance using a digital low-resistance ohmmeter (DLRO); verify values balance within ±2% across phases or against design calculations.
2. Dielectric Insulation Resistance: Apply 1,000 V DC between primary and secondary windings, and between primary and core ground. Minimum acceptable resistance at 20°C is 100 MΩ.
3. Applied High-Voltage Withstand: Verify isolation integrity by subjecting the primary barrier to 2.5 kV AC for 60 seconds (or 4.0 kV for reinforced SELV ratings) with leakage current remaining below 5 mA.
4. No-Load Core Loss and Exciting Current: Measure open-circuit current at 100% rated input voltage; exciting current must not exceed 5% of full-load current on magnetic units.
5. Acoustic Sound Level Verification: Measure baseline sound levels in accordance with IEEE C57.12.91; maximum permissible audible hum at a 1-metre distance must not exceed 40 dBA for indoor commercial installations.

Next steps: specifying and sourcing

When preparing an RFQ for commercial or architectural illumination power equipment, compile your primary supply voltage, required secondary voltage (12 V or 24 V), total connected volt-amperes including driver power-factor allowances, and enclosure IP/NEMA requirements. Our manufacturing engineering team designs and manufactures standard and custom distribution power systems, from individual dry-type isolation units to pad-mounted infrastructure. Review our comprehensive portfolio of dry-type transformers and integrated pad-mounted transformers, or submit your load schedules and single-line diagrams directly via our transformer quotation page for application-specific sizing support.
