SMA Battery Systems: Engineering Sizing & Integration Guide

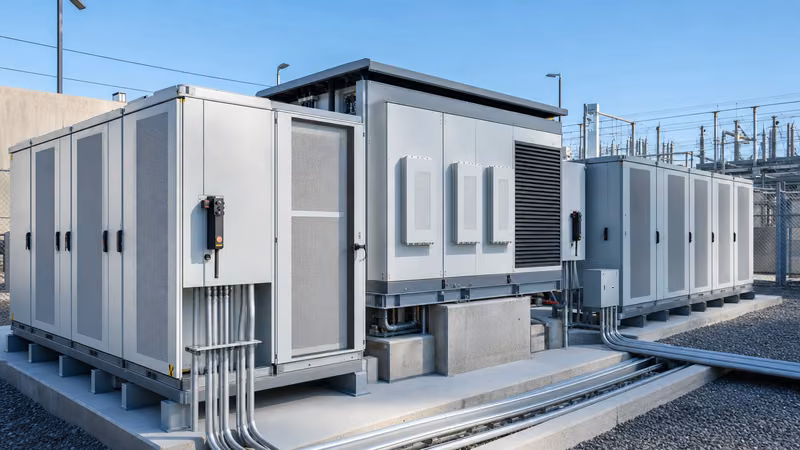

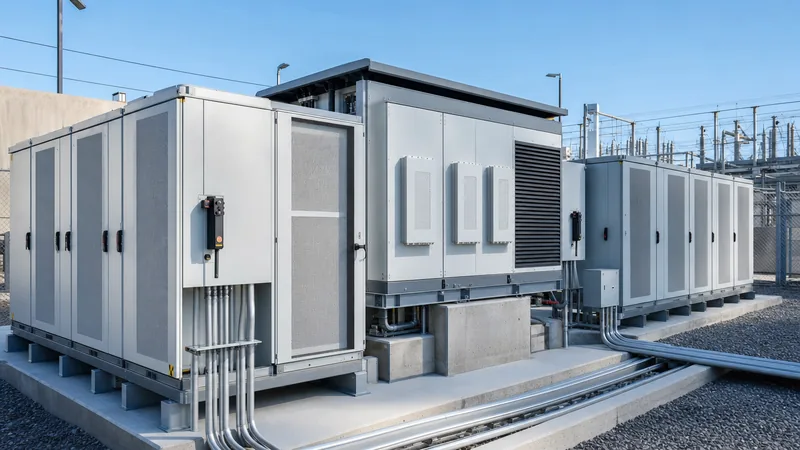

Quick answer: An sma battery architecture couples modular, high-voltage lithium battery strings to dedicated commercial power conversion equipment via high-speed communication loops. Designed for commercial and industrial facilities, these systems provide peak demand shaving, frequency response, and millisecond-level backup power during mains interruptions.

For electrical contractors, project engineers, and EPC planners, specifying an sma battery configuration involves balancing DC bus operating windows, fault-current clearing times, and thermal dissipation metrics. As industrial tariffs penalise high peak demand and volatile grid frequency demands ancillary services, high-voltage battery storage provides a deterministic method to stabilise operational expenditure. System reliability depends directly on matching the chemical storage characteristics with the DC input stages of modern commercial inverters, ensuring compliance with standards such as IEC 62477-1 and IEEE 1547-2018 Table 1.

DC Bus Coupling and Architecture of an SMA Battery System

DC bus coupling defines how the electrochemical cells interface directly with the central or string power conversion stages before AC transformation. In a commercial high-voltage sma battery topology, battery racks are configured in series strings to achieve nominal operating windows between 600 V DC and 950 V DC. This higher DC voltage significantly reduces operational current compared to legacy 48 V DC low-voltage banks, reducing cable cross-sections and internal copper losses by more than 75% under identical power transfer rates.

Integrating these battery strings with a commercial power conversion system architecture requires precise matching of maximum power point tracking (MPPT) or bidirectional DC-DC converter input limits. The central DC distribution board must accommodate bidirectional power flow, balancing high charging currents during peak renewable generation against rapid discharge transients during load surges. Engineers must account for open-circuit string voltage (Voc) at minimum ambient temperatures, ensuring string voltages never exceed the absolute maximum DC ceiling of 1000 V specified in IEC 60364-7-712.

Designing an SMA Battery Backup for Critical Commercial Loads

An sma battery backup system delivers uninterrupted power to mission-critical infrastructure through automated islanding and microgrid formation during distribution network outages. When mains voltage sags or fails completely, the protection relays trigger an external grid-disconnection contactor, commanding the storage inverter to transition from grid-following (current-source) mode to grid-forming (voltage-source) mode. This switchover must execute within 16 milliseconds to prevent programmable logic controllers (PLCs), variable frequency drives (VFDs), and building management servers from resetting.

Achieving stable off-grid operation requires careful analysis of prospective inrush currents caused by step-load additions and inductive equipment. To size an effective battery backup system, the continuous power rating must exceed steady-state demand, while the momentary surge capability of the DC storage system must supply up to 200% of nominal current for at least 3 to 5 seconds to clear motor-starting locked-rotor currents (LRC). The earthing arrangement must also shift instantaneously; TN-S earthing must be maintained in islanded mode by bonding neutral to earth via a dedicated, mechanically interlocked contactor to comply with BS 7671 Regulation 551.4.3.2.

Battery Chemistry and Performance Metrics

Lithium iron phosphate (LFP, LiFePO4) has become the dominant chemistry for stationary commercial battery installations due to its superior chemical stability, lower degradation rates, and intrinsic safety profile under thermal abuse. Unlike nickel-based formulations, LFP cells exhibit an exceptionally stable olivine crystal structure that resists oxygen liberation up to 270 °C, meeting the strict containment requirements of IEC 62619 clause 8.2 and NFPA 855.

When sizing an energy storage asset, engineers evaluate continuous discharge ratings (C-rate), cycle life at specific depths of discharge (DoD), and round-trip efficiency (RTE). The technical parameters of modern commercial-grade stationary batteries are compared below:

While lithium titanate (LTO) offers extreme longevity and high C-rates, its capital expenditure limits its application to specialised industrial frequency regulation. For the vast majority of commercial peak-shaving and energy arbitrage deployments, LFP provides the optimal balance of levelised cost of storage (LCOS) and thermal performance. To understand long-term expenditure variables, review our breakdown on commercial battery storage economics.

Worked Electrical Sizing Calculation for DC Protection and Capacity

Correctly sizing protective switchgear and DC conductor cross-sections demands rigorous mathematical evaluation of continuous load currents and maximum prospective fault currents. Consider a medium-sized manufacturing facility requiring a 200 kW peak shaving system backed by an sma battery array providing two hours of discharge capacity (400 kWh usable energy).

Step 1: Calculate Nominal and Minimum Operating DC Bus Current.

Given:
- Usable energy ($E_{usable}$) = 400 kWh
- Nominal battery string voltage ($V_{nom}$) = 768 V DC (240 series LFP cells at 3.2 V per cell)
- Minimum discharge cut-off voltage ($V_{min}$) = 672 V DC (2.8 V per cell)
- Nominal inverter continuous power output ($P_{ac}$) = 200 kW
- Inverter DC-to-AC conversion efficiency ($\\eta$) = 97.5% ($0.975$)

The maximum continuous DC discharge power required from the battery string is:
$$P_{dc} = \frac{P_{ac}}{\eta} = \frac{200\text{ kW}}{0.975} = 205.13\text{ kW}$$

The continuous DC current at nominal voltage ($I_{nom}$) is:
$$I_{nom} = \frac{P_{dc}}{V_{nom}} = \frac{205,130\text{ W}}{768\text{ V}} = 267.1\text{ A}$$

The maximum continuous DC current at minimum discharge voltage ($I_{max}$) is:
$$I_{max} = \frac{P_{dc}}{V_{min}} = \frac{205,130\text{ W}}{672\text{ V}} = 305.3\text{ A}$$

Step 2: Conductor and Overcurrent Protective Device (OCPD) Sizing.
Applying a continuous duty multiplier of 1.25 in accordance with IEC 60364-5-52 and NEC Article 690:
$$I_{design} = I_{max} \times 1.25 = 305.3\text{ A} \times 1.25 = 381.6\text{ A}$$
This requires standard 400 A gS high-speed semiconductor fuses and double-insulated, low-smoke zero-halogen (LSZH) copper cables with a minimum cross-sectional area of 240 mm² per pole, installed on perforated cable trays.

Step 3: Calculating Prospective Short-Circuit Fault Current.
Each cell module exhibits an internal DC resistance ($R_i$). For a string of 240 cells with $R_{cell} = 0.5\text{ m}\Omega$ and cable impedance ($R_{cable}$) = $15\text{ m}\Omega$:
$$R_{total} = (240 \times 0.0005\ \Omega) + 0.015\ \Omega = 0.12\ \Omega + 0.015\ \Omega = 0.135\ \Omega$$
The prospective symmetrical short-circuit current ($I_{sc}$) at fully charged floating voltage ($V_{float} = 828\text{ V}$) is:
$$I_{sc} = \frac{V_{float}}{R_{total}} = \frac{828\text{ V}}{0.135\ \Omega} = 6,133\text{ A} \approx 6.13\text{ kA}$$
To guarantee complete safety margin under dynamic cell discharge spikes, switchgear and isolators must feature a short-circuit breaking capacity rated for at least 20 kA at 1000 V DC, fully verified to IEC 60947-3 utilisation category DC-PV2.

BMS-to-Inverter Communication Protocols and Control Integration

A high-voltage stationary battery system relies on continuous data exchange between the battery management system (BMS) and the external power conversion system to regulate charge and discharge envelopes. The master BMS aggregates cell-level metrics from slave modules, monitoring voltage drift, individual cell temperatures, and total string state-of-charge (SoC). It computes dynamic limits including maximum charge current limit (CCL) and discharge current limit (DCL) every 50 to 100 milliseconds.

Communication integration generally relies on physical Controller Area Network (CANbus 2.0B) links running at 500 kbps or Ethernet-based Modbus TCP/IP. The protocol stack continuously broadcasts operating variables to the inverter register addresses:

• Operating Status Registers: Real-time voltage, aggregate string current, rack SoC, and state of health (SoH).
• Dynamic Limit Broadcasts: Instantaneous CCL, DCL, and over-voltage trip thresholds.
• System Diagnostic Warnings: Cell imbalance thresholds, isolation resistance degradation (minimum 1000 $\Omega$/V per IEC 60664-1), and enclosure ambient limits.
• Safety Interlock Signals: Direct digital output hardware trip lines that de-energise the main DC contactor if serial bus communication drops for longer than 500 milliseconds.

For large-scale industrial schemes combining several parallel battery containers, an Energy Management System (EMS) sits above the master BMS. The EMS communicates with local revenue meters, solar arrays, and the facility SCADA framework to automate dynamic peak shaving, reactive power support (Volt-VAR), and scheduled charging cycles. For additional details on multi-module architectures, consult our guide on lithium battery backup sizing.

Site Selection, Thermal Containment, and Installation Standards

Civil and electrical site preparation directly governs system lifespan and local permitting approvals. Stationary lithium energy storage systems produce continuous internal heat during high C-rate cycling, originating from internal cell resistance and busbar connection points. The cooling strategy must keep individual cell temperatures between 20 °C and 28 °C; operating above 35 °C accelerates solid electrolyte interphase (SEI) growth, permanently degrading electrochemical capacity.

Engineers must follow a structured physical integration procedure during installation:

1. Enclosure Foundation and Clearance: Cast a reinforced concrete plinth engineered to bear rack floor loads exceeding 1,200 kg/m², maintaining 1.5-metre clearance from perimeter walls to satisfy NFPA 855 separation mandates.
2. Thermal Management Commissioning: Validate HVAC or closed-loop liquid-cooling circuits to ensure temperature differentials between the highest and lowest cells across the entire pack remain under 3 °C.
3. DC Isolator and Arc-Flash Isolation: Install segregated DC switchgear compartments equipped with arc-resistant barriers and mechanical lockouts according to IEC 61439-2.
4. Fire Suppression Integration: Equip enclosures with multi-sensor detection (detecting off-gas hydrogen, carbon monoxide, and smoke) coupled with aerosol or water-mist fire suppression conforming to NFPA 69 and NFPA 68 explosion venting standards.
