Key takeaways
- A small solar battery typically ranges between 100 Wh and 5 kWh to support remote telemetry, off-grid communications, or modular field power.
- Lithium iron phosphate (LFP) delivers 3,000 to 6,000 cycles at 80% depth of discharge, making it superior to NMC for stationary small solar storage.
- System autonomy calculations must account for local peak sun hours, Coulombic efficiency (typically 95-98% for LFP), and inverter quiescent draw.
- Field charging stations require integrated pure sine wave inverters with overload ratings of at least 150% for motor-driven inductive loads.
- Compliance with IEC 62619 clause 8.2 and UN 38.3 is mandatory for industrial-grade compact battery enclosures and transport safety.
Quick answer: A small solar battery is an energy storage unit rated from 100 watt-hours (Wh) to 5 kilowatt-hours (kWh) engineered to store direct-current (DC) power from photovoltaic modules for low-power off-grid loads, communications relays, or portable site equipment. Most modern industrial installations specify lithium iron phosphate (LiFePO4) chemistry operating at 12 V, 24 V, or 48 V DC due to its thermal stability and cycle life.
Compact solar energy storage bridges the gap between pocket-sized consumer gadgets and megawatt-scale industrial energy storage systems. Project engineers specify these systems for supervisory control and data acquisition (SCADA) outstations, environmental monitoring, security checkpoints, and mobile command trailers where grid connections are economically unviable. Matching the correct cell chemistry, charge controller topology, and environmental enclosure ensures autonomous operation across severe temperature ranges without premature capacity degradation.
What Defines an Industrial-Grade Small Solar Battery?
An industrial-grade small solar battery differs from consumer electronics in its mechanical protection, cell balancing architecture, and duty-cycle reliability. While a consumer smart power bank solar device relies on soft pouch cells with passive thermal dissipation, commercial-grade compact units employ cylindrical or prismatic cells enclosed within aluminium or steel housings rated to IP65 or NEMA 4X.
These compact systems operate as dedicated energy storage hubs, often referred to as a solar charging battery bank. They incorporate a multi-stage battery management system (BMS) that monitors individual cell voltages, state of charge (SoC), and surface temperatures. Unlike light-duty devices, industrial units include integrated low-temperature charge protection—preventing lithium plating when ambient temperatures drop below 0°C—alongside over-current protection meeting IEC 60947-2 standards. When selecting a battery bank for industrial guide applications, engineers evaluate mean time between failures (MTBF), typically demanding exceeding 40,000 hours of continuous field operation.
Chemistry Comparison for Small Solar Storage
Lithium iron phosphate (LFP) is the preferred chemistry for stationary small solar battery installations, whereas nickel manganese cobalt (NMC) remains common in weight-sensitive portable solar powered battery kits. Engineers evaluating energy density against operational lifespan and thermal safety must balance cell characteristics against ambient environmental hazards.
| Metric | Lithium Iron Phosphate (LFP) | Nickel Manganese Cobalt (NMC) | Absorbent Glass Mat Lead-Acid (AGM) |
|---|---|---|---|
| Cell Nominal Voltage (V) | 3.2 | 3.6 - 3.7 | 2.0 (nominal cell) |
| Gravimetric Energy Density (Wh/kg) | 130 - 170 | 200 - 260 | 30 - 45 |
| Cycle Life (80% DoD @ 25°C) | 3,500 - 6,000 | 1,000 - 2,000 | 400 - 600 |
| Thermal Runaway Threshold (°C) | ~270 | ~210 | Exothermic dry-out >80 |
| Round-Trip DC Efficiency (%) | 95 - 98 | 93 - 96 | 80 - 85 |
| Operational Temperature Range (°C) | -20 to +60 (discharge) | -20 to +55 (discharge) | -15 to +50 |
As detailed in our comparison of LFP vs NMC battery chemistry, LFP eliminates cobalt dependency and exhibits negligible oxygen release under internal short-circuit faults. For remote installations subject to direct solar radiation, the 60°C thermal head of LFP prevents the catastrophic runaway risks associated with higher-density nickel chemistries.
Sizing a Small Solar Battery: Step-by-Step Calculation
Sizing a small solar battery requires calculating continuous watt-hour consumption, factoring in design autonomy days, and applying depth of discharge (DoD) alongside temperature de-rating coefficients. Under-sizing leads to low-voltage disconnects during winter, while over-sizing inflates capital expenditure and mechanical footprint.

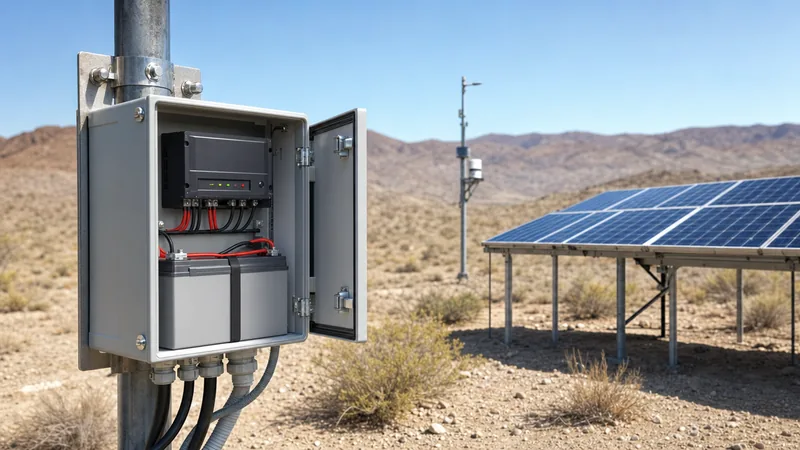

Consider an off-grid environmental telemetry station operating continuously at 48 V DC with the following parameters:
- Continuous baseline load: 45 W
- Intermittent transmitter burst: 120 W for 5 minutes every hour
- Target autonomy period: 3 consecutive sunless days (72 hours)
- Battery chemistry: LFP (Maximum allowable DoD = 80%)
- System DC-DC conversion efficiency: 95%
- Minimum ambient winter operating temperature: -10°C (de-rating factor = 0.85 per manufacturer thermal curves)
Engineers calculate battery bank capacity using the following sequential steps:
- Determine daily energy consumption ($E_d$): Continuous baseline accounts for $45\text{ W} \times 24\text{ h} = 1,080\text{ Wh}$. Intermittent transmission accounts for $120\text{ W} \times (5/60\text{ h}) \times 24 = 240\text{ Wh}$. Total daily load equals $1,320\text{ Wh/day}$.
- Calculate gross required storage ($E_{\text{gross}}$): Multiply daily energy by 3 days of autonomy: $1,320\text{ Wh} \times 3 = 3,960\text{ Wh}$.
- Adjust for losses and depth of discharge ($E_{\text{adj}}$): Divide by converter efficiency (0.95), allowable DoD (0.80), and thermal de-rating (0.85): $$C_{\text{req}} = \frac{3,960}{0.95 \times 0.80 \times 0.85} = \frac{3,960}{0.646} \approx 6,130\text{ Wh}$$
- Convert to Ampere-hours (Ah) at 48 V nominal: $$Ah = \frac{6,130\text{ Wh}}{51.2\text{ V (nominal 16S LFP)}} = 119.7\text{ Ah}$$
The specification requires a 48 V (51.2 V nominal) 120 Ah small solar battery assembly to maintain telemetry uptime through standard worst-case meteorological events.
Deploying a Solar Battery Charging Station in the Field
A site-based solar battery charging station serves as a self-sustaining power depot to replenish hand tools, survey equipment, radios, and instrumentation packs on remote construction or utility worksites. Configuring these stations requires matching maximum power point tracking (MPPT) charge controllers to high-efficiency PV arrays and stable output regulation.
When specifying a field system, teams often require a solar power bank with outlet options—incorporating an internal pure sine wave inverter to output 120 V or 230 V AC. The inverter must sustain high inductive inrush currents without tripping. For sensitive communications gear, total harmonic distortion (THD) must remain below 3% in accordance with IEEE 519 standards.
For mobile teams, combining portable solar panels with battery storage inside ruggedised wheeled transport cases creates rapid-deployment micro-generation hubs. These deployable packs integrate folding monocrystalline panels (typically 200 W to 400 W) with multi-port DC outputs (12 V automotive, 24 V industrial terminals, and USB-PD 100 W) alongside AC outlets. Correct integration requires reverse-polarity protection, integrated arc-fault circuit interrupters (AFCI) compliant with UL 1699B, and galvanic isolation between the DC solar bus and AC user terminals.
BMS Architecture and Compliance Standards
Reliable operation of any small solar battery depends on its battery management system (BMS), which enforces electrical and thermal boundaries under IEC 62619 clause 8.2 (stationary battery safety) and UL 1973. Field failures often originate from rudimentary BMS hardware failing to mitigate single-cell deviations.
An industrial small solar storage unit must provide active or precision passive cell balancing to maintain cell divergence below 15 mV. Crucial safety functions include:
- Individual cell over-voltage cut-off (typically 3.65 V for LFP) and under-voltage protection (2.50 V per cell).
- Dual-stage short-circuit protection combining high-speed solid-state switches (tripping in under 100 microseconds) with back-up class T or NH industrial semiconductor fuses.
- Integrated serial bus or CAN-bus telemetry broadcasting Modbus RTU registers for remote state-of-health (SoH) diagnostics, as detailed in our guide to emergency energy storage systems.
- Low-temperature charging inhibit: LFP cells charged below 0°C suffer metallic lithium plating on the graphite anode, inducing internal short circuits. The BMS must disable solar charging currents while permitting load discharge down to -20°C.
For transport across international logistics chains, all portable and modular packs must hold certified UN 38.3 test reports covering vibration, altitude simulation, thermal shock, and external short-circuit endurance.
Next steps: specifying and sourcing
Specifying a dependable small solar battery setup requires precise engineering inputs: define continuous and peak load requirements, supply ambient temperature curves for the site, state required autonomy days, and identify all DC or AC output voltage specifications. Our engineering team designs and manufactures utility-grade energy storage systems, compact power modules, and stationary battery enclosures engineered to IEC, IEEE, and UL standards. Submit your single-line diagrams, load profiles, or deployment requirements through our online quote request portal to receive tailored technical proposals, thermal de-rating reports, and factory-direct pricing for your microgrid or remote power projects.
Frequently asked questions
What is the typical lifespan of a small solar battery?
A small solar battery utilising lithium iron phosphate (LFP) chemistry delivers 3,500 to 6,000 full cycles at 80% depth of discharge. In stationary field applications with ambient temperatures maintained near 25°C, this translates to an operational lifespan between 10 and 15 years before usable capacity declines to 70%.
Can a portable solar powered battery be left outdoors continuously?
A portable solar powered battery can only remain outdoors continuously if rated to at least IP65 or NEMA 4X. Standard consumer units lack ingress protection against driven rain and condensation, which corrodes internal BMS circuitry and degrades cell insulation resistance.
How does cold weather affect a small solar battery?
Cold weather temporarily decreases available discharge capacity by 15% to 30% at sub-zero temperatures due to increased internal electrolyte resistance. Furthermore, charging an LFP small solar battery below 0°C permanently damages the cells through lithium plating unless internal heating elements or low-temperature BMS cut-offs are active.
What is the difference between PWM and MPPT charge controllers for small batteries?
Maximum Power Point Tracking (MPPT) controllers electronically adjust solar input voltage and current to extract peak power, achieving 97% to 99% conversion efficiency. Pulse Width Modulation (PWM) controllers simply clamp solar panel voltage to battery voltage, resulting in a 20% to 35% loss of potential solar harvesting in colder conditions.
Can I connect multiple small solar batteries in parallel?
Multiple small solar batteries can be connected in parallel provided they are identical in chemistry, capacity, age, and voltage. Before paralleling, all batteries must be charged to within 0.1 V of each other to avoid uncontrolled high cross-currents between the modules upon connection.
