Solar Power for Small House: Sizing, Battery Storage & Specs

Quick answer: Designing solar power for small house applications requires matching a compact roof or ground array (typically 1.5 kWp to 4.0 kWp) with an appropriately sized lithium iron phosphate battery bank (5 kWh to 10 kWh) and a low-frequency or hybrid inverter capable of handling continuous loads and inductive motor surges.

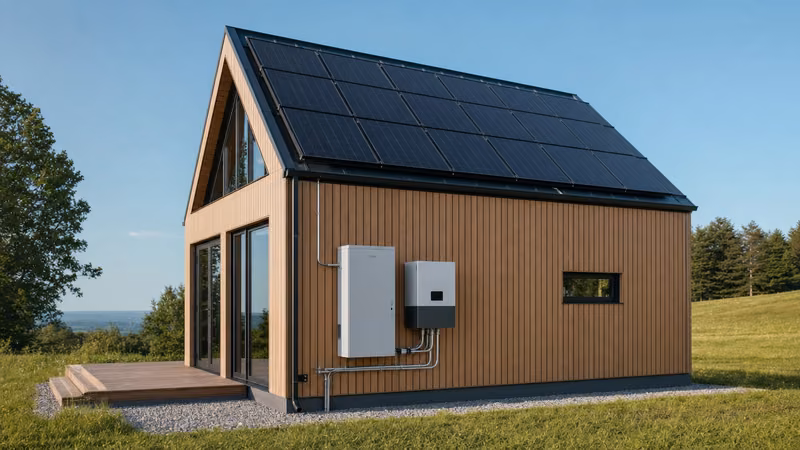

Deploying solar power for small house architectures presents distinct spatial and electrical constraints compared to standard residential sites. Floor space for balance-of-system (BOS) switchgear is constrained, roof geometry restricts string lengths, and domestic loads frequently exhibit sharp peak-to-average ratios driven by water heating, induction cooking, and refrigeration compressors. Electrical engineers and EPC contractors must calculate daily watt-hour budgets rigorously rather than relying on oversized rule-of-thumb estimates.

Whether integrating a system onto an urban micro-dwelling, a rural retreat, or an accessory dwelling unit, selecting the appropriate conversion hardware and chemistry is critical. By coupling high-yield photovoltaic modules with modular energy storage systems, system designers can achieve complete off-grid energy autonomy or optimise grid-tied self-consumption without exceeding weight, space, or thermal safety thresholds.

Sizing Solar Power for Small House Electrical Demands

Sizing an off-grid or hybrid photovoltaic system requires determining total daily energy consumption in watt-hours (Wh) and matching it to the site's seasonal Peak Sun Hours (PSH).

To illustrate practical sizing engineering, consider a micro-dwelling operating essential loads: a DC-compressor refrigerator (800 Wh/day), LED illumination (200 Wh/day), induction cooking (1,200 Wh/day), communications and consumer electronics (600 Wh/day), and an intermittent pressure pump (400 Wh/day), yielding a continuous daily consumption of 3,200 Wh. Factoring in thermal dissipation, wiring resistance, and inversion losses, a conservative system efficiency factor of 0.77 is applied, raising the gross daily generation requirement to 4,155 Wh.

Using our baseline engineering formulas from our solar system sizing guide, array peak capacity is calculated as:

$$\text{Array Capacity (Wp)} = \frac{\text{Gross Daily Energy Demand (Wh)}}{\text{Peak Sun Hours (h)}} = \frac{4,155}{3.8} \approx 1,093\text{ Wp}$$

To guarantee operational margin across seasonal irradiation dips, the array should be specified at a nominal 1,200 Wp to 1,600 Wp (for instance, four 400 Wp monocrystalline modules). For battery sizing, maintaining electrical reliability requires 1.5 to 2.0 days of design autonomy. Factoring an 80% maximum Depth of Discharge (DoD) and a 93% inverter conversion efficiency for an LFP storage unit:

$$\text{Battery Storage Capacity (kWh)} = \frac{3.2\text{ kWh} \times 1.5}{0.80 \times 0.93} = 6.45\text{ kWh}$$

Specifying a modular 7.0 kWh to 10kWh battery system provides the necessary thermal and cycle life headroom for this load profile.

Mini Solar Panel for Home vs Standard Monocrystalline Modules

Standard utility-grade monocrystalline modules provide significantly higher conversion efficiencies and lower cost per watt than compact mini solar panel options for permanent residential structures.

Small dwellings frequently face surface area constraints, leading installers to evaluate whether a mini solar panel for home usage—such as portable folding units or 100 W compact modules—offers mechanical advantages over commercial 400 W to 550 W rigid panels. While compact 100 W modules offer handling flexibility on non-standard roof curves, their levelised cost per watt is approximately 40% to 70% higher due to manufacturing overheads per unit of output. Furthermore, interconnecting numerous low-wattage modules increases balance-of-system complexity, requiring additional branch connectors, string fuses, and potential failure points under IEC 60364-7-712 guidelines.

For fixed structures, full-size 400 W to 450 W monocrystalline panels maximize output density, producing roughly 220 W per square metre of available roof real estate.

Tiny Home Solar System Architecture: AC vs DC Coupling

DC-coupled topologies deliver higher round-trip electrical efficiency for off-grid residences, whereas AC-coupled architectures excel in grid-tied micro-dwellings requiring concurrent daytime load shedding.

When engineering a tiny home solar system, space constraints demand a balance between component count and thermal dissipation. In a DC-coupled system, the PV array feeds directly into a Maximum Power Point Tracking (MPPT) charge controller, which regulates DC voltage to the battery bus (typically 48 VDC nominal). The inverter then draws from this unified DC source to supply 230 VAC or 120 VAC household circuits. This topology achieves 92% to 94% round-trip efficiency during battery charging, as solar generation bypasses redundant DC-AC-DC conversion stages.

Conversely, AC coupling introduces a dedicated grid-tie string inverter alongside a battery-based multi-mode inverter-charger. While AC coupling permits simpler retrofits and supports direct daytime power delivery to high-draw consumer electronics with up to 96% efficiency, it requires frequency-shift power curtailment to prevent overcharging the battery during off-grid operations. For systems under 5 kW total generation capacity, integrated 48V hybrid inverters operating on a DC-coupled bus represent the most compact, cost-effective solution conforming to IEC 62109-1 safety requirements.

Solar Power for Small Cabin Deployments: Extreme Climates and Autonomy

Off-grid remote cabins demand cold-weather temperature compensation, robust low-temperature battery management, and auxiliary generator integration to survive seasonal low-solar windows.

Specifying solar power for small cabin environments located in temperate or montane regions involves accommodating reduced winter irradiance. When sunlight hours decline to 1.5 PSH in December or January, relying solely on solar arrays can lead to systemic battery deficit cycling. An auxiliary backup input, managed through an automatic generator start (AGS) contactor, must be integrated into the main AC distribution board.

Furthermore, temperature limits dictate battery selection and enclosure design. Standard lithium iron phosphate cells cannot accept charge currents below 0°C without sustaining internal lithium plating, which induces irreversible capacity fade and internal short-circuit risks under IEC 62619 clause 6.2 standards. Cabin installations must either utilise internal conditioned living spaces for the battery enclosure or deploy factory-integrated heating mats within thermal insulation jackets. For commercial remote micro-dwellings, implementing compact liquid-cooled ESS systems or pre-insulated enclosures ensures safe operation down to -25°C.

Battery Storage Engineering: Sizing, Chemistry, and Siting Safety

Lithium Iron Phosphate (LFP) chemistry is the mandated engineering choice for residential micro-storage due to its superior thermal stability, non-toxic composition, and extended cycle life.

Unlike legacy lead-acid systems (which exhibit severe Peukert losses under heavy surge draws and degrade rapidly if discharged beyond 50%), modern lithium solar batteries deliver stable nominal voltage profiles across an 80% to 90% operating window. When matching battery packs to small house loads, two critical electrical metrics must be validated:

1. Continuous Discharge Current (A): The battery management system (BMS) must supply adequate continuous current to satisfy peak inverter load without tripping overcurrent protections. For a 5 kW inverter running at 48 V, continuous discharge current reaches 104 A; the battery module must support at least 125 A continuous draw.
2. Surge Tolerance for Inductive Loads: Induction motors (found in well pumps, refrigeration units, and power tools) demand 300% to 500% starting current surges for 200 ms to 2 seconds. The inverter and battery bank combination must provide this transient headroom without line voltage dipping below the critical shutdown threshold (typically 42 V on a 48 V nominal bank).

Siting must comply with NFPA 855 and local building codes. Inverters and storage units should be installed in a dedicated utility cupboard or exterior-rated IP55 enclosure with 900 mm clear perimeter working distance, isolated from sleeping quarters, and fitted with early-warning thermal and off-gas detection sensors. Detailed siting considerations can be cross-referenced in our battery storage engineering guide.

Commissioning and Protection Checklist for Small Dwellings

Commissioning a small dwelling solar and storage system requires systematic verification of isolation barriers, earthing continuity, and protection coordination before energisation.

1. DC Disconnection & Isolation: Verify that a lockable, bipolar DC isolator rated for the maximum string Open-Circuit Voltage ($V_{oc}$ corrected for minimum ambient temperature per IEC 60364-7-712) is installed between the PV array and the MPPT.
2. Overcurrent Protection (OCPD): Ensure DC battery circuits feature class gS or gG high-rupturing-capacity (HRC) fuses or magnetic-hydraulic DC breakers capable of clearing prospective short-circuit currents up to 10 kA.
3. Earthing & Bonding: Check module frame equipotential bonding to the main electrical earthing terminal. Ensure the off-grid inverter implements proper neutral-to-earth bonding during islanded mode while disconnecting external neutral ties in accordance with local grid codes.
4. Rapid Shutdown & Arc-Fault Detection: Validate rapid shutdown functionality reducing array boundary voltages to below 30 V within 30 seconds of initiation, alongside active AFCI testing.

Next steps: specifying and sourcing

Executing an efficient, resilient micro-solar project requires precision engineering and certified hardware. To receive a detailed proposal and single-line diagram (SLD) review from our engineering team, compile your estimated load schedules, available mounting dimensions, and site irradiance profiles. Explore our scalable energy storage systems designed for residential, commercial, and industrial micro-grid environments. Submit your project requirements directly via our engineering contact page or request an equipment quotation at our factory direct quote portal to specify your solar and storage infrastructure.
