Key takeaways
- A solar wall combines vertical facade-mounted photovoltaic modules with dedicated wall-mounted or containerised energy storage systems.
- Vertical PV facades generate up to 30% more energy during winter months at latitudes above 45° compared to standard 30-degree pitched arrays due to low solar elevation and ground albedo.
- Structural design for vertical arrays must comply with EN 1991-1-4 for wind-induced suction loads, requiring anchor pull-out ratings typically exceeding 4.2 kN per bracket.
- Wall-mounted battery energy storage systems coupled with solar facades must maintain mandatory clearances of at least 914 mm under NFPA 855 to prevent thermal runaway propagation.
- Pairing a vertical solar array with LiFePO4 battery storage requires high-voltage hybrid inverters operating between 150 V and 600 V DC to minimise cabling losses along multi-storey risers.
Quick answer: A solar wall refers either to a vertical building-integrated photovoltaic (BIPV) facade designed to generate electrical power or a dedicated wall-mounted battery energy storage system (BESS) installed alongside solar generation assets. Both systems optimise building envelopes by transforming passive vertical surfaces into high-efficiency power generation and storage infrastructure.
Commercial facilities and multi-storey industrial sites frequently encounter spatial constraints on rooftop surfaces due to extensive HVAC, extraction, and piping plant. Utilising vertical building envelopes with a solar wall allows engineers to harness non-utilised architectural elevations. When engineered alongside modular wall-mounted lithium iron phosphate (lithium solar batteries), these architectural installations provide resilient microgrid capabilities, peak-shaving performance, and enhanced winter yield profiles that conventional horizontal racking cannot deliver.
Architecture of a Solar Wall: Facades vs Wall-Mounted Storage

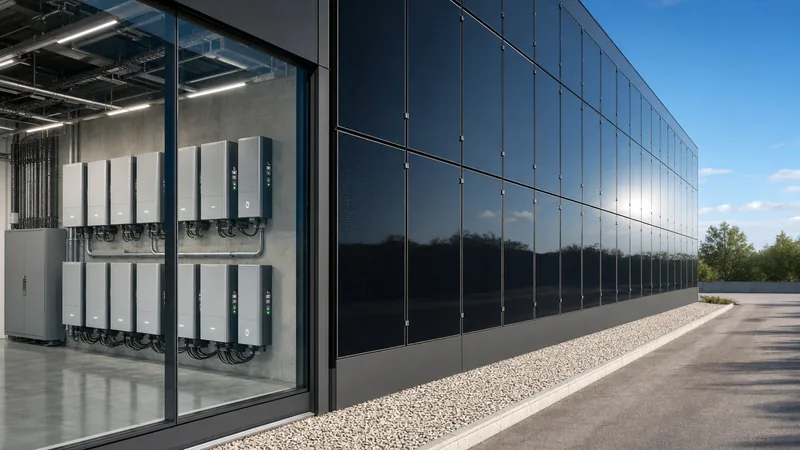

A functional solar wall encompasses two distinct electrical and mechanical configurations: vertical generation surfaces and wall-mounted electrochemical storage banks. In architectural engineering, the generation subsystem is constructed as a curtain wall, rainscreen cladding, or masonry-anchored bracket array consisting of a dedicated wall of solar panels. These modules are structurally decoupled from internal thermal insulation to allow convective airflow behind the backsheet, preventing module derating at elevated operating temperatures.
Conversely, the storage subsystem utilises modular LiFePO4 battery enclosures mounted directly onto load-bearing structural walls or plant-room fire barriers. Integrating these two elements requires coordinating DC-coupled or AC-coupled topologies through specialised power conversion units. For deep insights into system-wide conversion architecture, reference our Battery Storage Engineering Guide. By routing DC strings from the facade directly into a wall-mounted hybrid inverter and energy storage bank, balance-of-system (BOS) footprint is kept minimal, avoiding long cable runs to distant switchrooms.
Electrical Yield Calculation for a Wall of Solar Panels
Vertical solar modules mounted at a 90-degree tilt angle exhibit generation profiles markedly different from standard 30-degree ground or rooftop mounts. At high latitudes (such as 50°N), low winter sun angles strike vertical surfaces near the perpendicular plane, yielding significantly higher capacity factors between November and February.
Consider an engineering calculation for a south-facing wall of solar panels located at latitude 51.5°N during the winter solstice. The peak solar elevation angle (α) is calculated as:
α = 90° - Latitude + Declination = 90° - 51.5° + (-23.44°) = 15.06°
The angle of incidence (AOI) on a vertical surface (tilt β = 90°) facing true south is:
cos(AOI) = sin(α) · sin(β) · cos(γ) + cos(α) · cos(β) = sin(15.06°) · sin(90°) · 1 + 0 = 0.2598... yielding an AOI of 74.94° relative to surface normal, meaning direct beam irradiance hits the vertical wall at an angle of 90° - 15.06° = 74.94° from the horizontal, yielding a normal direct factor of cos(15.06°) = 0.965.
Compare this to a standard 30° rooftop rack:
AOI_roof = |30° - (90° - 15.06°)| = |30° - 74.94°| = 44.94°
Normal projection factor on roof = cos(44.94°) = 0.708
Assuming a clear-sky direct normal irradiance (DNI) of 800 W/m² and ground snow cover providing an albedo (ρ) of 0.60:
- Direct beam irradiance on vertical wall: 800 W/m² × cos(15.06°) = 772.5 W/m²
- Albedo reflected irradiance on vertical wall: 0.5 × 800 W/m² × sin(15.06°) × 0.60 = 62.4 W/m²
- Total unshaded irradiance on solar wall: 834.9 W/m²
- Compare to standard 30° roof: (800 × cos(44.94°)) + (0.5 × (1 - cos(30°)) × 800 × 0.60) = 566.4 + 32.2 = 598.6 W/m²
Under these conditions, the vertical facade captures approximately 39.5% more peak irradiance than the fixed 30° rooftop array, proving critical for off-grid industrial resilience and winter baseload support.
Battery Storage Integration: Sizing Wall-Mounted LiFePO4 Systems
Integrating battery storage with a solar wall demands matching the energy storage discharge rate to commercial load profiles while adhering to floor-loading and spatial limits. Standard wall-mounted storage configurations deploy lithium iron phosphate (LiFePO4) chemistry due to its intrinsic thermal stability and compliance with IEC 62619 clause 7.3 for thermal runaway containment.
System engineers should execute the following sizing workflow:
- Determine peak continuous facade generation across string aggregations (e.g., 20 kW DC from 50 high-efficiency 400 W bifacial glass-glass modules).
- Establish the critical load profile to be supported during grid interruptions (e.g., 12 kW continuous over a 4-hour cycle = 48 kWh demand).
- Calculate nominal battery capacity considering a depth of discharge (DoD) of 90% and battery round-trip efficiency (RTE) of 95%: required capacity = 48 kWh / (0.90 × 0.95) = 56.1 kWh.
- Select modular wall-mounted units rated at 5 kWh to 15 kWh each, wiring them in parallel or across a high-voltage bus (150 V to 600 V DC) to minimise I²R cable heating inside service ductwork.
- Review maximum continuous charging C-rate (recommended 0.5C to extend cycle life past 6,000 cycles at 25°C ambient).
For complex installations requiring secondary isolation or integration into multi-source plants, installation practices outlined in our Solar Battery Installation Guide must be implemented.
Mechanical Mounting, Structural Loads, and Envelope Integration
Fixing a wall of solar panels to an exterior building elevation introduces heavy cantilever and wind shear forces governed by structural codes such as EN 1991-1-4. Unlike rooftop installations where gravity provides downward stabilising ballasting, vertical facades rely solely on mechanical friction and mechanical anchor pull-out resistance.
Dynamic wind pressures act perpendicular to the facade, causing severe vortex shedding at the building corners. Under EN 1991-1-4 Table 7.1, perimeter zones (Zone A and Zone B) experience peak net suction coefficients (c_pe,1) frequently reaching -1.4 to -1.8. For a 20-metre-tall commercial building subjected to a basic wind velocity of 25 m/s, local peak velocity pressure (q_p) easily surpasses 1.25 kN/m². Applying the suction coefficient yields an uplift tension of up to 2.25 kN/m² across outer fixing anchors.
Consequently, facade framing rails must use structural-grade anodised aluminium alloy (6005-T6 or 6063-T6) secured with high-tensile (316) stainless steel hardware. Isolation gaskets, such as EPDM shims, are mandatory between dissimilar metals to prevent galvanic corrosion in accordance with ISO 12944 atmospheric corrosivity category C4 or C5.
Thermal Management, Fire Separation, and Compliance
Thermal performance and fire prevention are critical engineering concerns when mounting both solar generation and battery assets directly against wall structures. PV modules experience an efficiency loss of approximately 0.35% to 0.40% per degree Celsius above 25°C. To maintain passive convective cooling, a minimum rear ventilation gap of 100 mm to 150 mm between the PV backsheet and the building substrate is mandatory. Omitting this cavity induces heat trapping, accelerating EVA delamination and reducing lifetime energy output.
For wall-mounted battery systems, strict adherence to NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62933-5-2 is legally enforceable in most jurisdictions. The structural and safety guidelines include:
- Individual wall-mounted residential/commercial units must be spaced with a minimum 914 mm (3 ft) lateral clearance from one another unless tested and listed to UL 9540A to show no cell-to-cell thermal propagation.
- Mounting substrates must provide a minimum 2-hour fire-resistance rating (such as reinforced concrete or non-combustible gypsum-faced masonry assemblies).
- Indoor plant rooms housing wall storage must integrate smoke, heat, and off-gas detection linked to automatic ventilation capable of exhausting 1 ft³/min per square foot of room area, avoiding flammable gas accumulation as mandated by NFPA 69.
For large-scale enclosures and structural housings, consult our technical guidelines on Battery Enclosure Engineering Design.
Engineering Comparison: Facade Solar Wall vs Rooftop PV Systems
Selecting between an exterior solar wall installation and conventional rooftop PV requires an objective assessment across structural, electrical, and environmental criteria. The decision table below outlines the core technical differences encountered by EPC contractors and electrical consultants.
| Engineering Metric | Vertical Facade Solar Wall | Pitched/Ballasted Rooftop PV |
|---|---|---|
| Installation Tilt Angle | 90° (Vertical) | 10° to 35° (Pitched/Tilted) |
| Winter Capacity Factor (Lat > 50°) | High (cos 15° solar normal incidence) | Low (cos 45° to 60° solar incidence) |
| Snow Accumulation Impact | Zero (gravity sheds all snow loads) | Moderate to Severe (soiling losses 20–100%) |
| Structural Loading Mechanism | High wind suction (EN 1991-1-4 shear & pull-out) | Dead load + wind uplift / ballasting constraints |
| Cable Containment Complexity | High (vertical riser ducts, drop cabling) | Low to Moderate (horizontal cable trays) |
| Capital Cost per Watt-Peak (Wp) | Higher (custom bracketry & scaffolding) | Lower (standardised rail and clip mounting) |
| Footprint Requirement | Zero ground/roof area (utilises existing walls) | Consumes primary horizontal structural area |
Next steps: specifying and sourcing
When specifying a complete solar wall project, engineers must provide detailed facade structural drawings, local wind load calculations to EN 1991-1-4 or ASCE 7-16, and site electrical single-line diagrams. Specify the precise busbar voltage, auxiliary power constraints, and fire isolation requirements early in your front-end engineering design (FEED). Our engineering team designs and manufactures utility-scale systems, modular plant equipment, and commercial battery infrastructure, including complete energy storage system solutions, heavy-duty HV/LV switchgear, and outdoor liquid-cooled ESS containers. To discuss structural framing integration, string layout, or battery storage specifications, visit our quote page or submit your single-line diagram through our contact page.
Frequently asked questions
What is a solar wall?
A solar wall is an architectural and electrical installation that utilises a building's vertical exterior surface to mount photovoltaic panels for power generation, often paired with wall-hung or modular battery energy storage. It transforms non-utilised vertical real estate into an active power-generating building envelope.
How does a wall of solar panels perform compared to rooftop panels?
A wall of solar panels produces lower total annual energy in tropical regions but outperforms rooftop arrays during winter at latitudes above 45°. The vertical 90-degree tilt captures low-angle direct winter sunlight while eliminating snow accumulation and benefiting from ground albedo reflections.
Can a solar wall battery system be installed indoors?
Yes, solar wall battery systems can be installed indoors within dedicated mechanical or electrical plant rooms. However, the space must meet NFPA 855 fire separation standards, provide a 2-hour fire-rated non-combustible mounting wall, and feature dedicated thermal runaway exhaust ventilation.
What inverter topology is best for vertical solar wall facades?
High-voltage hybrid string inverters with multiple maximum power point tracking (MPPT) channels are best for vertical arrays. Multiple MPPTs are essential to mitigate mismatch losses caused by storey-by-storey structural shading, parapet shadows, and variable horizon obstructions.
What maintenance is required for a solar wall?
A solar wall requires minimal surface cleaning because rain cleans vertical glass naturally, but annual maintenance is still essential. Technicians must inspect rear ventilation cavities for obstructions, verify torque marks on facade mounting brackets, and check DC cable strain reliefs against wind vibration.
