Stationary Battery Monitoring System: Engineering Guide

Quick answer: An online battery monitoring system is a permanent, multi-channel online monitoring platform engineered to evaluate cell voltage, internal ohmic resistance, inter-tier connection resistance, string current, and pilot cell temperature in critical stationary DC systems. Operating under IEEE 1492 recommendations, it automates regulatory compliance, isolates degrading cells, and mitigates catastrophic thermal runaways across electrical substations, telecommunications, and industrial energy storage installations.

Stationary DC battery banks provide emergency tripping power for high-voltage switchgear, turbine lube-oil pumps, and operational telecommunications during major auxiliary power failures. A single high-resistance cell or loose inter-cell connector within a 120-cell vented lead-acid (VLA) or valve-regulated lead-acid (VRLA) string can drop the entire DC bus voltage below protective relay thresholds during a breaker trip attempt. Integrating an automated online surveillance platform eliminates the safety risks, labour costs, and measurement errors inherent in manual handheld multimeter measurements.

As facilities transition from purely manual maintenance routines to continuous health tracking outlined in our comprehensive battery monitoring system guide, selecting the correct hardware architecture, sensor topology, and noise isolation protocols becomes crucial. Whether monitoring a high-capacity industrial backup bank or interfacing with a containerised DC auxiliary bank alongside a battery bank industrial system, engineers must understand how these systems sample, process, and transmit data under harsh electrical noise environments.

Core Architecture and Sensing Principles of Online Battery Monitoring

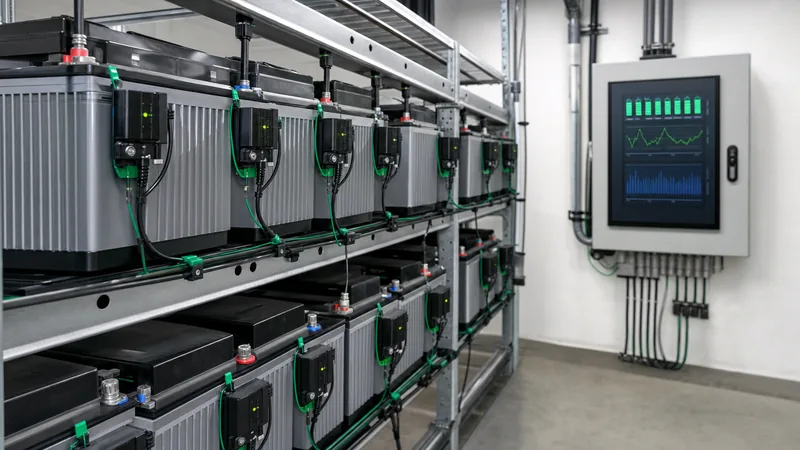

Online battery monitoring platforms employ a distributed modular architecture designed to measure individual cell metrics while maintaining galvanic isolation from the high-voltage DC bus. Each individual cell or monobloc is fitted with an autonomous sensor node that measures terminal voltage, connection resistance, and post temperature using dedicated lead sets.

These nodes communicate through a noise-shielded serial bus to a central controller, which houses the main processing unit, digital display, local storage, and upstream Ethernet interfaces. An active current transducer, typically a closed-loop Hall effect sensor or a calibrated precision shunt as detailed in our battery shunt monitor engineering guide, is placed in series with the battery string to continuously record float current, charge current, and high-rate discharge current. To withstand the extreme electromagnetic interference (EMI) present in high-voltage substations during switching transients, the sensor-to-controller communication loops incorporate optical isolation rated up to 3 kV AC.

The system architecture addresses stationary battery chemistries ranging from 1.2 V nickel-cadmium (Ni-Cd) cells to 2 V, 4 V, 6 V, and 12 V lead-acid jars. Because stationary installations frequently exceed 125 V DC or 250 V DC nominal bus levels, the central processing unit calculates overall string potential, verifies ground-fault resistance, and flags micro-ampere float current deviations that precede thermal runaway conditions.

Ohmic Measurement: Impedance, Conductance, and Resistance Testing

Continuous ohmic measurement serves as the primary diagnostic metric for identifying deteriorating cells before total capacity depletion occurs. Stationary batteries exhibit an internal impedance comprising pure ohmic resistance from the grid alloy, straps, and active material, alongside electrochemical transfer resistance and double-layer capacitance.

The online battery monitoring system utilizes an automated active load injection method. At programmed intervals—typically every 30 days or immediately following an ambient temperature excursion—the system applies a momentary AC current pulse or low-frequency step load across the cell terminals for several milliseconds. By measuring the resulting voltage drop (ΔV) relative to the injected current pulse (ΔI), the controller computes the cell’s internal resistance using the fundamental relationship:

R_internal = ΔV / ΔI

A critical engineering feature is the execution of a four-wire Kelvin connection at every battery post. By separating the current-injection path from the high-impedance voltage-sensing circuit, the system cancels out the contact resistance of the terminal clips and measurement wire harnesses. This enables the sensor to resolve sub-milliohm variations down to 0.001 mΩ. In accordance with IEEE 450 clause 5.2, an increase in internal resistance of more than 25% over baseline values indicates that the cell has degraded to approximately 80% of its rated capacity and warrants prompt retirement.

Technical Comparison: Online Monitoring Specifications vs Conventional Manual Testing

Automated continuous monitoring provides significant advantages over manual handheld testing routines, particularly in measurement precision, safety compliance, and failure detection speed. The following table contrasts the technical capabilities of a continuous monitoring system with traditional manual maintenance methods.

Installation, Wiring, and Commissioning Procedures

Commissioning an online battery monitoring system requires rigorous adherence to installation protocols to prevent short-circuit hazards and eliminate measurement noise. Follow this five-step sequence during site commissioning:

1. Isolate and Verify the Battery String: Ensure the battery charger is set to normal float voltage and verify that the installation area meets ventilation requirements. Confirm string polarity and measure the total float voltage across the main positive and negative termination plates before affixing physical hardware.
2. Mount and Secure the Sensor Modules: Affix an individual sensor module directly to each jar or the battery rack using flame-retardant mounting brackets. For lead-acid cells, secure the integrated temperature sensor against the negative terminal post, which provides the most direct thermal path to the internal plate assembly.
3. Connect Four-Wire Kelvin Harnesses: Terminate the ring lugs onto the cell terminals using calibrated torque wrenches according to the battery manufacturer's torque limits (typically 11 Nm to 15 Nm for M8 copper-insert posts). Never sandwich the sensor lug beneath the main inter-cell busbar; the sequence must be post, inter-cell busbar, sensor ring lug, flat washer, Belleville washer, and bolt.
4. Install Hall Effect Current Transducer: Clamp the bidirectional Hall effect current sensor around the main positive or negative DC cable leading from the battery breaker to the DC distribution panel. Observe arrow orientation indicating discharge flow toward the load, and ground the shielding foil at a single master reference point.
5. Commission the Controller and Establish Baselines: Power up the monitoring controller via its redundant dual DC/AC power supplies. Execute the automated network map function to detect every cell address, verify that communication loops are closed, and execute an initial baseline ohmic test to establish the 100% health benchmark for subsequent IEEE analysis.

Standards Compliance: Grid Reliability Standards and IEEE 1492 / 1188 / 450

Compliance with North American and international grid reliability standards represents a principal driver for deploying automated battery monitoring infrastructure. Utility operators face severe financial penalties if protection system batteries fail during grid fault clearing.

Mandatory grid reliability standards mandate specific maintenance intervals for vented lead-acid and valve-regulated lead-acid batteries dedicated to bulk power system protection. If an installation relies solely on manual inspections, technicians must visit the site monthly to measure string float voltage and quarterly to inspect cell terminal connections and pilot jar temperatures. However, integrating an automated system with continuous monitoring of float voltage, internal resistance, and ambient/cell temperature satisfies the requirement for an automated battery health evaluation system, extending necessary on-site physical maintenance intervals up to six years.

Furthermore, IEEE 1492 provides recommended practices for the design and application of battery monitoring systems in stationary applications, highlighting the necessity of optical galvanic isolation, fail-safe open-circuit protection on sensor wires, and intrinsic safety when monitoring cells generating explosive hydrogen gas. When operating in conjunction with lithium-based backup arrays or high voltage battery systems, these rigorous isolation and logging standards ensure continuous operational safety across industrial environments.

Worked Engineering Example: High-Resistance Cell Isolation in a 125 V Substation Bank

Consider a 125 V DC auxiliary battery bank consisting of 60 flooded lead-acid cells rated at 400 Ah with a baseline internal resistance of 0.350 mΩ per cell. The bank is tasked with supplying a 150 A continuous emergency trip load for 100 ms when operating the high-voltage circuit breakers.

During an automated monthly impedance scan, the online battery monitoring system detects that Cell #42 has degraded, exhibiting an internal resistance of 0.875 mΩ. This represents a 150% increase over the baseline value ((0.875 - 0.350) / 0.350 × 100 = 150%), far exceeding the IEEE 450 25% replacement threshold. During a breaker trip event drawing 150 A, the dynamic voltage drop across Cell #42 alone would be:

V_drop = I × R = 150 A × 0.000875 Ω = 0.131 V (compared to an expected 150 A × 0.000350 Ω = 0.0525 V)

While this single voltage drop appears modest, internal electrochemical heating within the damaged cell strap is substantial:

P_loss = I² × R = (150 A)² × 0.000875 Ω = 19.69 W

During extended deep discharge cycles where current draws escalate or under severe float-charge overvoltage conditions, this localised resistive heating accelerates thermal dry-out, leading to post seal failure, acid leakage, and potentially an open-circuit failure that disconnects the entire 125 V protection bus. The system triggers an automated early warning via Modbus TCP, enabling field teams to bypass or replace Cell #42 during scheduled hours without unexpected substation trip failure.

Troubleshooting Common Battery Monitoring Faults in High-EMI Environments

Operating continuous monitoring hardware in high-voltage substations and industrial plants introduces specific operational challenges that can lead to false alarms if not properly mitigated during engineering design. The most frequent field issue is radiated high-frequency electrical noise from static frequency converters, variable-speed drives, or switchyard lightning arresters coupling into sensor leads.

When false ohmic resistance alarms occur, technicians must first verify shield continuity. The communication loop shielding must never be grounded at both ends; doing so forms a ground loop that induces common-mode voltage spikes into the sensitive analog-to-digital converters (ADCs). The shield should terminate cleanly at the controller's main earth stud, while remaining isolated at the remote sensor ends.

A second common issue is connection resistance drift caused by thermal expansion and cold flow of lead terminal posts. If an inter-cell strap resistance alarm triggers, verify the mechanical joint using a micro-ohmmeter. If the micro-ohmmeter shows normal resistance across the copper lug, inspect the sensor's own measurement lead clip for corrosion or loosening caused by incorrect stacking order. Clean the contact surface, apply an anti-oxidation electrical grease compatible with lead-antimony or lead-calcium alloys, and re-torque to the specified mechanical limit.

Next Steps: Specifying and Sourcing

When specifying a complete battery monitoring solution or engineering a turnkey DC power system, provide your system voltage, battery chemistry, cell count, string configuration, and preferred supervisory control and data acquisition (SCADA) protocols (Modbus RTU, Modbus TCP, or DNP3). For projects integrating comprehensive emergency power or backup substations, explore our complete lines of energy storage systems, HV/LV switchgear, and liquid-cooled ESS containers. Contact our engineering team directly at inquiry@electrical-equipment-factory.com or submit your site Single Line Diagram (SLD) through our request a quote page for customised sizing and hardware integration.
