Key takeaways
- A battery shunt monitor calculates net ampere-hours by measuring millivolt drop across a calibrated manganin resistor placed in the negative DC bus.
- Shunts must be derated by 33% to operate at no more than 66% continuous rated current in accordance with standard thermal dissipation guidelines.
- Manganin alloy offers a temperature coefficient of resistance below 15 ppm per degree Celsius, preserving 0.5% accuracy across wide thermal ranges.
- Four-wire Kelvin connections on the shunt prevent false millivolt readings caused by terminal contact resistance and high-current cable torque variations.
- Coupled with real-time cell voltage and temperature telemetry, shunt-based Coulomb counting eliminates state-of-charge drift in stationary storage assets.
Quick answer: A battery shunt monitor is a precision instrumentation system that calculates DC current, battery capacity, and state-of-charge by measuring the millivolt potential drop across a calibrated, low-resistance resistor installed in series with the battery bank. By applying Ohm's law and integrating current over time, it delivers accurate Coulomb counting down to fractional ampere-hours for industrial battery systems.
In stationary energy storage, telecommunications DC power plants, and industrial uninterruptible power supply (UPS) infrastructure, accurate state-of-charge (SOC) calculation is critical for operational availability and cell longevity. While voltage-based estimations degrade rapidly under dynamic load profiles, a hardware-grade battery shunt provides continuous bidirectional current tracking. When properly specified alongside an overarching battery monitoring system guide, shunt instrumentation forms the baseline telemetry layer for modern balance-of-plant automation.
Operating Principles of the Battery Shunt and Monitor
A battery shunt operates on the relationship defined by Ohm's law, where voltage equals current multiplied by resistance (V = I × R). Because insertion resistance must be kept minimal to prevent excessive I²R thermal dissipation, the resistive element is engineered with fixed micro-ohm values that yield a standard millivolt output, typically 50 mV, 60 mV, 75 mV, or 100 mV at full rated current. For instance, a 500 A, 50 mV shunt features an exact continuous resistance of 100 micro-ohms (0.0001 Ω). When 250 A flows through the circuit, the monitor senses exactly 25 mV across the sensing taps.
The dedicated battery shunt monitor contains a high-precision analogue front end (AFE) comprising an instrumentation amplifier, an analogue-to-digital converter (ADC) running at 16 to 24 bits of resolution, and an embedded microcontroller. By reading the polar potential across the shunt, the monitor determines whether current is entering the string during charging or leaving during discharging. The integrated processor samples current at intervals ranging from 10 ms to 100 ms, calculating Coulomb counting via numerical integration:
Ah = ∫ I(t) dt
This accumulation of charge over time is continuously cross-referenced against battery capacity parameters to maintain an accurate battery SOC register, compensating for round-trip Coulombic efficiency losses.
Key Engineering Specifications: Shunt Alloys and Accuracy Classes
Precision measurement under fluctuating ambient and operational temperatures demands resistive materials with an exceptionally low temperature coefficient of resistance (TCR). Commercial and industrial shunts universally utilise manganin, an alloy composed of roughly 84% copper, 12% manganese, and 4% nickel. Manganin exhibits a TCR between ±10 to ±15 ppm/°C across a range of 15°C to 35°C, preventing thermal resistance shift from corrupting millivolt data under continuous load.
Standard accuracy classes follow international measurement guidelines such as IEC 60051-2 (Direct acting indicating analogue electrical measuring instruments and their accessories). The instrument class defines the maximum permissible error expressed as a percentage of full-scale deflection:
- Class 0.1 and Class 0.2: High-precision laboratory and utility grid compliance units, providing baseline current errors under ±0.2% across standard operating temperatures.
- Class 0.5: Standard industrial benchmark for commercial LiFePO4 battery management systems, ensuring adequate tracking fidelity without excessive manufacturing cost.
- Class 1.0: General-purpose commercial monitoring, rarely deployed in multi-megawatt battery energy storage due to accumulated Coulomb-counting drift.
Battery Shunt Sizing and Thermal Derating Calculations
Specifying a battery shunt requires balancing full-scale signal resolution against continuous thermal dissipation. According to standard industrial guidelines and IEEE 1188 recommendations, a resistive shunt should never operate continuously at more than 66% of its rated current capacity. Exceeding this thermal threshold elevates the junction temperature of the manganin element above 80°C, inducing thermal drift and accelerating mechanical fatigue at the copper terminal braze joints.
Consider an industrial 48 V DC backup battery string connected to an inverter system with a continuous maximum discharge rate of 320 A and a momentary surge rating of 480 A for 10 seconds. The selection process proceeds as follows:
- Calculate continuous sizing requirement: Apply the 66% continuous rating rule: Irated ≥ Icontinuous / 0.66 = 320 A / 0.66 = 484.8 A. Select the next standard commercial rating, which is 500 A.
- Verify thermal dissipation: For a 500 A, 50 mV shunt (resistance R = 0.00005 V / 500 A = 0.0001 Ω), calculate power loss at continuous load: P = I² × R = (320 A)² × 0.0001 Ω = 10.24 W. This heat dissipation is easily managed by natural convection inside a ventilated industrial enclosure.
- Evaluate signal resolution: At minimum floating current (for example, 2 A), the voltage drop is V = 2 A × 0.0001 Ω = 0.2 mV (200 μV). Ensure the monitor's input ADC can resolve microvolt steps without significant quantization error. If lower load resolution is essential, select a 100 mV base shunt rather than a 50 mV unit.
Shunt vs Hall Effect Transducers: Engineering Decision Matrix
Current sensing in industrial energy storage can be achieved using either resistive shunts or non-contact Hall effect transducers. Each technology introduces specific design trade-offs regarding isolation, drift, power consumption, and thermal management.
| Design Parameter | Resistive Battery Shunt | Open-Loop Hall Sensor | Closed-Loop Hall Sensor |
|---|---|---|---|
| Measurement Principle | Direct Ohm's Law Millivolt Drop | Magnetic Field Core Deflection | Zero-Flux Magnetic Balance |
| Measurement Accuracy | ±0.1% to ±0.5% | ±1.0% to ±2.0% | ±0.2% to ±0.5% |
| Galvanic Isolation | Non-isolated (requires isolation module) | Inherently isolated | Inherently isolated |
| Zero-Current Offset Drift | Virtually zero (no remanence) | Susceptible to magnetic offset (±20 mV) | Low offset drift |
| Insertion Power Loss | Moderate (I²R continuous heat) | Negligible (zero contact) | Negligible on busbar |
| Auxiliary Power Draw | Zero (pure passive element) | 5 mA to 15 mA | 50 mA to 150 mA continuous |
| Frequency Bandwidth | DC up to several kHz | DC to 25 kHz | DC to 200 kHz |
A battery shunt monitor remains the preferred instrumentation method where static DC accuracy and zero offset drift are paramount for long-duration Coulomb counting. Unlike Hall effect sensors, shunts do not suffer from magnetic core remanence following short-circuit transients.
Installation Best Practices: Kelvin Connections and Negative-Bus Placement
Proper mechanical and electrical integration is essential to capture accurate microvolt readings without introducing fire hazards or signal degradation. Installation must adhere to strict low-voltage wiring protocols and thermal clearance guidelines.
- Locate on the negative bus: Always install the battery shunt in the main negative (-) lead of the battery bank, between the negative terminal and all load or charger distribution panels. Negative-rail installation ensures the monitor's signal leads remain near ground potential, reducing common-mode voltage stress on the instrumentation circuitry.

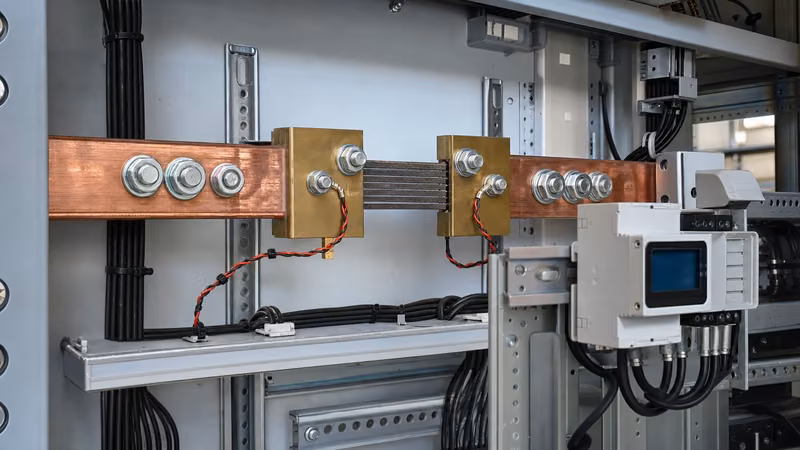

- Implement four-terminal Kelvin connections: High-current system cables must be bolted to the large primary terminal blocks using calibrated torque wrenches. The sensing wires feeding the monitor must connect exclusively to the dedicated, smaller Kelvin screws. Never piggyback sense wires under the heavy busbar lugs, as varying interface resistance and terminal torque will skew millivolt readings.
- Twist and shield sensing leads: Millivolt signals are highly susceptible to electromagnetic interference (EMI) generated by switch-mode rectifiers, variable frequency drives, and solar inverters. Route the sensing leads as a tightly twisted pair inside a braided foil shield grounded at one end only.
- Ensure adequate vertical ventilation: Mount the shunt horizontally on an insulated base with the resistive manganin blades aligned vertically to promote natural convective airflow across the heat-dissipating elements.
Integrating these physical standards protects upstream equipment like a battery control module from receiving corrupt current telemetry during heavy load transitions.
Factory Acceptance and Commissioning Verification Checklist
Before energising an industrial energy storage enclosure, field commissioning teams must systematically verify the battery shunt monitor circuit against the engineering design package.
| Inspection Item | Test Procedure / Standard | Acceptance Criteria | Field Value / Pass |
|---|---|---|---|
| Busbar Bolt Torque | Calibrated torque wrench to manufacturer spec | Zero mechanical play; torque marks aligned | Verified |
| Kelvin Tap Integrity | Visual check of dedicated secondary terminals | No sharing of primary lugs; clean contact surfaces | Verified |
| Isolation Resistance | 500 V DC Megohmmeter (shunt base to enclosure chassis) | R ≥ 100 MΩ per IEC 62020 insulation rules | Measured MΩ |
| Zero-Current Calibration | Open main battery contactor; observe monitor display | Reading ≤ ±0.05 A DC offset | Zero calibrated |
| Full Load Temperature Rise | Thermal imaging under 100% rated continuous current | Shunt terminal temp ≤ 70°C; block ≤ 85°C | Thermogram recorded |
Next steps: specifying and sourcing
When specifying a complete current-monitoring solution for your utility, commercial, or microgrid project, prepare your single-line diagrams, peak continuous discharge currents, dynamic short-circuit ratings, and supervisory communication requirements (such as Modbus RTU, CANopen, or Ethernet). Our engineering team designs and manufactures containerised and cabinet-based solutions, including complete energy storage systems, ruggedised liquid-cooled ESS containers, and balance-of-plant HV/LV switchgear. Contact our technical sales office directly or submit your project details via our quote request page to receive comprehensive sizing calculations and formal commercial proposals.
Frequently asked questions
Why is a battery shunt monitor installed on the negative side?
Installing the shunt on the negative bus keeps the potential of the sensing leads close to 0 V ground. This eliminates high common-mode voltage stress on the monitor's analogue front-end and prevents hazardous short circuits if a sensing lead accidentally contacts the metal chassis.
How does a battery shunt calculate state of charge?
A battery shunt monitor measures current by converting the millivolt drop across a manganin resistor into amperes using Ohm's law. It integrates this continuous current over time via Coulomb counting, calculating net ampere-hours added or subtracted relative to the battery bank's programmed total capacity.
What millivolt rating should I choose for a battery shunt?
Standard industrial ratings are 50 mV, 75 mV, or 100 mV at full rated current. A 50 mV shunt produces less thermal dissipation (I²R loss), making it suitable for high-current systems, whereas a 100 mV shunt provides greater signal resolution for detecting small parasitic or floating currents.
What is the difference between a battery shunt and a Hall effect sensor?
A battery shunt is a direct-contact resistive element that provides high DC accuracy with zero magnetic offset drift over time. In contrast, a Hall effect sensor measures the magnetic field around a conductor without direct contact, offering galvanic isolation but carrying higher vulnerability to zero-point drift.
Do battery shunts require recalibration after installation?
Manganin-based shunts rarely experience resistance drift unless subjected to sustained over-temperature conditions or mechanical stress. However, the battery shunt monitor itself should undergo zero-current offset calibration during commissioning and periodic annual re-zeroing to compensate for amplifier temperature drift.
