Step Down Transformer 220V to 110V: Industrial Engineering Guide

Quick answer: A step down transformer 220V to 110V converts alternating current (AC) electricity from a 220-volt supply down to a 110-volt output through electromagnetic induction across a fixed 2:1 winding turns ratio. It provides voltage compatibility for industrial machinery, control panels, laboratory equipment, and imported appliances while maintaining stable power frequency.

Industrial plants, construction sites, commercial data centres, and testing laboratories frequently operate machinery built for divergent global grid standards. Regions such as North America, Japan, and parts of South America operate machinery at nominal single-phase levels between 100V and 120V (60 Hz), whereas European, Middle Eastern, and Asian infrastructures provide standard phase-to-neutral voltages between 220V and 240V (50 Hz). Adapting these systems requires an engineered solution that balances power efficiency, winding thermal tolerances, and electrical safety standards.

Understanding the distinction between electromagnetic induction equipment and solid-state alternatives is essential for site reliability. Whether deploying an enclosed control transformer inside a switchgear cabinet or planning facility-wide power distribution, engineers must select the right design topology. This guide details the core electromagnetics, sizing methodologies, autotransformer versus galvanic isolation tradeoffs, and bidirectional operations associated with a step down transformer 220v to 110v.

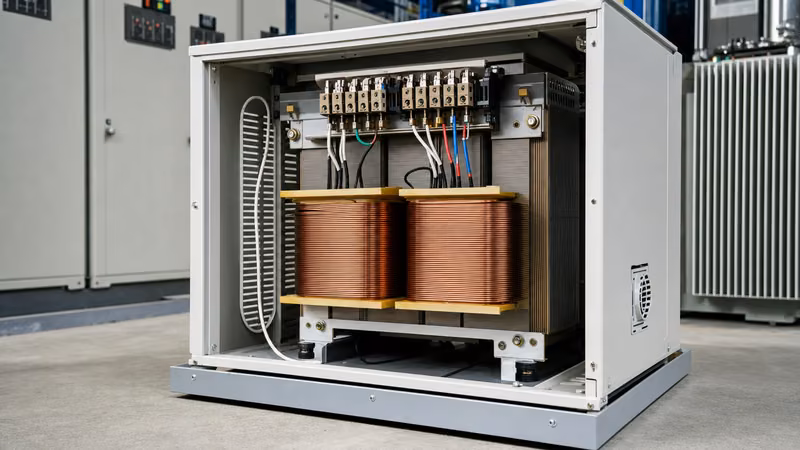

Electromagnetic Principles of the Step Down Transformer 220V to 110V

A step down transformer 220v to 110v works on the principle of mutual electromagnetic induction described by Faraday's law, using two magnetically coupled windings wound around a laminated silicon-steel or ferrite core. When an alternating potential of 220V Root Mean Square (RMS) is applied to the primary winding, it induces an alternating magnetic flux in the ferromagnetic core.

The mathematical relationship governing the primary and secondary stages is determined by the turns ratio equation:

Vp / Vs = Np / Ns = Is / Ip

Where Vp is primary voltage (220V), Vs is secondary voltage (110V), Np is primary winding turns, Ns is secondary winding turns, Ip is primary current, and Is is secondary current. To step down from 220V to 110V, the primary-to-secondary turns ratio must be precisely 2:1. For example, a core wound with 500 primary turns requires 250 secondary turns to establish a nominal 110V output under open-circuit conditions.

As explained in our guide to AC transformer engineering principles, secondary current is inversely proportional to secondary voltage. Because voltage is halved, secondary current capacity is doubled relative to the primary supply. An engineering load drawing 10 A at 110V on the secondary winding will draw approximately 5 A from the 220V mains supply, neglecting core hysteresis and copper winding losses. Magnetic cores are constructed using thin, grain-oriented electrical steel laminations (typically 0.23 mm to 0.35 mm thick) insulated with inorganic coatings to suppress eddy current dissipation according to IEC 60076-1 specifications.

Autotransformer vs Galvanic Isolation Topologies in a Transformer 220V System

Selecting between an autotransformer and a double-wound isolation transformer depends entirely on whether electrical circuit separation is required for personnel and equipment safety. A standard transformer 220v system can be manufactured using either configuration, but each serves divergent engineering objectives.

An autotransformer utilizes a single continuous copper or aluminium winding tapped at intermediate points along its length. For a 220V to 110V transformation, the 110V output is tapped at exactly 50 percent of the total winding turns. The lower portion of the winding functions simultaneously as part of the primary and the entire secondary winding. This design yields marked benefits:

• Reduced Material Volume: The shared copper winding allows smaller core frames, reducing total unit weight and core losses by up to 40 percent.
• Cost Efficiency: Requiring less active material, autotransformers provide an economical option for simple voltage conversion where isolation is not mandated.
• Lower Internal Impedance: Reduced winding resistance translates to tighter voltage regulation under dynamic load shifts.

However, autotransformers lack galvanic isolation. The input circuit shares a direct metallic path with the output circuit. If the neutral conductor breaks or if a ground fault develops on the primary 220V side, hazardous overvoltages can migrate directly to the 110V terminals. In contrast, an isolation transformer keeps the primary and secondary circuits electrically separate. Flux transfer occurs purely across the dielectric barrier of the core. As detailed in our breakdown of single phase power transformer wiring, isolation transformers protect sensitive programmable logic controllers (PLCs), instrumentation, and medical apparatus from high common-mode electrical noise, ground loops, and transient surges in compliance with IEC 61558-2-4 standards.

Reversing Operation: Using a Transformer from 110 to 220 Volts

A dual-winding step-down transformer can generally function in reverse as a transformer from 110 to 220 volts by feeding nominal low voltage into the secondary winding to obtain high voltage from the primary winding. However, practical engineering considerations govern back-feeding procedures to prevent performance degradation or insulation failure.

When a step-down transformer is designed, manufacturers incorporate winding turn compensation (typically 2.5 percent to 5 percent additional turns on the secondary) to offset internal resistive (IR) and reactive (IX) voltage drops encountered under full load. When back-fed:

1. The compensating turns that previously boosted low-voltage output now reduce the step-up voltage, producing lower open-circuit voltages than nominal (for example, 210V to 215V instead of 220V).
2. Inrush currents on the original secondary winding can spike substantially higher. Low-voltage windings exhibit lower DC resistance and leakage inductance; energising this winding can cause peak inrush currents exceeding 12 to 15 times full load amps (FLA), risking upstream breaker nuisance tripping.
3. Insulation systems and terminal clearances on the primary terminals must safely withstand continuous 220V stresses and associated transient overvoltages, adhering to IEEE C57.12.00 clearance criteria.

If bidirectional step-up or step-down functionality is required on site, engineers should specify dual-voltage units with factory-calibrated compensating taps or consult comprehensive resources like our step down voltage converter industrial guide to ensure winding configurations match the expected power flow.

Solid-State Converter 220V vs Magnetic Transformer

A solid-state converter 220v modifies AC voltage using semiconductor switching devices rather than magnetic flux transfer. Choosing between solid-state electronics and magnetic iron-core equipment requires evaluating load sensitivity, duty cycle, waveform purity, and thermal longevity.

Electronic converters (often incorporating silicon-controlled rectifiers or high-frequency pulse-width modulation circuits) chop the AC voltage waveform or convert AC to DC and back to synthesized AC. While these units are compact, lightweight, and suitable for simple resistive heating elements or universal brush motors, they introduce significant total harmonic distortion (THD). Sensitive inductive equipment, precision laboratory instruments, and microprocessor-controlled automated machinery frequently malfunction or overheat when supplied with modified sine waves or high-frequency switching noise. The engineering table below contrasts magnetic transformers with electronic converter technologies across essential performance metrics.

Sizing Calculations and Inrush Factors for 220V to 110V Conversions

Correctly sizing a step down transformer 220V to 110V requires calculating both continuous apparent power (kVA) demands and transient inrush currents. Selecting a transformer based strictly on continuous running watts inevitably leads to thermal tripping, low secondary voltage drops, or shortened winding lifespans.

For single-phase installations, determine total load apparent power using the standard formula:

S (VA) = V × I

Where V represents nominal secondary voltage (110V) and I represents maximum steady-state current demand in amperes. If the load is rated in real power (Watts or kW), power factor (PF) must be factored in:

S (kVA) = P (kW) / PF

For resistive heating or incandescent loads, PF is assumed to be 1.0. For industrial AC induction motors, solenoid valves, contactors, and switch-mode power supplies, power factors typically range from 0.70 to 0.85. Furthermore, inductive loads draw starting inrush currents between 300 percent and 800 percent of full load amps (FLA) during the initial 100 to 500 milliseconds. To prevent excessive voltage drop during start-up, engineers apply a safety headroom factor:

• Pure Resistive Loads: Add a minimum 20 percent to 25 percent continuous safety margin.
• Motor & Inductive Loads: Multiply total running kVA by a factor of 2.0 to 3.0, or use the locked-rotor motor code letter to evaluate peak kVA demands directly, as detailed in our transformer sizing engineering guide.
• Frequency Considerations (50 Hz vs 60 Hz): A transformer designed strictly for 60 Hz operation will experience 20 percent higher magnetic flux density when energised at 50 Hz (since Bmax ∝ V / f). This can cause saturation, high magnetising current, and core overheating. Transformers serving international duties must feature cores sized for 50/60 Hz universal frequency compliance.

Step-by-Step Installation and Wiring Procedure

Installing and wiring an industrial step down transformer 220V to 110V requires rigorous adherence to local electrical regulations, including NFPA 70 (National Electrical Code) or IEC 60364 installation standards. Follow this procedure for safe commissioning:

1. De-energise and Verify Isolation: Lock out and tag out (LOTO) the incoming 220V supply feeder. Use a calibrated multirange multimeter or voltage detector to confirm zero energy state across all input phases and earth conductors.
2. Mounting and Environmental Positioning: Secure the transformer enclosure to a rigid, vibration-damped surface. Ensure minimum clearance distances (typically 150 mm on all ventilated sides) to allow natural convection cooling per manufacturer specifications.
3. Primary 220V Line Connection: Route input phase (L1) and neutral (N) or secondary phase (L2) through suitable strain-relief conduit glands into the primary terminal block marked H1 and H2. Size the upstream circuit breaker to accommodate continuous current plus magnetic energisation inrush.
4. Secondary 110V Load Connection: Terminate output cabling to terminals X1 and X2. For an isolation transformer, establish an equipment grounding conductor link (bonding jumper) from the designated secondary neutral terminal to the main ground bus, creating a Separately Derived System per NEC Article 250.30.
5. Earth Grounding Verification: Connect a low-impedance copper earthing conductor from the transformer frame ground stud to the facility's main grounding electrode system. Maximum ground resistance must measure below 5 ohms.
6. Pre-Energisation Insulation Resistance Testing: Perform a high-voltage insulation resistance test (Megohmmeter at 500V or 1000V DC) between primary-to-secondary, primary-to-ground, and secondary-to-ground. Measured values must exceed 100 Megohms.
7. No-Load Energisation and Tap Adjustment: Energise primary supply without secondary loads connected. Measure output voltage across X1 and X2 using an RMS digital voltmeter. If output deviates from nominal 110V due to incoming line variations, adjust the off-circuit primary winding taps accordingly.

Next steps: specifying and sourcing

When specifying a step down transformer 220V to 110V for industrial machinery, motor control centres, or distribution networks, compile comprehensive technical parameters before procuring equipment. Define the total continuous capacity in kVA, nominal system frequency (50 Hz, 60 Hz, or dual 50/60 Hz), required enclosure IP or NEMA rating, and whether galvanic isolation or autotransformer construction is mandated by site safety codes. For commercial procurement of high-reliability distribution units, explore our specialized dry-type transformers or heavy-duty oil-immersed transformers. For bespoke engineered configurations, engineering drawings, or tailored wholesale pricing, submit your project schedules via our official transformer quote portal.
