Key takeaways
- The nominal term 110 volts 220 describes the two dominant low-voltage global supply baselines codified under ANSI C84.1 and IEC 60038.
- Operating equipment at 110 V requires exactly twice the load current of a 220 V circuit for equivalent kilowatt demand, doubling mandatory conductor cross-sectional area to limit thermal I²R losses.
- Dual-winding low-voltage transformers achieve 110 V or 220 V operation by configuring secondary coils in parallel or series arrangements.
- Galvanically isolated transformers eliminate zero-sequence ground loops and isolate common-mode noise, whereas autotransformers provide a more compact, cost-effective alternative without electrical isolation.
- Sizing transformers for 110 V to 220 V conversion requires derating by at least 125% for continuous loads and factoring in load power factor and inrush transients.

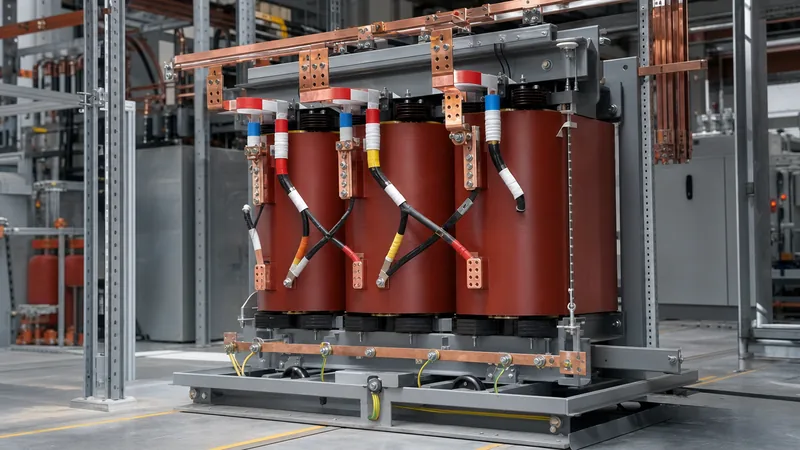

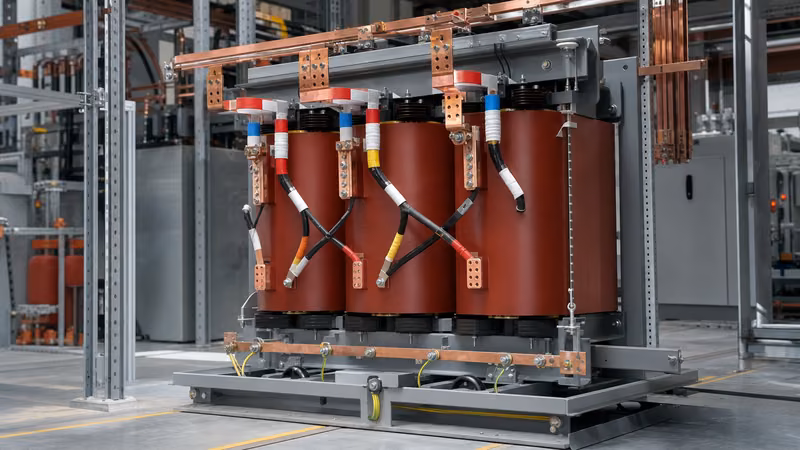

Quick answer: The phrase 110 volts 220 refers to the historical and practical shorthand for low-voltage power systems operating either between 110–120 V (predominant in North America) or 220–240 V (standard across Europe, Asia, and Africa). Converting between these two voltage classes requires an isolation transformer or autotransformer sized according to total apparent power (kVA), supply frequency, and continuous duty thermal limits.
In industrial distribution networks and commercial utility interfaces, confusion often arises regarding nominal voltages. Although colloquial references cite 110 volts 220, modern grid standards define nominal utilization voltages with tight regulatory tolerances. Navigating these parameters requires understanding how grid utilities configure distribution windings, how equipment reacts to frequency variations (50 Hz versus 60 Hz), and how to size magnetic components to avoid thermal breakdown. For broader network architecture, consult our transmission transformer engineering guide.
110 Volts 220 Mains Standards: North America vs Global Distribution
Nominal utility voltages across the globe adhere to specific grid codes rather than arbitrary figures. In North America, ANSI C84.1 defines nominal system voltage as 120/240 V split-phase, where 120 V represents the line-to-neutral potential and 240 V represents the line-to-line potential. Legacy terminology frequently refers to this supply as 110 V, 115 V, or 117 V, but modern distribution transformers deliver 120 V nominal at the service entrance, with acceptable utilization drops down to 110 V at the terminal load.
Conversely, the majority of the world aligns with IEC 60038, which harmonised European and international distribution grids to 230/400 V three-phase four-wire configurations, derived from the historical 220 V and 240 V baselines. An engineer encountering a specification for 110 volts 220 volts must clarify whether the system involves a split-phase centre-tapped secondary or two entirely distinct single-phase supplies. Furthermore, imported machinery configured for 220 V at 50 Hz encounters magnetic core saturation if energized at 60 Hz without adequate flux density margins, as detailed in our analysis of voltage converters and transformers.
Working Principles of Dual Voltage and 110 Volts 220 Volts Systems
A dual-voltage distribution transformer provides flexibility by utilizing split primary or secondary windings that reconfigure into series or parallel connections. When two identical 110 V secondary coils connect in series (aiding polarity), their induced voltages sum algebraically to yield 220 V. When the same two windings connect in parallel, the output voltage remains 110 V while the current handling capability doubles.
According to Faraday's law of electromagnetic induction, the induced electromotive force (EMF) is proportional to the number of turns: E = 4.44 · f · N · Φmax, where f is frequency in Hertz, N is turn count, and Φmax is peak magnetic flux in Webers. Transformers built for dual-voltage service feature heavy insulation between winding sections to withstand dielectric stresses during series operation. If deploying step-down conversion for heavy industrial loads, reviewing the engineering principles in our guide on step-down transformers from 220V to 110V ensures compliance with short-circuit and thermal withstand parameters governed by IEC 60076-5.
Calculations and Sizing for a 110 Volts 220 Transformation
Transformer sizing requires computing total apparent power (kVA) rather than real power (kW) to accommodate load displacement power factor and thermal losses. Consider an industrial motor load drawing 18.5 kW with a lagging power factor of 0.84 and an operating efficiency of 91% designed for 220 V, which must operate from an existing 110 V industrial feeder.
First, calculate total electrical input demand (Pin):
Pin = Pout / Efficiency = 18.5 kW / 0.91 = 20.33 kW
Next, determine required apparent power (S):
S = Pin / Power Factor = 20.33 kW / 0.84 = 24.20 kVA
Per NFPA 70 (NEC Article 215) and standard engineering practice, continuous loads (operating three hours or more) mandate an operational safety margin of at least 125%:
Minimum Transformer kVA = 24.20 kVA · 1.25 = 30.25 kVA
The engineer should select a standard nominal rating of 37.5 kVA or 45 kVA. Full-load primary current at 110 V is:
Iprimary = 30,250 VA / 110 V = 275.0 A
Secondary current at 220 V is:
Isecondary = 30,250 VA / 220 V = 137.5 A
This calculation demonstrates that the 110 V supply side demands double the cross-sectional copper area compared to the 220 V secondary to maintain allowable temperature rise limits (typically Class F 100°C rise or Class H 125°C rise under IEEE C57.12.01). For additional calculation methodologies regarding split-phase transformation, consult our 120 to 240 transformer engineering guide.
Isolation Transformers vs Autotransformers for 110V and 220V Conversion
Selecting between galvanic isolation and auto-transformation determines system earthing integrity, physical footprint, short-circuit current availability, and cost. An autotransformer shares a continuous winding across primary and secondary circuits, using a mechanical tap for the 110 V or 220 V connection. In contrast, an isolation transformer keeps primary and secondary coils electrically separated, transferring power solely through electromagnetic induction across the core.
| Engineering Criteria | Galvanic Isolation Transformer | Step-Up / Step-Down Autotransformer |
|---|---|---|
| Electrical Separation | Complete physical isolation (>2.5 kV dielectric withstand) | None; primary and secondary share a common copper winding |
| Common-Mode Noise Rejection | High attenuation (up to 60 dB with electrostatic shield) | Zero galvanic attenuation; passes line surges directly |
| Footprint and Mass | 100% baseline core and copper mass | Roughly 50% lighter for a 2:1 transformation ratio |
| Short-Circuit Impedance (%Z) | Typically 3.0% to 5.5% (limits fault currents) | Very low (1.0% to 2.0%; delivers high downstream fault current) |
| Neutral and Earthing | Permits derivation of a local, clean Separately Derived System | Directly coupled to upstream distribution earthing regime |
| Relative Cost | Baseline (higher manufacturing copper and core content) | 30% to 45% lower capital expenditure |
While autotransformers offer significant cost and size savings for commercial machinery conversion, mission-critical facilities, medical installations, and data networks demand dry-type isolation units to protect sensitive electronics against utility transients.
Step-by-Step Procedure for Connecting Dual-Winding 110/220V Equipment
Reconfiguring dual-voltage industrial plant equipment between 110 V and 220 V operations requires methodical safety precautions and adherence to terminal marking designations per IEC 60445 or NEMA standards.
- Isolate and verify zero energy state: De-energize the incoming supply, tag out circuit breakers, apply safety grounds, and verify absence of nominal voltage using a calibrated multimeter rated for CAT IV installations.
- Inspect terminal markings: Identify winding terminal lugs, typically labelled H1, H2, H3, H4 on high-voltage coils (220 V) and X1, X2, X3, X4 on low-voltage coils (110 V).
- Configure winding jumpers: For 220 V series operation, bridge terminal X2 to X3, applying the supply across X1 and X4. For 110 V parallel operation, bridge X1 to X3, bridge X2 to X4, and connect line and neutral conductors across the paired junctions.
- Perform insulation resistance testing: Apply a 1,000 V DC megohmmeter between winding terminals and the enclosure ground chassis per IEEE 43 recommendations; acceptable insulation resistance must exceed 100 Megohms.
- Validate polarity and phase angle: Energize under no-load conditions with current-limiting test protection to measure terminal potentials, confirming exact nominal output before transferring downstream motor or process loads.
Engineering Checklist for Specifying 110V/220V Transformers
A comprehensive procurement specification prevents field failures resulting from mismatched thermal ratings, improper winding impedances, or excessive voltage regulation drop. Procurement teams should incorporate the following technical schedule into equipment inquiries:
- Nominal voltage and frequency: Primary 110/120 V vs 220/240 V, secondary specified with ±2.5% and ±5% full-capacity de-energized tap changer (DETC) positions, 50 Hz, 60 Hz, or dual 50/60 Hz rated.
- K-factor rating: K-4, K-13, or K-20 construction per IEEE C57.110 to handle non-linear harmonic heating induced by variable-frequency drives (VFDs) or switch-mode power supplies.
- Insulation system: Class H (180°C or 220°C material limit) operating at an 80°C or 115°C temperature rise to provide superior overload capability and longer operating life.
- Electrostatic shielding: Grounded copper Faraday shield placed between primary and secondary windings to attenuate high-frequency line spikes and common-mode transient noise.
- Enclosure rating: IP21 or NEMA 1 for indoor plant environments, progressing to IP54, NEMA 3R, or NEMA 4X stainless steel for outdoor washdown or coastal industrial substations.
Next steps: specifying and sourcing
Configuring power transformers for 110 volts 220 infrastructure demands precise balance between winding topology, impedance control, thermal limits, and grid code compliance. Whether your project calls for indoor ventilated dry-type transformers, oil-immersed power transformers for utility service entrances, or integrated package solutions within a transformer substation, our engineering factory team designs to exact project specifications. Submit your full electrical single-line diagram, kVA capacity, and winding configuration requirements through our direct transformer quotation request portal to receive detailed dimensional drawings, loss evaluations, and certified manufacturing schedules.
Frequently asked questions
Can I run a 220V appliance directly on a 110V circuit?
No, connecting a 220V appliance directly to a 110V supply prevents it from operating correctly and can burn out electric motors. Resistive heating elements produce only one-quarter of their rated heat output, while inductive loads like compressor motors stall, overheat, and trip circuit overcurrent devices.
What is the difference between 110 volts 220 and 120V 240V?
110V and 220V are legacy terms representing older nominal grid targets, whereas 120V and 240V are the official ANSI C84.1 nominal standards used across North America today. Most modern equipment labeled 110V or 115V operates comfortably within the modern 120V ±5% utility distribution window.
Does a 110V to 220V transformer change the power frequency from 50Hz to 60Hz?
No, standard passive transformers change only voltage levels, leaving the supply frequency identical between input and output windings. Altering frequency between 50 Hz and 60 Hz requires an active solid-state frequency converter or rotary motor-generator set.
Why does a 110V circuit require thicker cables than a 220V circuit?
A 110V circuit draws exactly twice the amperage of a 220V circuit to deliver identical mechanical or thermal wattage. Because conductor sizing depends strictly on continuous current carrying capacity, 110V wiring requires twice the copper cross-sectional area to control resistive voltage drop and thermal buildup.
Is an autotransformer safe for converting 220V to 110V industrial machinery?
Autotransformers are safe and widely accepted if local electrical codes permit common-neutral systems and downstream ground-fault protection is properly coordinated. However, if your electrical installation mandates galvanic separation to eliminate ground noise or prevent upstream faults from reaching sensitive logic controllers, specify an isolation transformer.
