Transformer Breaker Size Chart: Primary & Secondary Sizing Guide

Quick answer: A transformer breaker size chart defines the recommended primary and secondary circuit breaker ratings based on full-load amperes (FLA) and statutory protection factors, primarily National Electrical Code (NEC) Article 450.3 and IEC 60947-2. For low-voltage installations under 1,000 V with primary-only protection, circuit breakers are typically sized at 125% of primary FLA. When primary and secondary protection are both provided, primary breakers can be sized up to 250% to prevent nuisance tripping from magnetising inrush, while the secondary breaker protects against continuous overload at 125%.

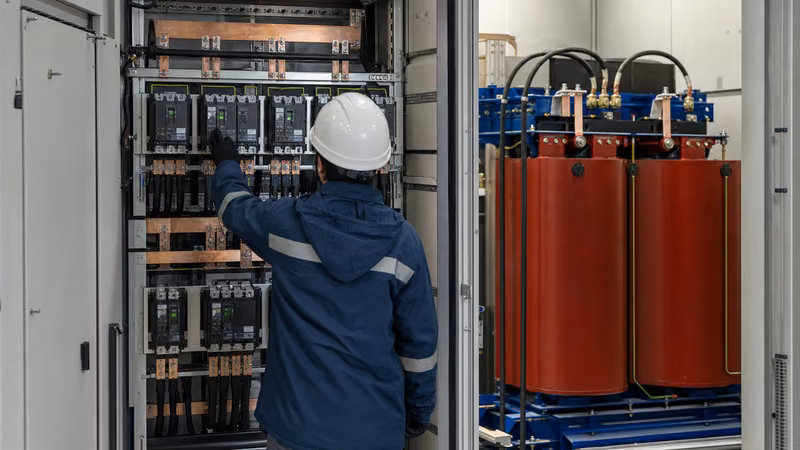

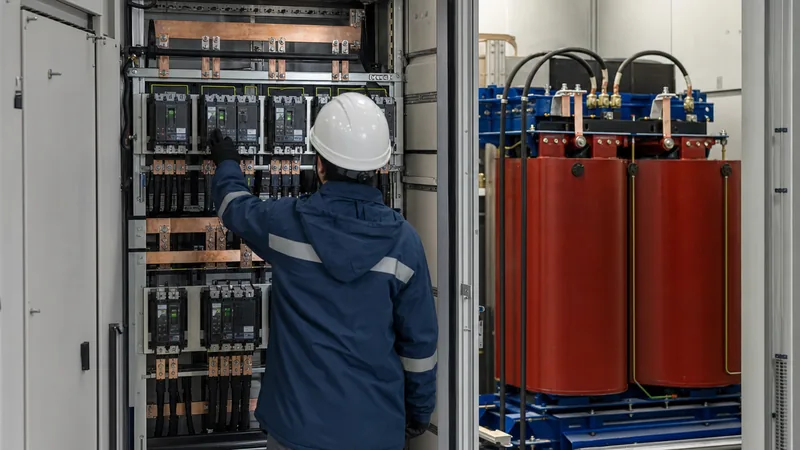

Proper transformer circuit breaker sizing is essential to maintain equipment reliability, safeguard winding insulation against thermal degradation, and ensure upstream electrical networks remain stable during fault conditions. Electrical design engineers, commissioning technicians, and facility managers must balance two competing objectives: selecting an overcurrent protective device (OCPD) sensitive enough to interrupt sustained overloads and phase-to-phase faults, yet robust enough to withstand the severe transient magnetising inrush current when energising coils. Using an accurate engineering reference and understanding the underlying mathematical formulas ensures compliance with international grid codes and standards.

Transformer Circuit Breaker Sizing Standards: NEC 450.3 and IEC Frameworks

Transformer circuit breaker sizing is governed primarily by NEC Article 450.3 in North America and IEC 60076-1 combined with IEC 60947-2 in international jurisdictions. In the NEC framework, protection rules are bifurcated into Table 450.3(A) for systems operating above 1,000 V and Table 450.3(B) for installations at or below 1,000 V. These clauses establish the maximum allowable settings for overcurrent protective devices rather than prescriptive single values, giving engineers the latitude to account for downstream motor starting demands and cable thermal limits.

Under NEC Table 450.3(B), when an installation relies entirely on primary-side protection, the circuit breaker rating cannot exceed 125% of the primary full-load current for currents of 9 A or greater. If 125% does not correspond to a standard ampere rating defined in NEC 240.6(A), Section 240.4(B) permits rounding up to the next higher standard rating, provided the rating does not exceed 800 A. Conversely, under IEC standards, circuit breaker selection focuses on coordinating the breaker continuous thermal rating ($I_n$) with the transformer nominal capacity, whilst aligning the ultimate short-circuit breaking capacity ($I_{cu}$) with the prospective fault current calculated via transformer impedance calculations.

Three-Phase Transformer Breaker Size Chart (480V to 208Y/120V)

This three-phase transformer breaker size chart provides standard circuit breaker selections for common commercial and industrial ratings stepping down from 480 V delta to 208Y/120 V wye. The calculations assume continuous duty dry-type units and outline both primary-only protection (125% threshold) and coordinated primary/secondary protection (250% primary / 125% secondary) per standard industry practices.

When implementing primary-only protection, designers often experience nuisance tripping on ratings below 75 kVA if standard thermal-magnetic breakers are deployed without adjustable magnetic trip thresholds. For complete design methodology on matching distribution ratings to industrial facility loads, explore our transformer sizing calculator guide.

Medium Voltage Transformer Breaker Sizing Chart (13.8 kV to 480V)

Medium-voltage transformer breaker sizing requires adherence to NEC Table 450.3(A) or IEC 62271-100 standards, which govern primary switchgear operating above 1,000 V. In supervised industrial locations, the maximum primary circuit breaker rating can extend up to 600% of nominal FLA when secondary overcurrent protection is set at no more than 125% for low-voltage secondary systems.

At medium-voltage levels, circuit breakers are typically vacuum or SF6 units paired with numerical protection relays rather than direct thermal-magnetic trip units. Detailed configuration schemes for these installations are detailed in our transformer protection engineering guide, ensuring primary breaker curves nest above transformer damage curves (ANSI/IEEE C57.109).

How to Calculate Transformer Circuit Breaker Sizing Step-by-Step

Calculating transformer circuit breaker sizing requires an accurate assessment of primary and secondary full-load currents, overcurrent regulatory factors, and short-circuit withstand capabilities. Follow these four engineering steps to select compliant breaker ratings for any three-phase or single-phase unit:

1. Determine Full-Load Amperes (FLA): For a balanced three-phase transformer, calculate nominal current using the equation $I = \frac{S}{\sqrt{3} \times V}$, where $S$ is the apparent power in volt-amperes (VA) and $V$ is line-to-line voltage in volts. For single-phase transformers, use $I = \frac{S}{V}$.
2. Select Protection Topology: Decide whether the system will utilise primary-only protection or dual primary-and-secondary protection. For primary-only below 1,000 V, calculate maximum breaker capacity at $I_{primary} \times 1.25$. For dual protection, calculate the primary maximum threshold at $I_{primary} \times 2.50$ and the secondary maximum at $I_{secondary} \times 1.25$.
3. Align with Standard Breaker Frame Ratings: Compare calculated values with standard breaker sizes listed under NEC 240.6(A) (such as 15, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 500, 600, 800 A). Apply the next-size-up rule where permitted by local regulations.
4. Verify Interrupting Capacity (AIC / Icu): Calculate available secondary fault current by dividing secondary full-load current by the transformer per-unit impedance ($Z_{pu}$). Ensure that both primary switchgear and secondary distribution switchboards carry an interrupting rating equal to or greater than this calculated short-circuit current.

Managing Inrush Currents and Breaker Trip Curves

Magnetising inrush current is an initial electromagnetic transient that occurs when the transformer core is energised, often reaching 8 to 12 times the rated continuous FLA for dry-type units and up to 15 times for high-efficiency liquid-filled transformers. This transient wave typically persists for 10 to 100 milliseconds and possesses a significant direct-current (DC) decaying component. If a primary circuit breaker is sized strictly at 125% of FLA with an instantaneous trip response that lacks sufficient delay, nuisance tripping will occur upon routine energisation.

To mitigate nuisance tripping, engineering standards recommend using circuit breakers equipped with adjustable electronic trip units (ETUs) incorporating Long-time, Short-time, Instantaneous, and Ground-fault (LSIG) parameters. When using moulded case circuit breakers (MCCBs) without digital controllers, specify breakers with Type D trip curves under IEC 60898 or high-magnetic instantaneous trip settings (10 to 14 times rated current) under UL 489. Modern installations using premium cast-resin coils, such as those covered in our dry-type transformer guide, often demonstrate lower impedance and sharper inrush peaks, demanding strict curve coordination on modern electrical networks.

Primary-Only vs Primary and Secondary Breaker Protection Rules

The choice between primary-only and combined primary and secondary breaker protection fundamentally impacts system resilience, construction budgets, and maintenance schedules. Primary-only protection lowers initial equipment capital expenditure by omitting a main secondary circuit breaker, feeding a sub-distribution bus directly from secondary lugs. However, sizing the primary breaker down to 125% of primary FLA to satisfy thermal protection limits leaves minimal headroom above the energisation inrush curve, making breaker coordination exceptionally difficult on transformers below 112.5 kVA.

Conversely, employing secondary overcurrent protection at 125% of secondary FLA transfers the thermal overload protection responsibility to the secondary breaker. This architectural change allows the upstream primary breaker to be increased up to 250% of rated primary FLA. The expanded primary threshold effortlessly clears transient magnetising inrush while providing short-circuit protection for primary cables and internal winding faults. Industrial facilities, data centres, and hospital networks invariably specify primary plus secondary breaker arrangements to preserve system uptime and simplify selective coordination.

Next steps: specifying and sourcing

When specifying overcurrent protection for new substations or facility retrofits, ensure your schedule of equipment details transformer rated capacity (kVA), primary and secondary voltages, winding configuration, vector group, and guaranteed percentage impedance (%Z). Our engineering team designs and manufactures high-efficiency dry-type transformers, rugged oil-immersed transformers, and fully coordinated HV/LV switchgear panels engineered to integrate seamlessly with your specified breaker trip envelopes. Submit your electrical single-line diagrams (SLDs) and load profiles via our direct quote request page to receive comprehensive submittal packages, protection curves, and bespoke manufacturing proposals.
