Transformer Impedance: Calculations, Formulas & Specs

Quick answer: Transformer impedance is the total internal opposition a transformer presents to alternating current flow, expressed as a percentage (%Z) of rated impedance. It dictates voltage regulation under load and limits prospective short-circuit fault current during downstream electrical faults. Sizing it correctly balances system voltage stability with switchgear interrupting ratings.

In electrical power engineering, specifying the correct transformer impedance is one of the most critical design decisions for industrial substations, commercial distribution systems, and utility networks. The impedance directly governs two competing performance factors: voltage drop under full load and prospective fault level during a short circuit. If the impedance is specified too low, downstream fault currents escalate dramatically, demanding higher-rated and significantly more expensive circuit breakers, switchgear, and busbars. Conversely, if the impedance is specified too high, internal voltage drop under heavy motor starting or peak loading will exceed statutory limits, degrading power quality. Understanding the underlying physics, formulas, and international standards allows consulting engineers and EPC contractors to evaluate equipment data sheets accurately, select appropriate protection schemes, and safely design paralleled distribution assets alongside modern transformer substation installations.

What Is Transformer Impedance and Why Does It Matter?

Transformer impedance is the vector sum of a transformer winding's internal resistance and leakage reactance, representing the total voltage drop across the transformer under rated load conditions. Unlike ideal transformers that transfer energy without losses or voltage droop, real-world electromagnetic transformers exhibit finite winding resistance ($R$) due to copper or aluminium conductors, alongside leakage reactance ($X_L$) caused by magnetic flux leaking into insulation barriers rather than coupling the primary and secondary cores.

In three-phase distribution and power engineering, this characteristic is universally stated as a non-dimensional quantity known as percentage impedance (%Z) or per-unit impedance ($Z_{pu}$). The value reflects the percentage of rated primary voltage that must be applied to the high-voltage (HV) terminals to circulate rated full-load current through the low-voltage (LV) terminals when they are bolted in a short-circuit configuration.

Specifying transformer impedance impacts three fundamental operational criteria across distribution networks:

• Fault Level Limitation: The %Z establishes the maximum prospective symmetrical short-circuit current available at the secondary terminals. A lower percentage impedance permits higher fault currents, dictating the required fault withstand ratings of downstream transformer protection devices and low-voltage switchboards.
• Voltage Regulation: When load current increases, transformer impedance causes an internal voltage drop. High-impedance units create higher voltage variations between no-load and full-load states, which can cause severe flicker and voltage dips during direct-on-line (DOL) motor starts.
• Load Sharing in Parallel Banks: Transformers connected to the same busbar share load in inverse proportion to their per-unit impedances. Mismatched impedances force one transformer to overload prematurely while adjacent units remain underutilised.

Percentage of Impedance of Transformer: Standard Values and Tolerances

The standard percentage of impedance of transformer units is dictated by equipment capacity, cooling medium, and application standard, typically falling between 4% and 12.5%. International standards such as IEC 60076-5 (Short-Circuit Withstand Capability) and IEEE C57.12.00 (Standard General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers) specify benchmark impedance ranges optimized for economic manufacturing, core geometry, and structural mechanical strength under electromagnetic fault forces.

As transformer kVA ratings rise, physical clearances between HV and LV windings increase to accommodate higher Basic Impulse Insulation Levels (BIL). This expanded physical separation increases magnetic leakage paths, inherently yielding higher natural impedance values. Dry-type cast-resin units also naturally exhibit slightly higher impedances than oil-immersed counterparts due to wider air and resin insulation gaps.

Standard manufacturing tolerances are critical during procurement. Under IEC 60076-1, a standard two-winding transformer with an impedance of 10% or more carries an allowable tolerance of ±7.5%, while transformers with impedance below 10% permit a tolerance of ±10.0%. For engineers sizing switchgear breaking capacities, the minimum tolerance bound (e.g., nominal 5.0% minus 10% = 4.5%) must always be evaluated to capture the true maximum worst-case prospective fault current.

Impedance of Transformer Formula: Derivation and Working Principles

The core impedance of transformer formula expresses percentage impedance as the ratio of impedance test voltage to rated operating voltage, calculated using the relationship:

%Z = (V_sc / V_rated) × 100

Where V_sc is the line-to-line short-circuit test voltage required to circulate rated current, and V_rated is the nominal system line-to-line voltage on the energized side. To derive the actual ohmic impedance ($Z_{ohms}$) of the transformer referred to either the primary or secondary winding, engineers apply the base impedance equation derived from the unit's rated line voltage ($V_{LL}$ in kV) and rated apparent power ($S_{3\phi}$ in MVA):

Z_base (Ω) = (V_LL)^2 / S_3φ

Consequently, the physical ohmic impedance referred to that winding voltage level is calculated as:

Z_actual (Ω) = ( %Z / 100 ) × [ (V_LL)^2 / S_3φ ]

Because total impedance consists of active winding resistance ($R$) and reactive leakage ($X_L$), it is represented as a complex phasor:

Z = R + jX_L

The resistive component ($%R$) directly corresponds to load losses (copper losses, $P_k$ in kW) determined during factory load testing:

%R = ( P_k / (S_rated × 1000) ) × 100

Once percentage resistance is known from wattmeter load loss measurements, the percentage reactance ($%X$) is determined by quadrature subtraction:

%X = √( (%Z)^2 - (%R)^2 )

In medium- and high-voltage transformers, the inductive leakage reactance ($X$) substantially dominates the ohmic resistance ($R$). The resulting X/R ratio dictates the degree of DC offset and initial peak asymmetrical current that circuit breakers and busway brackets must mechanically withstand during the first half-cycle of a close-in terminal fault.

Step-by-Step Calculation of Transformer Impedance and Fault Current

The calculation of transformer impedance and prospective secondary fault level follows a rigorous sequence using rated nameplate data. To ensure that downstream protective gear and circuit breakers are properly rated, perform the following five engineering steps:

1. Determine the Rated Full-Load Current ($I_{FL}$): Calculate the nominal secondary current using the rated three-phase apparent power ($S$ in kVA) and secondary line-to-line voltage ($V_{LL}$ in Volts):
   I_FL = S / (√3 × V_LL)
2. Identify the Minimum Tolerable Percentage Impedance (%Z_min): Check the manufacturer data sheet or nameplate for nominal %Z. Apply standard negative tolerance (typically -10% per IEC standards) to obtain worst-case maximum fault delivery:
   %Z_min = %Z_nominal × 0.90
3. Calculate the Symmetrical Three-Phase Short-Circuit Current ($I_{SC}$): Assuming an infinite primary utility source, divide full-load current by the per-unit impedance:
   I_SC = I_FL / ( %Z_min / 100 )
4. Calculate the Short-Circuit Apparent Power ($S_{SC}$): Determine prospective fault MVA delivered to the LV busbar:
   S_SC (MVA) = S_rated (MVA) / ( %Z_min / 100 )
5. Calculate the Asymmetrical Peak Making Current ($I_{peak}$): Incorporate the peak factor ($k \approx 1.8 \text{ to } 2.5$ based on the X/R ratio) to determine the peak dynamic electromagnetic stress on switchgear busbars:
   I_peak = k × √2 × I_SC

Engineering Worked Example: Consider a typical 1,500 kVA step-down oil-immersed transformer transforming 11 kV down to 415 V with a nominal percentage impedance of 5.75%.

• Secondary Full-Load Current: $I_{FL} = 1500 / (\sqrt{3} \times 0.415) = 2,086.9 \text{ A}$
• Worst-Case %Z (-10% tolerance): $\%Z_{min} = 5.75\% \times 0.90 = 5.175\%$
• Prospective Symmetrical Fault Current: $I_{SC} = 2086.9 / 0.05175 = 40,326.5 \text{ A} \approx 40.33 \text{ kA}$
• Symmetrical Fault Capacity: $S_{SC} = 1.5 \text{ MVA} / 0.05175 = 28.98 \text{ MVA}$

In this installation, the downstream low-voltage main incoming circuit breaker and busbar bracing must possess a rated short-circuit breaking capacity exceeding 40.33 kA (typically specified at standard 50 kA / 1-second rating). For further details on matching equipment ratings to capacity, refer to our comprehensive transformer sizing calculator guide.

Parallel Operation and the Impact of Mismatched Impedance

When operating transformers in parallel, identical or closely matched percentage impedances are mandatory to prevent severe circulating currents and premature transformer overloading. Paralleling distribution transformers on a common busbar increases network reliability, improves partial-load operational efficiency, and facilitates routine substation maintenance without customer interruptions.

For two or more transformers to operate stably in parallel, international electrical codes stipulate four strict criteria:

• Identical voltage ratios and terminal voltage ratings (identical turns ratio).
• Identical phase displacement and vector group relationships (e.g., Dyn11 with Dyn11).
• Identical phase sequence.
• Percentage impedances equal to within ±10% of each other.

If two transformers with different percentage impedances are paralleled, total load divides between them inversely proportional to their individual per-unit impedances, irrespective of their kVA ratings. The mathematical load sharing relationship is expressed as:

S_1 = S_total × [ (S_rated1 / %Z_1) / ( (S_rated1 / %Z_1) + (S_rated2 / %Z_2) ) ]

If a 1,000 kVA unit with 4.5% impedance is paralleled with an existing 1,000 kVA unit featuring 6.0% impedance, the unit with 4.5% impedance carries 57.1% of the combined load, while the 6.0% unit carries only 42.9%. Consequently, when the combined plant load reaches 1,750 kVA, the 4.5% transformer reaches its full 1,000 kVA thermal limit while the second unit sits underloaded at 750 kVA. Increasing total load further forces the lower-impedance unit into thermal overload, tripping protective relays prematurely. For guidance on sizing distinct industrial configurations, review our 3 phase transformer guide.

How to Measure Transformer Impedance: Short-Circuit Test Procedures

Transformer impedance is physically measured during factory acceptance testing (FAT) using the short-circuit impedance test conducted in full compliance with IEC 60076-1 and IEEE C57.12.90. This standard test verifies that the calculated electromagnetic design matches empirical manufacturing values within certified tolerances before the transformer is dispatched from the factory floor.

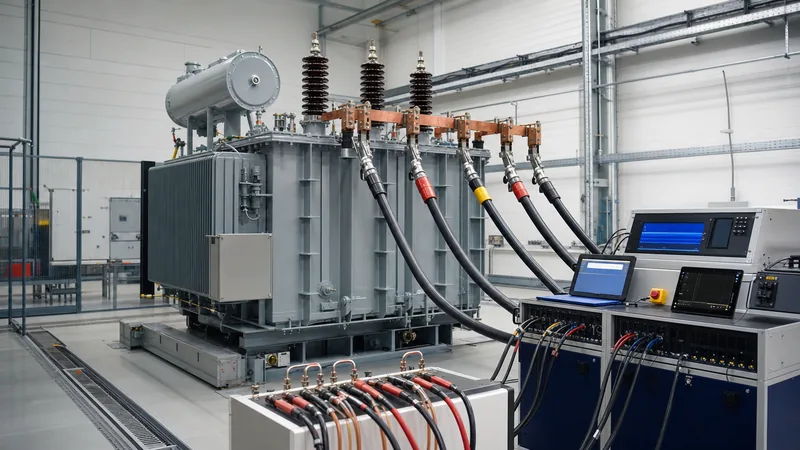

The measurement procedure involves bolting the secondary (typically LV) phase terminals together with low-resistance copper links while connecting a calibrated three-phase variable AC power source, precision multi-channel power analyzers, and current transformers to the primary (HV) windings. To review comprehensive testing methodologies across all life stages, consult our guide on how to test a transformer.

1. Secondary Terminal Bolting: Solidly bridge all secondary phase terminals with high-conductivity copper busbars sized to withstand full rated secondary current without developing measurable contact resistance.
2. Controlled Voltage Injection: Gradually ramp up primary test voltage at rated frequency from zero until the primary line ammeter reads exactly 100% of rated full-load current ($I_{rated}$).
3. Data Acquisition: Record the applied short-circuit phase-to-phase voltage ($V_{sc}$), test current ($I_{sc}$), input active power ($P_{sc}$), and average winding temperature via calibrated resistance measurement.
4. Temperature Correction: Because copper and aluminium resistivity varies with temperature, correct measured winding losses and resistance to standard reference temperatures (typically 75°C for liquid-immersed units per IEC 60076, or 100°C/120°C for dry type transformers).
5. %Z Derivation: Compute final percentage impedance from the temperature-corrected short-circuit voltage and rated line voltage.

Next steps: specifying and sourcing

When specifying distribution transformers, industrial power transformers, or integrated substations, defining the correct percentage impedance ensures system safety, prevents switchgear over-specification, and guarantees stable secondary voltages. Prepare your procurement documents with rated kVA, primary and secondary voltages, winding materials, vector group, target %Z, and required tolerances conforming to IEC 60076 or IEEE C57.12.00. Our technical engineering team provides custom-tailored electromagnetic solutions, type-tested assemblies, and full factory test documentation across our comprehensive range of oil-immersed transformers and HV/LV switchgear. Submit your project single-line diagrams (SLDs) and engineering specifications via our quote page to receive an optimized technical proposal and competitive tender response.
