Transformer Building: Industrial Engineering & Assembly Guide

Quick answer: Transformer building is the multistage industrial manufacturing process of assembling an electromagnetic power or distribution transformer. It involves slitting and step-lap stacking high-permeability magnetic steel, precision coil winding, structural core-and-coil clamping, thermal vacuum drying below 0.1 mbar, hermetic tanking, and rigorous dielectric Factory Acceptance Testing compliant with IEC 60076 or IEEE C57.12 standards.

Building an industrial power or distribution transformer bridges electrodynamic physics and precision mechanical fabrication. Whether engineering medium-voltage units for commercial distribution or multi-megavolt-ampere (MVA) transmission units, the structural integrity of the active part directly determines operational longevity, efficiency, and short-circuit withstand capability. Every stage of manufacturing—from slitting cold-rolled grain-oriented (CRGO) magnetic steel laminations to final dielectric fluid impregnation—demands micrometre tolerances and strict contamination controls to ensure 30 to 40 years of continuous service under harsh grid conditions.

Transformer Building Fundamentals: Magnetic Design and Core Assembly

Transformer core building requires high-grade silicon electrical steel stacked into a low-reluctance magnetic circuit that minimises no-load losses and magnetising currents. Modern heavy electrical manufacturing relies on laser-scribed, high-permeability CRGO steel laminations, typically graded M3, M4, or domain-refined 23ZH090 to 27ZH100, with nominal sheet thicknesses between 0.23 mm and 0.30 mm. For an in-depth review of magnetic steel selection and joint loss mechanics, refer to our detailed transformer core engineering guide.

The physical sizing of the core limb follows the fundamental electromagnetic induction equation:

E = 4.44 × f × N × B_m × A_c

where E is the root-mean-square induced voltage (V), f is the power operating frequency (50 Hz or 60 Hz), N is the number of turns, B_m is the maximum design flux density (typically between 1.60 T and 1.72 T for conventional power transformers), and A_c represents the net cross-sectional core area in square metres. Stacking is executed on automated tilting tables using multi-step-lap mitered corner joints angled at 45 degrees. This geometry reduces flux distortion and magnetic flux deviation at corner interfaces, suppressing core excitation losses by up to 20% compared to traditional 90-degree butt-lap joints. Once assembled, the limb laminations are banded using non-magnetic high-tensile glass-epoxy banding tape or stainless steel core tie-plates tightened to specific torque values, avoiding metallic core-bolt punctures that cause localised eddy current hot spots.

How Make Transformer Windings: Materials, Insulation, and Coil Winding

Understanding how make transformer windings involves matching electrical conductivity, dielectric clearance, and mechanical radial strength to the specific voltage class. The conductive coils are wound using high-purity Oxygen-Free High Conductivity (OFHC) copper (minimum 99.9% IACS conductivity) or high-grade electrical aluminium. For low-voltage (LV), high-current applications, factories wind solid rectangular strip conductors or continuous copper foil across automated horizontal winding mandrels. For high-voltage (HV) windings up to 110 kV or higher, manufacturers deploy continuously transposed conductors (CTC) to suppress strand eddy current losses, winding them into disc or interleaved disc profiles.

A rigorous industrial winding sequence involves specific procedural stages:

1. Mandrel setup and barrier insulation: High-density pre-compressed pressboard cylinders (meeting IEC 60641-3 standards) are fitted securely over the winding lathe barrel to establish inner dielectric clearance and mechanical foundation.
2. Conductor feeding and tension control: Rectangular enamelled or paper-covered conductors are fed through closed-loop servo tensioners to prevent loose turns, wire stretching, or insulation abrasion during rotation.
3. Axial cooling duct integration: Radial and axial pressboard spacers (milled with rounded edges) are inserted between adjacent winding discs to formulate uniform oil or airflow cooling channels.
4. Transposition and cross-over execution: Multi-strand conductors are manually or mechanically transposed at alternating intervals to balance strand lengths and eliminate circular circulating currents.
5. Winding compaction: Intermediate hydraulic clamping rings exert axial pressure (typically 5 to 10 MPa depending on rating) to seat individual turns firmly prior to outer wrap application.

Layer-to-layer and turn-to-turn insulation utilises thermally upgraded Kraft paper (Class 105 °C or Class 120 °C) for liquid-filled transformers, or high-temperature aramid aromatic polyamide paper (Class 180 °C to Class 220 °C) for dry-type applications. The winding profile must withstand not only continuous full-load ampacity, but also high-frequency transient overvoltages governed by the system Basic Insulation Level (BIL), which ranges from 75 kV BIL for 11 kV grids to over 550 kV BIL for 110 kV systems. For more on structural layout, examine our technical analysis of transformer construction.

Active Part Assembly in Industrial Transformer Making

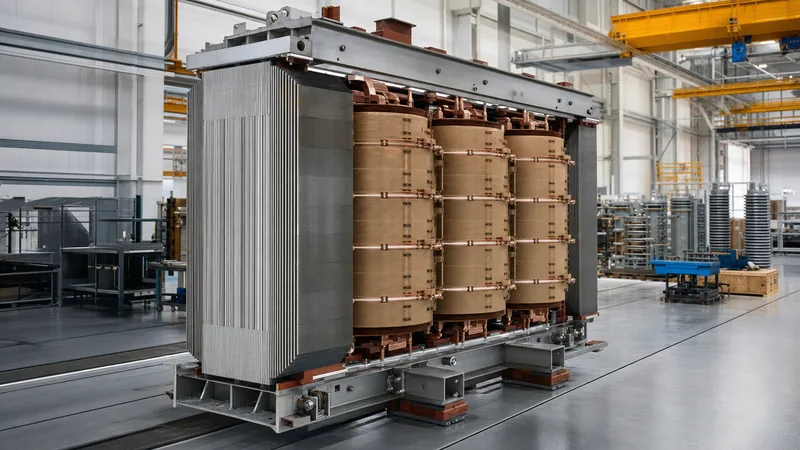

The active part assembly stage in transformer making brings together the wound coils, stacked core limbs, tap changer assemblies, and low-voltage heavy busbars into a single rigid structure. During core-and-coil integration, the top yoke laminations of the stacked core are temporarily de-stacked to allow factory bridge cranes to lower the pre-assembled phase coils over the vertical core limbs. Phase winding sets are positioned concentrically: the low-voltage winding resides nearest the iron core, followed by an insulating pressboard cylinder barrier, and the high-voltage winding surrounds the exterior to minimise insulation clearances to the grounded core steel.

Once the winding assemblies are seated on bottom insulating blocks, the top yoke laminations are re-laced by hand using step-lap alignment pins. Heavy structural steel clamping frames (upper and lower yoke beams) are clamped across the active part using insulated tie-rods. These clamping beams exert dynamic clamping forces—frequently exceeding 50 to 100 kN per phase—to lock the coils mechanically against axial short-circuit forces. Highly transient fault currents produce magnetic repulsion forces proportional to the square of the peak fault current (I_peak²); inadequate mechanical clamping causes axial winding distortion, conductor tilting, or catastrophic collapse during grid disturbances. High-current leads are braced securely in laminated densified wood (beechwood) cleats before being connected to the off-circuit tap changer (OCTC) or on-load tap changer (OLTC) selector switches.

Thermal Drying, Tanking, and Vacuum Fluid Impregnation

The transformer drying and tanking phase extracts residual moisture from solid cellulosic insulation down to less than 0.5% by weight prior to encapsulation or tank sealing. Cellulosic insulation naturally absorbs ambient relative humidity during winding and core integration. If untamed, moisture degrades the dielectric breakdown strength of the insulation and accelerates thermal ageing of the paper matrix. For dry-type units, the coils are preheated and cast inside steel moulds under a controlled vacuum using filled epoxy resin systems, as explored in the broader transmission transformer guide.

For liquid-immersed units, the fully clamped active part is transported into a Vapour-Phase Drying (VPD) autoclave or a high-vacuum thermal oven. In the VPD process, kerosene or special hydrocarbon solvent vapour condenses evenly across the cold core-coil mass at temperatures between 110 °C and 130 °C under a vacuum below 1 mbar (0.1 kPa). The solvent rapidly transfers latent heat without surface oxidation; once the active part reaches uniform thermal saturation, deep vacuum pulls both solvent residues and water vapour out of the porous pressboard. Concurrently, the heavy steel transformer tank undergoes shot-blasting to SA 2.5 cleanliness, automated multi-pass seam welding, internal epoxy coating, and 100% helium or dye-penetrant weld testing.

Following drying, the active part is lowered into the clean tank, top covers are bolted using oil-resistant nitrile or Viton gaskets, and the assembled unit is drawn down to an ultimate vacuum of less than 0.1 mbar for 12 to 24 hours. While under uninterrupted vacuum, degassed, dried, inhibited or uninhibited mineral oil (compliant with IEC 60296) or synthetic/natural ester fluid is pumped in from the base. Vacuum impregnation prevents trapped air pockets inside winding layers, ensuring corona-free dielectric performance up to rated operating voltage.

Transformer Building Specifications and Component Metrics

The engineering parameters applied across industrial transformer building vary considerably depending on operational rating, cooling designation, and dielectric boundary limits. Standardising manufacturing tolerances ensures that efficiency targets and short-circuit withstand values meet strict international utility requirements.

Factory Acceptance Testing (FAT) and Build Validation

Factory Acceptance Testing validates every aspect of the transformer building process against client specifications and international performance codes before shipment. Tests are categorised into routine, type, and special tests in strict accordance with IEC 60076-1 or IEEE C57.12.90. To review testing procedures step by step, read our comprehensive guide on how to test a transformer.

Routine quality verification begins with DC winding resistance measurements across all taps using a precision micro-ohmmeter to confirm conductor continuity, brazed joint integrity, and phase resistance balance. Voltage ratio verification and vector group phase-displacement checks ensure turn-count accuracy within the permissible ±0.5% tolerance window. Insulation resistance (megohmmeter) and dielectric dissipation factor (Tan δ / power factor) tests on windings and bushings establish baseline dielectric health. Dielectric integrity is validated via Separate Source AC Voltage Withstand (applied potential) and Induced Overvoltage Withstand tests at double the rated frequency (100 Hz to 400 Hz) to stress turn-to-turn and layer insulation without saturating the core.

Finally, power loss evaluations determine economic compliance: open-circuit tests at rated voltage quantify no-load iron losses (hysteresis and eddy current), while short-circuit impedance tests at rated current determine load copper losses and percent impedance (%Z). High-voltage units routinely undergo partial discharge (PD) testing (maintaining under 100 to 250 pC at 1.58 × U_r / √3) and full-wave lightning impulse tests (e.g. 1.2/50 μs waveform) to confirm that the insulation structure built during manufacturing withstands harsh atmospheric grid phenomena.

Next steps: specifying and sourcing

Procuring a custom-engineered power or distribution transformer requires clearly defined technical parameters to ensure accurate factory design and sizing. When requesting a quotation, prepare your detailed single-line diagram (SLD), system voltage (primary and secondary), frequency (50/60 Hz), vector group, rated capacity in kVA or MVA, impedance targets (%Z), cooling classification (ONAN/ONAF or AN/AF), and specific loss capitalisation figures (A and B factors). Explore our commercial product pages for robust power transformer, highly durable oil-immersed transformer, or low-maintenance dry-type transformer solutions. For complete technical proposals, factory test reports, and tender documentation, contact our international engineering team through our dedicated quote portal.
