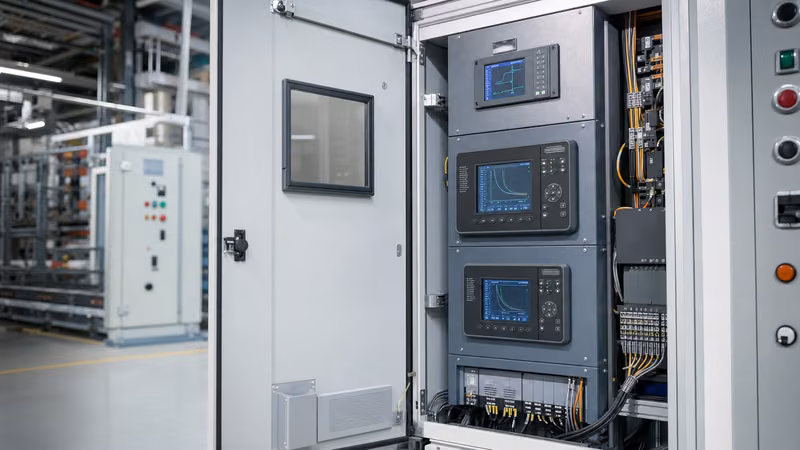

Transformer Overcurrent Protection: Sizing, Settings & Design

Quick answer: Transformer overcurrent protection is a dedicated protective scheme employing fuses, circuit breakers, and time-delay overcurrent relays (ANSI 50/51) to clear sustained overloads and external short circuits before thermal or mechanical damage occurs to the windings. It is sized to clear through-faults beneath the transformer withstand curve while tolerating normal magnetising inrush transients.

In electrical power engineering, transformers represent substantial capital investments and operational cornerstones. Left unchecked, sustained abnormal currents cause rapid temperature escalation in the core and coil assembly, accelerating dielectric degradation of solid cellulose insulation and transformer oil. Implementing reliable overcurrent protection requires balancing two conflicting requirements: preventing catastrophic damage under external fault conditions and avoiding nuisance tripping during energisation or momentary load peaks. For comprehensive substation schemes integrating differential, Buchholz, and thermal elements, review our transformer protection engineering guide.

Principles of Over Current Protection of Transformer Systems

The over current protection of transformer assets relies on detecting excessive phase and ground currents using inverse-time and instantaneous tripping characteristics. Overcurrent conditions manifest primarily as either sustained mechanical overloads or external through-faults occurring on the secondary distribution network.

Under normal conditions, a transformer operates within its nameplate thermal rating, characterised by a 65°C average winding temperature rise above ambient (or 105°C hot-spot for typical mineral-oil-insulated units). When an external fault or severe overload occurs downstream, current surges through the primary and secondary coils. This results in heavy I²t resistive heating and intense electrodynamic forces between adjacent turns and winding layers. Standards such as IEC 60076-5 and IEEE C57.109 define transformer withstand limits under these conditions. Protective relays utilise two primary elements: an instantaneous overcurrent element (ANSI 50) and a time-delayed inverse overcurrent element (ANSI 51). The instantaneous element is set to clear high-magnitude internal faults on the primary bushings and terminations instantly, while the inverse-time element manages overloads and coordinates with secondary protection to isolate through-faults safely before the transformer reaches its thermal damage limit.

Regulatory Rules and Breaker Sizing Thresholds

Regulatory sizing rules establish the maximum allowable overcurrent device ratings to prevent core overheating without causing premature tripping. Design standards such as the National Electrical Code (NEC/NFPA 70 Article 450.3) and IEC 61936-1 set precise limits for primary and secondary overcurrent protective devices (OCPD).

For medium- and high-voltage installations (exceeding 1,000 V), protection sizing depends fundamentally on the transformer winding impedance (%Z) and whether secondary protection is present. When secondary protection is installed within prescribed limits, engineers have greater flexibility to size the primary breaker higher, accommodating inrush currents without tripping. For practical sizing charts across low- and medium-voltage assets, consult our transformer breaker size chart. The following table summarises typical maximum protective device ratings according to standard engineering codes:

These values represent absolute statutory ceilings. In standard industrial practice, engineers configure primary relays closer to 125% to 150% of rated full-load amperes (FLA) to ensure tight thermal protection of the windings, provided magnetising inrush remains securely below the trip boundary.

Managing Magnetising Inrush and Cold-Load Pick-Up

Magnetising inrush current is a transient physical phenomenon that occurs when the transformer core is driven into magnetic saturation during energisation. This transient draws high, asymmetric peak currents that overcurrent protection systems must tolerate without operating.

Upon initial connection to an AC voltage source, flux cannot change instantaneously. Depending on the closing angle of the breaker and any residual flux left in the electrical silicon steel core, the required flux may peak at up to twice its normal operational level. Because modern cores are engineered close to the saturation knee-point, this flux demands severe primary magnetising currents, typically reaching 8 to 12 times rated FLA for liquid-immersed units and 10 to 14 times for dry-type designs. The transient duration extends between 0.1 and 0.5 seconds, attenuating according to the circuit L/R time constant. To prevent false tripping:

• Instantaneous phase elements (ANSI 50) are set strictly above the maximum prospective inrush current, typically at 12 to 15 times transformer rated current, or delayed by 0.05 to 0.1 seconds.
• Digital protection relays employ second-harmonic restraint or blocking algorithms, distinguishing inrush from internal faults by monitoring the ratio of second harmonic (100 Hz or 120 Hz) current relative to the fundamental frequency (50 Hz or 60 Hz). A threshold of 15% to 20% harmonic content reliably identifies inrush.
• Medium-voltage fuses employ special slow-blowing elements (such as ANSI E-rated power fuses) designed specifically to sustain 12 times FLA for 0.1 seconds and 3 times FLA for 10 seconds without element fatigue.

Step-by-Step Procedure for Relay Curve Coordination

Configuring overcurrent relay curves requires plotting the protective device operating times against through-fault and overload currents to ensure strict selectivity and equipment safety. Modern numerical relays use time-current characteristic (TCC) curves based on standard inverse, very inverse, or extremely inverse profiles per IEC 60255 or IEEE C37.112.

Correct configuration requires instrument transformers that maintain linear output across expected short-circuit magnitudes; review our instrument transformers guide to verify saturation limits. Follow this formal engineering sequence when calculating settings:

1. Determine baseline ratings: Calculate the full-load rated primary current (FLA = S / [√3 × V_line]) and verify the continuous operating thermal rating of the unit under forced and unforced cooling regimes.
2. Establish the inrush and damage points: Mark the magnetising inrush envelope (e.g., 10 to 12 × FLA at 0.1 s) and the IEEE C57.109 / IEC 60076-5 short-circuit withstand point (frequently defined at 1 / %Z × FLA for 2.0 s) on a logarithmic TCC log-log sheet.
3. Select CT ratios and secondary tap: Choose a current transformer (CT) primary ratio that accommodates both max through-fault levels without core saturation and provides appropriate resolution at normal operating ranges.
4. Select curve shape and pickup: Choose an Extremely Inverse or Very Inverse curve for ANSI 51. Set the pickup current (I_pickup) between 110% and 140% of rated FLA so normal loading and minor continuous overloads do not trip the circuit.
5. Adjust the Time Dial (Time Multiplier Setting): Calibrate the Time Multiplier Setting (TMS) so the operational relay curve remains strictly below the transformer damage curve, while keeping a clearing margin above the upstream and downstream curves.
6. Configure instantaneous settings: Calculate the maximum through-fault current seen on the secondary side reflected to the primary. Set the primary ANSI 50 pickup at 120% to 130% of this through-fault current to ensure the instantaneous element operates solely for internal transformer faults.

Coordination with Downstream Protective Devices

Coordination requires that downstream low-voltage protective devices isolate branch faults before the primary transformer overcurrent device begins its tripping sequence. Failing to maintain this margin results in unnecessary substation shutdowns and uncoordinated tripping events.

To guarantee selective isolation, protection engineers calculate the Coordinating Time Interval (CTI) between successive protective zones. The CTI accommodates breaker opening duration, relay operating over-travel (inertia), current transformer transient errors, and safety tolerance margins. For electromechanical relays, standard CTI ranges between 0.35 and 0.45 seconds. With high-speed numerical microprocessor relays and modern vacuum or SF6 breakers, the CTI can safely be reduced to 0.20 to 0.30 seconds. If an outgoing feeder fails to clear a downstream short circuit, the transformer primary 51 time-delay function acts as reliable thermal backup, tripping the main HV breaker before the transformer tank ruptures or winding conductors undergo irreversible annealing.
