Key takeaways
- The vector group of transformer configurations defines the winding interconnections and the angular phase displacement between primary and secondary line-to-neutral voltages.
- Clock notation represents phase displacement where each hour on the dial corresponds to a 30-degree phase lag of the low-voltage vector relative to the high-voltage reference at 12 o'clock.
- Connecting transformers in parallel requires identical vector groups or compatible phase angles, equal voltage ratios, and matching per-unit impedance within +/- 10% under IEC 60076-1 clause 5.4.
- A Yy0 transformer connection provides zero phase shift between primary and secondary terminals, but without a tertiary delta winding it remains prone to severe third-harmonic flux distortion.
- Dyn11 and Dyn1 arrangements naturally attenuate triplen harmonics by circulating third-harmonic currents inside the high-voltage delta, yielding a stable secondary neutral for four-wire distribution.
Quick answer: The vector group of transformer units specifies the internal winding connection method (Delta, Wye, or Zigzag) for both primary and secondary sides and indicates the precise phase displacement between their line-to-neutral terminal voltages using clock-hour notation (where 1 hour equals 30 degrees electrical lag). Proper identification ensures correct system earthing, third-harmonic suppression, and fault-free parallel operation on common medium- and low-voltage busbars.
In electrical distribution and transmission systems, matching line voltages and power ratings is insufficient when interconnecting three-phase networks. Selecting an incompatible vector group leads to high circulating currents, tripping of protective switchgear, or destructive phase-to-phase short circuits when energising tied feeders. Electrical consultants, EPC contractors, and testing engineers must thoroughly understand vector designations under international standards, including IEC 60076-1 and IEEE C57.12.00, to prevent catastrophic commissioning failures.
Understanding Clock Notation and Lettering Codes
International electrotechnical standards use an alphanumeric system combined with clock notation to denote the phase displacement between high-voltage (HV) and low-voltage (LV) windings. Under IEC 60076-1 clause 6, uppercase letters denote the HV winding: D represents delta, Y represents star (wye), and Z represents zigzag (interconnected star). Lowercase letters represent the LV winding: d for delta, y for star, and z for zigzag. If the neutral point of a star or zigzag winding is brought out to an external bushing terminal, the designation appends an N (HV side) or n (LV side).
Phase displacement is expressed using an analogue clock dial reference. The HV phase voltage vector is fixed at the 12 o'clock position (zero degrees reference). The LV phase voltage vector is represented by the minute hand pointing to an hour position, where each hour increment corresponds to a 30-degree phase lag measured in a clockwise direction. For example, in a Dyn11 arrangement, the LV vector points to 11 o'clock, indicating that the LV phase leads the HV phase by 30 degrees (or lags by 330 degrees). Conversely, a Dyn1 configuration indicates that the LV line-to-neutral voltage lags the HV reference by 30 degrees. Understanding these fundamentals links directly to mastering your overall transformer wiring schematic.
Standard Transformer Vector Groups and Characteristics
Three-phase power transformers are categorised into four main phase-displacement groups based on their zero, 180-degree, minus 30-degree, and plus 30-degree angular displacements. The choice of configuration affects earthing methods, fault-current contribution, and zero-sequence impedance. The table below outlines the most prevalent winding connections governed by IEC 60076-1 Table 1.
| Group | Vector Group Code | Phase Shift (Degrees) | Clock Position | Typical Application |
|---|---|---|---|---|
| Group I | Yy0, Dd0, Dz0 | 0° | 0 (12 o'clock) | Intertie autotransformers, small industrial plants without neutral imbalance |
| Group II | Yy6, Dd6, Dz6 | 180° | 6 o'clock | Specialised grid interties, phase-inversion distribution circuits |
| Group III | Yd1, Dy1, Yz1 | -30° (30° lag) | 1 o'clock | Generator step-up (GSU), industrial drive transformers, utility grids |
| Group IV | Yd11, Dy11, Yz11 | +30° (30° lead / 330° lag) | 11 o'clock | Commercial distribution, industrial plants, renewable energy collector systems |
While Group III and Group IV transformers can theoretically be paralleled by swapping external lead connections under specific phase-rotation adjustments, standard operational engineering practice strongly discourages mixing disparate vector groups on identical switchboards.
Analysis of the Yy0 Transformer Connection
A yy0 transformer connection features both high-voltage and low-voltage windings wired in a star configuration, yielding zero relative angular displacement between corresponding phase terminals. Because both neutral points can be grounded, this arrangement appears economical for linking high-voltage and medium-voltage transmission grids. However, a pure star-star connection presents notable electromagnetic limitations when subjected to unbalanced phase loading or non-linear rectifying loads.
The principal drawback of the three-phase star-star configuration without a tertiary delta winding is third-harmonic current distortion. Third-harmonic magnetising currents are in-phase across all three legs; in an ungrounded star circuit, these currents cannot circulate. This deficiency creates severe third-harmonic flux distortion in three-limb core-type transformers, producing dangerous neutral point oscillation and elevated phase-to-neutral peak voltages. When feeding single-phase or unbalanced loads, unbalanced zero-sequence current creates significant neutral shifting. For this reason, modern grid installations specify a delta tertiary winding (forming a YNynd0+d arrangement) or alternative topologies such as a wye delta transformer bank to trap triplen harmonics and stabilise the neutral.
Why Dyn11 Dominates Distribution Networks
The Dyn11 configuration is the global benchmark for secondary medium-voltage to low-voltage distribution transformers across IEC-governed networks. In this topology, the primary side is connected in delta (HV terminals 1U, 1V, 1W), and the secondary is connected in star with a brought-out neutral (LV terminals 2U, 2V, 2W, 2N), with the LV vector leading the HV vector by 30 degrees.
This configuration delivers three distinct engineering advantages:
- Third-Harmonic Trapping: Third-harmonic currents produced by non-linear loads (such as variable frequency drives, LED drivers, and server power supplies) flow through the LV neutral, transform into the HV winding, and circulate harmlessly within the primary closed delta loop without escaping onto the upstream MV utility feeder.
- Unbalanced Load Tolerance: The secondary star connection with brought-out neutral enables simultaneous three-phase 400 V power delivery alongside 230 V single-phase domestic and commercial branch circuits without causing floating neutral shifts.
- Zero-Sequence Isolation: Earth faults on the LV distribution side do not reflect through the transformer as ground faults on the HV side, containing fault propagation to the local protection zone. Detailed field installation protocols for these setups are detailed in our guide on how to hook up a transformer.
Calculating Circulating Currents in Incompatible Vector Groups
Paralleling two transformers with mismatched vector groups creates an instantaneous line-to-line prospective short circuit across their secondary busbars. Even a minor angular discrepancy introduces a large voltage difference across the internal winding impedance, driving severe circulating currents that trip overcurrent relays or melt secondary terminal busbars.
Consider two parallel 2,000 kVA, 11 kV / 400 V three-phase transformers feeding a common low-voltage switchboard. Transformer A is wound as Dyn11 (LV phase angle at +30 degrees), while Transformer B is wound as Dyn1 (LV phase angle at -30 degrees). The rated secondary phase-to-neutral voltage is 230.94 V. Both transformers possess a short-circuit impedance of 6.0% (Z% = 0.06 per unit).
The phase angle separation between the two secondary phase vectors is:
Delta Theta = 30° - (-30°) = 60°
The magnitude of the open-circuit voltage difference across corresponding secondary terminals is calculated using the law of cosines:
Delta V = 2 × V_phase × sin(Delta Theta / 2) = 2 × 230.94 V × sin(30°) = 230.94 V
Because both units share the loop impedance, the total loop impedance in per-unit terms is:
Z_loop = Z_A + Z_B = 0.06 pu + 0.06 pu = 0.12 pu
The resulting circulating current expressed as a multiple of rated full-load current (I_rated) is:
I_circulating = Delta V_pu / Z_loop_pu = (230.94 V / 230.94 V) / 0.12 = 1.0 / 0.12 = 8.33 × I_rated
With a rated secondary full-load current of 2,887 A at 2,000 kVA, the continuous circulating current between the two transformers reaches an extreme magnitude of:
I_circulating = 8.33 × 2,887 A = 24,048 A
This current is over eight times the rated continuous thermal capacity of each transformer, demonstrating why strict phase-angle matching is an absolute prerequisite prior to tying secondary breakers.
Verification Testing and Factory Acceptance of Vector Groups

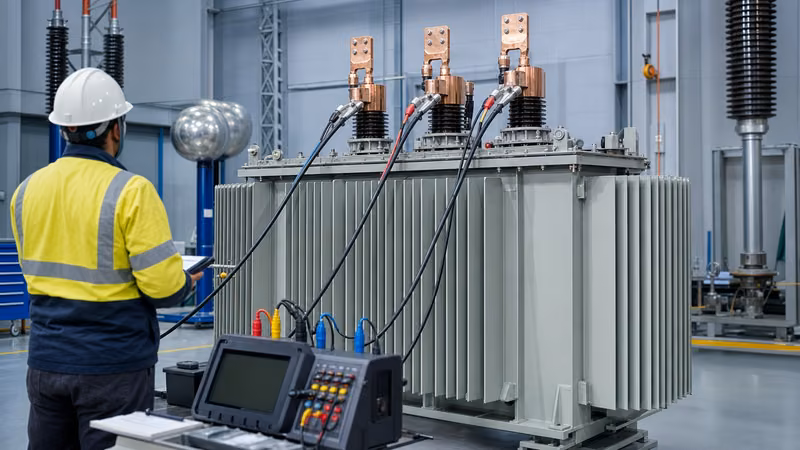

Factory acceptance testing (FAT) and pre-commissioning procedures must verify internal vector connections before equipment is energised under load. In accordance with IEC 60076-1 clause 11.4, vector group verification is classified as a standard routine test. Site commissioning teams utilize a three-phase low-voltage voltmeter method to validate phase displacement.
- Isolate and Ground: Verify complete de-energisation, rack out incoming circuit breakers, and attach temporary safety earths to all primary and secondary terminals.
- Bridge Reference Terminals: Remove safety earths on testing phases and connect a physical jumper cable between high-voltage terminal 1U and low-voltage terminal 2U.
- Inject Test Voltage: Apply a balanced, three-phase, low-voltage supply (typically 400 V line-to-line, 50/60 Hz) across primary terminals 1U, 1V, and 1W.
- Measure Potential Differences: Using a calibrated true-RMS digital multimeter, measure and record the voltages between terminals: 1V to 2V, 1V to 2W, 1W to 2V, and 1W to 2W.
- Verify Mathematical Conditions: Compare measured values against theoretical vector group relationships. For a standard Dyn11 transformer, the following mathematical inequalities must hold true: V(1V-2W) = V(1V-2V), and V(1W-2V) > V(1W-2W).
If test measurements deviate from these geometric conditions, internal winding leads have been crossed at the terminal board, requiring factory rectification. For advanced diagnostic procedures, review our comprehensive resource on power transformer testing.
Next steps: specifying and sourcing
When preparing an RFQ or tender specification for distribution or power transformers, clearly designate the exact vector group alongside nominal primary/secondary voltages, BIL ratings, tapping range, and impedance limits. Our engineering team designs and manufactures high-performance oil-immersed transformers and cast-resin dry-type transformers tailored to IEC, IEEE, and GB requirements for industrial, commercial, and renewable installations worldwide. Review our complete range of liquid-filled units or request a technical proposal for your upcoming project directly via our transformer quotation inquiry page.
Frequently asked questions
What does Dyn11 mean in a transformer?
Dyn11 designates a three-phase transformer with a delta-connected high-voltage winding (D), a star-connected low-voltage winding (y) with an externally accessible neutral terminal (n), and an 11 o'clock vector phase relationship where low-voltage line-to-neutral voltages lead high-voltage voltages by 30 degrees.
Can you parallel a Dyn11 transformer with a Dyn1 transformer?
No, you cannot directly parallel a Dyn11 transformer with a Dyn1 transformer on a shared busbar without internal rewiring. Doing so creates a 60-degree phase difference between secondary terminals, causing destructive short-circuit-level circulating currents that trip protective switchgear.
Why is a neutral required in a distribution transformer vector group?
A brought-out neutral terminal, denoted by a lowercase 'n' in codes like Dyn11 or Yyn0, provides a low-impedance ground reference and allows connection of single-phase loads between phase and neutral conductors across commercial and domestic low-voltage networks.
What is the main limitation of a Yy0 transformer connection?
The primary limitation of a Yy0 transformer without a delta tertiary winding is poor suppression of third-harmonic currents, which creates substantial neutral point instability and peak voltage distortion when supplying unbalanced or non-linear rectifying loads.
How do you test the vector group of a transformer in the field?
Field testing is conducted by bridging primary terminal 1U to secondary terminal 2U, applying a balanced three-phase low voltage (such as 400 V) to the HV terminals, and measuring the cross-terminal voltages to verify specific mathematical geometric relationships defined by standard vector diagrams.
