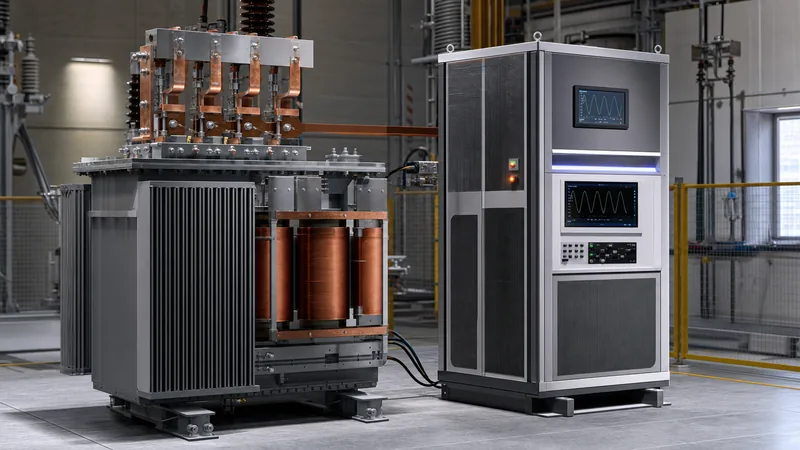

Voltage Converters and Transformers: Working Principles and Topologies
Voltage converters and transformers alter electrical potentials through entirely different physical mechanisms. A classic alternating current (AC) transformer relies strictly on Faraday's law of electromagnetic induction. When an alternating primary voltage is applied to the primary winding, it establishes an alternating magnetic flux within a laminated grain-oriented silicon steel core. This magnetic flux links to the secondary winding, inducing an electromotive force (EMF) proportional to the turns ratio: Vp / Vs = Np / Ns. Crucially, a two-winding transformer maintains complete galvanic isolation between the primary feeder and the secondary distribution circuit, barring common-mode transient pass-through in accordance with IEC 60076-1.
Conversely, a solid-state voltage converter relies on power electronic switching topologies, including triodes for alternating current (TRIACs), silicon-controlled rectifiers (SCRs), or insulated-gate bipolar transistors (IGBTs). Rather than transforming magnetic flux, an electronic converter rapidly chops the AC sinusoidal waveform at specific phase angles. This reduces the root-mean-square (RMS) voltage delivered to the load. While this technique yields a lightweight, cost-effective assembly suitable for purely resistive heating elements, it creates high levels of total harmonic distortion (THD) and provides zero galvanic barrier. Where electronic AC-to-AC conversion occurs with frequency modulation, an active DC link comprising an input rectifier and output pulse-width modulated (PWM) inverter is mandatory. For detailed sizing parameters of step-down assemblies, refer to our step down voltage converter guide.
Engineering Differences: Transformer Converter vs Solid-State Voltage Converter
A transformer converter provides isolated, continuous, low-distortion magnetic coupling, whereas solid-state electronic converters deliver compact, non-isolated voltage reduction via phase-angle chopping or high-frequency switching. In critical engineering applications, using an electronic converter on an inductive or sensitive electronic load can lead to catastrophic insulation breakdown or control board failure due to severe peak-voltage transients.
The engineering trade-offs between magnetic transformers and electronic converters are contrasted in the technical comparison below:
| Operational Parameter | Electromagnetic Transformer | Electronic Voltage Converter |
|---|---|---|
| Operating Mechanism | Electromagnetic induction via magnetic core | Semiconductor phase-angle chopping / PWM switching |
| Galvanic Isolation | Yes (standard two-winding designs) | No (common neutral and ground path) |
| Output Waveform | Clean, continuous sine wave (THD < 2%) | Modified/chopped sine wave (THD > 15% to 40%) |
| Overload Capacity | 150% to 200% for short cycles (thermal inertia) | Strictly limited (< 110% before semiconductor trip) |
| Inrush Handling | Robust: absorbs 6x to 10x full-load current | Fragile: thermal destruction from transient inrush |
| Duty Cycle Rating | 100% continuous 24/7 duty | Frequently limited to intermittent duty (30–60 min) |
| Compliance Standards | IEC 60076, IEEE C57.12.00, UL 1561 | IEC 62477-1, UL 1012, EN 61558-2-13 |
As demonstrated in the comparison, selecting an electromagnetic unit is non-negotiable for industrial facilities requiring continuous duty, low electromagnetic interference (EMI), and verified overload capabilities.
Residential and Commercial Loads: TV Voltage Converter and Consumer Electronics
A tv voltage converter or consumer electronic supply must supply a pure, continuous sine wave because modern television sets and entertainment units utilise sensitive switch-mode power supplies (SMPS). While small domestic heating appliances can operate on chopped waveforms produced by phase-angle electronic converters, consumer electronics will overheat, hum, or suffer capacitor degradation when exposed to modified waveforms.
When deploying North American 120 V, 60 Hz equipment in regions with 230 V, 50 Hz power, impedance and operational frequency must be evaluated. While an SMPS typically accepts 50 Hz to 60 Hz seamlessly, internal filter circuits and line-to-ground bypass capacitors require voltage stability within ±5%. If an electronic converter delivers high harmonic components, the input rectifiers of a television or audio receiver absorb excessive peak voltages. Therefore, engineers and facility managers specify continuous-duty, magnetic step-down units when adapting imported audiovisual or diagnostic equipment. Guidance on stepping voltage down from European to North American nominal levels is documented in our step down transformer 220V to 110V guide.
Industrial Power Systems: Sizing and Duty Cycle Calculations
Sizing an industrial transformer requires calculating apparent power in kilovolt-amperes (kVA) to accommodate both real power (kW) and reactive power (kVAR). Inductive machinery—including compressor motors, conveyor drives, and chillers—imposes an initial starting current (inrush) of 400% to 800% of the steady-state full-load amperage (FLA) for a duration of 100 milliseconds to several seconds.
To calculate the required continuous capacity for a single-phase supply:
kVA = (Voltage × Current) / 1000
For a three-phase system, the standard engineering formula applies:
kVA = (√3 × VL-L × IL) / 1000
Where VL-L represents line-to-line voltage and IL represents line current. When non-linear loads are present—such as variable-frequency drives (VFDs) or automated industrial lighting—a derating factor (or K-factor rating according to ANSI/IEEE C57.110) must be applied to address eddy-current losses in windings and core heating. For extensive worked examples, consult our dedicated transformer sizing calculator guide. Commercial solid-state voltage converters lack the thermal mass necessary to absorb these operational inrushes, leading to premature thermal tripping or semiconductor junction puncture.
Step-by-Step Procedure: How to Select Between a Converter and a Transformer
Selecting the appropriate device requires an objective evaluation of electrical load characteristics, thermal environment, and operating requirements. Plant engineers should apply the following sequential methodology:
- Classify the load profile: Categorise the electrical load as purely resistive (heaters, incandescent lamps), inductive (motors, compressors, magnetic relays), or electronic (SMPS, IT infrastructure, audiovisual systems).
- Quantify running and peak current: Measure or extract the steady-state nominal amperage and transient starting inrush. Multiply inductive loads by an operational safety factor of 1.25 to 1.50 for continuous thermal headroom.
- Determine isolation requirements: Establish whether downstream components demand galvanic separation to isolate grounding systems, mitigate ground loops, or comply with local electrical codes (such as NFPA 70 or IEC 60364).
- Verify input and output frequency: Confirm line frequency (50 Hz versus 60 Hz). Standard electromagnetic transformers cannot convert frequency; if frequency transformation is required for synchronous motor speeds, an active motor-generator set or active solid-state variable-speed drive is required alongside the transformer.
- Evaluate duty cycle and site environment: Specify an industrial electromagnetic unit for 100% continuous duty in elevated ambient temperatures (40°C to 50°C), while reserving electronic solid-state converters solely for intermittent consumer heating equipment.
Compliance, Standards, and Thermal Management
Electrical distribution equipment must comply with internationally accredited manufacturing standards to guarantee operational safety and short-circuit withstand integrity. Heavy-duty magnetic transformers are engineered according to IEC 60076 (Power Transformers) and IEEE C57.12.00, which mandate rigorous dielectric insulation tests, impulse voltage withstand (BIL) tests, and temperature-rise evaluations. In commercial buildings, indoor step-down requirements often specify cast resin or vacuum pressure impregnated (VPI) dry-type transformers adhering to UL 1561 and EN 50588-1 for environmental class E2 and fire behaviour class F1.
Thermal management is the defining factor for equipment lifespan. In a magnetic transformer, winding temperature rise is constrained by standard thermal insulation classes: Class 105 (A), Class 130 (B), Class 155 (F), or Class 180 (H). Operating a transformer at 10°C below its thermal insulation limit roughly doubles insulation service life (Arrhenius law). Conversely, active semiconductor voltage converters depend on miniature cooling fans and extruded aluminium heat sinks. If dust accumulates or the cooling fan fails, the semiconductor junction quickly breaches maximum silicon operating limits (typically 125°C to 150°C), precipitating catastrophic device breakdown.
Next steps: specifying and sourcing
When specifying custom or stock transformation systems for industrial facilities, data centres, or commercial infrastructure, clear electrical parameters eliminate commissioning delays. Forward your site specifications—including primary and secondary system voltages, total connected load in kVA, nominal grid frequency (50 Hz or 60 Hz), vector group configuration (such as Dyn11), ambient operating conditions, and enclosure protection ratings (e.g., IP23 indoor vs IP54 outdoor)—directly to our engineering team. Explore our certified range of power transformers and robust oil-immersed transformers. For tailor-made project design support, technical tenders, or rapid pricing estimates, submit your project schedule via our quote request portal or access our engineering desk directly at our contact page.
Frequently asked questions
Can I use a voltage converter for a TV?
Yes, but you must use a pure sine wave electronic converter or an electromagnetic transformer rather than a cheap phase-chopping converter. Modern televisions feature switch-mode power supplies that overheat, generate audio buzzing, and face circuit board failure when operated on distorted, chopped AC waveforms.
What is the difference between a voltage converter and a transformer?
A transformer alters AC voltage through electromagnetic induction across isolated copper or aluminium windings, delivering a clean sine wave with galvanic isolation. A voltage converter uses electronic semiconductor switches to chop or modify the voltage waveform without physical galvanic isolation between primary and secondary circuits.
Can a transformer convert 50 Hz to 60 Hz?
No, passive transformers cannot alter electrical frequency; they output the exact frequency delivered to their input windings. Changing frequency from 50 Hz to 60 Hz requires an active frequency converter with an electronic rectifier-inverter DC link or a rotary motor-generator system.
Why do motor-driven appliances need transformers instead of converters?
Motor-driven appliances draw high inrush currents of 300% to 600% of nominal rating and require clean sinusoidal waveforms for continuous magnetic flux generation. Electronic converters produce high harmonic distortion that causes motors to overheat, run inefficiently, and trip solid-state overcurrent circuits.
What size transformer do I need for a 1500-watt appliance?
For a 1500-watt resistive appliance, specify a minimum 2000 VA (2.0 kVA) transformer to maintain a 25% safety margin. If the 1500-watt appliance contains an inductive motor or compressor, size the transformer to at least 4500 VA (4.5 kVA) to withstand motor starting currents.
