Technical specifications
| Parameter | Value |
|---|---|
| Product Type | Indoor AC Metal-Clad High-Voltage Switchgear |
| Rated Voltage | 12 kV / 24 kV / 35 kV |
| Rated Current | 4000 A |
| Frequency | 50 / 60 Hz |
| Protection Level | IP65 (IP30 / IP32 / IP40 / IP66 optional) |
| Material | Stainless Steel |
| Feature | Energy Saving |
| Application | High Voltage, Indoor, Industrial |
| Certification | ISO9001, Test Report |
Specifications are based on the standard configuration. Final ratings, dimensions, materials and packaging are confirmed on the approved drawing and order confirmation.
Features and construction

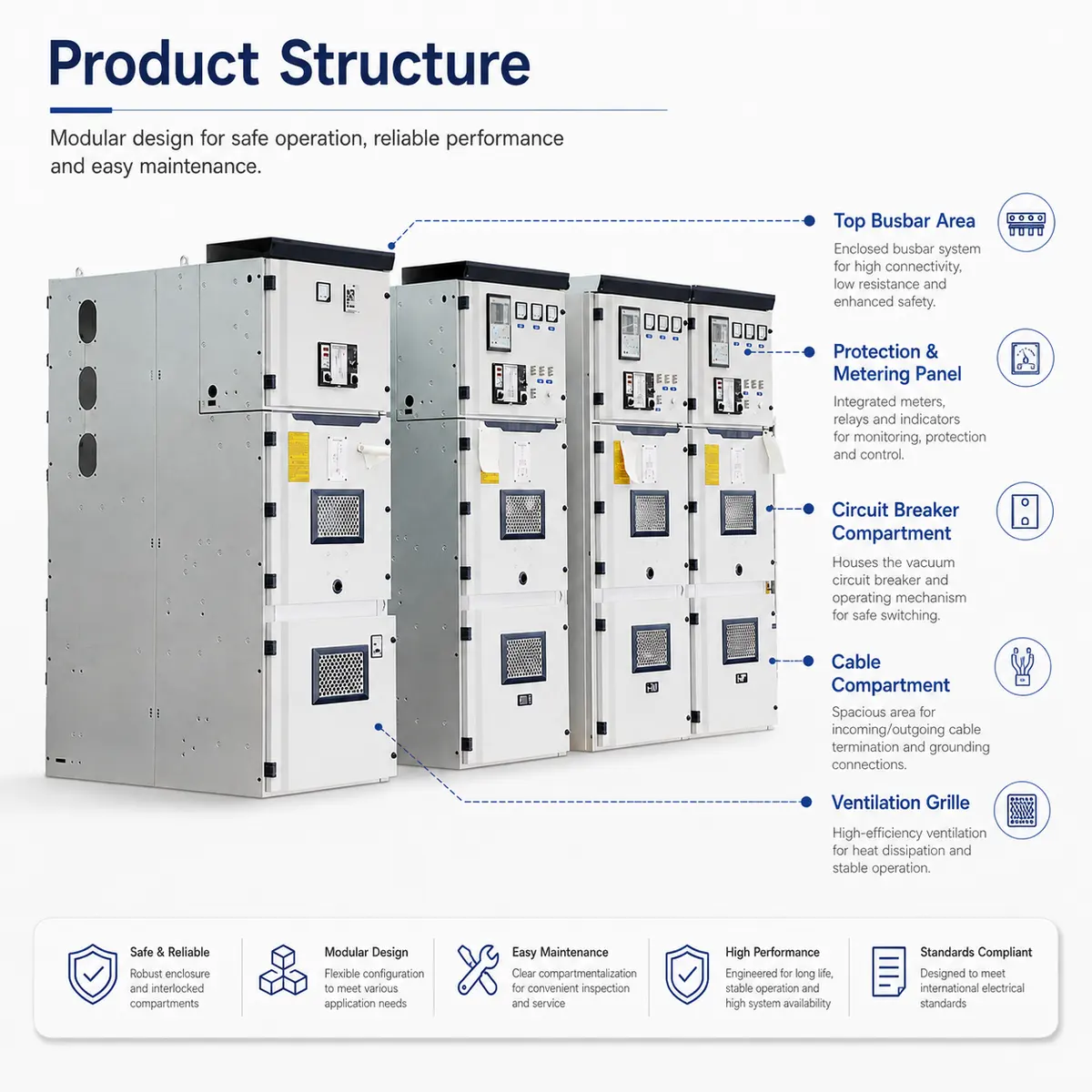

- Vertical metal-clad cubicles with segregated compartments
- Top relay/instrument compartment with meters and indicator lights
- Middle circuit-breaker truck compartment with ventilated mesh window
- Lower cable compartment with ventilated mesh door
- Stainless steel body with ventilation louvers for thermal management
Typical applications
Ideal for indoor high-voltage distribution rooms, substations, industrial plants, and power distribution across a range of trades and professions from 12kV to 35kV.
Customisation options
Protection level (IP30–IP66), rated voltage/current arrangement, and circuit scheme can be tailored to project requirements.
Ordering information
Please confirm rated voltage, rated current, protection level, and circuit configuration when ordering.
Specifications are based on the supplied product data. Final dimensions, materials, colors, and packaging are subject to the confirmed sample and order confirmation.
