Aerosol Fire Extinguisher Sizing and BESS Integration Guide

Quick answer: An aerosol fire extinguisher is a non-pressurised containment canister that releases ultra-fine potassium-based micro-particles to chemically quench flaming combustion in enclosed electrical spaces without displacing oxygen or requiring pipe networks.

In commercial and industrial battery energy storage systems (BESS), managing thermal events demands rapid, volumetrically distributed fire suppression. While conventional clean agents rely on heavy high-pressure manifold cylinders and distribution networks, condensed aerosol units offer a compact alternative for enclosures, power conversion housings, and modular battery cabinets. Understanding the operational physics, design calculations, and interface with battery management systems (BMS) ensures engineers select and install these units in compliance with international fire safety codes.

Specifying an aerosol fire extinguisher requires a rigorous evaluation of extinguishing density, electrical clearance, thermal output during deployment, and post-discharge cleaning requirements. For facility designers developing battery projects alongside our lithium battery fire suppression guide, condensed aerosols serve as a critical front-line defence against electrical and cabinet-level flash fires.

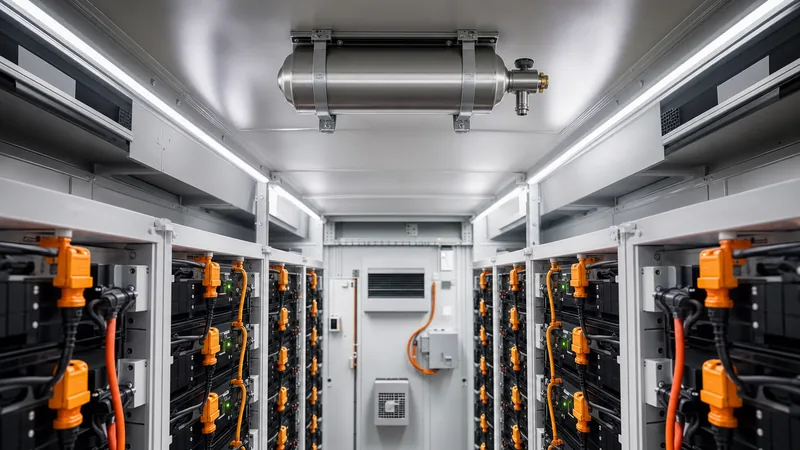

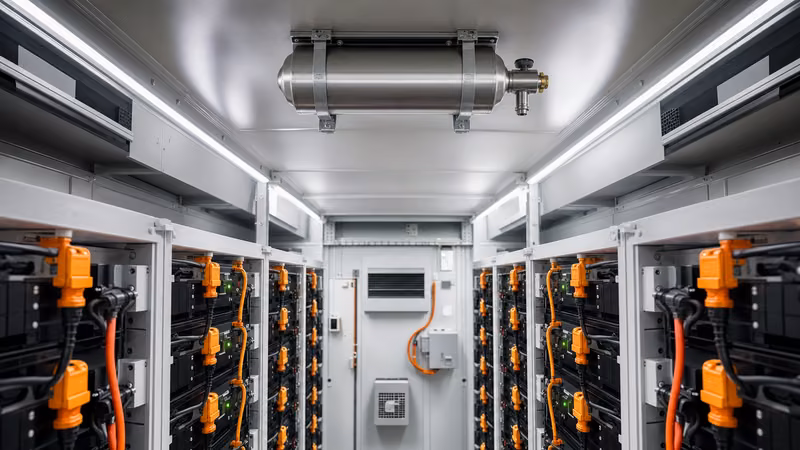

How an Aerosol Fire Extinguisher Operates in Battery Enclosures

A condensed aerosol fire extinguisher functions by delivering sub-micron solid particulate into a protected enclosure to interrupt combustion at a molecular level.

Unlike inert gases that suppress flames by lowering ambient oxygen below 15 percent, or water mist that primarily removes thermal energy, aerosol fire suppression relies on thermochemical inhibition. Inside each generator, a solid thermochemical compound—typically consisting of potassium nitrate (KNO3), an organic resin binder, and oxidising agents—is ignited via an internal electric squib or thermal activation cord. The resulting controlled oxidation converts the solid charge into a rapidly expanding aerosol plume consisting of vaporised potassium carbonates (K2CO3), nitrogen, water vapour, and trace gases.

When the particulate enters the flame front, thermal dissociation produces active potassium free radicals (K and KOH). These radicals bind preferentially with the active chain carriers of hydrocarbon combustion: hydroxyl (OH) and hydrogen (H) radicals. The reaction mechanisms are:

• Radical scavenging: K + OH → KOH
• Secondary reaction: KOH + H → K + H2O
• Radical regeneration: KOH + OH → KO + H2O

By consuming the free radicals faster than combustion kinetics can generate them, the chemical reaction collapses within 10 to 30 seconds. Because the solid particles have an average diameter of 1 to 2 micrometres, they exhibit low settling velocity, remaining suspended in the sealed enclosure for up to 30 to 45 minutes to prevent reflash during emergency shutdowns.

Aerosol Fire Suppression System vs Gaseous and Water Solutions

An aerosol fire suppression system provides distinct mechanical and structural advantages over total flooding clean agents and water-based deluge systems, particularly in remote containerised storage.

Containerised battery installations frequently encounter strict volumetric and weight constraints. Gaseous systems such as FK-5-1-12 or inert gas blends demand dedicated floor space for high-pressure storage cylinders (pressurised up to 25 bar or 300 bar), along with calibrated distribution pipework, directional nozzles, and overpressure relief dampers to mitigate room pressurisation spikes during release. Conversely, an aerosol suppression system houses the extinguishing agent within unpressurised, modular canisters mounted directly to cabinet bulkheads or ceilings, entirely eliminating hydraulic distribution losses and mechanical piping.

However, engineering teams must evaluate agent limitations concerning battery chemistry. While aerosols reliably extinguish flaming combustion arising from short circuits or plastics, they do not provide continuous bulk thermal cooling to penetrate internal cell jelly rolls undergoing active thermal runaway. For this reason, engineers designing utility-scale systems often pair condensed aerosols with structural containment guidelines detailed in our battery enclosure engineering guide or secondary water deluge systems covered in our water suppression system guide.

Sizing an Aerosol Suppression System: Engineering Calculation

Calculating the required mass of an aerosol fire extinguisher requires applying verified extinguishing application densities adjusted for enclosure geometry, leakage losses, and safety factors defined in NFPA 2010.

According to NFPA 2010 Clause 7.4 and ISO 15779 Clause 7.2, the design quantity of condensed aerosol solid compound is calculated using the following engineering formula:

M = V × q × f_s × f_leak

Where:

• M: Total mass of solid aerosol-forming composition required (in grams, g).
• V: Net volume of the protected enclosure (gross internal volume minus solid internal structural components and battery racks, in m³).
• q: Extinguishing application density verified by UL 2775 listing for Class B or Class C surface fire hazards (typically 40 to 60 g/m³ depending on canister formulation).
• f_s: Design safety factor, mandated as minimum 1.3 by NFPA 2010 Table 7.4.2.1.
• f_leak: Leakage and opening correction factor (typically 1.05 to 1.20 depending on enclosure air tightness and mechanical damper leakage ratings).

Consider a modular walk-in BESS container with an internal length of 12.0 m, width of 2.4 m, and ceiling height of 2.6 m:

1. Gross Enclosure Volume: V_gross = 12.0 m × 2.4 m × 2.6 m = 74.88 m³.
2. Internal Displacement: Solid battery racks, power distribution cabinets, and cable trays displace 18.50 m³.
3. Net Volume (V): V = 74.88 m³ - 18.50 m³ = 56.38 m³.
4. Application Density (q): Certified UL 2775 Class C extinguishing density of 48 g/m³.
5. Safety and Leakage Factors: Standard safety factor f_s = 1.30; enclosure leakage factor f_leak = 1.10 (accounting for automatic closing gravity louvres).
6. Total Aerosol Mass Required: M = 56.38 × 48 × 1.30 × 1.10 = 3,869.5 g (3.87 kg).

To provide uniform volumetric distribution and prevent spatial concentration shadows, an engineer would specify four evenly distributed 1.0 kg aerosol generators or eight 500 g units positioned strategically above the central maintenance aisle and battery rack tops.

Integration with BESS Detection and BMS Controls

Integrating an aerosol fire extinguisher into an overall enclosure safety system requires coordinated electrical interlocks between early-stage off-gas sensors, the central fire alarm control panel (FACP), and the battery management system (BMS).

Standard smoke detectors often activate too late to stop thermal propagation. Modern battery compartments incorporate multi-criteria detection: hydrogen (H2) sensors, carbon monoxide (CO) electrochemical cells, and off-gas volatile organic compound (VOC) monitors. These early-stage indicators detect battery venting minutes before visible smoke or open flames erupt. When selecting battery chemistries, such as those evaluated in our LFP vs NMC battery engineering guide, detection timing is pivotal.

To implement an effective release sequence under NFPA 855 and NFPA 2010 guidelines:

1. Stage 1 (Single Sensor Confirmation): Detection of off-gas (CO > 30 ppm or H2 > 100 ppm) triggers an early alarm, signals the BMS to ramp down system power, and trips the main power conversion system (PCS) circuit breaker.
2. Stage 2 (Coincidence / Cross-Zone Tripping): Confirmation from an optical smoke detector or thermal rate-of-rise sensor activates a general evacuation siren and flashes visual strobes.
3. HVAC and Damper Interlock: The FACP de-energises container air conditioning and activates motorised fire dampers (closing within 3 seconds) to isolate the space and prevent agent dilution.
4. Discharge Delay and Release: Following a programmable 30-second delay to permit personnel egress, the FACP sends a 24 V DC discharge pulse across the aerosol generator squibs (bridge wire resistance typically 1.2 to 2.0 ohms), releasing the aerosol plume simultaneously across all zones.

Installation, Thermal Clearance, and Acceptance Testing

Safe installation of an aerosol fire suppression system requires strict observance of manufacturer-mandated standoff distances to prevent thermal degradation of adjacent electrical equipment.

During deployment, the thermochemical conversion within the generator housing generates significant thermal energy. Standard listings under UL 2775 and ISO 15779 establish three distinct thermal clearance zones outward from the canister discharge orifice:

• Combustible Material Clearance (Zone 1): The distance required for the exhaust stream to cool below 200 °C. Typically 0.5 to 1.5 m depending on generator size. No combustible wires, cable trays, or battery plastics may cross this envelope.
• Structural and Equipment Clearance (Zone 2): The distance required to cool below 100 °C, usually 0.3 to 0.8 m. Metal battery enclosures and non-combustible racking must remain clear of this boundary.
• Personnel Safety Envelope (Zone 3): The minimum clearance where gas temperature drops below 75 °C to prevent skin burns during accidental discharge, usually 1.5 to 3.0 m from the discharge port.

Site engineers must verify the following protocol during commissioning:

1. Inspect physical mounts to verify high-temperature mechanical anchors withstand the initial reaction recoil force during aerosol discharge.
2. Disconnect all electrical release circuits and conduct circuit loop continuity tests using an intrinsically safe digital multimeter, verifying bridge wire resistance falls strictly within 1.0 to 2.5 ohms without ground leakage.
3. Perform simulated discharge tests using test squibs or LED simulator plugs at the terminal box to confirm the FACP provides minimum current (typically 1.0 A for 50 milliseconds) under primary and secondary battery power.
4. Inspect damper seals, cable gland penetrations, and door gaskets under ISO 14520-1 door fan testing rules to verify the room air retention time meets the 30-minute minimum holding requirement.

Post-Discharge Mitigation and Maintenance Procedures

Post-event remediation following the discharge of an aerosol fire extinguisher centres on removing surface potassium salt particulate to preserve electronic insulation resistance.

The aerosol residue consists primarily of potassium carbonate (K2CO3) and potassium bicarbonate (KHCO3) micro-particles. In a completely dry environment, these salts are chemically inert and electrically non-conductive. However, potassium salts are hygroscopic; if left in an enclosure with relative humidity exceeding 60 percent, they absorb atmospheric moisture and form a mildly alkaline, conductive solution that can degrade the dielectric properties of printed circuit boards, contactors, and switchgear terminals.

Operating teams must execute post-fire cleaning systematically:

• Ventilation: Purge the enclosure using portable extractor fans once first responders certify that all thermal runaway and fire reignition risks have subsided.
• Dry Extraction: Vacuum all horizontal surfaces, cabinet tops, and open busway trenches using industrial HEPA-filtered vacuum equipment. Compressed air should never be used, as it drives fine particulates into micro-cracks and sensitive electrical contacts.
• Aqueous Wipe-Down: Wipe down affected structural metalwork and busbar supports using a 40 to 50 percent isopropyl alcohol (IPA) solution or deionised water, followed immediately by thorough dry wiping to eliminate all residual salts.
• Dielectric Testing: Conduct insulation resistance testing on primary power conductors and high-voltage DC busways using a 1,000 V megohmmeter to ensure readings exceed standard operational thresholds (minimum 100 MΩ) prior to re-energisation.

Next steps: specifying and sourcing

When preparing procurement specifications for an aerosol fire suppression system, precise dimensional drawings, environmental ambient conditions, and battery enclosure volumes are essential. Ensure your project documentation details net containment volume, continuous leakage area, operating temperature ranges (-40 °C to +60 °C), and required BMS shutdown protocols.
