Battery Monitoring Module: Engineering Architecture & Design

Quick answer: A battery monitoring module is a dedicated hardware sub-assembly that directly measures individual electrochemical cell voltages, surface temperatures, and local shunt currents, transmitting real-time telemetry to a central rack controller. It provides the base-layer sensing, galvanic isolation, and cell balancing necessary to prevent thermal runaway and ensure operational safety in commercial and industrial energy storage systems.

In high-capacity lithium-ion installations, battery pack safety and lifespan depend on the precision of the lowest instrumentation tier. The individual battery monitoring module (frequently designated as a cell supervisory circuit or slave management unit) operates at the physical cell tap level. It reads electrochemical data from series-connected cells, converts microvolt- and millivolt-level analog signals into filtered digital packets, and communicates upstream over isolated communication buses. Without accurate local measurement, systemic errors accumulate, leading to premature cell degradation, reduced usable capacity, or unmitigated safety hazards. Engineers designing grid-tied installations should review our battery monitoring system guide to understand how these modules integrate into broader supervisory control and data acquisition architectures.

Core Architecture of a Battery Monitoring Module

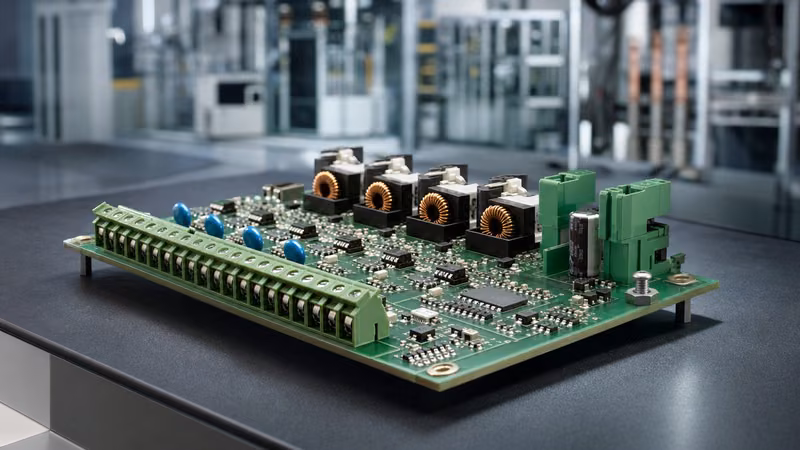

A battery monitoring module integrates analog front-end (AFE) integrated circuits, microcontrollers, passive or active cell-balancing circuits, and isolated transceivers onto an industrial-grade printed circuit board (PCB). The primary functional block is the multichannel AFE, typically monitoring 12 to 24 series-connected lithium iron phosphate (LFP) or nickel manganese cobalt (NMC) cells. Each channel features low-pass input RC filtering designed to eliminate high-frequency ripple generated by switching power conversion systems operating between 10 kHz and 100 kHz.

Downstream telemetry is handled through differential daisy-chain transceivers or isolated Controller Area Network (CAN) bus physical layers. Because string voltages regularly reach 1000 V DC to 1500 V DC, galvanic isolation between the local cell potential and the system-level controller is non-negotiable. Standard industrial designs employ reinforced digital isolators or pulse transformers providing dielectric breakdown ratings compliant with IEC 60664-1 pollution degree 2 environments. The module also hosts power-management circuitry, drawing operating current either directly from the monitored cell cluster or through an isolated external 12 V / 24 V auxiliary supply to prevent asymmetrical cell discharge during prolonged idle periods.

Battery Cell Monitoring System Sensing and Signal Conditioning

A battery cell monitoring system relies on high-resolution analog-to-digital converters (ADCs) to capture voltage, current, and temperature metrics under severe electromagnetic interference. Synchronous delta-sigma or successive-approximation-register (SAR) ADCs with a minimum resolution of 16 bits are required to resolve small voltage shifts indicative of state transitions, particularly along the flat discharge curve of LFP chemistry discussed in our LFP vs NMC battery technical comparison.

Temperature sensing is executed via negative temperature coefficient (NTC) thermistors mechanically bonded to busbars or cell casings. IEC 62619 clause 8.2 dictates continuous thermal surveillance to prevent catastrophic cell propagation. Signal conditioning channels must incorporate hardware fault detection, including open-wire diagnostics, to detect broken sensor leads immediately. A severed voltage sense line simulates an artificial under-voltage event or conceals a lethal over-charge condition; modern modules cycle diagnostic sink currents periodically to verify wiring harness continuity under all operating conditions.

Cell Balancing Methodologies: Passive vs Active Topologies

Cell balancing is an essential operational duty executed directly by the battery monitoring module to normalise capacity differentials caused by production tolerances, internal resistance variance, and spatial thermal gradients. When cells are configured in series strings, the weakest cell limits usable discharge capacity, while the lowest-capacity cell risks over-charging during replenishment cycles. Balancing circuits restore equilibrium across the entire series bank.

Two primary engineering topologies exist for balancing within the module:

• Passive balancing: Uses MOSFET-switched resistive bypass shunts to bleed energy as heat from cells exhibiting higher terminal potentials during the constant-voltage charging phase. Bypass currents typically range from 50 mA to 300 mA per channel. Dissipation creates substantial heat, requiring precise module PCB thermal management and careful coordination with enclosures, such as those evaluated in our battery cooling engineering guide.
• Active balancing: Uses bidirectional flyback transformers or switched-capacitor architectures to transfer energy from high-potential cells to lower-potential cells, or from the whole block back into a single lagging cell. Efficiencies frequently exceed 85%, and balancing currents can scale between 1 A and 5 A, enabling fast equalisation in heavy cyclic duty applications without producing excessive localized heat loads.

Balancing Current Calculation and Sizing

Sizing the balancing circuitry within a battery monitoring module requires calculating the charge discrepancy that must be reconciled during a specified operating window. Consider a utility-scale battery energy storage rack utilising 280 Ah LFP prismatic cells operating on a daily four-hour charge and four-hour discharge cycle, where manufacturing variations induce a 1.5% capacity divergence between the highest and lowest cells across 30 days of unmanaged cycling.

To calculate the required continuous passive balancing current ($I_{bal}$) over a daily standard charging duration of 2.5 hours at constant voltage (CV):

1. Calculate the accumulated capacity divergence:
   $$\Delta Q = 280\text{ Ah} \times 0.015 = 4.2\text{ Ah} = 4200\text{ mAh}$$
2. Determine daily divergence assuming linear drift over 30 days:
   $$Q_{daily} = \frac{4200\text{ mAh}}{30\text{ days}} = 140\text{ mAh/day}$$
3. Calculate the minimum balancing current required within the 2.5-hour charging window:
   $$I_{bal} = \frac{140\text{ mAh}}{2.5\text{ h}} = 56\text{ mA}$$

Applying an engineering safety margin of 2.0 to account for contact resistance and ambient temperature throttling, the module requires a passive balancing circuit rated for at least 112 mA. The onboard discharge resistor ($R_{bal}$) for an LFP cell operating at a top-of-charge threshold of 3.60 V is sized as:

$$R_{bal} = \frac{V_{cell}}{I_{bal}} = \frac{3.60\text{ V}}{0.112\text{ A}} \approx 32.1\ \Omega$$

The continuous power dissipation across this resistor is $P = V \times I = 3.60\text{ V} \times 0.112\text{ A} = 0.403\text{ W}$. For a 16-channel module, total thermal output reaches up to 6.45 W when all shunts operate concurrently, mandating dedicated thermal vias and heatsink planes on the PCB.

Battery Health Monitoring System Algorithms and State Estimation

A modern battery health monitoring system depends on the low-level data extracted by monitoring modules to compute State of Health (SOH) and State of Safety (SOS). Module-level microcontrollers preprocess raw sampling data using recursive digital filters before passing values upstream to rack controllers. This reduces bus bandwidth saturation and eliminates high-frequency noise induced by switching transients.

SOH calculation incorporates electro-impedance spectrometry approximations, tracking changes in internal DC resistance ($R_{dc}$). By calculating the instantaneous voltage drop ($\Delta V$) following an aggressive step change in inverter current ($\Delta I$), the module captures: $$R_{dc} = \frac{\Delta V}{\Delta I}$$ An increase in $R_{dc}$ exceeding 100% relative to the baseline factory acceptance value indicates advanced electrolyte depletion or SEI layer degradation. Detecting micro-faults at this level prevents accelerated thermal aging in heavy-duty industrial battery banks.

Industrial Communication Protocols and Noise Immunity

Electromagnetic compatibility (EMC) is a critical design challenge for battery monitoring modules installed adjacent to megawatt-class power conversion systems. High rate-of-voltage-change ($dV/dt$) events from silicon carbide (SiC) or insulated-gate bipolar transistor (IGBT) switching stages can couple high common-mode voltages into sensing lines, distorting sensitive measurements.

To counteract this, modules implement differential, isolated communication topologies:

• Isolated SPI Daisy Chains: Serial Peripheral Interface (SPI) signals converted into capacitive- or transformer-coupled differential pulses link cascading modules along a battery string. This eliminates expensive external transceivers on every board while maintaining common-mode transient immunity (CMTI) exceeding 50 kV/μs.
• Galvanically Isolated CAN Bus: Operating under CAN 2.0B or CAN FD specifications at 500 kbps, isolated CAN transceivers provide robust frame validation, cyclic redundancy checks (CRC), and deterministic message latency across distributed enclosures.
• Modbus RTU over a differential serial bus: Used primarily as an auxiliary diagnostic link, providing differential multi-drop networking across long line lengths with strong baseline noise tolerance.

Hardware Selection and Inspection Checklist for Procurement

Procuring and deploying an industrial-grade battery monitoring module requires validating structural, electrical, and thermal parameters against real-world installation stresses. System integrators should execute this field-ready inspection checklist during factory acceptance testing (FAT):

1. Dielectric clearance and creepage: Confirm PCB trace separation satisfies IEC 60664-1 clearance distances for the maximum working string voltage (e.g., minimum 8.0 mm creepage for 1000 V systems).
2. Open-wire test response: Disconnect any individual voltage sensing line while under active charge current; verify the module flags an open-wire fault within 100 ms and disables balancing on adjacent cells.
3. Thermal imaging during full balancing: Apply maximum passive balancing current across all channels simultaneously for 60 minutes. Verify board hot spots do not exceed 85°C in an ambient environment of 45°C.
4. Common-mode transient immunity: Subject the communication lines to 2 kV electrical fast transients (EFT) per IEC 61000-4-4; ensure zero frame loss or telemetry corruption.
5. Conformal coating validation: Verify IPC-A-610 Class 3 conformal coating coverage across all high-impedance analog pins to prevent dendritic growth in humid environments.

Next steps: specifying and sourcing

When preparing technical specifications or requests for quotation (RFQs) for complete energy storage systems, clearly state module-level measurement resolution, galvanic isolation thresholds, balancing currents, and communication interfaces. Provide system string voltages, expected cycling rates, and environmental ratings to ensure correct hardware integration. Explore our factory-engineered energy storage system solutions and turnkey liquid-cooled ESS containers built to global safety standards. Our engineering team assists with system sizing, BMS integration, and testing documentation. Submit project requirements through our quote inquiry page or speak with a technical specialist via our contact page.
