Battery Pack Supplies: Engineering & Sourcing Guide

Quick answer: High-reliability battery pack supplies include Grade-A lithium-ion cells, laser-welded copper-nickel busbars, flame-retardant structural enclosures, thermal management pads, and integrated battery management systems (BMS). Engineering a commercial or industrial pack requires matching electromechanical tolerances, short-circuit current ratings, and creepage distances to standards such as IEC 62619 and UL 1973.

Procuring raw components and subsystems for industrial energy storage demands strict material traceability and rigorous electrothermal validation. In utility and commercial installations, small mechanical or electrical discrepancies propagate into capacity degradation, thermal imbalance, or premature cell failure. Navigating the procurement of battery cell components and sizing requires understanding the operational limits of every busbar, sensor wire, and structural bracket. Selecting the right battery pack supplies forms the foundation for reliable, serviceable, and safe high-capacity battery systems.

Core Bill of Materials for Battery Pack Supplies

The bill of materials for industrial battery pack supplies covers structural frame members, active electrochemical cells, electrical conductors, thermal insulation barriers, and control electronics. Each component within a high-capacity assembly serves an isolated electrical, mechanical, or thermal function designed to protect the integrity of adjacent cells.

A production pack integrates several subsystem layers:

• Electrochemical Cells: Prismatic, cylindrical, or pouch cells formatted into parallel-series groups. Most stationary installations use lithium iron phosphate (LFP) chemistry for thermal stability, detailed further in our prismatic battery cell architecture guide.
• Interconnect Busbars: Precision-stamped, nickel-plated copper (C11000) or pure aluminium (AL1060) busbars configured to minimise inter-cell connection resistance below 20 micro-ohms.
• Thermal Interface Materials (TIM): Phase-change pads, liquid-cooled cold plates, and aerogel insulation blankets positioned to maintain uniform core temperatures across a pack.
• Dielectric and Structural Barriers: Mica compression sheets, polycarbonate or epoxy glass (FR-4) cell dividers rated to at least 1,500 V DC dielectric breakdown strength.
• Battery Management Hardware: Centralised or distributed control boards, fused voltage-sense harnesses, thermistors, and current-measuring shunts.

Sourcing Hardware for a Custom Lithium Ion Battery Pack

Designing a custom lithium ion battery pack requires tailoring the electromechanical hardware to specific load cycles, peak discharge ratings, and environmental operating classes. Standard off-the-shelf enclosures rarely accommodate high-voltage architectures or non-standard footprint requirements found in commercial energy storage systems.

When engineering a custom assembly, mechanical designers calculate pack compression forces to prevent prismatic cell swelling during cycling. Cells expand by approximately 1.5% to 3.0% over their operational lifespan. Structural side plates made from structural aluminium (6061-T6) or high-strength steel, joined by tension rods, must exert a constant compressive pressure between 0.3 MPa and 0.5 MPa. Interconnect busbars require stress-relief flex loops to prevent cyclic thermal expansion from fatiguing cell terminal posts. Sizing these systems alongside a dedicated high-voltage pack BMS design ensures balance leads and high-current paths do not interfere with each other mechanically or induce electromagnetic interference across signal cables.

Specification Standards for Customized Battery Components

Procuring customized battery components requires adherence to strict physical tolerances, plating standards, and safety ratings defined by international governing bodies. Sub-tier hardware failures—such as delaminating busbar nickel plating or degraded dielectric wrappers—are leading causes of field insulation breakdown.

Engineers must cross-examine manufacturer material test reports against the baseline benchmarks detailed in the comparison table below.

Busbar Sizing and Thermal Calculations for Battery Supplies

Busbar design governs the primary ohmic loss inside a battery pack. Engineers calculate cross-sectional conductor area based on the maximum continuous discharge current and the allowable steady-state temperature rise defined by standard design constraints.

Consider an industrial storage module with a continuous discharge current of 250 A DC, operating within an enclosure where the allowable busbar temperature rise is restricted to ΔT = 30 °C above an ambient temperature of 40 °C. The cross-sectional area A for an oxygen-free copper busbar is calculated using standard design current density limits: for a fully enclosed cabinet without forced air directly over the busbar, current density J is limited to 2.5 A/mm².

Required cross-sectional area: A = I / J = 250 A / 2.5 A/mm² = 100 mm². Selecting a copper busbar profile of 25 mm width by 4.0 mm thickness yields exactly 100 mm².

The resistance R for a 0.15 m inter-cell link at an operating temperature of 70 °C is derived using the temperature coefficient of copper (α = 0.00393 /°C):

Resistivity at 70 °C: ρ₇₀ = 1.724 × 10^-8 × [1 + 0.00393 × (70 - 20)] = 2.062 × 10^-8 Ω·m.

Total link resistance: R = ρ × (L / A) = (2.062 × 10^-8 Ω·m × 0.15 m) / (100 × 10^-6 m²) = 3.093 × 10^-5 Ω (30.93 µΩ).

The power loss per inter-cell connection at continuous full load: P = I² × R = (250)² × (3.093 × 10^-5) = 1.933 W. Across a 16-cell series string (15 interconnects), total busbar thermal dissipation equals 29 W, an essential input value when sizing the module's active cooling circuit or pairing with lithium BMS architecture to monitor cell-top temperature distributions.

Evaluating Custom Battery Suppliers for Industrial Projects

Auditing custom battery suppliers requires verifying their manufacturing repeatability, non-destructive testing infrastructure, and quality control systems rather than relying solely on commercial catalog ratings. A component supplier must prove high-volume process capability (Cpk > 1.33) on automated terminal weld depths, surface co-planarity, and insulation resistance.

Procurement teams and engineering leads should apply a rigorous supplier qualification workflow:

1. Traceability Verification: Confirm raw material certification for every heat of copper, aluminium, and structural resin, confirming conformity to ASTM, GB, or EN standards.
2. Laser and Ultrasonic Weld Validation: Inspect the supplier's cross-sectional metallographic examination records to check weld penetration, intermetallic compound formation, and absence of micro-voids at the cell terminal interface.
3. Dielectric Hipot Testing: Ensure the factory conducts production-line AC/DC hipot testing on all structural sub-assemblies (typically 2 × nominal pack voltage + 1000 V for 60 seconds per UL 1973).
4. Thermal Runaway Containment Testing: Require empirical test evidence demonstrating that inter-cell propagation barriers prevent adjacent cell ignitions under IEC 62619 clause 7.3.3.
5. Packaging and Transport Compliance: Audit the supplier's packaging methods to ensure sub-assemblies and cells conform strictly to UN 38.3 vibration, shock, and altitude simulation criteria.

Incoming Quality Control Checklist for Battery Components

Incoming quality control (IQC) prevents defective battery pack supplies from reaching automated assembly lines where rectification costs increase by orders of magnitude. The following specification checklist should be incorporated directly into commercial procurement contracts and receiving protocols:

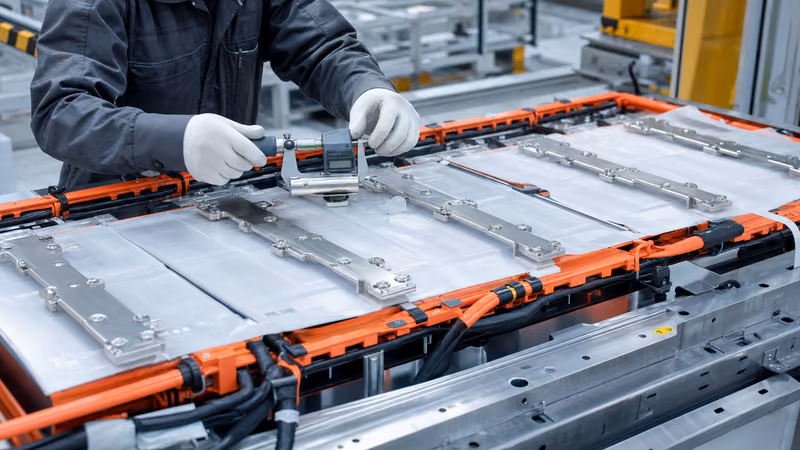

• Dimensional Metrology: Verify busbar hole centres, terminal flatness (< 0.05 mm across the mating surface), and bracket thickness using coordinate measuring machines (CMM).
• Plating Thickness Verification: Perform X-ray fluorescence (XRF) testing on nickel-plated copper busbars to confirm coating thickness falls within 5 µm to 8 µm; thinner plating promotes oxidation, while thicker layers induce micro-cracking during bending.
• Surface Cleanliness: Conduct dyne pen testing or optical inspection to ensure zero organic lubricant, oil, or particulate contamination on surfaces prepared for laser welding.
• Contact Resistance Profiling: Use a calibrated 4-wire micro-ohmmeter to verify that inter-cell jumpers and fuse holders show zero outliers compared to nominal lot medians.
• Flame Retardancy Verification: Check UL 94 V-0 yellow card certification documentation for all plastic injection-moulded pack trays, cell spacers, and harness conduits.

Next steps: specifying and sourcing

Specifying high-reliability battery pack supplies requires an aligned schedule of requirements encompassing operating voltage profiles, continuous and short-circuit current ratings, mechanical envelope constraints, and target safety certifications. Providing detailed electrical single-line diagrams, pack layout dimensions, and thermal operating boundaries allows factory engineering teams to optimise busbar profiles, insulation barriers, and BMS integration.

Review our factory-engineered commercial energy storage systems and specialised liquid-cooled energy storage containers to evaluate production-standard battery modules and integration architectures. Submit your mechanical constraints, single-line diagrams, and bill-of-materials requirements to our engineering team via the quote request page or contact our technical office through our contact page to receive a comprehensive technical proposal and component specification review.
