Key takeaways
- Grid intertie solar electric systems convert direct-current generation into grid-synchronised alternating current while depending on utility reference voltage to maintain operational stability.
- Integrating a battery energy storage system requires an automatic transfer switch or isolation contactor to prevent backfeeding during islanding events under IEEE 1547-2018 Clause 8.
- Inverter loading ratio (ILR) calculations between 1.20 and 1.30 balance clipping losses against levelised cost of energy in commercial installations.
- Busbar interconnection sizing follows the 120% rule under NEC 705.12, limiting solar backfeed breakers to protect switchboard conductors from thermal overloads.
- Factory-integrated power conversion systems with bidirectional inverters allow existing grid-tied arrays to supply critical facility loads without system redesign.
Quick answer: A grid intertie solar electric system generates electricity using photovoltaic panels and feeds alternating current directly into an active utility network without mandatory local energy storage. When solar output exceeds local site demand, surplus power exports to the grid; when demand surpasses array generation, the installation draws supplemental utility power instantly.
Industrial and commercial facilities select grid intertie solar electric systems to offset retail electricity tariffs and minimise operational carbon intensity. By omitting large electrochemical storage arrays in basic layouts, commercial developers achieve rapid payback schedules and high capital efficiency. However, utility interconnection rules impose rigid technical barriers, requiring precise frequency synchronisation, voltage regulation, and rapid anti-islanding disconnection whenever the grid drops offline.
As commercial plants deploy higher PV penetration rates, engineering teams increasingly transition basic grid tie architecture into flexible hybrid platforms. Coupling distributed generation with a dedicated battery storage engineering framework resolves modern utility curtailment mandates and provides continuous backup power for critical plant operations.

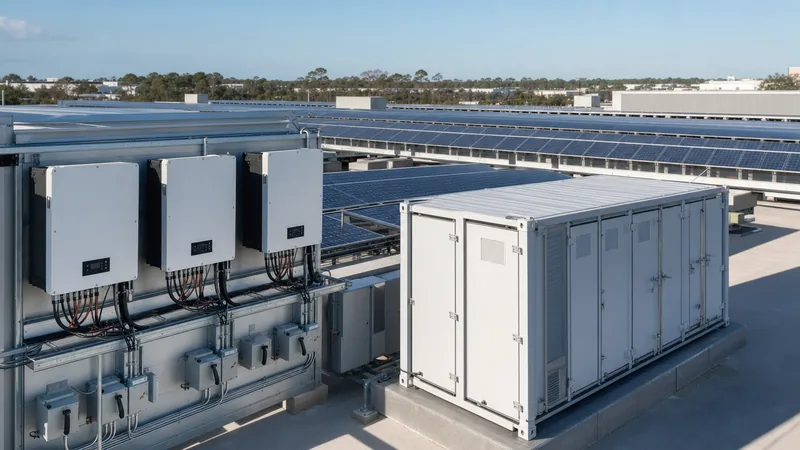

System Architecture: How a Grid Tie Solar System Operates
A grid tie solar system operates by synchronising its alternating current output voltage, frequency, and phase angle directly with the local electrical distribution network. Photovoltaic strings convert solar irradiance into high-voltage direct current (DC), typically operating between 600 VDC and 1500 VDC to minimise conductor resistive losses across long feeder runs.
The central or string inverter acts as the operational core of any grid connected solar power system. Using high-speed insulated-gate bipolar transistors (IGBTs) and maximum power point tracking (MPPT) algorithms, the inverter converts variable DC into clean sinusoidal AC power at nominal system voltage (such as 400 V three-phase or 480 V three-phase). Under normal operation, this generation serves behind-the-meter industrial electrical loads in parallel with the utility feed.
Whenever the distribution grid experiences a blackout or voltage dip beyond statutory limits, safety regulations require the inverter to execute an anti-islanding trip within 2.0 seconds in accordance with IEC 62116 Clause 4.2. Without a local reference waveform or an intelligent microgrid controller, a standard grid connected solar system immediately de-energises its output terminals to protect line workers from hazardous backfeed.
Grid Tie Solar System with Battery Backup: AC vs DC Coupling
A grid tie solar system with battery backup prevents complete facility shutdown during grid failures by establishing an isolated microgrid boundary. Adding secondary electrochemical storage allows operators to capture midday solar generation that utilities would otherwise curtail or export at depressed feed-in tariffs, while reserving reserve capacity for emergency islanding.
Engineers implement energy storage integration through two primary electrical typologies:
- DC-Coupled Architecture: Photovoltaic strings connect directly to a shared DC bus via MPPT charge controllers, routing power into a central battery bank. A bidirectional power conversion system (PCS) converts stored energy to AC for the facility switchgear. This delivers round-trip efficiencies between 88% and 92% for battery charging, as generation bypasses intermediate DC-AC-DC conversion cycles.
- AC-Coupled Architecture: The photovoltaic array operates with standard grid-tied PV inverters connected to the primary AC switchboard. A separate, bidirectional storage inverter manages a containerised energy storage system on the same bus. This design offers modularity for retrofitting operational PV arrays without rewiring DC combiner boxes or modifying original inverter warranties.
For installations requiring seamless transfer during unexpected line interruptions, an external automatic transfer switch (ATS) mechanically disconnects the site from the utility feeder within 16 to 100 milliseconds, allowing the hybrid system to form a reference voltage using grid-forming inverter controls.
Engineering Sizing: Worked Example for Commercial Grid Intertie Systems
Sizing calculations for a commercial grid tie system must balance the array peak capacity against downstream busbar ampacity and point of common coupling (PCC) thermal constraints. Below is a real-world sizing scenario for an industrial facility with a 400 V, 50 Hz three-phase supply fed by an 800 A main switchboard.
Step 1: PV Array and Inverter Sizing
An engineer specifies an inverter loading ratio (ILR) of 1.25 to compensate for high-temperature module de-rating and non-optimal irradiance conditions. For a selected nominal AC output of 200 kW:
$$\text{Array Capacity (DC)} = 200\text{ kW} \times 1.25 = 250\text{ kWp}$$
Step 2: Continuous Output Current Calculation
Determine the maximum continuous AC backfeed current ($I_{AC}$) supplied by the inverter to size distribution breakers correctly:
$$I_{AC} = \frac{P_{AC}}{\sqrt{3} \times V_{LL}} = \frac{200,000\text{ W}}{\sqrt{3} \times 400\text{ V}} = 288.7\text{ A}$$
Step 3: Busbar Ampacity Verification (NEC 705.12 120% Rule)
Under NEC 705.12(B), when a backfeed circuit breaker locates at the opposite end of the busbar from the utility main breaker, the combined breaker ratings must not exceed 120% of the busbar ampacity rating:
- Busbar Rating ($I_{bus}$): 800 A
- Main Overcurrent Protective Device ($I_{main}$): 600 A
- Maximum Permissible Combined Input: $800\text{ A} \times 1.20 = 960\text{ A}$
- Maximum Inverter OCPD: $960\text{ A} - 600\text{ A} = 360\text{ A}$
Applying the standard continuous load safety factor of 125% to the inverter output current yields $288.7\text{ A} \times 1.25 = 360.8\text{ A}$. Because 360.8 A slightly exceeds the calculated 360 A threshold, installing this 200 kW inverter directly via a feeder breaker violates the 120% rule. The engineer must either upsize the main switchboard busbar to 1000 A, reduce inverter AC output to 180 kW, or tap the supply side ahead of the main service disconnect switch.
Interconnection Standards: IEEE 1547 and IEC Compliance Rules
Interconnection standards govern how grid intertie solar electric systems respond to abnormal utility conditions, ensuring worker safety and preventing local grid destabilisation. Utility interconnection engineers assess projects strictly against IEEE 1547-2018 (North America) or IEC 61727 and IEC 62116 (international markets) before issuing an authorisation to parallel.
IEEE 1547-2018 introduces mandatory grid-support requirements, categorising distributed energy resources by their disturbance ride-through capabilities. Inverters must now supply or absorb reactive power within an operational power factor envelope of 0.90 leading to 0.90 lagging, complying with volt-var and frequency-watt autonomous control curves.
| Condition / Standard | Mandatory Trip Setting | Clearing Time Threshold | Operational Requirement |
|---|---|---|---|
| Under-Voltage (IEEE 1547-2018 Table 11) | V < 0.50 p.u. | 0.16 seconds | Cease to energise and trip |
| Under-Voltage Ride-Through (Cat II) | 0.70 ≤ V ≤ 0.88 p.u. | 10.0 to 20.0 seconds | Mandatory continuous operation |
| Over-Voltage (IEEE 1547-2018 Table 11) | V > 1.20 p.u. | 0.16 seconds | Cease to energise and trip |
| Over-Frequency (IEC 61727 / IEEE) | f > 51.5 Hz (or 61.2 Hz) | 0.16 seconds | Automatic power curtailment or trip |
| Loss of Mains (IEC 62116 Clause 4) | Disconnection of utility grid | ≤ 2.0 seconds | Anti-islanding passive/active trip |
To safely merge high-capacity solar with utility infrastructure, industrial installations often route output through dedicated step-up MV units. Siting and synchronising these arrays requires comprehensive analysis, as detailed in our guide on grid integration of renewable energy sources.
Grid Tie Solar Installation: Key Commissioning and Protection Steps
A grid tie solar installation requires strict sequence testing prior to final parallel operation to prevent catastrophic phase mismatch or switchgear flashover. EPC contractors must carry out methodical verification procedures on site before requesting the final utility witness test.
- DC String Open-Circuit and Polarity Verification: Measure open-circuit voltage ($V_{oc}$) across every string using a calibrated 1500 V multimeter. Verify polarity and ensure the measured voltage across all parallel strings in a combiner box matches within a ±1.0% tolerance window.
- Insulation Resistance Testing: Conduct an insulation resistance megohmmeter test between active DC conductors and mechanical earth at 1000 VDC. The minimum measured insulation resistance must exceed 1.0 MΩ in accordance with IEC 62446-1 Clause 6.2.
- AC Phase Rotation and Voltage Matching: Measure AC line-to-line and line-to-neutral voltages at the inverter output breaker before closing. Confirm phase rotation (the standard three-phase sequence) precisely synchronises with the utility supply sequence at the main distribution panel.
- Anti-Islanding Functional Test: Energise the inverter to steady-state output. Open the upstream utility supply breaker while monitoring inverter behaviour. The internal protection relay must de-energise output terminals within 2.0 seconds without creating an unsynchronised reclosure.
- Export Curtailment and Revenue Meter Check: Verify that current transformers (CTs) installed at the PCC report correct directional power flow to the energy management system (EMS), confirming zero-export or ramp-rate throttling controls operate reliably.
For projects incorporating secondary chemical storage, follow specific procedures documented in our solar battery installation guide to verify DC interlock signals and gas detection cutouts.
Equipment Comparison: Commercial Inverters vs Hybrid Systems
Selecting equipment for a grid tied solar power system depends on plant uptime requirements, daytime load consistency, and utility net metering regulations. While a pure grid tie kit provides the lowest initial equipment outlay, hybrid systems protect against severe lost-production costs caused by rolling brownouts.
| System Configuration | Primary Inverter Topology | Capital Outlay ($/kW AC) | Grid Failure Operation | Ideal Application |
|---|---|---|---|---|
| Central Grid-Tied | Central string inverters (100–250 kW units) | Lowest ($0.12 – $0.18/W) | Complete shutdown (anti-islanding trip) | Large open-roof manufacturing facilities with stable daytime load profile |
| Decentralised Micro-Inverter | Module-level micro-inverters (300–500 W) | Moderate ($0.25 – $0.35/W) | Complete shutdown (anti-islanding trip) | Complex commercial roofs with multi-plane azimuths and partial shading |
| AC-Coupled Storage Hybrid | Standard PV inverters + separate bidirectional PCS | High ($0.55 – $0.85/W incl. storage) | Supplies critical loads via islanded microgrid | Existing grid-tied facilities facing utility export limits or demand charges |
| DC-Coupled All-in-One Hybrid | Multi-port hybrid inverter with internal ATS | Moderate-High ($0.45 – $0.70/W) | Zero-transfer microgrid capability | New construction commercial sites needing uninterruptible power and peak shaving |
To evaluate the long-term economic returns of coupling backup batteries into these systems, consult our detailed analysis on commercial battery storage costs.
Next steps: specifying and sourcing
When specifying equipment for commercial grid intertie solar electric systems, provide comprehensive site electrical data to ensure seamless utility compliance. Prepare your point of common coupling voltage, single-line diagrams, main switchboard busbar ampacity, peak load curves, and local utility ride-through requirements. Our engineering team assists developers and contractors in matching inverters, protective relays, and switchboards to specific distribution codes. Explore our factory-engineered energy storage systems, custom transformer substations, and utility-scale liquid-cooled ESS containers. Submit your single-line diagram and tender documents through our request a quote page to receive a comprehensive technical proposal.
Frequently asked questions
What happens to a grid tie solar system during a power outage?
A standard grid tie solar system automatically shuts down within two seconds during a power outage to prevent hazardous backfeed onto utility lines. It will not power your facility unless it is paired with an automatic transfer switch and a battery energy storage system capable of establishing a self-referencing microgrid.
Can I install a grid tie solar system with battery backup later?
Yes, you can add battery backup to an existing grid-tied solar array at any time by installing an AC-coupled storage system. This method adds a separate bidirectional power conversion system and battery bank directly to your facility AC distribution panel without requiring you to replace your operational grid-tie inverters.
What is the 120 percent rule for solar interconnection?
The 120 percent rule under NEC 705.12 specifies that the sum of the primary utility breaker rating and 125 percent of the solar inverter continuous output current cannot exceed 120 percent of the electrical panel busbar ampacity rating. This prevents localized busbar heating when both the utility grid and solar array inject power concurrently.
What is the difference between grid tie and off-grid solar systems?
A grid-tie solar system operates directly in parallel with the utility network, using the grid as a virtual battery by exporting excess power and importing supplemental energy as required. An off-grid solar system functions completely independently of the utility, requiring an oversized battery bank and backup generator to sustain facility loads continuously.
Do grid intertie solar electric systems require net metering?
Grid intertie solar electric systems do not strictly require net metering, but without an export billing agreement, surplus solar energy fed back into the grid receives zero compensation. In jurisdictions without net metering, engineers deploy zero-export controllers that dynamically throttle inverter output to match instantaneous site demand.
