Substation Automation: Architecture, Protocols & Design Guide

Quick answer: A substation automation system integrates microprocessor-based intelligent electronic devices (IEDs), network communications, and supervisory software to monitor, protect, and automatically operate medium- and high-voltage electrical substations. By replacing legacy point-to-point hardwiring with standardised digital buses such as IEC 61850, it delivers autonomous protection tripping, rapid fault diagnosis, and real-time utility coordination.

Traditional electrical substations relied on hundreds of multi-core copper control cables linking primary equipment—such as instrument transformers, circuit breakers, and disconnector switches—to electromechanical relays and mosaic mimic panels. This approach carried high installation costs, long commissioning timelines, and minimal real-time operational visibility. Modern utility and industrial infrastructure demands intelligent, resilient power distribution. Implementing contemporary medium-voltage switchgear and digital protection equipment eliminates these failure modes through centralised intelligence and distributed control.

Whether upgrading a regional grid switching yard or engineering a turnkey point of interconnection for a commercial utility plant, choosing the right digital architecture is critical. This engineering guide details the core physical and network levels, examines protocols like IEC 61850 and DNP3, models data latency budgets, and presents an actionable procurement and site acceptance specification.

Core Architecture of a Modern Substation Automation System

A modern substation automation system is structured into three hierarchical operational levels: the station level, the bay level, and the process level. This layered design segregates mission-critical high-speed protective operations from supervisory data gathering and enterprise communications.

At the process level, physical switchgear interfaces directly with digital acquisition equipment. Traditional current transformers (CTs) and voltage transformers (VTs), or modern non-conventional instrument transformers (NCITs), connect to merging units (MUs). These MUs convert continuous analogue waveforms into digitised Sampled Values (SV) packets in real time. Switchgear auxiliary contacts, trip coils, and motor drives link to input/output (I/O) binary interface units, shifting the digital-to-analogue boundary into the switchyard.

At the bay level, intelligent electronic devices (protective relays, bay controllers, and automated transformer tap-changer controls) ingest these digitised streams. The bay-level IEDs execute internal protection algorithms (such as IEEE 50/51 overcurrent or 87 differential protection) and issue autonomous trip signals over the process bus without requiring station-level intervention.

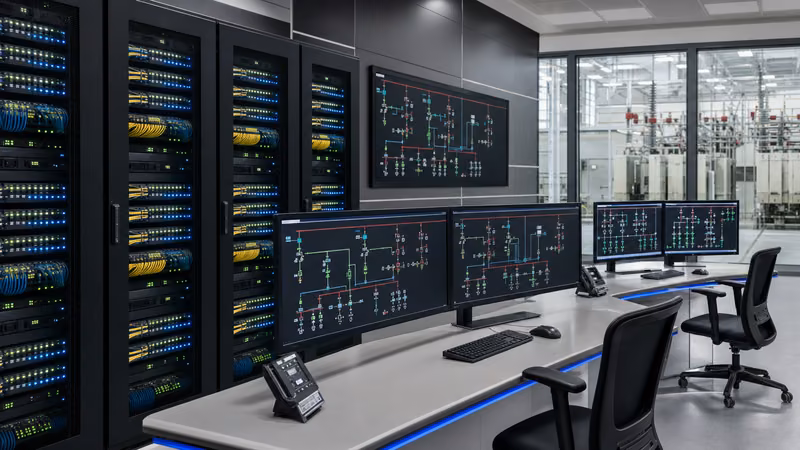

At the station level, local Human-Machine Interface (HMI) servers, communication gateways, historical databases, and engineering workstations reside within the substation control house. The station gateway aggregates bay-level metrics, translates internal substation protocols into utility-dispatch protocols, and maintains secure boundary firewalls.

Substation SCADA vs Substation Control: Functional Differences

Substation SCADA provides operators with visual telemetry and supervisory manual control, whereas automated substation control performs millisecond-level, autonomous logic and interlocking locally without human dispatch.

Engineers often conflate substation scada with an automated system, but their operational roles and execution speeds differ. A scada system in substation environments primarily performs data acquisition (voltage, current, active power, transformer oil temperature) and relays low-speed remote switching commands from a remote dispatch centre. In contrast, local substation control systems enforce safety interlocks (such as preventing disconnector operation under load according to IEC 62271-102), perform automatic bus transfer schemes during upstream line failure, and shed loads when voltage decays.

Communication Protocols: IEC 61850, DNP3, and IEC 60870-5-104

The choice of communication protocol dictates data determinism, vendor interoperability, and latency performance within an automated electrical substation.

The modern engineering benchmark is IEC 61850. Unlike legacy polling protocols, IEC 61850 defines an object-oriented data model alongside specialised messaging services:

• GOOSE (Generic Object Oriented Substation Events): Operates directly on the Ethernet data-link layer (OSI Layer 2) bypassing TCP/IP headers. Standardised by IEC 61850-8-1, GOOSE delivers high-speed trip and interlock messages between IEDs in under 3 ms, satisfying Type 1A high-speed performance requirements.
• Sampled Values (SV): Standardised under IEC 61850-9-2 and IEC 61869-9, SV broadcasts uncompressed, digitised analogue measurements directly across the optical process bus.
• MMS (Manufacturing Message Specification): Operates on OSI Layer 7 (TCP/IP) for vertical communication between bay IEDs and the station-level SCADA client for event logging, parameter configuration, and waveform file transfers.

For horizontal inter-substation and SCADA dispatch links, utilities employ DNP3 (Distributed Network Protocol) over TCP/IP or serial channels, widespread in North America, and IEC 60870-5-104, standard across Europe and Asia. When legacy serial IEDs (using Modbus RTU or IEC 60870-5-103) coexist within a refurbished unit substation, protocol converters or multi-protocol communication gateways map legacy registers to standardised IEC 61850 logical nodes.

Substation Automation Solutions for Renewable Energy Integration

Substation automation solutions for utility-scale solar, wind, and battery energy storage systems (BESS) regulate high-voltage grid stability by managing bi-directional power flows, rapid voltage fluctuations, and strict grid-code compliance.

Renewable power plants introduce extreme generation variability to electrical substations. At the Point of Common Coupling (PCC), an automated plant controller (Power Plant Controller or PPC) coordinates directly with the primary automation system to govern dynamic reactive power injection (Volt-VAr control) and curtail active power within milliseconds. This integration is essential for meeting grid connection criteria such as continuous Fault Ride-Through (FRT) under IEEE 2800 or ENTSO-E requirements.

Modern renewable collector substations link utility-grade transformers and containerised storage installations directly into the station bus. When deploying advanced battery storage, the automation gateway links the Battery Management System (BMS) and Power Conversion System (PCS) directly to the bay-level controllers. You can review detailed system sizing parameters in our engineering analysis of grid integration of renewable energy sources.

Engineering Calculation: Process Bus Bandwidth and Latency Budgets

Designing an optical process bus requires verifying that network traffic does not exceed Ethernet switch processing capacity, which would induce packet drops and invalidate deterministic protective tripping.

Consider an automated bay with two Merging Units transmitting Sampled Values according to IEC 61869-9 (formerly IEC 61850-9-2LE) alongside active GOOSE supervisory traffic on a switched Ethernet network.

Step 1: Calculate Sampled Values (SV) Data Generation Rate

For a 50 Hz power system, the standard sampling rate is 80 samples per nominal cycle:

• Sampling Frequency: fs = 50 Hz × 80 samples/cycle = 4,000 samples/second
• SV Packet Size: An IEC 61850-9-2LE frame containing 4 currents (Ia, Ib, Ic, In) and 4 voltages (Va, Vb, Vc, Vn) plus status flags, timestamp, and Ethernet overhead equals approximately 128 bytes (1,024 bits).
• Bandwidth per MU: Bitrate = 4,000 packets/s × 1,024 bits = 4.096 Mbps
• For 2 MUs: Total SV Bandwidth = 2 × 4.096 Mbps = 8.192 Mbps

Step 2: Account for Bursts and Background Traffic

During a network fault, repeated GOOSE retransmissions burst across the bay network, generating transient loads up to 2.5 Mbps. MMS background reporting and network management (SNMP, PTP time synchronization under IEEE 1588) introduce a continuous 1.5 Mbps stream:

• Total Peak Bay Bandwidth: 8.192 Mbps (SV) + 2.5 Mbps (GOOSE) + 1.5 Mbps (MMS/PTP) = 12.192 Mbps

Step 3: Network Topology and Switch Selection

On a 100 Mbps fast Ethernet process bus switch, a 12.192 Mbps load corresponds to a 12.2% link utilisation rate. While 12.2% appears safe, process bus standards dictate that no switch port exceed 40% steady-state utilisation to prevent queuing jitter. When consolidating 8 bays into a central station switch, total aggregated bandwidth reaches:

• 8 bays × 12.192 Mbps = 97.536 Mbps

This calculated load exceeds the safe threshold for 100 Mbps links. Consequently, modern electrical substation automation specifications must enforce 1 Gbps (1000BASE-LX/SX) backbones using managed Ethernet switches supporting IEEE 802.1Q Priority Tagging (assigning VLAN priority 7 to SV and priority 6 to GOOSE) and zero-packet-loss redundancy via Parallel Redundancy Protocol (PRP) according to IEC 62439-3 Clause 4.

Commissioning and Testing Procedures for Substation Automation Products

Commissioning digital substation automation products requires rigorous systematic validation of optical networks, logical node mappings, and fault response times prior to switchyard energisation.

1. SCD File Validation and Engineering Configuration: Import the Substation Configuration Description (SCD) file—defined under IEC 61850-6—into the vendor-agnostic system engineering tool. Verify that all IED names, IP subnets, GOOSE control blocks, and SV publishing parameters match the single-line diagram and protection philosophy.
2. Network Physical Layer and Optical Budget Testing: Verify optical fibre integrity across all bay-to-station runs using an Optical Time-Domain Reflectometer (OTDR). Confirm that attenuation levels remain within the optical power budget (typically < 3.0 dB total loss per channel for 1310 nm multi-mode or single-mode links).
3. PTP Time Synchronisation Verification: Connect a master clock receiver (GNSS-disciplined) implementing IEEE 1588-2008 / IEC/IEEE 61850-9-3 Power Utility Profile. Confirm across every bay IED that time synchronization accuracy remains within ±1 microsecond, ensuring accurate sequence-of-events recording.
4. Virtual Commissioning and Packet Sniffing: Inject simulated digital SV streams and initiate simulated faults via test sets. Use dedicated network protocol analysers to sniff GOOSE packets, measuring round-trip propagation times from breaker open initiation to trip coil input to verify compliance with the < 3 ms limit.
5. End-to-End Functional Injection and Interlock Checks: Verify that software-defined interlocking schemes correctly prohibit illegal switching combinations (e.g., grounding switch closure while busbar disconnectors remain closed). Validate automated busbar changeovers, automatic load shedding, and circuit breaker trip circuit supervision alarms.

Specification Checklist for Substation Automation Procurement

A precise engineering specification prevents costly site modifications and protocol integration disputes during commissioning.

Next steps: specifying and sourcing

When preparing an RFQ for turnkey prefabricated transformer substations or automated switchgear packages, supplying accurate engineering documentation ensures an optimised design and competitive quote. Provide our engineering team with your project's Single-Line Diagram (SLD), functional protection philosophy, I/O point lists, preferred communication media (single-mode vs multi-mode fibre), and upstream grid interconnection requirements.
