Key takeaways
- An industrial power bank scales from 100 kWh cabinets to multi-megawatt-hour containerised installations to supply factory peak shaving, power quality support, and uninterruptible backup.
- Lithium iron phosphate (LFP) chemistry delivers 6,000 to 8,000 cycles at 80% depth of discharge with superior thermal stability compared to nickel-based chemistries.
- High-voltage DC bus architectures (1,000 V to 1,500 V DC) reduce cable cross-sections and I²R conduction losses compared to legacy 48 V and 400 V low-voltage arrangements.
- Accurate capacity sizing must factor in depth of discharge, power conversion system conversion losses, and a 20% end-of-life battery degradation allowance.
- Compliance with IEC 62619, UL 9540A, and NFPA 855 mandates deflagration venting, aerosol fire suppression, and minimum 0.9-metre spacing between battery enclosures.

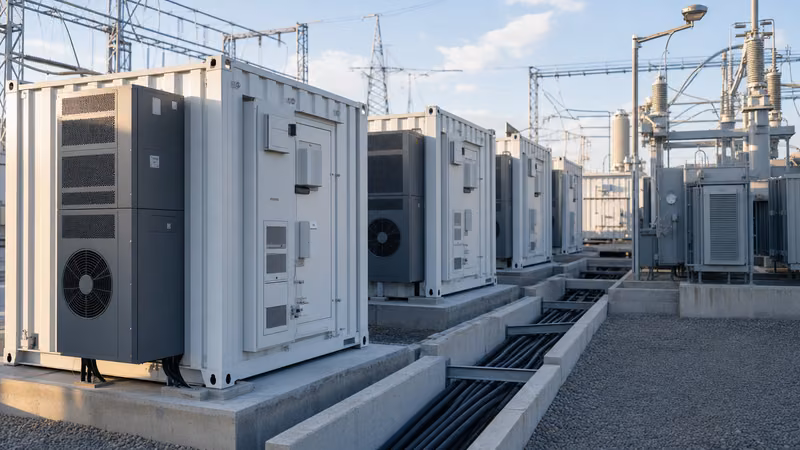

Quick answer: An industrial power bank is a high-capacity stationary battery energy storage system engineered to supply megawatt-scale power to manufacturing plants, data centres, and utilities for peak shaving, backup power, and grid synchronisation.
Industrial plants face volatile electricity tariffs, strict maximum-demand penalties, and severe downtime costs when grid instability strikes. A factory-grade power storage installation bridges these operational risks by decoupling energy consumption from immediate grid availability. Unlike consumer devices, these systems operate at voltages between 600 V and 1,500 V DC, integrate tightly with on-site medium-voltage infrastructure, and run automated dispatch strategies managed by supervisory software. Understanding how an industrial power bank is constructed, sized, and safely deployed allows plant engineers and EPC contractors to specify equipment that delivers reliable return on capital over a fifteen-year design life.
What Is an Industrial Power Bank Architecture?
An industrial power bank functions as an integrated electro-chemical generation and buffering asset comprising lithium-ion modules, structural enclosures, power electronics, and supervisory controls. Rather than a monolithic unit, the architecture is hierarchical to preserve redundancy and facilitate servicing.
At the foundation are individual cells bundled into industrial battery packs, which are connected in series to establish the target direct-current (DC) string voltage. Multiple strings connect in parallel via an internal DC busbar to deliver the total ampere-hour (Ah) energy rating. These battery strings connect directly to a bidirectional power conversion system (PCS) that switches between charging (rectification) and discharging (inversion) within 20 milliseconds upon command from the plant master controller.
Three discrete control layers monitor and regulate this hardware:
- Cell-Level BMS: Monitors voltage (millivolt accuracy) and temperature across individual cells, executing passive balancing to maintain state-of-charge (SOC) uniformity across the pack.
- Rack-Level BMS: Aggregates string-level data, actuates DC contactors, monitors insulation resistance, and provides overcurrent protection in compliance with IEC 60947-2.
- System-Level Energy Management System (EMS): Communicates with plant programmable logic controllers (PLCs) via Modbus TCP or IEC 61850 to execute peak shaving, power-factor correction, or emergency islanding protocols. Detailed system topologies are explored in our guide to battery bank industrial systems.
Industrial Battery Packs: Chemistries and Topologies
Industrial battery packs deployed in heavy commercial and grid-support environments rely almost exclusively on Lithium Iron Phosphate (LiFePO4 or LFP) prismatic cells due to their thermal stability and calendar life. While Nickel Manganese Cobalt (NMC) cells offer higher volumetric energy density, LFP displays a significantly higher thermal runaway onset temperature (approximately 270 °C compared to 150 °C for NMC), rendering it the preferred choice for indoor plant rooms and containerised installations under NFPA 855 guidelines. A detailed breakdown is available in our analysis of LFP vs NMC battery chemistry.
Prismatic aluminium-cased cells have largely superseded pouch and small cylindrical cells in megawatt-scale battery bank industrial assemblies. Prismatic designs provide superior mechanical rigidity under cyclic thermal expansion and allow laser-welded copper busbars to withstand vibration and severe short-circuit electromagnetic stresses (up to 50 kA peak let-through current). These packs are constructed to comply with IEC 62619 clause 6.3, which governs resistance to propagation of internal electrical faults, and UL 1973 for stationary energy storage safety.
Technical Comparison: Industrial Power Bank Configurations
Stationary industrial power systems are categorised by system voltage and cooling design. High-voltage liquid-cooled configurations have become the dominant specification for applications exceeding 500 kWh, replacing conventional low-voltage air-cooled architectures.
| Engineering Metric | Low-Voltage Air-Cooled (48 V - 400 V DC) | High-Voltage Air-Cooled (800 V - 1,000 V DC) | High-Voltage Liquid-Cooled (1,000 V - 1,500 V DC) |
|---|---|---|---|
| Volumetric Energy Density | 45 - 60 kWh/m² | 70 - 90 kWh/m² | 120 - 160 kWh/m² |
| Cell Temperature Variance (ΔT) | 5 °C to 8 °C across rack | 4 °C to 6 °C across rack | ≤ 2 °C across string |
| Round-Trip Efficiency (RTE) | 84% - 87% | 88% - 91% | 92% - 94% |
| DC Cabling Cross-Section | 400 mm² to 600 mm² copper | 150 mm² to 240 mm² copper | 95 mm² to 150 mm² copper |
| Auxiliary Power Overhead | 8% - 12% of stored energy | 6% - 9% of stored energy | 3% - 5% of stored energy |
| Cycle Life to 80% SOH (0.5C/0.5C) | 3,500 - 4,500 cycles | 5,000 - 6,000 cycles | 7,000 - 8,000 cycles |
| Target Applications | Telecoms, small UPS (<100 kW) | Commercial buildings (100 - 500 kW) | Heavy manufacturing, utilities (>1 MW) |
As indicated in the data, stepping from low voltage to a 1,500 V DC liquid-cooled platform cuts auxiliary HVAC parasitic draw by more than half while mitigating cable-run losses by over 60%, delivering substantial operational expenditure reductions over multi-year duty cycles.
Sizing Calculation for an Industrial Power Bank
Calculating the gross capacity required for an industrial power bank requires applying derating factors for depth of discharge, power electronics efficiency, and end-of-life battery degradation to the net load profile. Sizing a system strictly to match the nameplate load will cause early capacity shortfalls.
Consider an engineering plant that requires 1,200 kW of continuous shaving capacity across a 2.0-hour peak tariff window each working afternoon. The nominal calculation proceeds as follows:
- Calculate Net Energy Demand ($E_{net}$):
$$E_{net} = P_{load} \times t = 1,200\text{ kW} \times 2.0\text{ h} = 2,400\text{ kWh}$$ - Incorporate Inverter/PCS Operating Efficiency ($\eta_{PCS}$):
Assuming a high-efficiency transformerless PCS running at $\eta_{PCS} = 0.965$ (96.5%):
$$E_{DC1} = \frac{E_{net}}{\eta_{PCS}} = \frac{2,400\text{ kWh}}{0.965} = 2,487.0\text{ kWh}$$ - Apply Usable Depth of Discharge ($DoD$):
To maintain an 8,000-cycle life, LFP packs are governed to a maximum $DoD$ of 90% (0.90), leaving a 10% reserve to prevent cell undervoltage:
$$E_{DC2} = \frac{E_{DC1}}{DoD} = \frac{2,487.0\text{ kWh}}{0.90} = 2,763.3\text{ kWh}$$ - Account for End-of-Life (EOL) Degradation Margin ($SOH_{margin}$):
Lithium cells degrade as SEI (solid electrolyte interphase) layers develop over time. If the asset must deliver this 2.0-hour output at year 10 when state-of-health (SOH) drops to 80% (0.80 factor):
$$E_{gross} = \frac{E_{DC2}}{SOH_{EOL}} = \frac{2,763.3\text{ kWh}}{0.80} = 3,454.1\text{ kWh}$$
Therefore, specifying engineers must procure a nominal 3.45 MWh system (standardised as a 3.44 MWh to 3.72 MWh 20-foot liquid-cooled containerised enclosure) to guarantee 1.2 MW output for 2.0 hours throughout a ten-year operational span.
Thermal Management and Safety Compliance
Thermal management determines the operating lifespan and fire safety envelope of an industrial power bank installation. Because internal cell degradation accelerates exponentially above 35 °C according to the Arrhenius equation, maintaining uniform cell temperatures is vital for preventing premature string imbalance.
Liquid cooling plates utilising a 50/50 water-glycol coolant loop circulate directly beneath or between the industrial battery packs. This direct-contact method achieves a heat transfer coefficient up to twenty times higher than forced-air systems, constraining cell-to-cell temperature gradients to within 2.0 °C across an entire 1.5 MWh string. Liquid circuits are thoroughly evaluated in our engineering review of battery cooling systems.
From a life-safety standpoint, industrial installations must satisfy NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and UL 9540A large-scale fire testing. Modern installations incorporate multi-tier containment hardware:
- Continuous hydrogen (H₂), carbon monoxide (CO), and volatile off-gas sniffer sensors positioned at module exhausts to detect thermal runaway prior to open flame emergence.
- Aerosol or high-pressure water mist suppression networks linked to safety release dampeners.
- NFPA 68-compliant deflagration pressure-relief panels routed away from personnel access aisles to safely release explosive overpressure.
Commissioning Procedure for Battery Bank Industrial Assets
Commissioning an industrial power bank demands rigorous procedural discipline to verify electrical insulation, control communications, and thermal balance before the DC link connects to the energised plant grid.
- Mechanical and DC Isolation Verification: Verify torque markings across all copper busbar joints using a calibrated torque wrench. Confirm enclosure ingress protection ratings (IP55 or NEMA 3R minimum) and ensure DC disconnect switches are mechanically padlocked open.
- Insulation Resistance and Hipot Testing: Measure string isolation resistance to ground using a 1,000 V / 2,500 V DC insulation tester in accordance with IEC 62477-1. Insulation resistance must exceed 100 MΩ prior to contactor actuation.
- BMS and Sensor Loop Cold Commissioning: Energise auxiliary 24 V DC control supplies. Establish Modbus TCP/IP or CAN communication with each rack controller. Verify individual cell voltage balance; delta between the highest and lowest cell within any industrial battery pack must not exceed 20 mV at rest.
- Thermal Loop Pre-Fill and Pressure Testing: Circulate water-glycol coolant through the liquid chilling manifold for 24 hours at 1.5 times nominal operating pressure (typically 3.0 to 4.5 bar). Verify zero pressure drop across manifolds and check that automatic de-aeration valves have bled all trapped air pockets.
- Closed-Loop Inverter Synchronisation: Close AC circuit breakers and energise the PCS in voltage-control standby mode. Confirm phase angle synchronisation with the plant switchgear using an oscilloscope or sync-check relay before closing the main DC vacuum contactors.
- Full-Power Load Step Acceptance: Execute sequential charge and discharge step tests (25%, 50%, 75%, and 100% C-rate) while monitoring real-time thermal camera feeds to verify absence of localised hot-spots across terminations.
Next steps: specifying and sourcing
Selecting the optimal industrial power bank requires a comprehensive site electrical evaluation, including single-line diagrams, utility transformer ratings, available short-circuit currents, and measured 15-minute interval load profiles. To receive an exact system design and equipment proposal, submit your site duty cycle parameters, required backup duration, and thermal installation constraints to our engineering team. Explore our utility and industrial energy storage systems, examine high-density liquid-cooled ESS containers, or send your specific single-line diagrams directly through our custom engineering quotation portal.
Frequently asked questions
What is an industrial power bank?
An industrial power bank is a stationary, high-capacity battery energy storage system designed to store megawatt-hours of electricity for commercial facilities, industrial factories, and microgrids. It delivers critical services including peak demand shaving, frequency response, backup power, and renewable energy integration.
How does an industrial power bank differ from a commercial UPS?
An industrial power bank provides extended energy duration (typically 2 to 8 hours) for economic dispatch, demand charge reduction, and plant microgrid operation. In contrast, an uninterruptible power supply (UPS) is engineered to provide short-duration power (5 to 15 minutes) primarily to maintain critical electronics until backup diesel generators synchronise.
What battery chemistry is used in an industrial power bank?
Lithium Iron Phosphate (LFP) is the industry standard chemistry for stationary industrial power installations due to its exceptional cycle life (6,000 to 8,000 cycles) and high thermal runaway threshold (around 270 °C). It eliminates the combustion and thermal propagation hazards associated with older nickel-based chemistries.
How much physical space does an industrial power bank require?
Modern liquid-cooled industrial battery systems pack up to 3.72 MWh of capacity into a standard 20-foot ISO shipping container footprint (approximately 6.1 m long by 2.4 m wide). Under NFPA 855 fire rules, an additional perimeter clearance of 0.9 to 1.5 metres is required between individual containers and building walls.
How long will an industrial power bank last?
A high-quality industrial battery system operates for 12 to 15 years when cycled once or twice daily under controlled ambient temperatures. System longevity is governed by maintaining cell temperatures between 20 °C and 25 °C via liquid cooling and limiting regular depth of discharge to 90%.
Can an industrial power bank be charged from on-site solar?
Yes, industrial battery systems connect seamlessly to on-site solar photovoltaic arrays through either AC-coupled or DC-coupled power conversion architectures. The energy management system commands the battery to absorb excess midday solar generation and discharges the energy during peak tariff evening operational windows.
