LFP Battery Cells: Engineering Guide, Specs & Chemistry

Quick answer: LFP battery cells are lithium iron phosphate (LiFePO4) electrochemical cells featuring an olivine crystal structure that provides an intrinsically stable 3.2 V nominal platform. Widely deployed across commercial and utility-scale energy storage systems, these cells deliver high thermal stability, long cycle life (4,000 to 8,000+ cycles), and zero cobalt or nickel dependency.

In grid-scale energy storage, stationary microgrids, and industrial backup systems, selecting the appropriate cell technology dictates lifecycle operational expenditure, fire mitigation architecture, and balance-of-plant requirements. As detailed in our foundational LFP vs NMC battery guide, the industrial transition toward stationary storage has heavily favoured phosphate-based materials. Understanding the electrochemical properties, mechanical design constraints, electrical characteristics, and degradation mechanisms of the lfp battery cells architecture is essential for specifying engineers, EPC contractors, and system integrators configuring modern battery racks and containers.

Electrochemistry of the Lithium Iron Phosphate Battery Cell

A lithium iron phosphate battery cell operates on the reversible extraction and insertion of lithium ions within an ordered olivine-type LiFePO4 cathode and a graphitic carbon anode. The nominal cell voltage is 3.2 V per cell, with an exceptionally flat open-circuit voltage (OCV) profile across 20% to 80% State of Charge (SOC), maintaining between 3.25 V and 3.32 V at rest. This flat plateau presents high voltage stability during discharge, although it necessitates high-precision battery management system (BMS) voltage sensing channels with resolutions of 1 mV or better to track SOC drift.

The fundamental safety advantage of the chemistry stems from the covalent P-O bonds within the tetrahedral phosphate (PO4)3- polyanion network. These covalent bonds exhibit high dissociation energies, effectively locking oxygen atoms into the lattice under extreme mechanical, electrical, or thermal stress. Unlike layered transition-metal oxides found in nickel-based options explored in our NMC battery engineering guide, the cathode does not liberate gaseous oxygen at standard operating overtemperatures, dramatically reducing the risk of catastrophic self-sustaining fires.

Mechanical Form Factors: Prismatic vs Cylindrical LFP Cell Design

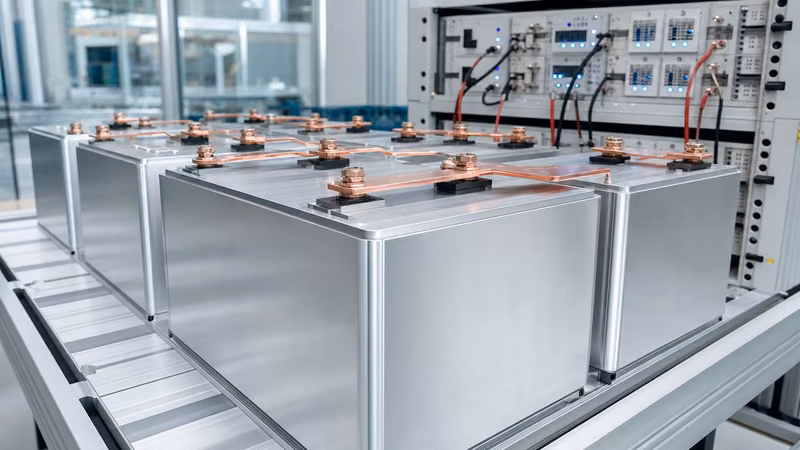

Prismatic packaging represents the dominant mechanical standard for commercial and industrial stationary storage, while cylindrical formats serve specialised high-power niches. A heavy-duty aluminum-cased lfp cell in the 280 Ah to 314 Ah prismatic configuration provides the volumetric packaging density and busbar integration efficiency demanded by multi-megawatt-hour installations.

Prismatic units incorporate layered or wound electrode assemblies enclosed in an aluminium alloy casing (typically 3003-series aluminium) with welded hermetic seals. A spring-loaded or laser-scored burst vent is engineered into the top terminal cover, calibrated to rupture predictably between 0.4 MPa and 0.8 MPa during internal overpressure events. This controlled gas release directs toxic or flammable vent gases into exhaust manifolds rather than causing casing rupture. Cylindrical cells (such as 26650 or 32140 variants) exhibit higher burst pressures and uniform radial heat dissipation, but their low individual capacity requires thousands of parallel connections, increasing failure points across interconnects and complicate module assembly.

Technical Specifications and Performance Metrics of Lifepo4 Lithium Cells

Standardising specifications across competitive bids requires a precise understanding of baseline electrical and thermal boundaries for modern lifepo4 lithium cells. Factory data sheets outline critical limits that must not be breached during steady-state or transient operation.

As demonstrated in the comparison table, modern prismatic formats maximise packaging efficiency for stationary storage enclosures, whereas smaller cylindrical units sacrifice energy density to achieve higher continuous discharge rates for dynamic grid support.

Thermal Behaviour and Safety Standards Compliance

Thermal runaway in life po battery technology occurs at significantly higher thresholds than in cobalt- or manganese-based chemistries. Accelerating rate calorimetry (ARC) tests confirm that self-heating in a fully charged LFP cathode begins around 210 °C to 230 °C, with uncontrollable exothermic runaway deferred until approximately 270 °C. By comparison, nickel-rich layered oxides commence self-heating at roughly 130 °C to 150 °C.

When an LFP cell enters thermal runaway under severe external heating or direct mechanical puncture, it produces an emissions envelope dominated by carbon dioxide, carbon monoxide, hydrogen, and vaporised organic carbonates, but with negligible free oxygen. Compliance with international safety benchmarks is mandatory for stationary energy storage:

• UL 9540A: Evaluates thermal runaway fire propagation at the cell, module, unit, and installation levels, establishing venting rates and gas compositions.
• IEC 62619 clause 7.3: Verifies industrial secondary lithium cell safety under forced internal short-circuit, overcharge, and propagation testing.
• UN 38.3: Governs transport safety, subjecting cells to altitude simulation, thermal cycling, vibration, shock, external short circuit, and impact.
• NFPA 855: Dictates structural clearance and maximum allowable quantities of energy storage systems based on module-level UL 9540A test data.

Proper integration requires active monitoring as documented in our battery monitoring system guide, alongside liquid cold-plate arrangements outlined in our battery cooling engineering guide to keep cell-to-cell thermal gradients under 3 °C.

Degradation Dynamics and Pre-load Compression Engineering

Degradation in a life po 4 battery stems from solid electrolyte interphase (SEI) growth, loss of active lithium inventory, and mechanical electrode strain caused by cyclic lithium intercalation. During charging, lithium de-intercalation causes an anisotropic volume change in the crystal structure, generating cyclic breathing forces inside the sealed aluminium enclosure.

To achieve the warranted 6,000 to 8,000 cycles, engineering modules must apply uniform mechanical compression across the broad faces of prismatic cells. Field data reveals that unconstrained cells suffer from delamination between the active material and the copper or aluminium current collectors, leading to localised current crowding, premature capacity fade, and micro-swelling. Structural battery racks incorporate rigid end-plates tightened with tension rods to apply a constant pre-load pressure of 3 kN to 7 kN (equivalent to 0.2 MPa to 0.4 MPa across the cell face). Elastic foam cushions or aerogel insulation sheets placed between adjacent cells absorb cyclic volumetric changes while suppressing heat transfer during localized hot spots.

Factory Acceptance Testing and Sourcing Lifepo4 Cells for Sale

Evaluating suppliers and wholesale lifepo4 cells for sale requires rigorous factory acceptance testing (FAT) to verify quality grouping before module fabrication. Cell inconsistencies lead to premature string degradation and balance-of-plant stress.

1. Visual and Dimensional Metrology: Laser-scanning cell thickness at three points under specified measuring force, verifying terminal planarity and housing weld integrity to tolerances within ±0.2 mm.
2. Open-Circuit Voltage and AC Internal Resistance Screening: Testing ACIR at 1 kHz and OCV after an extended thermal stabilisation rest (typically 14 to 28 days at 25 °C). Cells must be binned into ultra-tight categories (e.g., ΔOCV ≤ 2 mV, ΔACIR ≤ 0.05 mΩ) to minimize active balancing losses.
3. Capacity and Coulombic Efficiency Verification: Subjecting batch sample sizes (governed by ISO 2859-1 inspection levels) to standard charge-discharge cycles at 0.5C to confirm rated capacity exceeds nominal ratings at standard reference temperatures.
4. Helium Mass Spectrometry Leak Detection: Verifying hermetic seal and burst vent integrity with leak rates lower than 1.0 × 10⁻⁶ Pa·m³/s to avoid long-term electrolyte dry-out.
5. X-Ray Computed Tomography (CT) Inspection: Non-destructive scanning of electrode edge alignment (overhang check) to guarantee cathode-to-anode tab alignment and identify internal burrs capable of puncturing the separator.

Next steps: specifying and sourcing

Specifying high-reliability battery systems begins at the individual cell level. When submitting a request for quotation, engineering teams must supply the planned C-rate profiles, target continuous charge and discharge regimes, operational temperature envelopes, cycle life expectations, and mechanical compression boundaries. For complete integration requirements spanning modular racks up to utility-scale deployments, explore our integrated energy storage systems and specialised liquid-cooled ESS containers. For project-specific cell datasheets, thermal dissipation calculations, or turnkey system pricing, consult our application engineering division through our contact page or submit tender documents directly via our quotation portal.
