NMC Battery Engineering Guide: Chemistry, Safety & BESS Specs

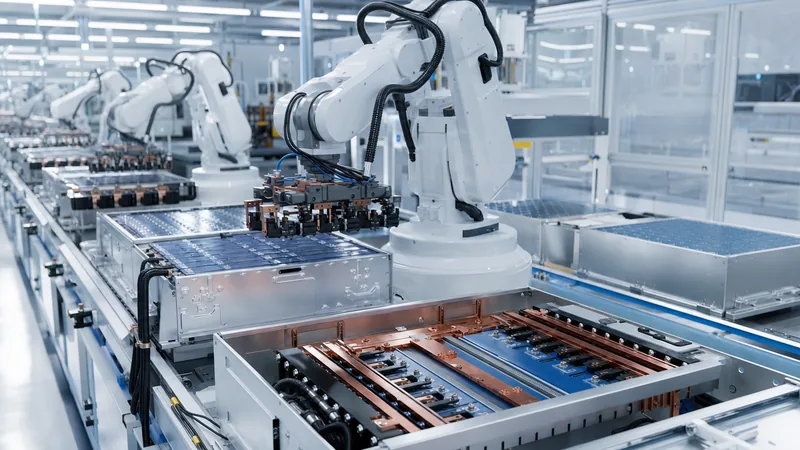

Quick answer: An nmc battery is a lithium-ion electrochemical energy storage cell featuring a cathode composed of nickel, manganese, and cobalt oxide (LiNixMnyCozO2). It delivers superior gravimetric energy density (up to 270 Wh/kg) and high cell nominal voltages (3.6 V to 3.7 V), making it the standard choice where spatial constraints and specific power outweigh cycling endurance.

As large-scale industrial projects expand, electrical engineers face critical decisions when matching battery chemistry to operational profiles. While electric mobility heavily exploits high nickel chemistries, stationary facility design requires evaluating gravimetric performance against lifetime degradation, HVAC auxiliary loads, and safety thresholds. Comparing real-world electrochemical profiles with broader facility benchmarks in our LFP vs NMC battery commercial BESS chemistry guide reveals how internal cell structure governs total project footprint, round-trip efficiency, and fire suppression protocols.

Electrochemical Operating Principles of the Li NMC Battery

The li nmc battery operates via the reversible intercalation of lithium ions between a layered transition metal oxide cathode and a graphitic carbon anode. During charge, lithium ions deintercalate from the octahedral sites within the Li(NixMnyCo1-x-y)O2 crystal lattice, transfer across an organic carbonate liquid electrolyte, and insert into the layered carbon anode. The nominal cell voltage sits at 3.65 V, operating across a standard working window of 2.8 V to 4.25 V per cell, as governed by IEC 62660-1 test guidelines.

In this ternary lithium nmc structure, each transition metal plays an unambiguous functional role:

• Nickel (Ni): Delivers elevated specific capacity by providing active redox couples (Ni2+/Ni3+ and Ni3+/Ni4+), directly driving higher gravimetric and volumetric energy density.
• Manganese (Mn): Remains electrochemically inactive in the Mn4+ state, stabilizing the structural octahedron against phase transformation during deep delithiation.
• Cobalt (Co): Reduces electronic resistance, prevents unwanted cation mixing between lithium and nickel sites in the crystal lattice, and supports superior discharge rate capabilities.

Engineers must distinguish the nmc cell architecture from traditional cobalt-only variants. The synergy of nickel and manganese suppresses raw cobalt dependency while elevating the overall structural integrity of the crystal matrix under rapid charge-discharge profiles.

Cathode Stoichiometry: Comparing NMC 111, 532, 622, and 811

Stoichiometric proportions of nickel, manganese, and cobalt directly govern energy yield, thermal durability, and cycling retention. Early generation NMC 111 (equal parts Ni, Mn, and Co) prioritized chemical balance, yielding lower specific capacity (roughly 150 mAh/g to 160 mAh/g at cathode material level). Modern industrial demands drove material science toward high-nickel variants, peaking in widespread commercial adoption of NMC 811.

The table below provides direct mechanical, electrochemical, and thermal benchmarks across standard nmc lithium ion battery chemistries:

As nickel content rises toward 80% (NMC 811), cathode oxygen bonds weaken at state-of-charge levels above 80%, lowering the critical temperature required to initiate exothermic self-heating. Balancing this trade-off requires stringent engineering of supervisory parameters within the battery monitoring system design to limit exposure to maximum voltage thresholds.

NMC Battery Safety: Thermal Runaway and Risk Mitigation

Understanding nmc battery safety requires analyzing the cascade mechanism of exothermic decomposition when cell temperatures surpass safe operating bands. An nmc battery experiences solid electrolyte interphase (SEI) layer breakdown between 90 °C and 120 °C, exposing bare lithiated graphite to organic solvents. As temperatures escalate, cathode breakdown releases lattice oxygen directly into the liquid electrolyte, accelerating an uncontrollable self-heating reaction known as thermal runaway.

Engineers evaluate whether a system is safe by assessing containment engineering rather than cell chemistry alone. To determine is nmc battery safe for enclosed stationary deployments, engineering standards establish rigid criteria:

• UL 9540A Cell and Unit Level Testing: Measures heat release rate (HRR), off-gas generation volumes, and the risk of cell-to-cell thermal propagation under severe overcharge or external heating.
• NFPA 855 Siting Clearance: Mandates minimum separation distances of 3 ft (0.91 m) between individual energy storage units and non-combustible exterior surfaces, unless full-scale fire testing demonstrates that flame and radiant heat cannot propagate.
• Active Gas Extraction: Requires continuous monitoring of hydrocarbons, hydrogen, and carbon monoxide via early-detection sniffers coupled to mechanical exhaust systems operating per NFPA 69.

Without robust enclosure design, high-density li ion nmc battery banks present higher combustion enthalpies than lower-density chemistries. Designing specialized cabinets requires consulting our battery enclosure engineering guide to ensure proper internal compartmentalization and blast relief venting.

NMC Battery vs Lithium Ion: Clarifying Industry Terminology

A common point of confusion in RFQ specifications is comparing an nmc battery vs lithium ion, when in fact an NMC battery is simply a specific sub-category of the lithium-ion family. The term "lithium-ion" serves as an umbrella category encompassing various cathode chemistries paired with graphitic or silicon anodes, including Lithium Iron Phosphate (LFP), Lithium Cobalt Oxide (LCO), Lithium Manganese Oxide (LMO), Lithium Nickel Cobalt Aluminium Oxide (NCA), and Lithium Nickel Manganese Cobalt Oxide (NMC).

When an engineer specifies a generic lithium nmc battery instead of a generic lithium-ion unit, they are fixing clear baseline characteristics: high volumetric density (Wh/L), elevated working cell potentials, high round-trip discharge efficiency (95% to 98%), and a specific degradation curve requiring targeted HVAC sizing. Sizing utility-grade conversion equipment downstream must align with these distinct operating ranges, which can be reviewed in detail within our power conversion system sizing guide.

Thermal Management Requirements for High-Density NMC Systems

A lithium ion nmc rack requires strict operational temperature maintenance within a narrow band of 15 °C to 35 °C to prevent accelerated capacity fade and non-uniform cell aging. Temperature deltas across cells within a series string must not exceed 3 °C to maintain balanced internal resistance. Operating above 45 °C drives aggressive transition-metal dissolution (specifically manganese leaching into the electrolyte), which permanently poisons the graphite anode and causes rapid impedance growth.

Because an nmc cell exhibits higher internal resistance growth under high C-rate cycling than lower-density cells, active liquid cooling has replaced forced-air cooling in dense enclosures. Cold plates utilizing an ethylene glycol-water (EGW) mixture, routed directly beneath or between prismatic cells, maintain strict isothermal boundaries across multi-megawatt-hour lineups. Thermal dissipation sizing formulas must consider heat generated via joule losses (I²R) coupled to entropic heat generation (TΔS) during heavy discharge regimes.

Worked Engineering Calculation: BESS Footprint and Thermal Sizing

Consider an EPC sizing an industrial peak-shaving facility requiring an active capacity of 2,000 kWh (2 MWh) usable AC output, delivering 1.0 MW for 2 hours (a 0.5C discharge rate). System parameters: round-trip DC efficiency is 96%, PCS inversion efficiency is 98.5%, Depth of Discharge (DoD) is capped at 80% to protect cycle life, and nominal rack DC voltage is 1,000 V.

1. Determine Required Installed DC Capacity:
   Usable DC Capacity = AC Output / PCS Efficiency = 2,000 kWh / 0.985 = 2,030.45 kWh.
   Installed DC Capacity = Usable DC Capacity / (DoD × Efficiency Factor) = 2,030.45 kWh / (0.80 × 0.96) = 2,643.8 kWh.
2. Calculate Footprint Savings of NMC vs LFP:
   Assume NMC rack volumetric density is 165 kWh/m³, while an equivalent industrial LFP rack achieves 105 kWh/m³.
   NMC Total Rack Volume = 2,643.8 kWh / 165 kWh/m³ = 16.02 m³.
   LFP Total Rack Volume = 2,643.8 kWh / 105 kWh/m³ = 25.18 m³.
   Footprint reduction using NMC = (25.18 - 16.02) / 25.18 = 36.4% reduction in battery rack volume.
3. Calculate Internal Heat Rejection at 0.5C Discharge:
   Nominal discharge current I = (1,000 kW / 0.985) / 1,000 V = 1,015.2 A.
   Assume aggregate system internal resistance (R_sys) for the NMC battery bank equals 0.035 ohms.
   Joule Heat Dissipation (P_heat) = I² × R_sys = (1,015.2 A)² × 0.035 Ω = 36,072 W = 36.1 kW of continuous thermal rejection required.

This calculation demonstrates why an nmc battery excels in land-constrained substations or urban indoor vaults, provided the HVAC or liquid chiller is properly rated to displace over 36 kW of thermal energy during peak cycle windows.

Factory Specification and Factory Acceptance Testing Checklist

Procuring high-grade stationary storage arrays requires clear specification clauses within the engineering procurement package to eliminate manufacturing flaws. Factory acceptance testing (FAT) should enforce cell screening and pack-level verification against IEC 62619 clause 7.3 and UL 1973 standards.

Engineers can incorporate the following checklist directly into their procurement datasheets:

• Cell Matching Criteria: Cell capacity spread within any series string shall not exceed ±1.5% of nominal, and internal AC impedance (1 kHz) must match within ±2.0% across all delivery batches.
• BMS Telemetry Frequencies: Individual cell voltage sampling must occur at intervals ≤ 100 ms with an accuracy of ±2 mV; temperature sensors must be placed at a density of at least one probe per 4 cells.
• Mechanical Shock and Vibration: Verification under UN 38.3 test profiles (T1 through T8) to ensure structural integrity of the module busbars and laser-welded tab joints during marine/road transport.
• Insulation Resistance: Enclosure DC busbars to chassis ground must show an insulation resistance ≥ 100 MΩ when tested at 1,000 V DC in accordance with IEC 60664-1.
• Dielectric Withstand Test: High-potential test applied across isolated power circuits at 2E + 1,000 V for 60 seconds without dielectric breakdown or arc tracking.

Next steps: specifying and sourcing

Determining whether an nmc battery configuration suits your upcoming industrial project requires assessing physical plant constraints, cycle frequency, and regional fire codes. When preparing an enquiry, assemble your single-line diagram, target AC discharge profile (MW/MWh), environmental ambient ratings, and structural floor-loading limits. Review our modular energy storage systems and skid-mounted liquid-cooled ESS containers for industrial deployments. For custom electrical layout validation, auxiliary switchgear integration, or full plant quotation, submit your project specifications directly via our commercial quote page to connect with our senior application engineers.
