Low Voltage Transformer with Timer: Sizing & Wiring Guide

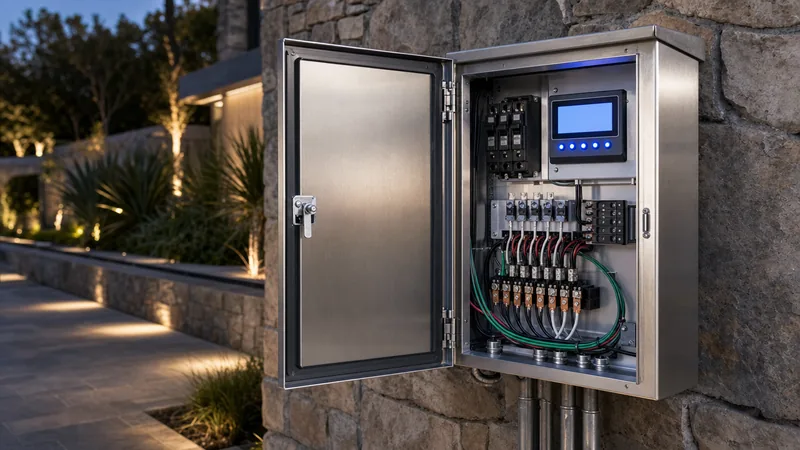

Quick answer: A low voltage transformer with timer is an outdoor-rated, step-down power supply that converts 120 V or 230 V utility mains to 12 V–15 V AC while automating circuit activation via integrated mechanical, astronomic, or smart timing relays. It prevents energy waste, reduces fixture degradation, and ensures steady secondary voltage under varying seasonal light cycles.

Exterior architectural and site illuminations require reliable power reduction combined with switching automation. Operating low-voltage luminaires without automated controls leads to daytime energy waste and shortened lamp operational life. Integrating switching mechanisms directly within the magnetic core assembly streamlines installation by eliminating external contactor boxes. For detailed sizing fundamentals of the magnetic components themselves, consult our low voltage landscape lighting transformer guide.

Operating Principles of a Low Voltage Transformer with Timer

A low voltage transformer with timer functions as an electromagnetic isolation transformer combined with a primary-side or secondary-side switching contact.

The unit incorporates an electrostatic shield between primary and secondary copper windings in compliance with UL 1838 and IEC 61558-2-6 clause 8.1. This physical isolation prevents mains-level line transients or winding insulation breakdowns from migrating into the low-voltage output conductors. The transformer primary connects to utility power (typically 120 V single-phase at 60 Hz or 230 V at 50 Hz), establishing an alternating magnetic flux within a silicon-steel laminated core. The secondary winding produces an isolated output spanning 12 V to 15 V AC across stepped tap terminals.

Timing controls are wired in series with either the primary winding or the control relay coil. When the timer mechanism contacts close, current energises the primary winding, transferring power across the magnetic core to the secondary taps. Installing the timer on the line (primary) side of the unit is the standard factory design. Primary-side switching cuts excitation losses and eliminates transformer no-load core losses (iron losses) during off cycles, improving operational efficiency over the system lifespan.

Timer Control Mechanisms: Comparison and Selection

Specifying the correct timer mechanism determines the operational accuracy, weather vulnerability, and routine maintenance overhead of the outdoor lighting timer transformer.

Engineers evaluate three dominant control technologies: electromechanical pin timers, electronic digital timers with astronomic tracking, and smart photocell-integrated relays. Mechanical units utilise a synchronous motor driving a 24-hour dial. They offer high surge tolerance but lack battery backup, meaning utility outages disrupt the operational schedule. Digital astronomic timers compute local sunrise and sunset based on geographic coordinates, adjusting automatically throughout the calendar year without requiring external optical sensors.

The following table contrasts the electrical and operational characteristics of the three main timer mechanisms used in an outdoor lighting timer transformer:

Load Sizing and Voltage Drop Engineering Calculations

Sizing a low voltage landscape lighting transformer timer circuit requires calculating total luminaire power factor, inrush current, and distribution cable voltage drop.

LED luminaires exhibit a non-unity power factor (typically 0.70 to 0.90) and high inrush charging current from on-board smoothing capacitors. According to standard engineering practice, the continuous load should not exceed 80% of the transformer continuous volt-ampere (VA) rating. For additional principles on driver loads, reference our guide on low voltage transformers for LED lights.

To calculate secondary voltage drop across a two-wire copper run, use the standard formula:

V_drop = (2 × L × I × R) / 1000

Where:

• L = One-way conductor length in metres (or feet)
• I = Circuit current in amperes (VA divided by secondary output voltage)
• R = Conductor resistance in ohms per 1,000 metres (or feet) per NEC Chapter 9, Table 8

Consider a practical engineering design example. A site designer installs a continuous load of 180 VA in LED architectural luminaires across a 45-metre (147.6-foot) circuit run using 12 AWG (3.31 mm²) stranded copper cable. The copper resistance for coated 12 AWG stranded conductor is approximately 6.50 ohms per 1,000 metres.

1. Calculate secondary load current at nominal 12 V: I = 180 VA / 12 V = 15.0 A.
2. Determine total voltage drop: V_drop = (2 × 45 m × 15.0 A × 6.50 Ω/km) / 1000 = 8.775 V.

An 8.77 V drop on a 12 V tap leaves only 3.23 V at the final luminaire, causing LED drivers to shut down or flicker. To resolve this, the circuit must be divided into three home-run lines of 60 VA (5.0 A) each. With a 5.0 A load over 45 metres: V_drop = (2 × 45 × 5.0 × 6.50) / 1000 = 2.92 V. Connecting this home run to a 15 V secondary tap delivers 15 V - 2.92 V = 12.08 V at the distal fixture, perfectly matching the target operational envelope. Sizing tap selections correctly is detailed further in our 12-volt landscape lighting transformer guide.

Wiring and Installation Procedures for an Outdoor Lighting Timer Transformer

Safe installation of a low voltage transformer with timer requires strict compliance with NEC Article 411 and local wiring codes governing wet and damp locations.

Follow this sequential field installation procedure:

1. Mounting the housing: Secure the unit to a vertical fire-resistant surface (such as concrete or structural masonry) at least 300 mm (12 inches) above finished grade level to prevent water ingress during ground splash or snow accumulation.
2. Line-side supply connection: Route a dedicated branch circuit protected by an upstream Ground Fault Circuit Interrupter (GFCI / RCD, 30 mA or 10 mA sensitivity) into the primary compartment. Ground the enclosure chassis using the internal copper earth stud in accordance with local regulations.
3. Secondary lead configuration: Strip secondary low-voltage trunk cables by 15 mm. Terminate the common leads into the 'COM' terminal busbar and the phase leads into the chosen voltage tap (12 V, 13 V, 14 V, or 15 V) based on run calculations. Tighten terminal lugs to the manufacturer specified torque (typically 2.0 to 2.5 Nm).
4. Timer calibration: For digital astronomic timers, set the internal clock, time zone, and geographic latitude/longitude coordinates. If utilising an external photocell bypass, position the optical sensor away from the beam path of the luminaires to prevent optical feedback oscillation (false cycling).
5. Circuit commissioning: Energise the primary circuit breaker. Measure output voltages across the secondary terminal strip with a calibrated digital multimeter before closing and latching the weather-sealed door.

Troubleshooting Low Voltage Landscape Lighting Transformer Timer Systems

Systematic fault diagnostics prevents unnecessary equipment replacement when dealing with secondary circuit failures or timer malfunctions.

When luminaires fail to illuminate, verify whether the fault originates in the primary supply, the timing controller, or the secondary magnetic circuits. A primary tripped breaker usually points to a thermal overload or an earth ground fault on the 120/230 V side. If the secondary internal magnetic circuit breaker trips repeatedly, measure the cold circuit resistance with an ohmmeter while the transformer is de-energised; a reading near zero ohms confirms a dead short along the direct-burial cable run.

Timer desynchronisation frequently occurs after severe electrical storms. Power surges can freeze the microprocessor in digital astronomic controllers. Resetting the processor via the factory reset pin clears memory corruptions. In electromechanical timers, inspect the primary microswitch continuity using a high-impedance multimeter: if the timing motor spins the wheel but contact resistance exceeds 0.5 ohms when closed, replace the mechanical timer insert. Ensure all field modifications preserve the enclosure environmental rating.

Commercial Project Specification Checklist

Consulting engineers and EPC contractors should enforce rigorous build requirements when issuing Requests for Quotation (RFQs) for low-voltage power units.

Review the mandatory parameters below prior to procuring commercial-grade outdoor power supplies:

• Core construction: High-grade silicon steel laminations, vacuum-pressure impregnated (VPI) with Class H (180°C) insulation to minimise acoustic hum below 40 dB.
• Enclosure material: Minimum 304 stainless steel or powder-coated 1.5 mm cold-rolled steel, rated minimum NEMA 3R (or IP65 per IEC 60529) with bottom cable entry knockouts.
• Secondary protection: Independent magnetic circuit breakers on each low-voltage output common leg to prevent transformer burn-out under sustained line faults.
• Output taps: Multi-tap secondary terminal block providing 12 V, 13 V, 14 V, and 15 V AC to counteract cable voltage attenuation.
• Timer integration: Modular modular-bay DIN-rail timer bracket or plug-and-play receptacle enabling field replacement without replacing the main magnetic core.
• Grounding: Dual internal grounding lugs with copper bonding jumper tied directly to the chassis frame.

Next steps: specifying and sourcing

When specifying outdoor power supplies for large commercial developments or custom architectural installations, supply your full electrical profile including primary line voltage, total connected luminaire VA, longest cable run, and required enclosure environmental rating. Sourcing custom step-down units ensures thermal longevity and full code compliance. Review our industrial dry-type transformers for large distribution architectures, or request custom build options directly through our engineering team at the transformer quotation page.
