PT Transformer Guide: Selection, Accuracy & Sizing

Quick answer: A pt transformer (potential transformer, also known as a voltage transformer) is a parallel-connected instrument transformer designed to step down high system voltages to a standardized, safe secondary level (typically 110 V, 115 V, or 120 V) for revenue metering, instrumentation, and protective relaying.

In electrical distribution networks and transmission substations, measuring primary voltages directly is neither practical nor safe. An instrument transformer acts as an electrical boundary, galvanically isolating sensitive measurement equipment and secondary control circuits from high-voltage primary conductors. Specifying the wrong equipment can result in severe metering revenue losses, relay failure during system faults, or catastrophic insulation failure triggered by ferroresonance. Whether designing integrated medium voltage electrical systems or utility switchyards, engineers must balance thermal burden ratings, accuracy classes, and insulation coordinates to achieve dependable system telemetry.

Working Principles of the PT Transformer

A pt transformer operates on fundamental electromagnetic induction principles identical to a standard power transformer, but it is engineered specifically to maintain high phase-angle and voltage-ratio accuracy under minimal load.

Unlike current transformers that operate in series with the load current, a potential transformer connects in shunt (line-to-ground or line-to-line) across the circuit being monitored. The primary winding features a high number of turns to withstand system line voltage, while the secondary winding has fewer turns calculated to deliver standard secondary voltages defined by standards such as IEC 61869-3 or IEEE C57.13. Secondary outputs typically equal 100 V or 110 V line-to-line in IEC territories, and 115 V or 120 V line-to-line in ANSI/IEEE jurisdictions (yielding 63.5 V or 69.3 V phase-to-neutral, respectively).

Because the secondary burden (connected voltmeter, protective relay coil, or power transducer) presents a high impedance, the PT transformer draws very little primary current and functions in a virtual open-circuit condition. The core steel operates at conservative magnetic flux densities—often below 1.2 to 1.4 Tesla under continuous rated voltage—to prevent magnetic saturation during transient overvoltage events. Maintaining operation on the linear portion of the magnetization curve ensures that secondary voltage output remains strictly proportional to the primary line voltage across both steady-state and dynamic fault conditions.

Electromagnetic vs High Voltage Potential Transformer (CVT)

Inductive potential transformers serve medium-voltage applications, whereas a capacitive high voltage potential transformer becomes the preferred engineering choice on high-voltage transmission lines.

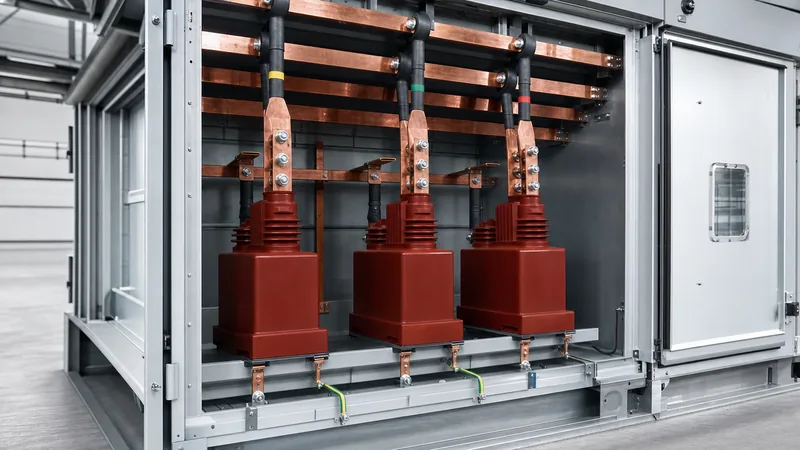

At distribution voltages from 3.3 kV up to 36 kV, inductive (electromagnetic) PTs cast in cycloaliphatic epoxy resin are standard within MV switchgear and unit substations. Between 36 kV and 72.5 kV, both cast-resin and oil-immersed inductive designs are common. However, as system voltages exceed 110 kV, 220 kV, or 400 kV, the insulation requirements for an all-copper, iron-core inductive transformer become economically and physically prohibitive.

Capacitor Voltage Transformers (CVTs) resolve this physical limitation by using a capacitive voltage divider stack housed inside porcelain or composite polymer insulators, followed by an intermediate electromagnetic step-down transformer tuned with a series compensation reactor. CVTs also offer the distinct operational advantage of permitting power line carrier (PLC) communication signals to be injected into the transmission system via high-frequency coupling terminals.

Accuracy Classes and Burden Calculation

Selecting the correct accuracy class requires calculating the total apparent power drawn by all connected secondary devices, known as the rated burden, expressed in volt-amperes (VA).

Under IEC 61869-3 clause 5.601, metering classes are specified as Class 0.1, 0.2, 0.5, or 1.0. A Class 0.2 metering PT guarantees that voltage ratio error remains within ±0.2% and phase displacement remains within ±10 minutes of angle between 80% and 120% of rated primary voltage, provided the connected burden stays between 25% and 100% of the rated VA output at a 0.8 lagging power factor. Protection classes (typically 3P and 6P) allow larger ratio errors (±3% and ±6% respectively) but guarantee linear operation over extended voltage ranges—frequently up to 190% of rated voltage for ungrounded networks during ground faults—to provide accurate signals to substation protection relays.

Engineers must not overlook the burden introduced by secondary wiring runs between the switchgear marshalling kiosk and the control room. Consider the following practical field calculation:

1. Identify connected device burden: One digital multi-function revenue meter = 1.5 VA; two numerical protection relays = 0.5 VA each. Total instrument burden = 2.5 VA.
2. Calculate cable loop resistance: Assume a 50-metre cable run (100 m round-trip loop) of 2.5 mm² stranded copper wire. With copper resistivity at 20°C yielding 0.0074 Ω/m, total loop resistance \( R_{loop} = 100 \times 0.0074 = 0.74\ \Omega \).
3. Calculate secondary current: At rated secondary line-to-neutral voltage of 63.5 V and a total operational circuit burden of 15 VA, secondary current \( I_s = \frac{15\ \text{VA}}{63.5\ \text{V}} = 0.236\ \text{A} \).
4. Calculate wiring VA burden: \( S_{cable} = I_s^2 \times R_{loop} = (0.236)^2 \times 0.74 = 0.041\ \text{VA} \). In high-current secondary schemes (such as 5 A CT circuits), cable burden dominates, but for PT circuits, excessive lead lengths cause voltage drops that shift the measured phase angle. A 0.5 V drop over a 63.5 V secondary introduces a 0.78% ratio error, instantly corrupting a Class 0.2 metering installation into non-compliance.

Ferroresonance Risks and Damping Solutions

Ferroresonance is a non-linear oscillatory phenomenon that occurs when the saturable inductance of an iron-core PT transformer interacts with system capacitance, causing destructive sustained overvoltages.

This condition frequently arises in medium-voltage distribution networks configured with isolated or resonant-earthed (Peterson coil) neutrals. When circuit breaker switching, lightning surges, or single-phase-to-ground faults occur, the capacitive charge of the cable system or open disconnectors can drive the inductive core of the PT into deep magnetic saturation. When the core saturates, its magnetising inductance drops by orders of magnitude, matching the capacitive reactance of the system and creating a resonant tank circuit. This results in heavy primary currents, loud acoustic hum, severe phase-to-ground overvoltages (reaching 2.5 to 3.0 per-unit), and rapid thermal destruction of the transformer winding.

To mitigate ferroresonance in substation design, engineers employ three proven techniques:

• Broken-delta damping resistors: Utilizing an auxiliary secondary winding connected in broken delta (open delta). Under normal balanced operating conditions, the sum of three-phase voltages across the open delta is zero, so no current flows. When an unbalanced resonant condition or ground fault occurs, a residual voltage appears across the break. A permanently connected ceramic or vitreous enamel power resistor (typically sized between 20 Ω and 60 Ω, rated for 200–500 W continuous thermal dissipation) absorbs the oscillatory energy and damps out resonance within cycles.
• Solid-state ferroresonance suppression devices: Electronic active dampers installed across the open-delta circuit that monitor residual voltage and momentarily switch in an ultra-low impedance damping load only when resonance frequencies (sub-harmonic, fundamental, or third-harmonic) are detected.
• Low flux density core designs: Specifying primary magnetic cores engineered with grain-oriented electrical steel operating at an exceptionally low continuous flux density (under 0.8 to 1.0 Tesla). This provides a massive thermal and saturation headroom buffer before non-linear saturation can initiate.

Specification and Factory Acceptance Checklist for PT Transformers

A rigorous specification and testing procedure ensures that potential transformers survive site lightning impulses, switching transients, and environmental contamination.

Before purchasing or clearing equipment through factory acceptance testing (FAT), verify compliance against the inspection points detailed in the checklist below, aligned with IEC 61869-1 and IEEE C57.13 requirements, and complement these with standard procedures for power transformer testing where shared yard infrastructure exists:

Next steps: specifying and sourcing

Procuring the right potential transformer requires complete primary electrical ratings, secondary functional assignments, and defined physical dimensions. When preparing technical tenders or requests for quotation, provide the system rated voltage, insulation class (BIL), primary/secondary winding configuration (single-phase line-to-ground versus line-to-line), secondary burden allocations, and required accuracy classes.
