Key takeaways
- AC-coupled solar energy battery storage systems provide direct retrofitting flexibility for existing solar arrays, while DC-coupled systems deliver 3% to 5% higher round-trip round efficiency.
- Nominal battery bank capacity must be calculated using critical load energy, target days of autonomy, maximum depth of discharge (DoD), and thermal derating coefficients.
- Lithium Iron Phosphate (LiFePO4 or LFP) remains the safest chemistry for residential battery storage systems due to its high thermal runaway threshold exceeding 270°C.
- Compliance with NFPA 855 clause 15.3 mandates a minimum 914 mm (3 ft) separation between residential energy storage units unless listed under UL 9540A large-scale fire testing.
- True whole home backup power solutions require microgrid-capable inverters with sub-20-millisecond automatic transfer switching and full neutral-ground bonding management during islanded mode.
Quick answer: A solar energy battery storage system captures excess direct current (DC) electricity generated by photovoltaic (PV) arrays, converts it through a bidirectional power conversion system, and stores it in electrochemical cells for backup power, peak shaving, and self-consumption optimisation during grid outages or high-tariff periods.
Integrating battery storage systems for solar power requires addressing specific electrical engineering trade-offs. Power system designers must balance round-trip efficiency (RTE), battery chemistry safety, maximum discharge rates (C-rate), and short-circuit fault current contributions. Whether engineering a modular whole home backup power solution or a three-phase light commercial installation, selecting between high-voltage (HV) and low-voltage (LV) architectures fundamentally dictates the switchgear topology, balance-of-system (BOS) capital costs, and dynamic operational reliability of the asset.

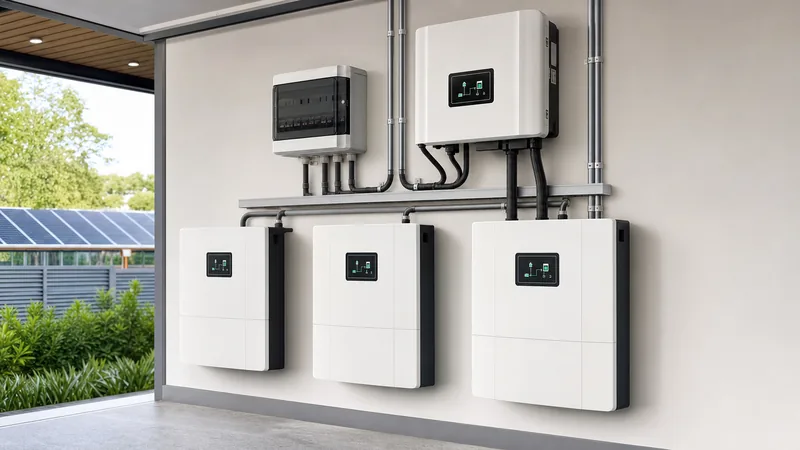

Architectural Topologies for Solar Energy Battery Storage Systems
System engineers configure solar electricity battery storage through either DC-coupled or AC-coupled topologies, each presenting distinct thermal, conversion, and protective characteristics.
In a DC-coupled arrangement, the solar PV string and the battery bank share a common DC bus connected via maximum power point tracking (MPPT) charge controllers. Energy flows directly from the PV array to the battery units without intermediate DC-to-AC conversion steps. This architecture delivers an operational round-trip efficiency of 89% to 94%, as solar power only undergoes single-stage conversion when dispatched to alternating current (AC) house loads. DC-coupled systems dominate new installations where space constraints require compact equipment footprints and unified control hardware.
Conversely, an AC-coupled topology connects the photovoltaic array and the home energy storage battery to separate inverters on a common 230V/400V AC distribution bus. While this design experiences dual-conversion losses (PV DC to AC, then AC back to battery DC for charging), resulting in a lower round-trip efficiency of 82% to 87%, it offers exceptional modularity. Engineers specifying equipment for solar panels and battery storage retrofits routinely deploy AC coupling because it does not disturb existing, pre-certified grid-tied string inverters. For larger commercial installations requiring advanced power smoothing, pairing AC-coupled systems with dedicated power conversion systems (PCS) provides independent control over active and reactive power profiles.
Sizing Methodology for Solar Panels and Battery Storage
Accurate sizing of a residential battery energy storage system requires rigorous load profiling rather than simple daily kilowatt-hour averaging. System designers must calculate continuous critical load demands, peak inductive inrush currents, and environmental deratings.
Consider a design scenario for a suburban facility requiring a reliable house battery system to support critical circuits during protracted grid instability:
- Daily critical load energy (E_crit): 16.0 kWh/day
- Required autonomy period (N): 1.5 days
- Nominal bus voltage (V_nom): 51.2 V (low-voltage rack) or 400 V (high-voltage stack)
- Maximum allowable Depth of Discharge (DoD): 85% (0.85)
- System conversion efficiency (η_sys): 89% (0.89)
- Ambient thermal derating factor (k_temp): 0.92 (calculated for 0°C winter conditions)
The required nominal battery storage capacity (C_nom) in kilowatt-hours is calculated using the following engineering formula:
C_nom = (E_crit × N) / (DoD × η_sys × k_temp)
C_nom = (16.0 kWh × 1.5) / (0.85 × 0.89 × 0.92) = 24.0 / 0.696 = 34.48 kWh
To support this household battery storage bank, the solar PV generation must deliver adequate daily surplus beyond normal daytime consumption. Assuming a minimum winter peak sun hour (PSH) metric of 3.2 hours and an overall PV system derate of 0.78, the required dedicated solar charging array capacity (P_pv) is:
P_pv = C_nom / (PSH × η_charge × k_derate)
P_pv = 34.48 kWh / (3.2 h × 0.95 × 0.78) = 34.48 / 2.37 = 14.55 kWp
Engineers must also evaluate instantaneous power requirements. If the building contains an air-source heat pump with a locked rotor amperage (LRA) drawing 38 A at 230 V (8.74 kVA surge), the selected battery inverter must sustain an overload factor of 1.5× to 2× for at least 5 seconds without triggering overcurrent protective trips.
Battery Storage Systems for Solar Power: Technical Comparison
Low-voltage (LV) and high-voltage (HV) residential battery storage systems differ significantly across balance-of-system hardware, installation complexity, and electrical fault behavior.
| Design Parameter | Low-Voltage (48V / 51.2V) Architecture | High-Voltage (200V - 600V) Architecture | Engineering Implication |
|---|---|---|---|
| Bus Operating Voltage | 42.0 V to 58.4 V DC | 180 V to 600 V DC | HV reduces I²R resistive cable losses by up to 85% over identical distances. |
| Continuous Discharge Current (at 10 kW) | ~195 A to 210 A | ~20 A to 25 A | LV demands heavy copper conductors (70 mm²+) and industrial-grade fuses. |
| Cell Balancing Topology | Passive shunt or active balancing within parallel blocks | Series-stacked internal strings with active BMS monitoring | HV requires tighter manufacturing cell impedance matching to avoid early degradation. |
| Inverter Coupling Efficiency | 88% - 91% (requires large high-frequency transformer) | 94% - 97.5% (direct buck-boost to DC-bus) | HV avoids multi-stage step-up magnetics, yielding higher round-trip efficiency. |
| Short-Circuit Fault Current (I_sc) | Extremely high at terminals (>10 kA prospective) | Moderate (2 kA to 5 kA prospective) | LV switchgear requires high interrupting capacity (AIC) ratings under IEC 60947-2. |
| Modular Expandability | Simple parallel connection of modular battery units | Series module additions with voltage aggregation | LV offers wider scalability without high DC-voltage safety interlocks. |
When selecting chemistry for stationary solar energy storage solutions, Lithium Iron Phosphate (LiFePO4 or LFP) has largely displaced Nickel Manganese Cobalt (NMC). As explored in our technical breakdown of LFP vs NMC battery chemistry, LFP cells deliver 4,000 to 6,000 equivalent full cycles at 80% depth of discharge, compared to 1,500 to 2,500 cycles for NMC. Furthermore, LFP exhibits superior structural stability under thermal abuse conditions.
Safety, Fire Protection, and Standards Compliance
Regulatory compliance for any battery energy storage system for home or commercial facilities requires strict adherence to international electrical and fire safety mandates.
Under IEC 62619 clause 8.2 and UL 1973, stationary battery units undergo destructive testing to verify that internal cell failure does not cause thermal propagation to adjacent cells. If an internal short circuit occurs, the mechanical enclosure must contain internal venting gases or channel them through burst discs. For North American projects, NFPA 855 clause 15.3 dictates strict installation limits: residential energy storage battery enclosures must maintain a minimum clear separation distance of 914 mm (36 inches) from doors, windows, and other storage units unless specific full-scale burn testing under UL 9540A validates closer spacing.
Outdoor installations must incorporate climate-controlled packaging to prevent electrolyte degradation. Sub-zero temperatures promote lithium plating on the graphite anode during high-rate charging, permanently degrading cell capacity and elevating short-circuit risks. Advanced residential BESS hardware integrates internal heating elements or closed-loop thermal regulation, as documented in our engineering guide to battery cooling systems.
Whole Home Backup Power Solution and Grid Islanding Architecture
A true whole home backup power solution relies on an integrated Automatic Transfer Switch (ATS) or an intelligent microgrid management interface capable of disconnecting from the utility within milliseconds.
Under normal conditions, the battery inverter remains phase-locked to the utility voltage and frequency vectors according to IEEE 1547-2018 Table 1. When grid disturbance thresholds trip (such as under-voltage <0.88 p.u. or frequency deviations outside 49.5–50.5 Hz), the microgrid controller executes a disconnect sequence:
- The static switch or contactor physically decouples the domestic load bus from the incoming grid feeder within 10 to 20 milliseconds, preventing dangerous back-feeding into municipal utility infrastructure.
- The inverter switches its control algorithm from grid-following (current-source mode) to grid-forming (voltage-source mode), synthesizing a stable 230V/400V reference waveform.
- An internal neutral-ground bonding relay closes to establish a locally grounded Men (Multiple Earthed Neutral) or TN-S grounding reference, maintaining Earth fault protection operability via local residual current devices (RCDs).
- If deployed alongside an AC-coupled solar inverter, the storage inverter initiates frequency-shift power control (typically between 50.2 Hz and 52.0 Hz) to throttle or shut down PV production when battery state-of-charge exceeds 95%.
Upon utility restoration, the ATS observes grid synchronization stability for a pre-programmed dwell period (typically 300 seconds under IEC standards) before executing a seamless, closed-transition phase-matched reconnection.
Factory Acceptance Testing and Commissioning Checklist
Commissioning residential battery storage systems or light commercial PV-coupled assets requires comprehensive verification before energisation.
- Insulation Resistance Verification: Conduct a 500 V DC megohmmeter test across isolated positive and negative battery distribution buses to earth ground. Measured resistance must exceed 1.0 MΩ in accordance with IEC 60364-6.
- Torque and Thermal Witnessing: Torque all DC busbar fasteners and high-current lug terminations to the manufacturer-specified values using a calibrated torque wrench. Mark torqued bolts with witness paint.
- Polarity and Open-Circuit Voltage Matching: Measure open-circuit string voltages before rack parallel coupling; string voltage differentials must remain below 1.0% to prevent destructive inrush cross-currents.
- BMS Communication Interlock Check: Verify high-speed CANbus or RS485 Modbus TCP communications between the battery management system and the hybrid inverter. Simulate a communication loss by pulling the RJ45 interface; the inverter must enter an emergency stop state within 2.0 seconds.
- Controlled Black-Start Energisation: De-energise the main utility breaker to simulate total grid failure under a 50% step-load. Verify that the ATS disengages within nominal trip limits, the inverter maintains voltage stability without dropouts, and solar production throttles appropriately under frequency modulation.
Next steps: specifying and sourcing
When preparing requests for quotation (RFQs) for complete solar energy battery storage systems, engineering teams should specify clear electrical parameters: nominal capacity (kWh), continuous and surge power ratings (kW), bus voltage range, cell chemistry (LFP preferred), and communications protocols (Modbus TCP/CAN). For commercial and utility-grade implementations, source our pre-engineered energy storage systems, high-density liquid-cooled ESS containers, or dedicated distribution interfaces including pad-mounted transformers. Submit your project drawings and single-line diagrams directly through our technical quote page to receive comprehensive factory-direct equipment specifications and compliance documentation.
Frequently asked questions
What is the difference between AC-coupled and DC-coupled solar battery storage?
DC-coupled systems connect solar panels and battery storage to a shared direct-current bus, delivering 3% to 5% higher round-trip efficiency. AC-coupled systems integrate the battery via a dedicated inverter to an alternating-current distribution bus, making them easier to retrofit into existing solar arrays.
How large of a battery is needed to power a whole house?
A standard home typically requires a battery capacity between 13 kWh and 28 kWh to sustain critical loads like refrigeration, lighting, and HVAC during a 24-hour outage. Sizing depends on daily consumption, peak surge currents from inductive motors, and the duration of autonomy required.
How long do residential solar energy battery storage systems last?
Lithium Iron Phosphate (LFP) residential battery storage systems typically provide an operational lifespan of 10 to 15 years. They are rated to endure 4,000 to 6,000 complete charge and discharge cycles before their available capacity degrades to 70% or 80% of the initial nominal rating.
Can a solar battery run an air conditioner during a grid outage?
Yes, provided the battery inverter continuous output rating meets the running wattage and its peak surge rating handles the air conditioner's locked rotor amperage. Installing a soft-starter on the AC compressor motor significantly reduces inrush current, preventing inverter overload trips during islanded backup operation.
What safety standards must home battery storage systems meet?
Residential battery energy storage systems should comply with UL 1973 and IEC 62619 for cell safety, UL 9540 for complete energy system integration, and UL 9540A fire propagation testing. Structural placement must conform to local fire codes, including NFPA 855 separation and clearance mandates.
